IPSU-C0446-6M12 datasheet, PDF

Datasheet> All Categories > The sensor> IPSU-C0446-6M12

IPSU-C0446-6M12: DescriptionPRESSURE SENSOR -14.5 TO +150PSI; CategoryThe sensor; File Size82KB，2 Pages; ManufacturerCynergy 3; Environmental Compliance

Download Datasheet Parametric View All

IPSU-C0446-6M12 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	IPSU-C0446-6M12	-	-	View	Buy Now

IPSU-C0446-6M12 Overview

PRESSURE SENSOR -14.5 TO +150PSI

IPSU-C0446-6M12 Parametric

Parameter Name	Attribute value
pressure type	complex
work pressure	-14.5 PSI ~ 150 PSI（-100 kPa ~ 1034.21 kPa）
Output type	Analog voltage
output	0 V ~ 5 V
Accuracy	±0.25%
Voltage - Power	9 V ~ 32 V
Port size	Male - 1/4" (6.35mm) NPT
Port style	Threaded
characteristic	Amplified output, temperature compensation
Terminal type	Connector
maximum pressure	300 PSI（2068.43 kPa）
Operating temperature	-20°C ~ 80°C
Package/casing	Cylindrical, threaded - M12
Supplier device packaging	-

Preview

Download Datasheet

View All

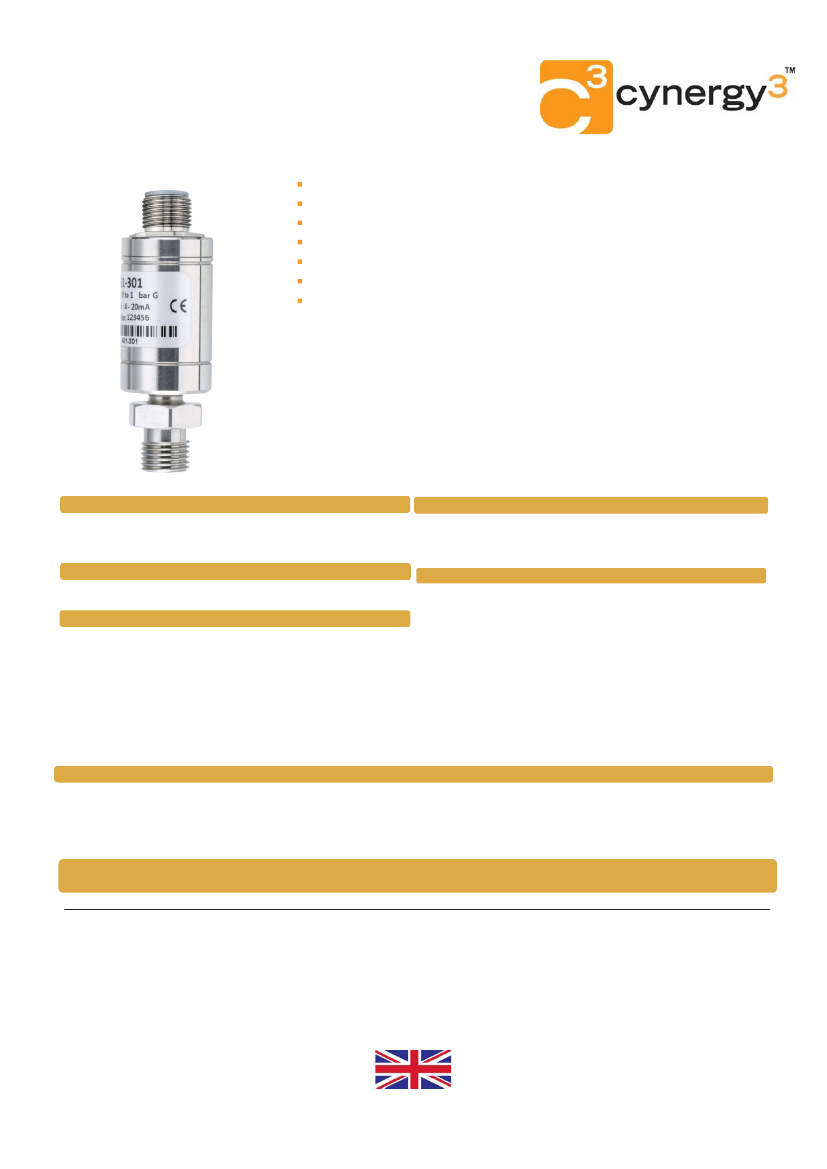

IPSU-M12 Series

Industrial Pressure Sensor - Ceramic - with M12 4-Pin Connector

Piezo-resistive thick film ceramic sensor

Stainless steel body

Accuracy <

0.25% FS BFSL

0-5V or 4-20mA output

Pressure ranges from -14.5 to 5800 psi

M12 4-pin connector

1/4" NPT process connection

The IPSU-M12 series is suitable for use in a wide range of industrial applications. The probe uses a

piezo-resistive ceramic sensor, giving excellent media compatibility within a stainless steel housing

The electronics incorporate a microprocessor based amplifier, requiring no adjusting and giving

stable electronics, especially industrial applications..

Each device is temperature compensated, calibrated and supplied with a traceable serial number

and calibration data.

Mating cable and plug assemblies are available - see datasheet M12 Cable Set Series

Electrical Protection

Supply reverse polarity

Electromagnetic compatibility

Mechanical Stability

Shock

Vibration

Temperatures & Thermal Effects

Media Temperature

Ambient Temperature

Storage temperature

Compensated temperature range

Thermal Zero Shift (TZS)

Thermal Span Shift

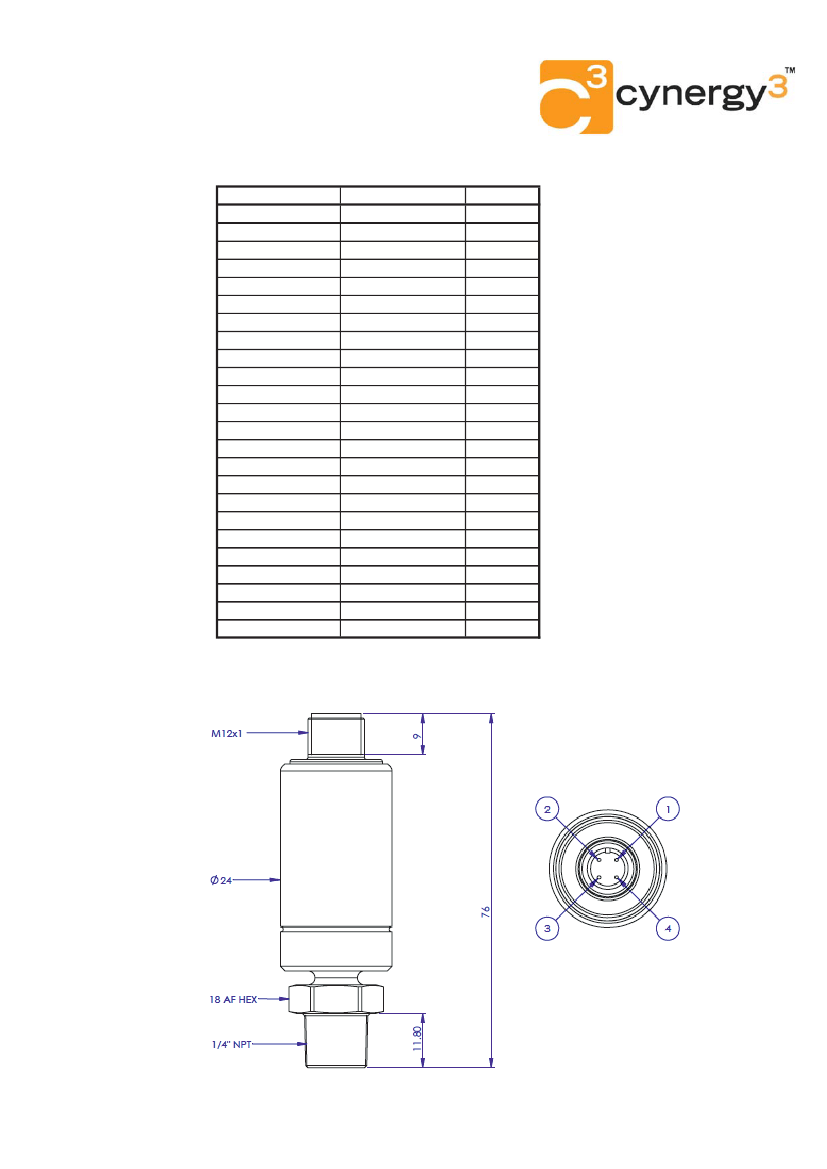

Performance

Accuracy (Non-Linearity & Hysteresis)

Setting Errors (offsets)

2-wire

3-wire

Material Specifications

Housing

“O” ring seals

Diaphragm

Media wetted parts

Weight

Installation position

Operational Life

Insulation resistance

Environmental protection

<±0.25% / FS (BFSL)

Zero & Full Scale, <±0.5% / FS

No damage/no function

CE Compliant

100g / 11s

10g RMS (20 - 2000Hz)

-40ºC to +135ºC

-20ºC to +80ºC

-40ºC to +125ºC

+20ºC to +80ºC

<±0.04% /FS/ºC

<±0.015% /ºC

316L Stainless Steel

Viton

Ceramic Al

96%

Housing & connection, “O” ring seal,

diaphragm

Approx 100g

Any

> 100x 10 cycles

> 50MOhms at 50Vdc

IP67 (only when used with a similarly

rated connector)

3750

6000

7500

6000

9750

Pressure Ranges and Passive mV/V Outputs

Nominal Pressure, Gauge, psi

150

300

750

1500

Compound range

psi

-7.5 to 0 -7.5 to 30-15 to 75 -15 to 1235 -15 to 285 -15 to 360

Permissible Overpressure psi

150

300

600

1500

3000

Burst Pressure

psi

180

375

750

1800

3750

Output Signals and Supply Voltages

Wire system

Output

2-wire

4-20mA

3-wire

0-5Vdc

Supply Voltage

9-32Vdc

Connection Pin Nos

+ve Supply Pin 1

Output Pin 3

-ve Supply Pin 2

Earth Pin 4

Ground Earth Pin

Cynergy3 Components Ltd.

7 Cobham Road

Ferndown Industrial Estate

Wimborne, Dorset BH21 7PE

Telephone +44 (0) 1202 897969

Email:sales@cynergy3.com

ISO

9001

C E R T I F I E D

IPSU-M12 2018

Made in the UK

www.cynergy3.com

© 2018 Cynergy3 Components, All Rights Reserved. Specifications are subject to change without prior notice. Cynergy3 Components and the Cynergy3 Components logo are trademarks of Cynergy3 Components Limited.
