CMS-PEN
Plotter pens for the CMS-P1-PLOTTER
Data sheet
100217_en_02
1
Description
© PHOENIX CONTACT 2013-10-11

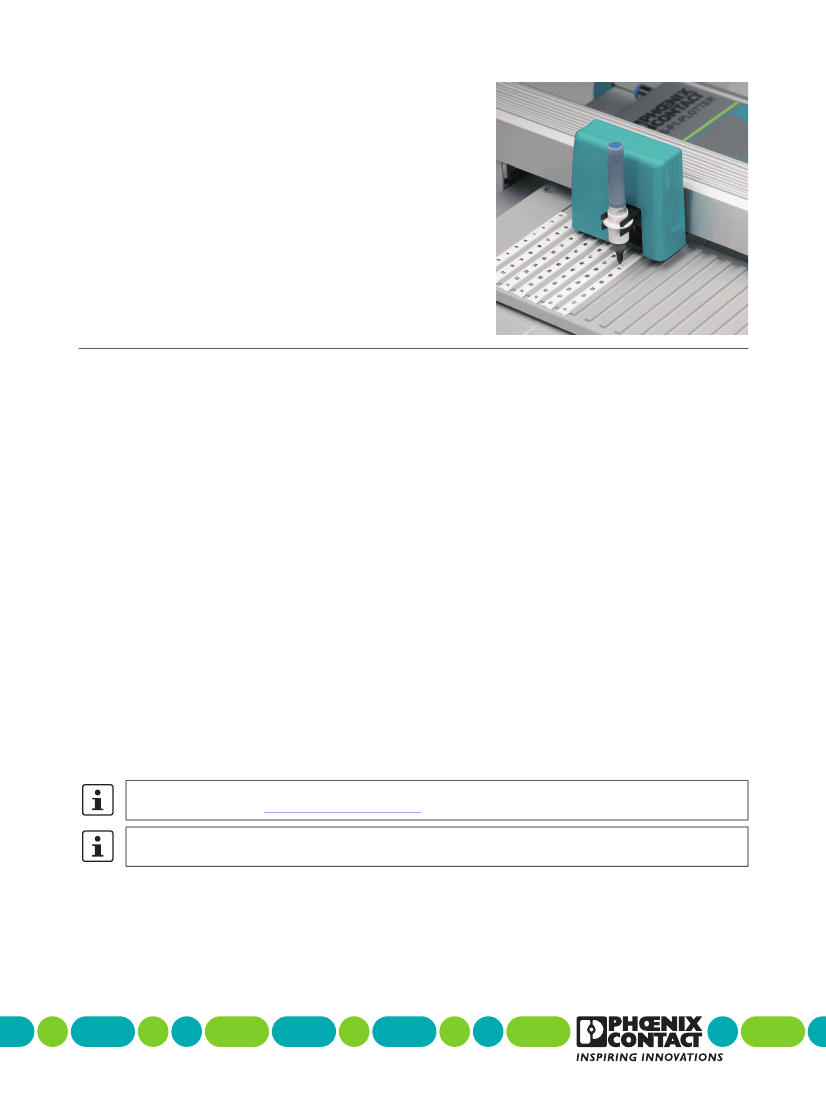

The CMS-PEN plotter pens were developed for industrial
use with the CMS-P1-PLOTTER. They are suitable for label-
ing plastic surfaces of Phoenix Contact marking material.
The plotter pens are provided with a carbide drawing tip with
a cross-shaped notch in the front face. This drawing tip
guarantees a high level of durability, a faster flow of ink,
clear lines and a high opacity.
A special ink (CMS-INK-TR-C5) ensures a print image of a
very high quality and wipe resistance.
The plotter pens are supplied with a sealing cap. The seal-
ing cap has an integrated sealing system, preventing the
plotter pens from drying out.
The plotter pens are available as refillable or disposable
pens. The disposable pens are already filled with 1 ml spe-
cial ink, refilling is not possible. If the ink supply is used up,
the pen will be completely disposed.
The refillable plotter pens are filled with special ink using an
ink cartridge. Refilling from a larger container is not neces-
sary owing to the cartridge shape.
Cleaning cartridges can be used to clean the refillable plot-
ter pens, if required. Instead of the ink cartridge, a cleaning
cartridge is placed on the plotter pen. The cleaning fluid is
then pushed through the plotter pen and collected in a
cleaning cup.
Make sure you always use the latest documentation.
It can be downloaded at
phoenixcontact.net/products.
This data sheet is valid for all products listed on the following page:
CMS-PEN
2
Ordering data
Type
Order No.
Pcs. / Pkt.
Plotter pens
Description
Refillable plotter pen,
unfilled, can be filled with CMS-INK-TR-C5 ink car-
tridges, incl. sealing cap
Line thickness 0.25 mm
Line thickness 0.35 mm
Line thickness 0.50 mm
Disposable plotter pen,
non-refillable, filled with 1 ml special ink, incl. seal-
ing cap
Line thickness 0.25 mm, color: black
Line thickness 0.35 mm, color: black
CMS-PEN 0,25
CMS-PEN 0,35
CMS-PEN 0,50
5067815
5067828
5067831
1
1
1
CMS-DISPOSABLE-PEN 0,25 TR
CMS-DISPOSABLE-PEN 0,35 TR
5146685
5146686
1
1
Ink cartridge
Description
Ink cartridge,
special black ink for high demands, for marking plastic labels,
5 cartridges of 1 ml each
Type
CMS-INK-TR-C5
Order No.
5146684
Pcs. / Pkt.
1
Cleaning material
Description
Type
Order No.
5146751
Pcs. / Pkt.
1
Cleaning cartridges with replacement sealing caps
for CMS-PEN... plot- CMS-R-SET-TR
ter pens,
2 cartridges of 10 ml each, cleaning cup
Cleaning cartridges
with replacement sealing caps for CMS-PEN... plotter
pens,
2 cartridges of 10 ml each
CMS-R-FLUID-TR-C2
5146752
1
100217_en_02
PHOENIX CONTACT GmbH & Co. KG • 32823 Blomberg • Germany
phoenixcontact.com
