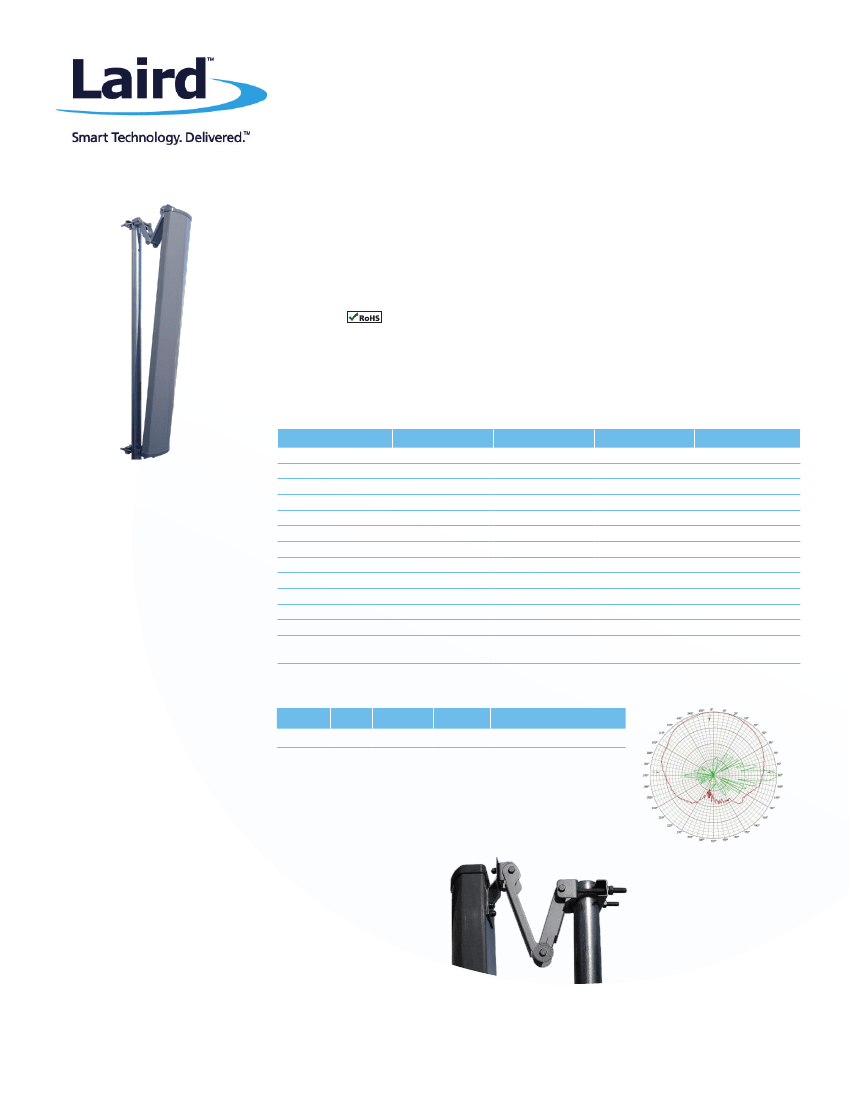

Vertically Polarized Sector Antennas
2300-2700 MHZ VERTICALLY POLARIZED BASE STATION SECTOR ANTENNA
The 60deg, 90deg and 120deg vertically polarized base station sector antenna systems offered by Laird
Technologies are constructed of UV stable fiber glass radomes. The 45deg sector has a UV Stable ASA plastic
radome. The radome construction gives long service life under the most demanding conditions. The antennas are
constructed using corrosion resistant metal elements and a unique air dielectric system which are more stable than
PCB based antenna systems because they don’t absorb moisture, which can degrade the performance of PCB based
antenna systems. The sectors come with a stainless steel scissor bracket mounting system for ease of installation
and alignment.
SA24WB
FEATURES
•
•
•
•
•
Vertically polarized wide band performance
45, 60, 90, and 120 deg models with gains from 16dBi to 20dBi
Type N female integrated connector
Extremely rugged for long service life in extreme environments
Weatherproof
•
•
•
•
•
•
MARKETS
WiMAX applications
Base station antennas
802.11b and 802.11g wireless systems
Point to multi-point systems
Broadband wireless access
MMDS applications
PARAMETER
Frequency range
VSWR
Impedance
Input power
Pole diameter (OD)
Temperature
Gain
Horizontal beamwidth
Vertical beamwidth
Front-to-back
Mechanical downtilt
Weight
Dimensions (L x W x H)
SA24-45-20-WB
2300 - 2700 MHz
1.5:1
50 ohm
50W
1”- 2” (25-50mm)
-40°C to +70°C
20 dBi
45°
7°
25 dB
30°
8.4 lbs (3.8 kg)
34” x 7” x 3.5”
(864 x 178 x 89mm)
SA24-60-17-WB
2300 - 2700 MHz
1.5:1
50 ohm
50W
1”- 2” (25-50mm)
-40°C to +70°C
17 dBi
60°
8°
25 dB
30°
6.6 lbs (3 kg)
33.5” x 6.5” x 2.5”
(851 x 165 x 64mm)
SA24-90-17-WB
2300 - 2700 MHz
1.5:1
50 ohm
50W
1”- 2” (25-50mm)
-40°C to +70°C
17 dBi
90°
7°
20 dB
30°
6.6 lbs (3 kg)
33.5” x 6.5” x 2.5”
(851 x 165 x 64mm)
SA24-120-16-WB
2300 - 2700 MHz
1.5:1
50 ohm
50W
1”- 2” (25-50mm)
-40°C to +70°C
16 dBi
120°
9°
21 dB
30°
6.6 lbs (3 kg)
33.5” x 6.5” x 2.5”
(851 x 165 x 64mm)
Wind loading
MOD EL
SA24 WB
Sq. IN
247
100 MPH
61.8 lb
125
MPH
96.5 lb
100 MPH 1/2” RADIAL IC E
62 lb
SYSTEM ORDERING
SA24-45-20-WB 45deg 20dBi 2300-2700MHz VPOL sector antenna
SA24-60-17-WB 60deg 17dBi 2300-2700MHz VPOL sector antenna
SA24-90-17-WB 90deg 17dBi 2300-2700MHz VPOL sector antenna
SA24-120-16-WB 120deg 16dBi 2300-2700MHz VPOL sector antenna
Typical azimuth and
elevation pattern
SA24-90-17-WB
Americas: +1.847 839.6925
IAS-AmericasSales@lairdtech.com
Europe: +44.1628.858941
IAS-EUSales@lairdtech.com
Asia:IAS-AsiaSales@lairdtech.com
Middle East & Affrica: +44.1628.858941 IAS-
MEASales@lairdtech.com
ANT-DS-SA24WB 0716
