D4A-2514-N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > accessories> D4A-2514-N

D4A-2514-N: DescriptionSWITCH SNAP ACTION DPDT 5A 125V; Categoryaccessories; File Size2MB，16 Pages; ManufacturerOMRON; Websitehttps://www.omron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

D4A-2514-N Overview

SWITCH SNAP ACTION DPDT 5A 125V

D4A-2514-N Parametric

Parameter Name	Attribute value
circuit	DPDT（DB/DM）
switch function	On-momentary
Rated current	5A（AC），3A（DC）
Rated voltage - AC	125V
Rated voltage - DC	30V
Actuator type	spring, pole
Installation type	Base installation
Terminal type	screw terminal
Intrusion protection	IP67 - dust and water resistant
characteristic	-
force	150gf
release force	-
Pre-trip	15°
Differential travel	-
overtravel	-
Operating temperature	-20°C ~ 100°C
work location	-
Electrical life	750,000 cycles
Mechanical life	-

Preview

Download Datasheet

View All

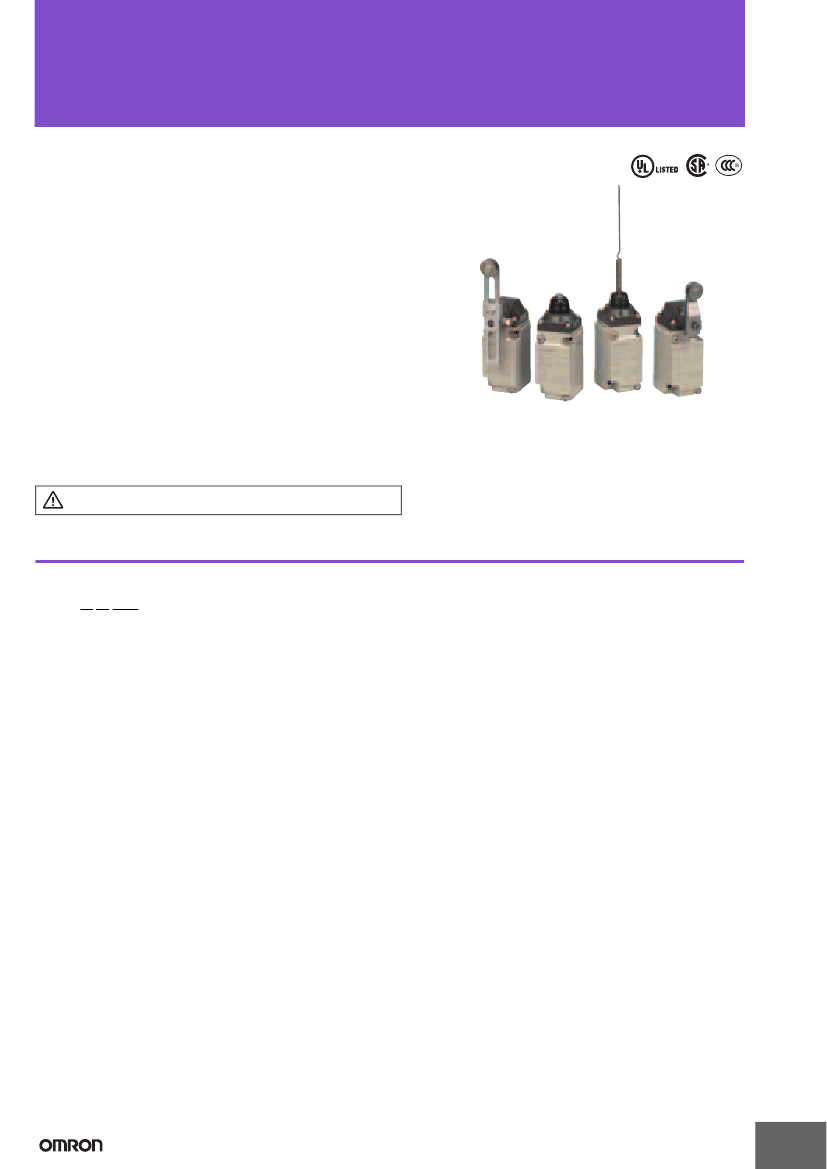

General-purpose Limit Switch

D4A-@N

The Limit Switch with Better Seal,

Shock Resistance, and Strength

•

A double seal on the head, a complete gasket cover, and

other features ensure a better seal (meets UL NEMA 3, 4,

4X, 6P, 12, 13).

•

Wide standard operating temperature range:

−40°C

to +100°C (standard type).

•

Models with fluoro-rubber available for greater resistance

to chemicals.

•

Block mounting method also reduces downtime for

maintenance.

•

DPDT, double-break models available for complex

operations.

•

Approved by UL, CSA, and CCC (Chinese standard).

(Ask your OMRON representative for information on

approved model.)

Be sure to read

Safety Precautions

on page 14 to 15 and

Safety Precautions for All Limit Switches.

CSM_D4A-_N_DS_E_4_2

For the most recent information on models that have been certified for

safety standards, refer to your OMRON website.

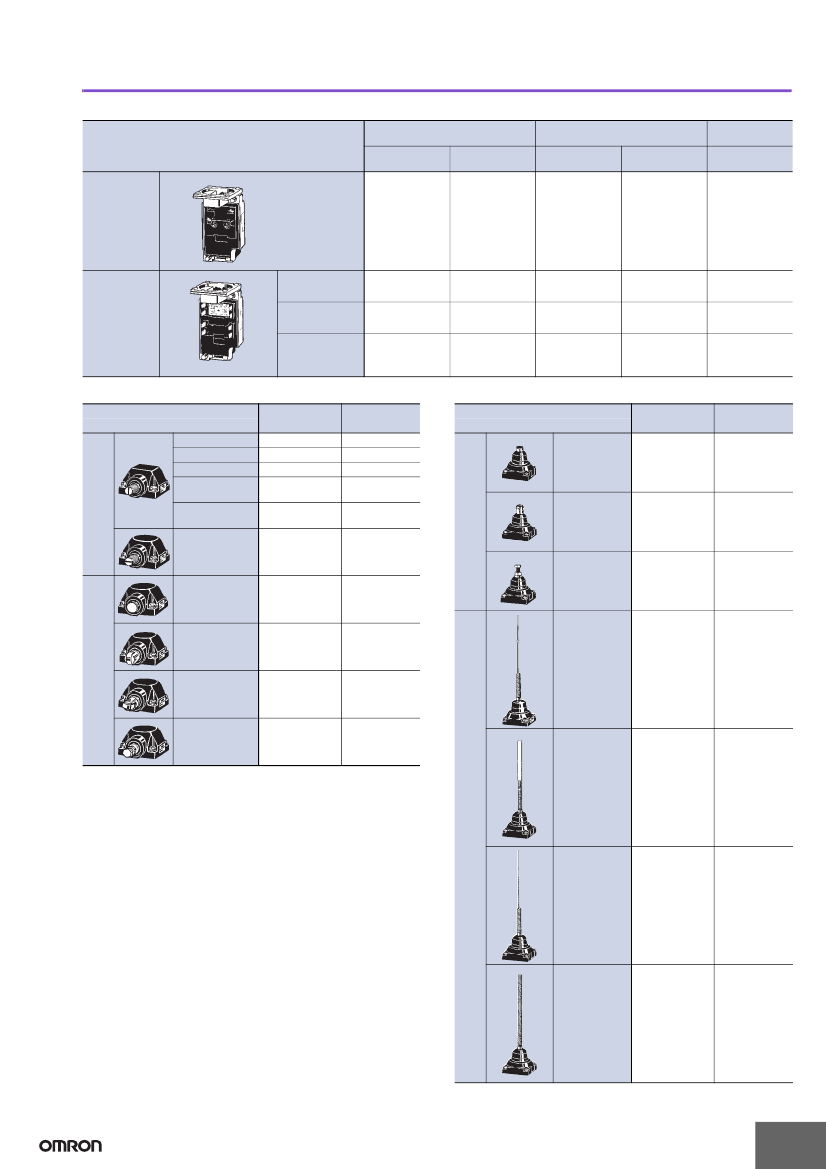

Model Number Structure

Model Number Legend

(Not all combinations are possible. Ask your OMRON representative for details.)

D4A-@@@@N (Set model number)

(1) (2) (3)

(1) Receptacle box

: 1/2-14 NPT conduit (SPDT, double-break)

: 1/2-14 NPT conduit (DPDT, double-break)

: G 1/2 conduit (SPDT, double-break)

: G 1/2 conduit (DPDT, double-break)

(3) Head

07-V

07-H

: Roller lever, standard

: Roller lever, high-sensitivity

: Roller lever, low torque

: Roller lever, high-sensitivity, low torque

: Roller lever, maintained

: Roller lever, sequential operation

: Roller lever, center neutral operation

: Side plunger, standard

: Side plunger, vertical roller

: Side plunger, horizontal roller

: Side plunger, adjustable

: Top plunger, standard

: Top plunger, roller

: Top plunger, adjustable

: Flexible rod, spring wire

: Flexible rod, plastic rod

: Flexible rod, cat whisker

: Flexible rod, coil spring

(2) Switch Box

: SPDT, double-break, without indicator

: SPDT, double-break, neon lamp

: SPDT, double-break, LED (24 VDC, leakage current: 1.3 mA)

: DPDT, double-break, simultaneous operation, without indicator

: DPDT, double-break, sequential operation, without indicator

: DPDT, double-break, center neutral operation, without indicator

: DPDT, double-break, simultaneous operation, neon lamp

: DPDT, double-break, simultaneous operation, LED

*1. Use the D4A-0017N Special Head.

*2. Use the D4A-0018N Special Head.

Note: Fluoro-rubber sealed type is also available.

D4A-2514-N Related Products

	D4A-2514-N	D4A-0007-H-N	D4A-3109N	D4A-2512-N	D4A-1106-N	D4A-2515-N	D4A-3106N	D4A-2506-N	D4A-5101N	D4A-1115-N
Description	SWITCH SNAP ACTION DPDT 5A 125V	LS operating head	LIMIT SW TOP PLUNGER DPDT	SWITCH SNAP ACTION DPDT 5A 125V	SWITCH SNAP ACTION SPDT 10A 125V	SWITCH SNAP ACTION DPDT 5A 125V	SWITCH SNAP ACTION SPDT 10A 125V	SWITCH SNAP ACTION DPDT 5A 125V	SWITCH SNAP ACTION SPDT 10A 125V	SWITCH SNAP ACTION SPDT 10A 125V
circuit	DPDT（DB/DM）	-	-	DPDT（DB/DM）	SPDT（DB/DM）	DPDT（DB/DM）	-	DPDT（DB/DM）	SPDT（DB/DM）	SPDT（DB/DM）
switch function	On-momentary	-	SPDT	On-momentary	On-momentary	On-momentary	SPDT	On-momentary	On-momentary	On-momentary
Rated current	5A（AC），3A（DC）	-	-	5A（AC），3A（DC）	10A（AC），6A（DC）	5A（AC），3A（DC）	-	5A（AC），3A（DC）	10A（AC），6A（DC）	10A（AC），6A（DC）
Rated voltage - AC	125V	-	-	125V	125V	125V	-	125V	125V	125V
Rated voltage - DC	30V	-	-	30V	30V	30V	-	30V	30V	30V
Actuator type	spring, pole	-	TOP PLUNGER	spring, wire	side plunger	spring, tentacle	SIDE PLUNGER	side plunger	Side rotation - no press tab	spring, tentacle
Installation type	Base installation	-	-	Base installation	Base installation	Base installation	-	Base installation	Base installation	Base installation
Terminal type	screw terminal	-	-	screw terminal	screw terminal	screw terminal	-	screw terminal	screw terminal	screw terminal
Intrusion protection	IP67 - dust and water resistant	-	-	IP67 - dust and water resistant	IP67 - dust and water resistant	IP67 - dust and water resistant	-	IP67 - dust and water resistant	IP67 - dust and water resistant	IP67 - dust and water resistant
force	150gf	-	-	100gf	2000gf	150gf	-	2000gf	40gfm	150gf
Pre-trip	15°	-	-	15°	0.094"（2.4mm）	15°	-	0.094"（2.4mm）	15°	15°
Operating temperature	-20°C ~ 100°C	-	-	-20°C ~ 100°C	-20°C ~ 100°C	-20°C ~ 100°C	-	-20°C ~ 100°C	-40°C ~ 100°C	-20°C ~ 100°C
Electrical life	750,000 cycles	-	1000000 Cycle(s)	750,000 cycles	1,000,000 cycles	750,000 cycles	1000000 Cycle(s)	750,000 cycles	1,000,000 cycles	1,000,000 cycles
