Specifications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network. 11/08/17
e
y
p
v
d
T
Switching Power Supply
Type SPD 120W N
DIN rail mounting
Input Data
Rated input voltage
Voltage range
AC in, 115
AC in, 230
DC in
Rated input current
Input current
2.8 / 1.4A max
115/230VAC autoselect
90 - 132VAC
180 - 264VAC
210 - 370VDC
2.2 / 0.83A
Vi 90 / 180 VAC
Frequency range
Inrush current
Vi= 115VAC
Vi= 230VAC
P.F.C.
Passive 230VAC Io nom
Leakage current
Input-Output
Input-Fg
47- 63 Hz
24A
48A
0.7
0.25mA Max.
3.5mA Max.
Controls and Protections
Input Fuse
Overvoltage Protection
Vi nom 0.8 Ionom
Output Short Circuit
1)
T3.15/250VAC internal
1)
30 - 33VDC
Current limited
Rated Overload Protection
Power ready
(only SPD 24)
Threshold at start up
(contact closed)
Contact rating at 60VDC
Insulation
110 - 145%
17.6 - 19.4VDC
0.3A
500VDC
Fuse not replaceable by user
General Data (@ nominal line, full load, 25°C )
Ambient temperature
Derating (>60°C to +71°C)
Ambient humidity
Storage temperature
Protection degree
Cooling
Switching frequency
MTBF (MIL-HDBK-217F)
-35°C to 71°C
2.5% / °C
20 to 95%RH
-40°C to +85°C
IP20
Free air convection
55kHz
450.000h
Case material
Dimensions L x W x D
Screw terminal type
Detachable connector type
Weight
Metal
(powder painted aluminium)
124.5 x 64 x 126
143.5 x 64 x 126
920g
Approvals and EMC
Insulation voltage I / O
Insulation resistance
UL / cUL
TUV
ISA
3.000VAC min
100MΩ min
UL508 listed, UL60950-1
Recognized
EN60950-1
12.12.01 Class I Div 2
Groups A, B, C, D
CE
EN50081-1
EN55022 class B
EN61000-3-2
EN61000-3-3
EN61000-6-2
EN61000-6-3
EN55024
Specifications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network. 11/08/17
2
Switching Power Supply
Type SPD 120W N
DIN rail mounting

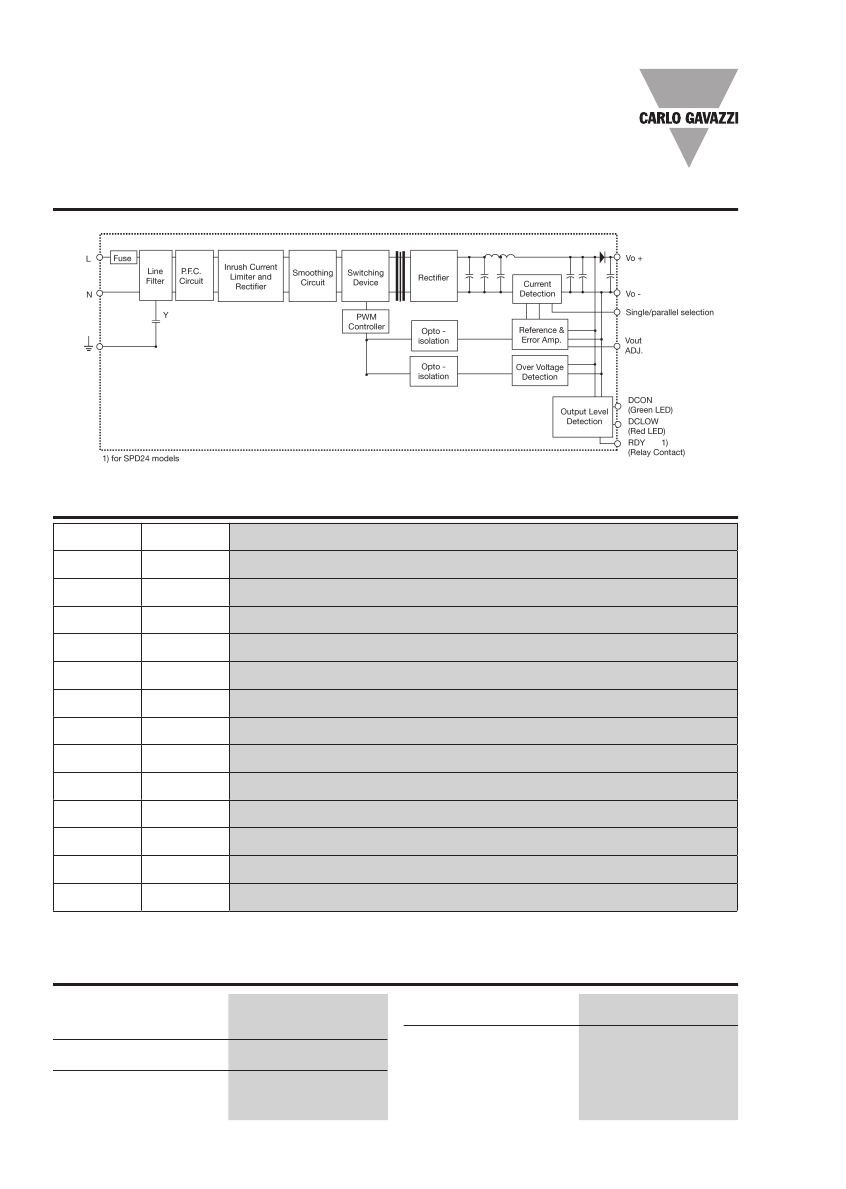

Block Diagrams
Pin Assignement and Front Controls
Pin No.
1
2
3
4
5
6
7
8
9
Designation
RDY
RDY
+
+
-
-
GND
L
N
DC ON
DC LO
Vout ADJ.
S/P
Description
DC OK, relay normally open contact
DC OK, relay normally open contact
Positive output terminal
Positive output terminal
Negative output terminal
Ground terminal to minimise High frequency emissions
Negative output terminal
Phase input ( no polarity with DC input )
Neutral input ( no polarity with DC input )
DC output ready LED
DC low indicator LED
Trimmer for fine output voltage adjustment
Single/parallel selection switch
Installation
Ventilation and cooling
Screw terminals
Normal convection
All sides 25mm free space
for cooling is recommended
10-24AWG flexible or solid cable
8mm stripping recommend
Plug-in connectors
10-24AWG flexible or solid cable
7mm stripping recommend
Max. torque for plug-in terminals
Input terminals
0.784Nm (7.0lb-in)
Output terminals
0.784Nm (7.0lb-in)
Max. torque for screws terminals
Input terminals
1.008Nm (9.0lb-in)
Output terminals
0.616Nm (5.5lb-in)
3
Specifications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network. 11/08/17

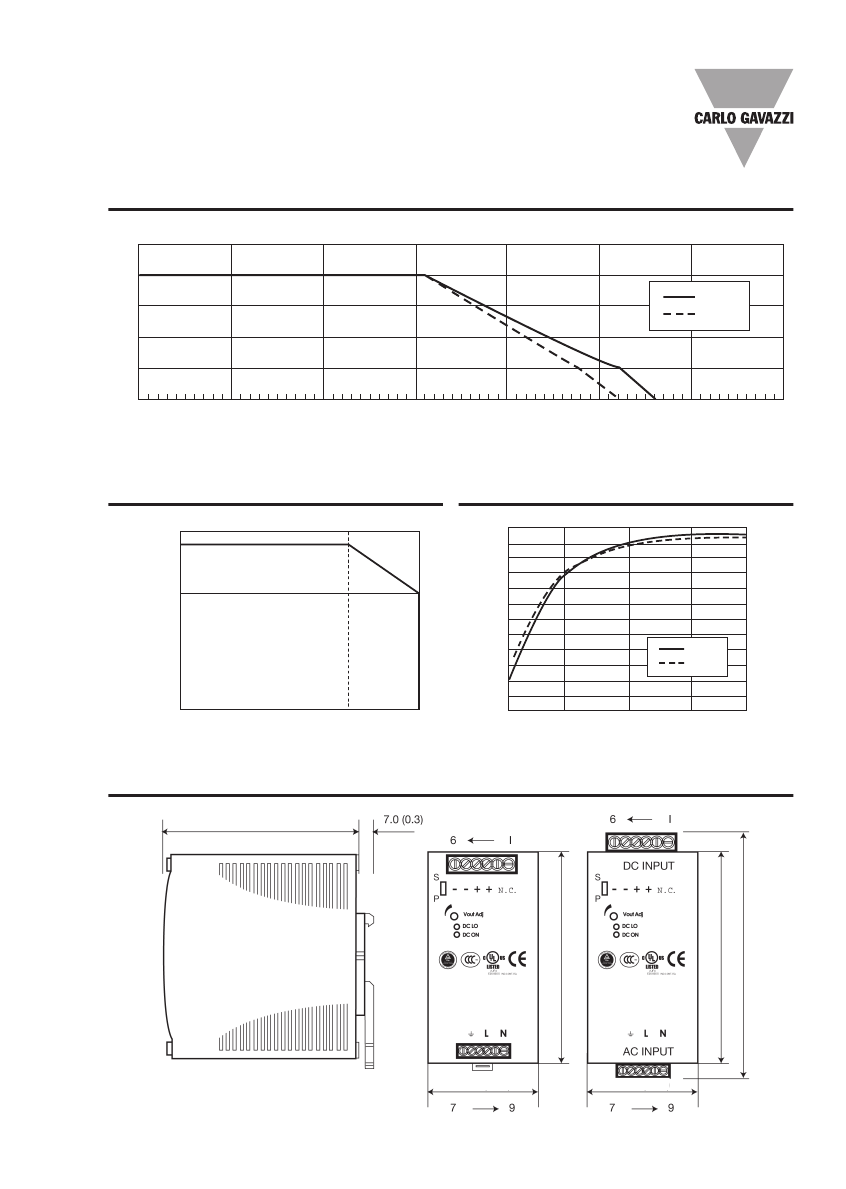

Typ. Current Limited Curve
Output Voltage [%]
100
Output Voltage [%]
75
50
25
100 100
75
50
25
75
50
25
Output Voltage [%]
230VAC
230VAC 230VAC
115VAC
115VAC 115VAC
100
100 100
110
110 110
120
120
120
130
130 130
140
140 140
150
150
150
160
160
160
Output Current [%] [%]
Output Current [%]
Output Current
Derating Diagram
100 100
Typ. Efficiency Curve
85
Ef ciency [%]
80
75
70
65
100
Power out [%]
85
80
75
70
85
80
75
70
65
230VAC 230VAC
115VAC 115VAC
Power out [%]
75
Ef ciency [%]
75
Power out [%]
75
Ef ciency [%]
230VAC
115VAC
0
0
-35 -35
65
60 60
10
0
-35
61
71
Temperature [%]
Mechanical Drawings
mm (inches)
119 [4.68]
61 61
Temperature [%] [%]
Temperature
71
71
60
10 25
10
25 50 50 70 70 100 100
Power out [%] [%]
Power out
25
50
70
Power out [%]
100
124.5 [4.90]
124.5 [4.90]
64 [2.52]
64 [2.52]
143.5 [5.65]
