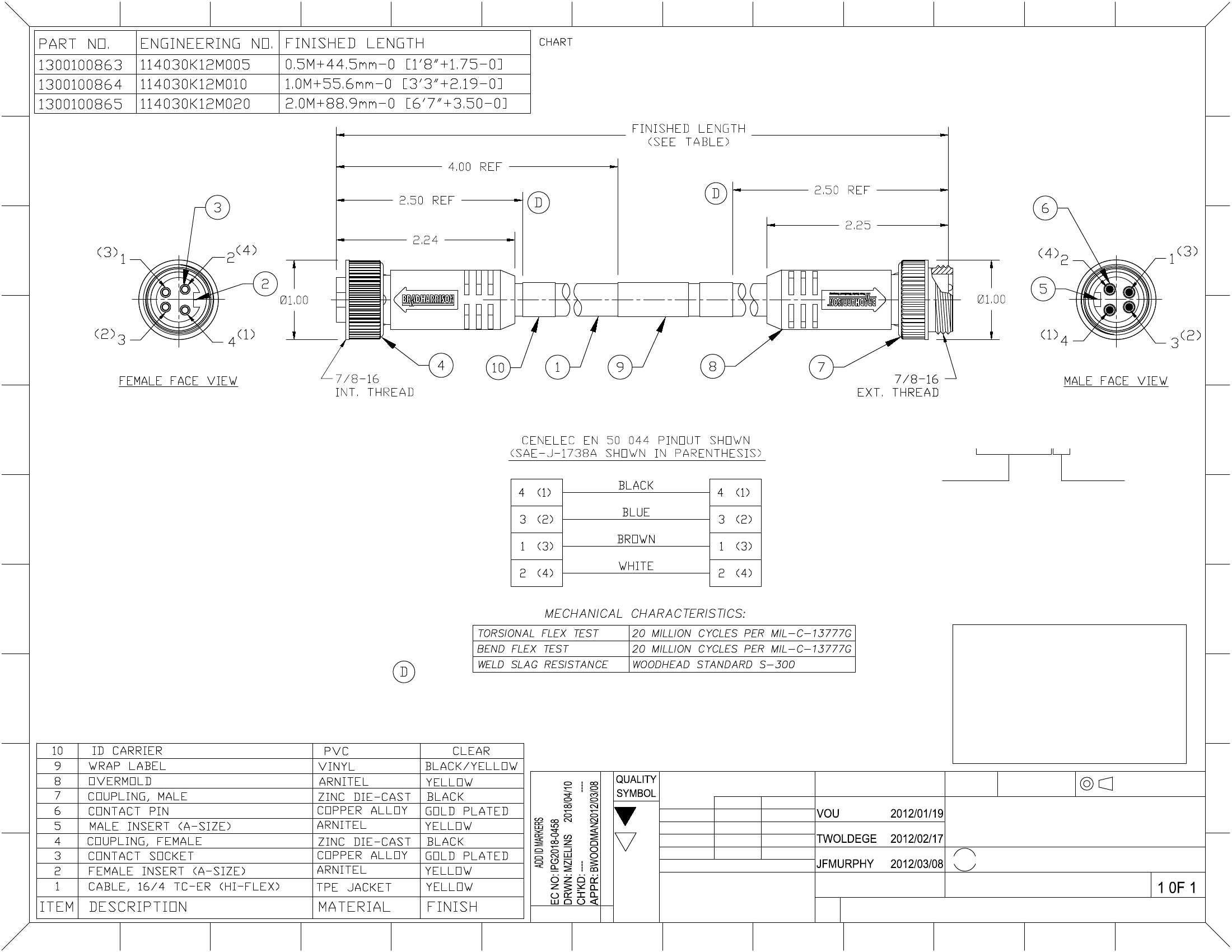

NOTES:
1. ELECTRICAL:
- VOLTAGE: 483V PER IEC 60664
600V PER UL 2238
- CURRENT: 8A
E
2. TEMP RATING: -20
°
TO +90
°
C
3. PROTECTION: IP67 (WHEN MATED)
4. UL CERTIFICATION: UL FILE NO. E152210
5 ALL DIMS ARE FOR REFERENCE
UNLES NOTED OTHERWISE
6. PART NUMBER WITH "H" HAVE
TWO ID MARKERS ONE ON EACH END
1
2
3
4
WIRING DIAGRAM
BLACK
BLUE
BROWN
WHITE
PART No. MATRIX
1
2
3
4
1 1 4 0 3 0
K
1 2
MX X X X
11 = A-SIZE
double ended
E
Poles:
4 = 4 Poles
Heads style:
030 = Female straight -
Male straight
Cable:
K12 = 4x16AWG TPE YE
Units:
M = Meter
Length
Examples:
005 = 0.5 m
010 = 1 m
050 = 5 m
150 = 15 m
200 = 20 m
OPTIONAL:
H= ID CARRIER
L+TOL.[mm] - SEE PART LIST (SHEET 2)
D
100
±
5
D
4
PIN 3
½
56.9
½
PIN 4
½
57.9
½
PIN 4
7
⌀
½
25.4
½
⌀
½
25.4
½
PIN 3
8
PIN 1
PIN 2
C
C
PIN 2
PIN 1
3
7/8-16
INT. THREAD
VIEW FROM THE FRONT SIDE
2
5,6
1
10
11
2
9
VIEW FROM THE FRONT SIDE
7/8-16
EXT. THREAD
B
BILL OF MATERIALS
11
2
ID CARRIER
LABEL WRAP
10
1
9
1
COUPLING NUT A-SIZE EXT.
8
2
PIN CONTACT 16 AWG
7
1
HOUSING A-SIZE 5P MALE
6
1
FRICTION RING A-SIZE
5
1
MC COUPLING NUT A-SIZE
4
2
MC SOCKET SLEEVE ASSY 16 AWG
A
3
1
HOUSING A-SIZE 5P FEMALE
-
2
MOULDING MATERIAL
-
1
CABLE 16/4 TC-ER OD=11mm
ITEM QTY
DESCRIPTION
DOCUMENT STATUS
FORMAT: master-tb-prod-A3
REVISION: H
DATE: 2018/01/18
B
PVC
VINYL
ZINC
COPPER ALLOY
ARNITEL
NYLON
ZINC
COPPER ALLOY
ARNITEL
TPE
TPE
MATERIAL
7
-
YELLOW
BLACK
Au-PLATED
YELLOW
GRAY
BLACK
Au-PLATED
YELLOW
YELLOW
YELLOW
FINISH/COLOR
6
5
4
SYMBOLS
=
0
=
0
=
0
=
0
=
0
=
0
=
0
=
0
C
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
DIMENSION UNITS
SCALE
mm
ANGULAR TOL
±
±
±
±
±
±
1:1
0.5 °
CURRENT REV DESC:
GENERAL TOLERANCES
(UNLESS SPECIFIED)
4 PLACES
3 PLACES
2 PLACES
1 PLACE
0 PLACES
0.05
0.1
DRWN:
MKOWALCZYK01
CHK'D:
MMATLA
APPR: MMATLA
INITIAL REVISION:
DRWN:
MKOWALCZYK01
APPR: MMATLA
THIRD ANGLE PROJECTION
DRAWING
EC NO:
604208
2018/09/10
2018/09/11
2018/09/11
2018/09/10
2018/09/11
SERIES
CSE MC 4P MA STR TPE FE STR XM
A
PRODUCT CUSTOMER DRAWING
DOCUMENT NUMBER
DOC TYPE
DOC PART
REVISION
1300100863
MATERIAL NUMBER
CUSTOMER
PSD
000
A
P1
RELEASE DATE
2018/09/11
07:18:42
=
0
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
SHEET NUMBER
A3-SIZE
130010
SEE SHEET 2
GENERAL MARKET
1 OF 2
9
8
3
2
1
6
5
4
3
2
1
PART LIST
D
C
B
MOLEX PN
1300100071
1300100072
1300100863
1300100864
1300100865
1300100866
1300100867
1300100868
1300100869
1300100870
1300100871
1300100872
1300100873
1300100874
1300100875
1300100876
1300100877
1300100879
1300100880
1300100881
1300100882
1300100884
1300100885
ENGINEERING NO.
114030K12M700
114030K12M800
114030K12M005
114030K12M010
114030K12M020
114030K12M030
114030K12M040
114030K12M050
114030K12M060
114030K12M070
114030K12M080
114030K12M090
114030K12M100
114030K12M110
114030K12M120
114030K12M130
114030K12M150
114030K12M170
114030K12M180
114030K12M190
114030K12M200
114030K12M230
114030K12M250
LENGTH + TOL.[mm]
70000 + 1400
80000 + 1600
500 + 45
1000 + 56
2000 + 89
3000 + 89
4000 + 165
5000 + 165
6000 + 165
7000 + 165
8000 + 317
9000 + 317
10000 + 317
11000 + 317
12000 + 317
13000 + 317
15000 + 610
17000 + 610
18000 + 610
19000 + 610
20000 + 610
23000 + 610
25000 + 610
MOLEX PN
1300100886
1300100887
1300100888
1300100889
1300100890
1300100891
1300101638
1300101683
1300101711
1300101723
1300101724
1300101725
1300101726
1300101754
1300101862
1300108347
1300108348
1300108350
ENGINEERING NO.
114030K12M300
114030K12M350
114030K12M380
114030K12M460
114030K12M540
114030K12M610
114030K12M400
114030K12M270
114030K12M900
114030K12M340
114030K12M420
114030K12M500
114030K12M570
114030K12M600
114030K12M015
114030K12M005H
114030K12M050H
114030K12M060H
LENGTH + TOL.[mm]
30000 + 610
35000 + 700
38000 + 760
46000 + 920
54000 + 1080
61000 + 1220
40000 + 800
27000 + 610
90000 + 1800
34000 + 680
42000 + 840
50000 + 1000
57000 + 1140
60000 + 1200
1500 +56
500 + 45
5000 + 165
6000 + 165
D
C
B
SYMBOLS
=
0
=
0
=
0
=
0
=
0
=
0
=
0
=
0
=
0
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
DIMENSION UNITS
SCALE
mm
ANGULAR TOL
±
±
±
±
±
±
1:1
0.5 °
CURRENT REV DESC:
GENERAL TOLERANCES
(UNLESS SPECIFIED)
4 PLACES
3 PLACES
2 PLACES
1 PLACE
0 PLACES
A
0.05
0.1
DRWN:
MKOWALCZYK01
CHK'D:
MMATLA
APPR: MMATLA
INITIAL REVISION:
DRWN:
MKOWALCZYK01
APPR: MMATLA
THIRD ANGLE PROJECTION
DRAWING
EC NO:
604208
2018/09/10
2018/09/11
2018/09/11
2018/09/10
2018/09/11
SERIES
CSE MC 4P MA STR TPE FE STR XM
PRODUCT CUSTOMER DRAWING
DOCUMENT NUMBER
DOC TYPE
DOC PART
REVISION
A
1300100863
MATERIAL NUMBER
CUSTOMER
PSD
000
A
DOCUMENT STATUS
FORMAT: master-tb-prod-A4
REVISION: H
DATE: 2018/01/18
P1
RELEASE DATE
2018/09/11
07:18:42
C
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
SHEET NUMBER
A4-SIZE
130010
SEE PART LIST
GENERAL MARKET
2 OF 2
6
5
4
3
2
1
13
12
11
10
9
8
7
6
5
4
3
2
1
J
J
I
I
H
H
G
G
F
E
NOTES:
1. MATERIAL: SEE TABLE
2. FINISH: SEE TABLE
3. ELECTRICAL:
VOLTAGE: 483V PER IEC 60664
600V PER UL 2238
CURRENT: 8A
5. PROTECTION: IP67 (WHEN MATED)
6. UL CERTIFICATION: UL FILE NO. E152210
7. ALL DIMS ARE FOR REFERENCE
UNLESS NOTED OTHERWISE
8. PARTS WITH "H" IN MATRIX HAVE TWO ID
CARRIERS ONE ON EACH SIDE
114030K12XXXXH
LENGTH
M010 = 1 METER
M100 = 10 METER
F050 = 5 FEET
F500 = 50 FEET
T=100 METER
T001 = 101 METER
T010 =110 METER
ID CARRIER
H - SEE NOTE 8
BLANK - NO ID CARRIERS
F
E
D
D
CABLE LENGTH TOLERANCES
>.3M [1FT]: +19mm-0 [ +.75in-0]
.3 - .9M [1 - 3FT]: +44.5mm-0 [+1.75in-0]
.9 - 1.8M [3 - 6FT]: +55.6mm-0 [+2.19in-0]
1.8 - 3.7M [6 - 12FT: +88.9mm-0 [+3.50in-0]
3.7 - 7.3M [12 - 24FT]: +165.1mm-0 [+6.50in-0]
7.3-14.6M [24 - 48FT]: +317.5mm-0 [+12.50in-0]
14.6 - 30.5M [48-100FT]: +622.3mm-0 [+24.50in-0]
OVER 30M [100FT] +2% OF FINISHED LENGTH
C
C
B
DESCRIPTION
GENERAL TOLERANCES
(UNLESS SPECIFIED)
DIMENSION STYLE
SCALE
DESIGN UNITS
INCH ONLY
DRAWN BY
DATE
TITLE
CHECKED BY
DATE
---
INCH
THIRD ANGLE
PROJECTION
B
=
0
C
mm
4 PLACES
3 PLACES
2 PLACES
1 PLACE
---
---
---
---
---
INCH
---
---
---
---
=
0
APPROVED BY
DATE
molex
MINI-CHANGE CORDSET
4P MALE/FEMALE ST/ST
#16/4 TPE CABLE
MOLEX INCORPORATED
SHEET NO.
A
REV
D
13
12
11
10
9
8
DRAFT WHERE
APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
7
6
5
MATERIAL NO.
DOCUMENT NO.
---
SIZE
A
SD-130010-016
3
2
1
C
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX
INCORPORATED AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
4
