Power
Supplies
40W/55W Peak
•
Built-in active PFC
•
UL/CSA/EN 60950-1, 2
nd
edition (ITE)
•
Efficiency: ≥86% typical
ANSI/AMMI/CSA/EN 60601-1, 3
rd
ed. (Medical)
•
Operation from –20°C to 70°C - convection
•
Approved for 2xMOPP applications
•
10 year warranty
Description
The
DG040 (ITE)
and
DG040M (Medical) Series
is a 40 Watt Open Frame power supply that is small, 2” x 3” x 0.91”, in
size and big on performance. The DG040(M) is compliant with Green power, Energy Star ver. 6 and ErP EC 1275/2008 with
typical rated load efficiency ratings > 86% and no-load power consumption < 0.3W.
Specifications
Input
Input Voltage
Input Frequency
Inrush Current
Input Protection
No Load Input Power
Input Current
•
•
•
•
•
•
90 VAC to 264 VAC, 115/230V nominal
47 Hz to 63 Hz
< 30/60A at 115/230VAC, cold start, 25ºC
Internal T3.15 A / 250 VAC fuse in line
< 0.3W
2A max at 115 VAC/1A max at 230VAC
General
Efficiency
Energy Saving
Isolation
• ≥86% typical at rated load
• Energy Star, Level V
• 4000 VAC Input to Output, 2x MOPP
1500 VAC Input to Ground, 1x MOPP
1500 VDC Output to Ground, 1x MOPP
• 50 MΩ
• 120 kHz typical
• >500 kHrs to MIL-HDBK-217F at 50°C
Output
Output Voltage
Initial Set Accuracy
Minimum Load
Start Up Rise Time
Hold Up Time
Line Regulation
Load Regulation
Ripple & Noise
Overvoltage Protection
Overload Protection
Short Circuit Protection
•
•
•
•
•
•
•
•
•
•
•
See tables on page 2
See tables on page 2
No minimum load required
2 ms typical
> 18 ms typical
±0.5% typical
±1.0% typical
< 1% pk-pk typical, 20MHz Bandwidth
latch off
auto recovery
auto recovery
Isolation Resistance
Switching Frequency
MTBF
EMC & Safety
Safety Approvals:
Harmonic Currents
EMI
ESD Immunity
Radiated Immunity
EFT Burst
Surge
Conducted Immunity
Magnetic Fields
Dips & Interruptions
•
•
•
•
•
•
•
•
•
•
•
•
UL/CSA/EN 60950-1, 2nd edition
ANSI/AMMI/CSA/EN 60601-1, 3rd edition
CB report, CE mark, RM report
EN 61000-3-2 class D
EN55022 (CISPR 22) Class B, EN 61000-3-3
EN 61000-4-2, 6kV/contact, 8kV/air
EN 61000-4-3, 10V/m with 80% AM
EN 61000-4-4, 2kV
EN 61000-4-5, 1kV/L-L, 2kV/L-G
EN 61000-4-6, 10V with 80% AM
E61000-4-8, 10A/m
EN 61000-4-11, 30% dips 10ms, 60%
dips 100ms, 95% dips 5000ms
Environmental
Operating Temperature
Cooling
Operating Humidity
Storage Temperature
Altitude
•
•
•
•
•
-20°C to 70°C
derating: 2.5% / ºC > 50°C
40W; free air convection
5-95% RH, non-condensing
-40°C to +85°C
0 to 3000 m
Warranty
Manufacturer’s Warranty
• 10 years. Call Tri-Mag or go to
www.Tri-Mag.com for details.
1601 N. Clancy Ct. • Visalia, CA 93291 • (559) 651-2222 • FAX (559) 651-0188 • sales@tri-mag.com •
tri-mag.com
1 of 2
GREEN POWER
DG040 Series
|
ITE & Medical Safety
Power
Supplies

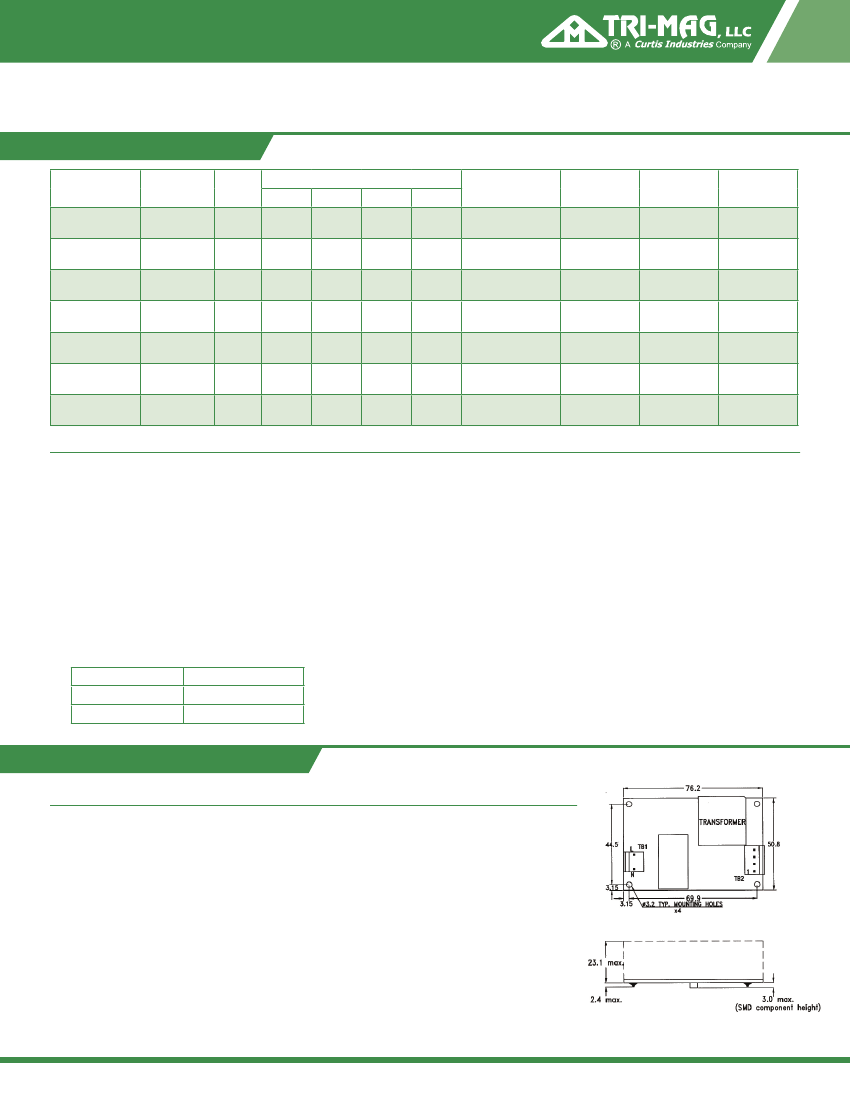

DG040 Series |
ITE & Medical Safety
Output Specifications
Model No.
DG040(M)-7
DG040(M)-7A
DG040(M)-8
DG040(M)-8A
DG040(M)-3
DG040(M)-3A
DG040(M)-9
DG040(M)-9A
DG040(M)-G
DG040(M)-GA
DG040(M)-J
DG040(M)-JA
DG040(M)-14
DG040(M)-14A
Application
ITE/Medical
ITE/Medical
ITE/Medical
ITE/Medical
ITE/Medical
ITE/Medical
ITE/Medical
Output
Rail
+12V
+15V
+18V
+24V
+28V
+36V
+48V
Load
Min
0A
0A
0A
0A
0A
0A
0A
Rated
3.33A
2.66A
2.22A
1.66A
1.42A
1.11A
0.83A
Max
-
-
-
-
-
-
-
Peak
4.7A
3.8A
3.2A
2.4A
2.0A
1.6A
1.16A
Initial
Accuracy
+11.9V~+12.1V
+14.8V~+15.2V
+17.8V~+18.2V
+23.7V~+24.3V
+27.7V~+28.3V
+35.8V~+36.2V
+47.5V~+48.5V
Ripple Noise
< 100mVpp
< 100mVpp
< 100mVpp
< 150mVpp
< 150mVpp
< 150mVpp
< 150mVpp
Line Reg.
+ 0.5%
+ 0.5%
+ 0.5%
+ 0.5%
+ 0.5%
+ 0.5%
+ 0.5%
Load Reg.
+ 1%
+ 1%
+ 1%
+ 1%
+ 1%
+ 1%
+ 1%
Notes
1.
Output Load:
Convection cooling: 40W
2.
Peak Load Duration:
55W peak rating for durations up to 3 secs. (duty cycle <10%, average power <40W). Ideal for motor-starting/in-rush conditions.
3.
Engineering Specification:
Contact Tri-Mag for full engineering specification for the specific part number used in your design application.
4.
Standby Power Cosumption with System:
This is required by ENERGY STAR in U.S. and ErP regulation in Europe for appliances such as computers and displays. The latest
requirement is measured input power to be less than 0.3W with system.
5.
Step Efficiency and Average Efficiency:
Test conditions in step efficiency are referred to 3.2.2 IPS (Internal Power Supply) of the ENERGY STAR program requirements
for computers. ENERGY STAR required for efficiency @ 20%, 50%, 100% load is 84.5%, 89%, 86.5%; average efficiency is the
average of step efficiency.
6.
Model Ordering Table:
Safety/Application
ITE
Medical
Series
DG040-x
DG040M-x
Mechanical Specifications
Notes
1.
Mechanical drawing dimensions in mm Tolerance: ± 0.4mm
2.
Size:
50.8 x 76.2 x 23.1 (mm)
2.0 x 3.0 x 0.91 (inches)
Net weight: 89 g approx. / unit
PCB Header: Molex 09-65-2029 (5277-02A) or equivalent
Mating Connector: Molex 09-50-9030 (41695-N-A02) or equivalent
DC Output: PCB Header: Molex 09-65-2048 (5273-07A) or equivalent
Mating Connector: Molex 09-52-4044 (5239-04) or equivalent
Terminal Block (optional)
3.
Connections: AC Input:
2014-10
1601 N. Clancy Ct. • Visalia, CA 93291 • (559) 651-2222 • FAX (559) 651-0188 • sales@tri-mag.com •
tri-mag.com
2 of 2
