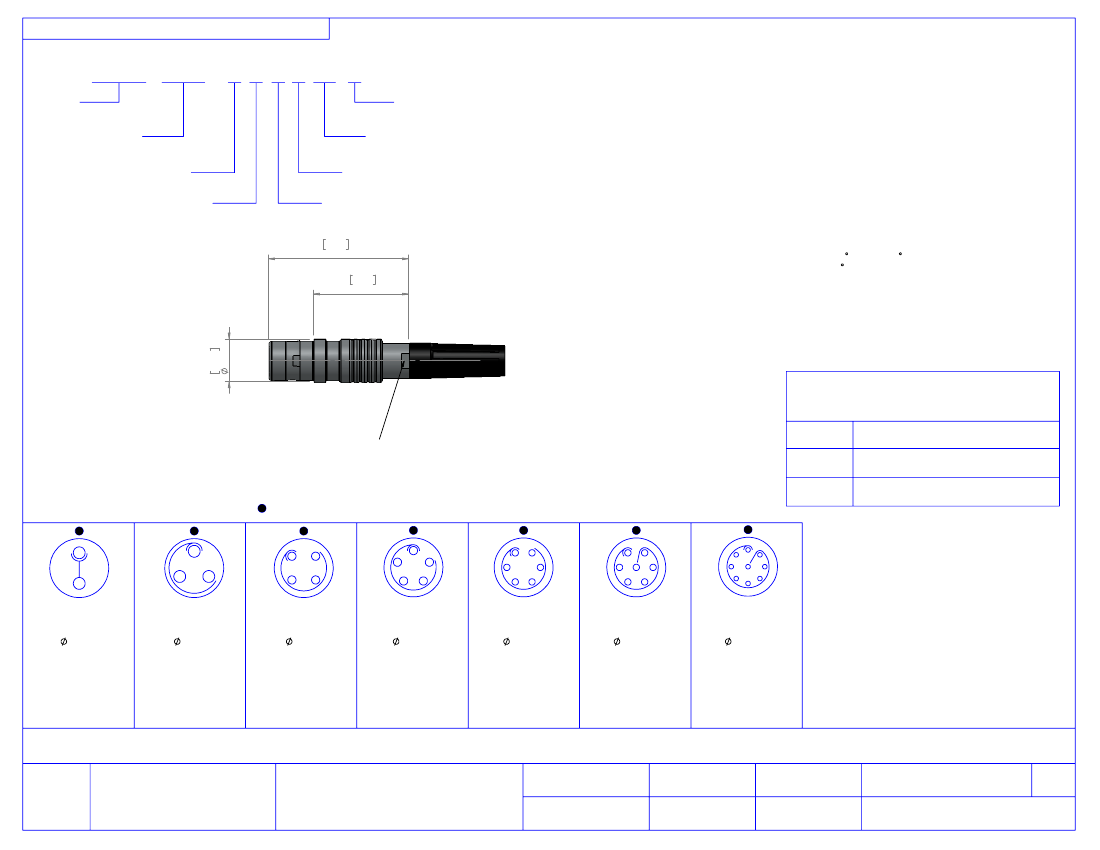

DESCRIPTION: QUIK-LOQ - MALE - CABLE MOUNT - IP67
UNITS = MM [INCHES]
820K YYY - 1 7 3 L YY 1
SERIES
11.00 [0.433]
# OF POSITIONS
(Ex. 002)
**SEE CHART A**
1 = MALE
CABLE MOUNT
1 = GOLD FLASH
COLLET SIZE
**SEE CHART B**
RoHS COMPLIANT
NICKEL/CHROME PLATED SHELL
CHARACTERISSTICS
MATERIALS
HOUSING : BRASS
HOUSING PLATING : 196µ" NICKEL MIN.
SHELL & COLLET NUT: BRASS, 196µ" CHROME PLATED MIN.
CONTACTS : COPPER ALLOY
CONTACT PLATING : 7µ" GOLD PLATED OVER 196µ" NICKEL MIN.
INSULATOR : PPS (HIGH TEMPERATURE)
STRAIN RELIEF(BOOT) : THERMOPLASTIC POLYURETHANE
O-RING: SILICONE
MECHANICAL
DURABILITY: 5000 CYCLES
OPERATING TEMP. RANGE: -40 C ~ +200 C
PROCESS TEMPERATURE : 260 C FOR 5 SECONDS
MAX. TOURQUE VALUE : 0.7 Nm [6.0 IN/LBS]
SHIELDING: 75dB @ 10MHz
40dB @ 1GHz
IP RATING: 67
0.433
11.00
1.476
37.50
1.043
26.50
CHART B
COLLET
SIZE
8.00 [0.315]
WIDTH ACROSS FLATS
WIRE DIAMETER
2.50 [0.098] ~ 3.20 [0.126]
3.30 [0.130] ~ 4.20 [0.165]
4.30 [0.169] ~ 5.20 [0.205]
30
40
CHART A
1
1
50
= KEY LOCATION
1
**VIEW FROM TERMINATION END**
1
1
1
1
2 POSITION
22 AWG MAX.
10 AMP MAX.
PIN
= 0.90 [0.035]
CONTACT
RESISTANCE
= 6 mΩ
TEST VOLTAGE
= 1300V
WORKING VOLTAGE
= 430V
3 POSITION
22 AWG MAX.
8 AMP MAX.
PIN
= 0.90 [0.035]
CONTACT
RESISTANCE
= 6 mΩ
TEST VOLTAGE
= 1200V
WORKING VOLTAGE
= 400V
4 POSITION
24 AWG MAX.
7 AMP MAX.
PIN
= 0.70 [0.028]
CONTACT
RESISTANCE
= 7.5 mΩ
TEST VOLTAGE
= 850V
WORKING VOLTAGE
= 280V
5 POSITION
24 AWG MAX.
6.5 AMP MAX.
PIN
= 0.70 [0.028]
CONTACT
RESISTANCE
= 7.5 mΩ
TEST VOLTAGE
= 850V
WORKING VOLTAGE
= 280V
6 POSITION
28 AWG MAX.
2.5 AMP MAX.
PIN
= 0.50 [0.020]
CONTACT
RESISTANCE
= 10 mΩ
TEST VOLTAGE
= 850V
WORKING VOLTAGE
= 280V
7 POSITION
28 AWG MAX.
2.5 AMP MAX.
PIN
= 0.50 [0.020]
CONTACT
RESISTANCE
= 10 mΩ
TEST VOLTAGE
= 800V
WORKING VOLTAGE
= 260V
9 POSITION
28 AWG MAX.
2 AMP MAX.
PIN
= 0.50 [0.020]
CONTACT
RESISTANCE
= 10 mΩ
TEST VOLTAGE
= 600V
WORKING VOLTAGE
= 200V
N
C
RoHS COMPLIANT
THESE DRAWINGS AND SPECIFICATIONS
ARE THE PROPERTY OF NorComp AND
SHALL NOT BE REPRODUCED, COPIED
OR USED AS THE BASIS FOR THE
MANUFACTURE OR SALE OF APPARATUS
WITHOUT WRITTEN PERMISSION.
NorComp
DRAWN:
M. SIGMON
DATE:
02-19-16
SCALE:
N.T.S.
SHEET
1
OF
1
REV:
5
CHECKED:
DATE:
DWG NO.
820KYYY-173LYY1
