821K002-173L401: DescriptionCONN PLUG MALE 2POS SOLDER CUP; CategoryThe connector; File Size85KB，1 Pages; ManufacturerNorComp; Websitehttps://www.norcomp.net; Environmental Compliance

Download Datasheet Parametric View All

821K002-173L401 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	821K002-173L401	-	-	View	Buy Now

821K002-173L401 Overview

CONN PLUG MALE 2POS SOLDER CUP

821K002-173L401 Parametric

Parameter Name	Attribute value
Connector type	Plug, male pin
Number of pins	2
Housing Dimensions - Plug-in	-
Housing size, MIL	-
Installation type	free hanging
Termination	solder cup
Fastening type	push-pull
towards	Marked
Intrusion protection	IP67 - dust and water resistant
Housing material, plating	Brass, nickel plated
Contact plating	gold
characteristic	Back shell, shielded, anti-pull cable buckle
Rated current	-
Voltage - Rated	-
Contact plating thickness	7.00µin（0.178µm）
Operating temperature	-40°C ~ 200°C

Preview

Download Datasheet

View All

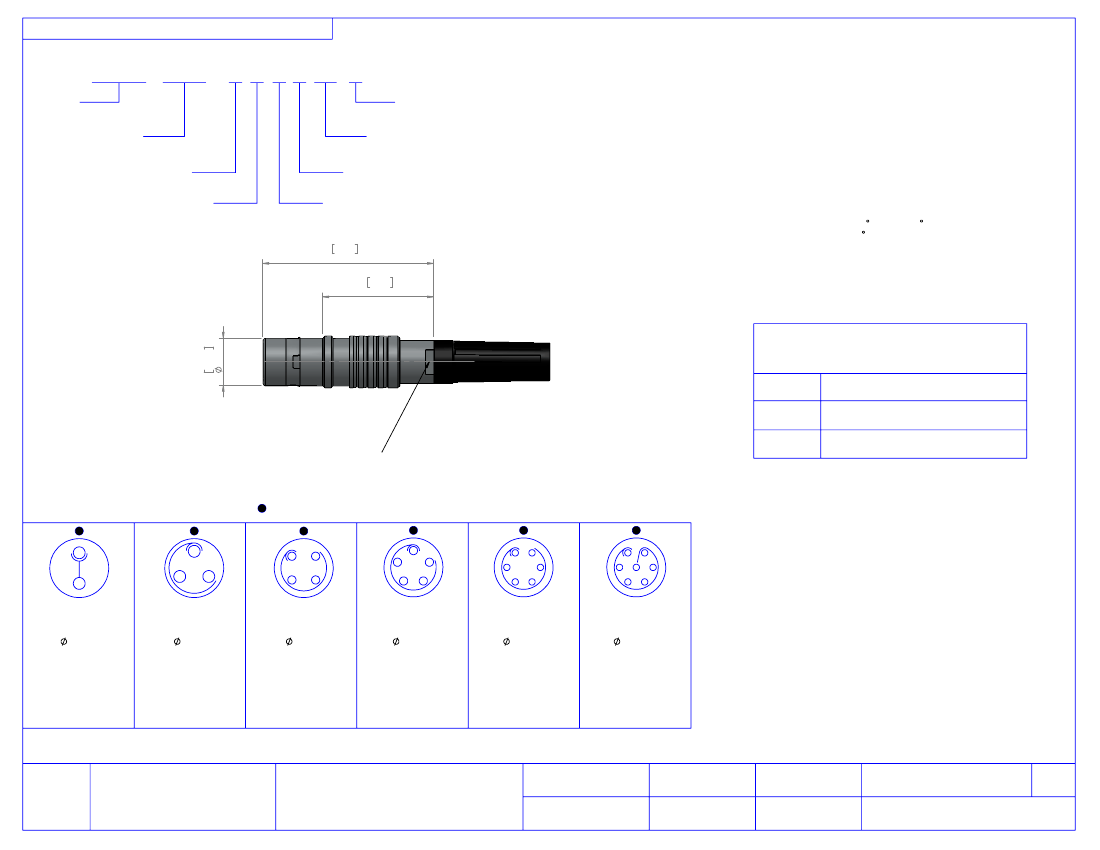

DESCRIPTION: QUIK-LOQ - MALE - CABLE MOUNT - IP67

UNITS = MM [INCHES]

CHARACTERISSTICS

MATERIALS

HOUSING : BRASS

HOUSING PLATING : 196µ" NICKEL MIN.

SHELL & COLLET NUT: BRASS, 196µ" CHROME PLATED MIN.

CONTACTS : COPPER ALLOY

CONTACT PLATING : 7µ" GOLD PLATED OVER 196µ" NICKEL MIN.

INSULATOR : PPS (HIGH TEMPERATURE)

STRAIN RELIEF(BOOT) : THERMOPLASTIC POLYURETHANE

O-RING: SILICONE

MECHANICAL

DURABILITY: 5000 CYCLES

OPERATING TEMP. RANGE: -40 C ~ +200 C

PROCESS TEMPERATURE : 260 C FOR 5 SECONDS

MAX. TOURQUE VALUE : 0.8 Nm [7.0 IN/LBS]

SHIELDING: 75dB @ 10MHz

40dB @ 1GHz

IP RATING: 67

821K YYY - 1 7 3 L YY 1

SERIES

13.00 [0.512]

# OF POSITIONS

(Ex. 002)

**SEE CHART A**

1 = MALE

CABLE MOUNT

1 = GOLD FLASH

COLLET SIZE

**SEE CHART B**

RoHS COMPLIANT

NICKEL/CHROME PLATED SHELL

1.732

44.00

1.142

29.00

CHART B

WIRE DIAMETER

3.30 [0.130] ~ 4.20 [0.165]

4.30 [0.169] ~ 5.20 [0.205]

5.30 [0.209] ~ 6.20 [0.244]

0.512

13.00

COLLET

SIZE

9.00 [0.354]

WIDTH ACROSS FLATS

CHART A

= KEY LOCATION

**VIEW FROM TERMINATION END**

2 POSITION

20 AWG MAX.

15 AMP MAX.

= 1.30 [0.051]

CONTACT

RESISTANCE

= 5 mΩ

TEST VOLTAGE

= 1500V

WORKING VOLTAGE

= 500V

3 POSITION

20 AWG MAX.

12 AMP MAX.

= 1.30 [0.051]

CONTACT

RESISTANCE

= 5 mΩ

TEST VOLTAGE

= 1300V

WORKING VOLTAGE

= 430V

4 POSITION

22 AWG MAX.

10 AMP MAX.

= 0.90 [0.035]

CONTACT

RESISTANCE

= 6 mΩ

TEST VOLTAGE

= 1300V

WORKING VOLTAGE

= 430V

5 POSITION

22 AWG MAX.

9 AMP MAX.

= 0.90 [0.035]

CONTACT

RESISTANCE

= 6 mΩ

TEST VOLTAGE

= 1250V

WORKING VOLTAGE

= 415V

6 POSITION

24 AWG MAX.

7 AMP MAX.

= 0.70 [0.028]

CONTACT

RESISTANCE

= 7.5 mΩ

TEST VOLTAGE

= 1050V

WORKING VOLTAGE

= 350V

7 POSITION

24 AWG MAX.

7 AMP MAX.

= 0.70 [0.028]

CONTACT

RESISTANCE

= 7.5 mΩ

TEST VOLTAGE

= 950V

WORKING VOLTAGE

= 315V

RoHS COMPLIANT

THESE DRAWINGS AND SPECIFICATIONS

ARE THE PROPERTY OF NorComp AND

SHALL NOT BE REPRODUCED, COPIED

OR USED AS THE BASIS FOR THE

MANUFACTURE OR SALE OF APPARATUS

WITHOUT WRITTEN PERMISSION.

NorComp

DRAWN:

M. SIGMON

DATE:

02-19-16

SCALE:

N.T.S.

SHEET

REV:

CHECKED:

DATE:

DWG NO.

821KYYY-173LYY1
