Compliance to EN50155 and EN45545-2 railway standard
Ultra compact and 1U low profile(25mm)
4:1 wide input range
No minimum load required
Protections: Short circuit / Overload / Over voltage /
Input reverse polarity
4000VDC I/O isolation (Reinforced isolation)
Half encapsulated , cooling by free air convection
-40~+70
℃
wide working temperature
Built-in constant current limiting circuit
LED indicator for power on
3 years warranty
■
Applications
Bus,tram,metro or railway system
Highly vibrating, highly dusty, extremely
low or high temperature harsh environment
Wireless network
Telecom or datacom system
Industry control system
■
Description

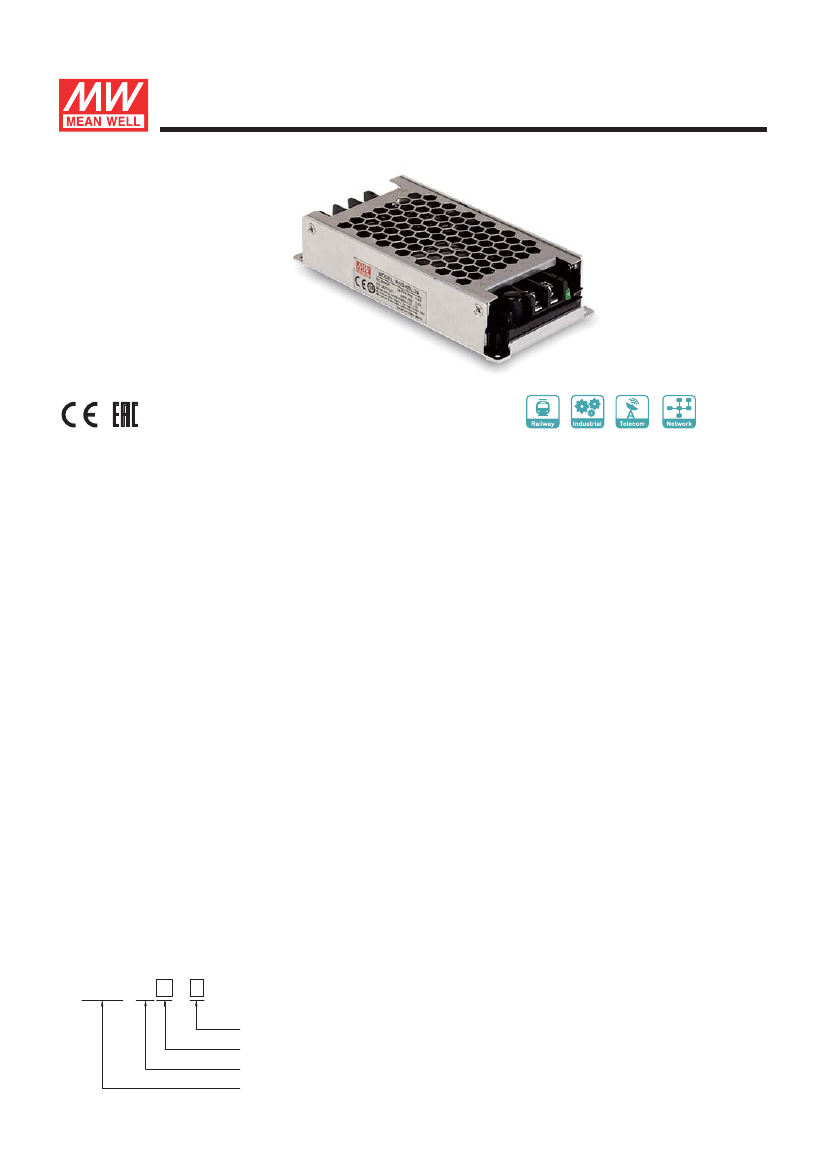

RSD-60 is a 60W enclosed type DC-DC reliable railway converter. This series is compliant with EN50155/
IEC60571 railway standard, constituting three types of models with 4:1 wide but different input ranges
9~36V/18~72V/40~160V, suitable for railway and all kinds of transportation systems exploiting the frequently
used standard input voltages such as 12V, 24V, 36V, 48V, 72V, 96V and 110V. Various output voltages,
3.3V, 5V, 12V and 24V are available for selection.
This series has the capability of working under -40~+70
℃
, low ripple and noise, supreme EMC characteristics,
4KVDC I/P-OP, low enclosure profile 25mm and an interior with semi-potted silicone. It does not only well
fits the in-car systems or the facilities by rails for railway, trams and buses but also can be used in the harsh
environment with high vibration, high dust, extremely low or high temperature, etc.
■
Model Encoding
RSD - 60 G - 5
Output voltage (3.3/5/12/24Vdc)
Input voltage (G: 9~36Vdc, L: 18~72Vdc, H: 40~160Vdc)
Rated wattage
Series name
File Name:RSD-60-SPEC 2018-01-12
60W Reliable Railway DC-DC Converter
SPECIFICATION
MODEL
DC VOLTAGE
RATED CURRENT
CURRENT RANGE
RATED POWER
OUTPUT
RSD-60G-3.3
3.3V
12A
0 ~ 12A
39.6W
RSD-60G-5
5V
12A
0 ~ 12A
60W
100mVp-p
±2.0%
±0.5%
±0.5%
RSD-60G-12
12V
5A
0 ~ 5A
60W
50mVp-p
±2.0%
±0.3%
±0.3%
RSD-60G-24
24V
2.5A
0 ~ 2.5A
60W
50mVp-p
±2.0%
±0.2%
±0.2%
RSD-60L-3.3
3.3V
12A
0 ~ 12A
39.6W
60mVp-p
±2.0%
±0.5%
±0.5%
RSD-60
RSD-60L-5
5V
12A
0 ~ 12A
60W
60mVp-p
±2.0%
±0.5%
±0.5%
RSD-60L-12
12V
5A
0 ~ 5A
60W
50mVp-p
±2.0%
±0.3%
±0.3%
series
RSD-60L-24
24V
2.5A
0 ~ 2.5A
60W
50mVp-p
±2.0%
±0.2%
±0.2%
RIPPLE & NOISE (max.)
Note.2
60mVp-p
VOLTAGE TOLERANCE
Note.3
±2.0%
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
EFFICIENCY (Typ.)
DC CURRENT (Typ.)
INRUSH CURRENT (Typ.)
OVERLOAD
±0.5%
±0.5%
100ms, 60ms at full load
G type comply with S1 level(3ms) @ full load,S2 level(10ms) @50% load ; L type comply with S2 level( 10
ms
) @full load
18 ~ 72VDC
88%
3A/24VDC
92%
90%
88.5%
0.95A/48VDC
20A/48VDC
89%
1.5A/48VDC
93%
91.5%
86.5%
2.1A/24VDC
20A/24VDC
VOLTAGE RANGE CONTINUOUS
9 ~ 36VDC
INPUT
PROTECTION
OVER VOLTAGE
WORKING TEMP.
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
WITHSTAND VOLTAGE
ISOLATION RESISTANCE
105 ~ 135% rated output power
Protection type :
Constant current limiting, recovers automatically after fault condition is removed
4.3 ~ 4.95V
5.75 ~ 7V
13.8 ~ 16.2V
27.6 ~ 32.4V
4.3 ~ 4.95V
5.75 ~ 7V
13.8 ~ 16.2V
27.6 ~ 32.4V
Protection type : Shut down o/p voltage, re-power on to recover
-40 ~ +55
℃
(no derating) ; +70
℃
@ 60% load by free air convection ; +70
℃
(no derating with external base plate)
5 ~ 95% RH non-condensing
-40 ~ +85
℃
, 10 ~ 95% RH
non-condensing
±
0.03%/
℃
(0 ~ 50
℃
)
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes ; Mounting : compliance to IEC61373
EAC TP TC 004
approved, IEC60950-1 (LVD)
I/P-O/P:4KVDC
I/P-FG:2.5KVDC
O/P-FG:2.5KVDC
Test Level / Note
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25
℃
/ 70% RH
Parameter
Standard
Conducted
Radiated
SAFETY &
EMC
(Note 4)
EMC EMISSION
Harmonic Current
Voltage Flicker
Parameter
ESD
EN55032
EN55032
EN6100-3-2
EN6100-3-3
Standard
EN61000-4-2
Class A
Class B
Class A
-----
Test Level / Note
Level 3,
±
8KV air ; Level 3,
±
6KV contact
Radiated Field
EMC IMMUNITY
EFT / Burst
Surge
Conducted
RAILWAY STANDARD
MTBF
OTHERS
DIMENSION
PACKING
NOTE
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
Level X
Level 3, 2KV at power
Level 4, 2KV at signal
Level 3,1KV Line-Line, Level 3, 2KV Line-Earth
Level 3
Compliance to EN45545-2 for fire protection ; EN50155 / IEC60571 including IEC61373 for shock & vibration, EN50121-3-2 for EMC
593.8K hrs min. MIL-HDBK-217F (25
℃
)
128*60*25mm (L*W*H)
0.29Kg; 48pcs/14.9Kg/0.76CUFT
1. All parameters NOT specially mentioned are measured at 24,48VDC input, rated load and 25
℃
of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on
a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to
perform these EMC tests, please refer to EMI testing of component power supplies. (as available on http://www.meanwell.com)
5. Strongly recommended that external output capacitance should not exceed 5000uF.
6. The ambient temperature derating of 3.5
℃
/1000m with fanless models and of 5
℃
/1000m with fan models for operating altitude higher than 2000m(6500ft).
File Name:RSD-60-SPEC 2018-01-12
60W Reliable Railway DC-DC Converter
SPECIFICATION
MODEL
DC VOLTAGE
RATED CURRENT
CURRENT RANGE
RATED POWER
OUTPUT
RSD-60H-3.3
3.3V
12A
0 ~ 12A
39.6W
RSD-60H-5
5V
12A
0 ~ 12A
60W
60mVp-p
±2.0%
±0.5%
±0.5%
RSD-60H-12
12V
5A
0 ~ 5A
60W
50mVp-p
±2.0%
±0.3%
±0.3%
RSD-60
RSD-60H-24
24V
2.5A
0 ~ 2.5A
60W
50mVp-p
±2.0%
±0.2%
±0.2%
series
RIPPLE & NOISE (max.)
Note.2
80mVp-p
VOLTAGE TOLERANCE
Note.3
±2.0%
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
EFFICIENCY (Typ.)
DC CURRENT (Typ.)
INRUSH CURRENT (Typ.)
OVERLOAD
±0.5%
±0.5%
100ms, 60ms at full load
H-type comply with S2 level(10ms) @ full load
87.5%
0.415A/110VDC
20A/110VDC
105 ~ 135% rated output power
Protection type :
Constant current limiting, recovers automatically after fault condition is removed
4.3 ~ 4.95V
5.75 ~ 7V
13.8 ~ 16.2V
27.6 ~ 32.4V
Protection type : Shut down o/p voltage, re-power on to recover
-40 ~ +55
℃
(no derating) ; +70
℃
@ 60% load by free air convection ; +70
℃
(no derating with external base plate)
5 ~ 95% RH non-condensing
-40 ~ +85
℃
, 10 ~ 95% RH non-condensing
±
0.03%/
℃
(0 ~ 50
℃
)
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes ; Mounting : compliance to IEC61373
EAC TP TC 004
approved, IEC60950-1 (LVD)
I/P-O/P:4KVDC
I/P-FG:2.5KVDC
O/P-FG:2.5KVDC
Test Level / Note
VOLTAGE RANGE CONTINUOUS
40 ~ 160VDC
INPUT
89%
0.62A/110V
92.5%
91.5%
PROTECTION
OVER VOLTAGE
WORKING TEMP.
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
WITHSTAND VOLTAGE
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25
℃
/ 70% RH
Parameter
Standard
Conducted
Radiated
Harmonic Current
EN55032
EN55032
EN6100-3-2
EN6100-3-3
Standard
EN61000-4-2
Class A
Class B
Class A
-----
Test Level / Note
Level 3,
±
8KV air ; Level 3,
±
6KV contact
SAFETY & EMC EMISSION
EMC
(Note 4)
Voltage Flicker
Parameter
ESD
Radiated Field
EMC IMMUNITY
EFT / Burst
Surge
Conducted
RAILWAY STANDARD
MTBF
OTHERS
DIMENSION
PACKING
NOTE
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
Level X
Level 3, 2KV at power
Level 4, 2KV at signal
Level 3,1KV Line-Line, Level 3, 2KV Line-Earth
Level 3
Compliance to EN45545-2 for fire protection ; EN50155 / IEC60571 including IEC61373 for shock & vibration, EN50121-3-2 for EMC
593.8K hrs min. MIL-HDBK-217F (25
℃
)
128*60*25mm (L*W*H)
0.29Kg; 48pcs/14.9Kg/0.76CUFT
1. All parameters NOT specially mentioned are measured at 110VDC input, rated load and 25
℃
of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on
a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to
perform these EMC tests, please refer to EMI testing of component power supplies. (as available on http://www.meanwell.com)
5. Strongly recommended that external output capacitance should not exceed 5000uF.
6. The ambient temperature derating of 3.5
℃
/1000m with fanless models and of 5
℃
/1000m with fan models for operating altitude higher than 2000m(6500ft).
File Name:RSD-60-SPEC 2018-01-12
60W Reliable Railway DC-DC Converter
Block Diagram
RSD-60
series
fosc : 130KHz
I/P
EMI
FILTER
RECTIFIERS
&
FILTER
POWER
SWITCHING
RECTIFIERS
&
FILTER
+V
-V
FG
O.L.P.
PWM
CONTROL
O.V.P.
DETECTION
CIRCUIT
Input Fuse
There is one fuse connected in series to the positive input line, which is used to protect against abnormal surge. Fuse specifications of each
model are shown as below.
Type
G
L
H
Fuse Type
Time-Lag
Time-Lag
Time-Lag
Reference and Rating
CONQUE MST, 10A, 250V
CONQUE MST,
5A, 250V
CONQUE MST,
2.5A, 250V
Input Reverse Polarity Protection
There is a MOSFET connected in series to the negative input line. If the input polarity is connected reversely, the MOSFET opens and there
will be no output to protect the unit.
Input Range and Transient Ability
The series has a wide range input capability. With
±
40% of rated input voltage, it can withstand that for 1 second.
Input Under-Voltage Protection
If input voltage drops below Vimin, the internal control IC shuts down and there is no output voltage. It recovers automatically when input
voltage reaches above Vimin,please refer to the cruve below.
RSD-60G-24
Vo
30
25
20
15
10
5
0
6
6.3
8
8.3
10
12
14
16
Turn On
Turn Off
RSD-60L-24
Vo
30
25
20
15
10
5
Turn On
Turn Off
RSD-60H-24
Vo
30
25
20
15
10
5
Turn On
Turn Off
Vin
0
12
12.3
16
16.3
20
24
28
32
Vin
0
24
25.5
32
37
40
48
56
Vin
Inrush Current
Inrush current is suppressed by a resistor during the initial start-up, and then the resistor is bypassed by a MOSFET to reduce power
consumption after accomplishing
the start-up.
