6-0001-1 datasheet, PDF - EEWORLD Datasheet

6-0001-1: DescriptionCONN BNC JACK R/A 50 OHM PCB; CategoryThe connector; File Size201KB，1 Pages; ManufacturerCINCH; Environmental Compliance

Download Datasheet Parametric Compare View All

6-0001-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	6-0001-1	-	-	View	Buy Now

CONN BNC JACK R/A 50 OHM PCB

Parameter Name	Attribute value
Connector style	BNC
Connector type	jack, female socket
Contact termination	welding
Protective termination	welding
impedance	50 ohms
Installation type	Panel mount, through hole, right angle
Installation features	Bulkhead type - front side nut
cable set	-
Fastening type	latch lock
Frequency - maximum	4GHz
Number of ports	1
characteristic	-
Shell color	silver
Intrusion protection	-
include	3 pieces - 1 connector, 1 nut, 1 washer
Matrix material	brass
substrate surface	tin
Center contact plating	gold
dielectric materials	Polytetrafluoroethylene (PTFE)
Operating temperature	-65°C ~ 165°C
center contact material	-
Rated voltage	500V
Number of patches	-
Insertion loss	-

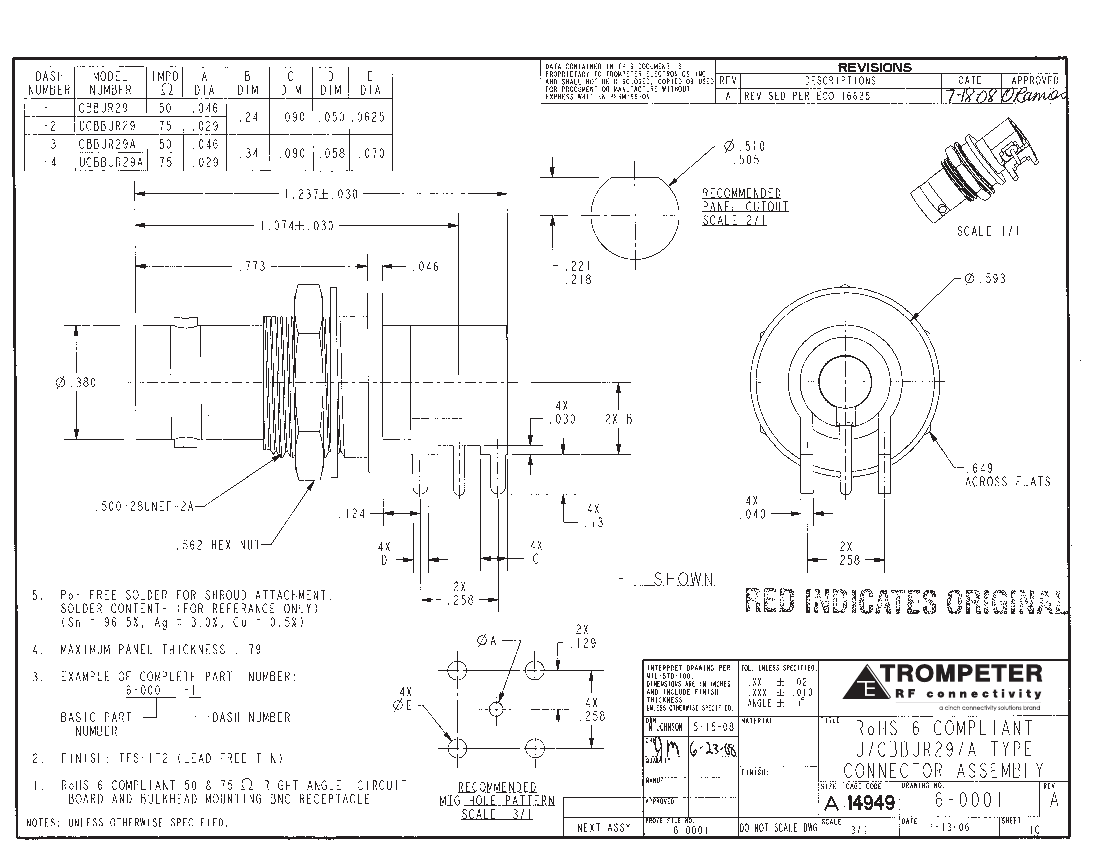

U

N

C

O

N

TR

O

LL

ED

C

O

PY

	6-0001-1	6-0001-3	6-0001-2
Description	CONN BNC JACK R/A 50 OHM PCB	CONN BNC JACK R/A 50 OHM PCB	CONN BNC JACK R/A 75 OHM PCB
Connector style	BNC	BNC	BNC
Connector type	jack, female socket	jack, female socket	jack, female socket
Contact termination	welding	welding	welding
Protective termination	welding	welding	welding
impedance	50 ohms	50 ohms	75 ohms
Installation type	Panel mount, through hole, right angle	Panel mount, through hole, right angle	Panel mount, through hole, right angle
Installation features	Bulkhead type - front side nut	Bulkhead type - front side nut	Bulkhead type - front side nut
Fastening type	latch lock	latch lock	latch lock
Frequency - maximum	4GHz	4GHz	4GHz
Number of ports	1	1	1
Shell color	silver	silver	silver
include	3 pieces - 1 connector, 1 nut, 1 washer	3 pieces - 1 connector, 1 nut, 1 washer	3 pieces - 1 connector, 1 nut, 1 washer
Matrix material	brass	brass	brass
substrate surface	tin	tin	tin
Center contact plating	gold	gold	gold
dielectric materials	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Operating temperature	-65°C ~ 165°C	-65°C ~ 165°C	-65°C ~ 165°C
Rated voltage	500V	500V	500V
