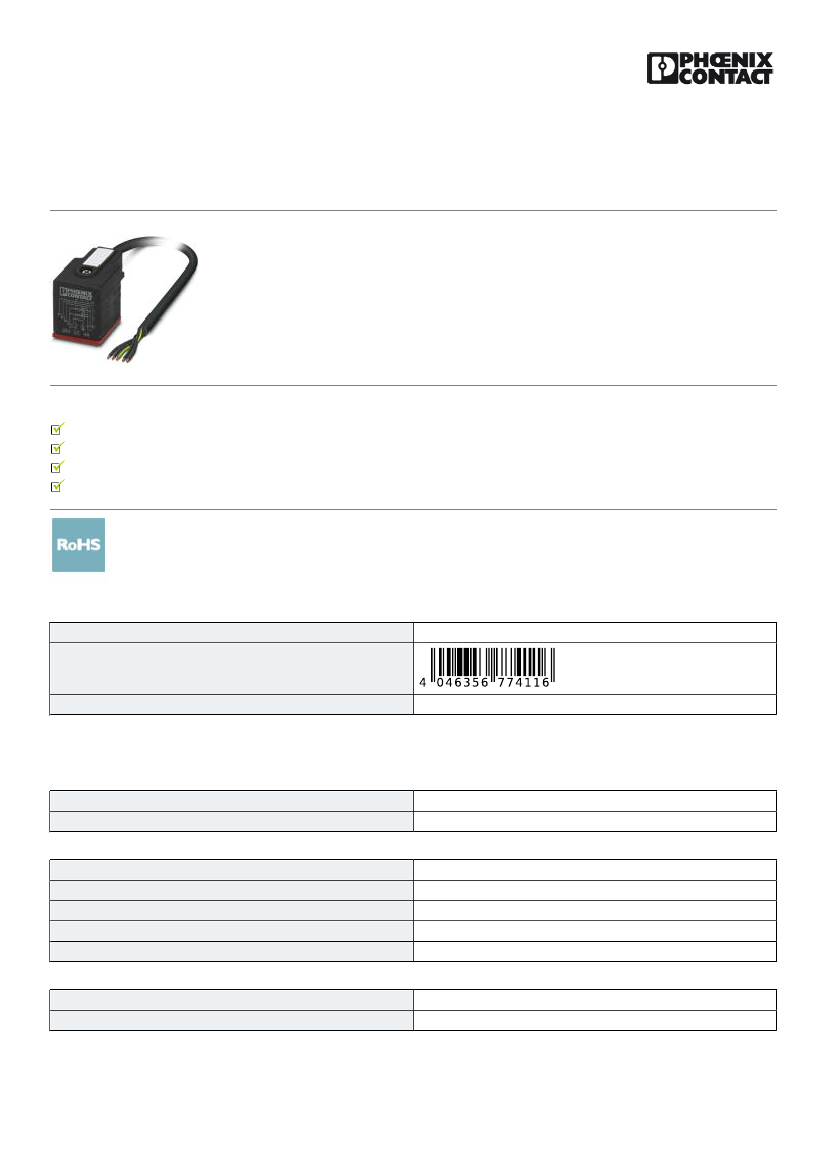

Sensor/actuator cable - SAC-5P- 5,0-PUO/AD-2L OD - 1407293
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Sensor/actuator cable, 5-position, PUR halogen-free, black RAL 9005, free cable end, on Valve connector AD
(pressure switch), with 2 LEDs, cable length: 5 m, for outdoor applications, With stainless steel central screw
and additional silicone seal (red)
Your advantages
Easy and safe: 100% electrically tested plug-in components
Robust valve connector without protective circuit
Corrosion protection for all exposed metal parts, thanks to the use of stainless steel type 1.4404
Robust throughout: resistant to oil, UV, and ozone, withstands temperatures from -20°C to +85°C
Key Commercial Data
Packing unit
GTIN
GTIN
4046356774116
1 pc
Technical data
Dimensions
Length of cable
Central screw valve connector
5m
M3 x 29
Ambient conditions
Ambient temperature (operation)
Degree of protection
-40 °C ... 85 °C (valve plug)
IP65
IP66K (Observe tightening torque)
IP67
IP68
General
Rated current at 40°C
Rated voltage
4A
24 V AC
10/28/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/1407293
Sensor/actuator cable - SAC-5P- 5,0-PUO/AD-2L OD - 1407293
Technical data
General
24 V DC
Number of positions
Color handle area
Insulation resistance
Standards/regulations
Status display
Protective circuit/component
Overvoltage category
Degree of pollution
Torque
Tightening torque
5
black
≥ 100 MΩ
Valve connector EN 175301-803
2 LEDs
Unwired
III
3
0.6 Nm ... 0.8 Nm (Valve connector)
0.8 Nm for IP66K
Material
Flammability rating according to UL 94
Valve plug contact material
Valve plug contact surface material
Valve plug contact insert material
Material housing valve plug
Sealing material
V0
CuSn
Sn
PA 6
TPU
TPU (Seal molded)
Silicon (Seal snapped in)
Standards and Regulations
Standard designation
Standards/regulations
Flammability rating according to UL 94
Valve connector
EN 175301-803
V0
Cable
Cable type
Cable type (abbreviation)
Cable abbreviation
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Wire colors
Overall twist
External sheath, color
External cable diameter D
Minimum bending radius, fixed installation
Minimum bending radius, flexible installation
Outer sheath, material
Material conductor insulation
PUR halogen-free black
PUO
Li9Y11Y
5x 0.5 mm²
20
16x 0.20 mm
2 mm ±0.05 mm
Black 1, black 2, black 3, black 4, green/yellow
5 cores, twisted
black RAL 9005
6.9 mm ±0.1 mm
10 x D
15 x D
PUR
PP
10/28/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/1407293
Sensor/actuator cable - SAC-5P- 5,0-PUO/AD-2L OD - 1407293
Technical data
Cable
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
Test voltage Core/Core
Halogen-free
Resistance to oil
Other resistance
Tin-plated Cu litz wires
70 GΩ*km
≤ 40.1 Ω/km
300 V
3000 V (Spark test)
in accordance with DIN VDE 0472 part 815
According to EN 50267-2-1
According to DIN EN 50306
According to DIN EN 60811-2-1, 138 h at 100°C
UV resistant
hydrolysis and microbe resistant
Good resistance to aggressive media
Ambient temperature (operation)
-40 °C ... 105 °C (cable, fixed installation)
-15 °C ... 105 °C (cable, flexible installation)
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”

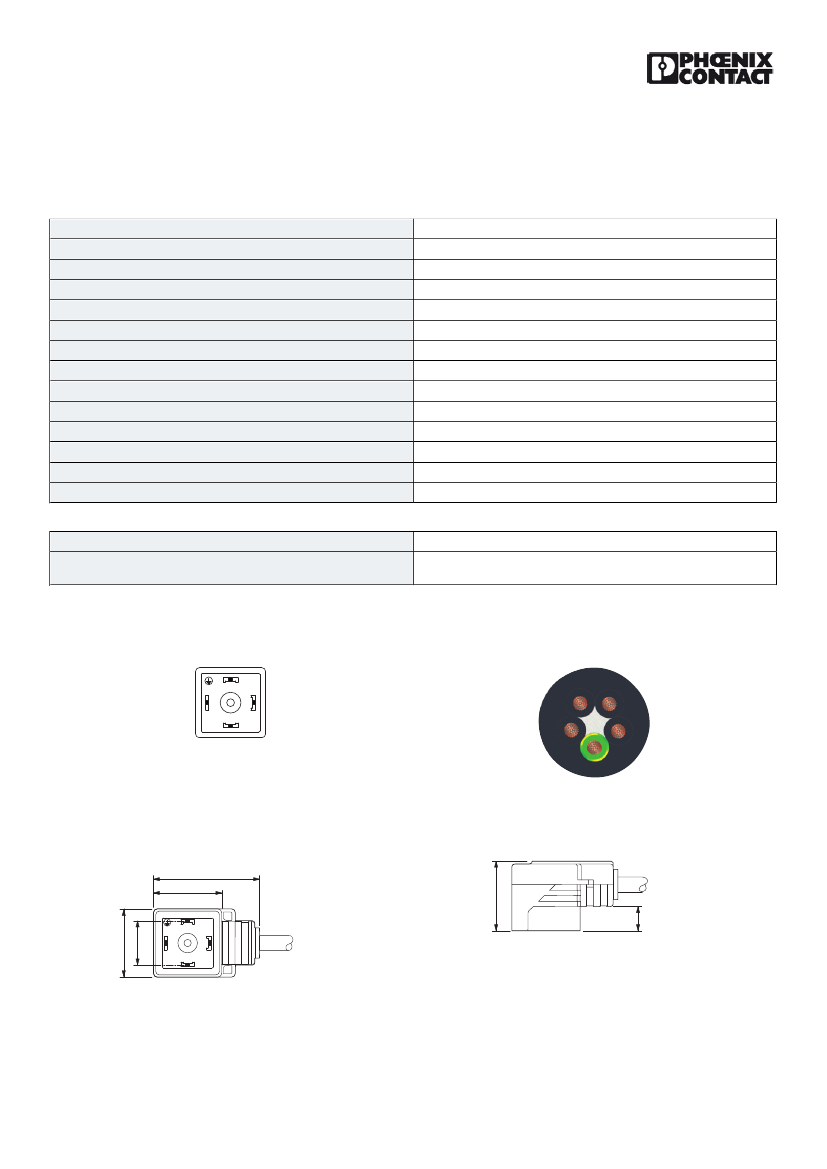

Drawings
Schematic diagram
1
3
2
Cable cross section
Valve plug connector pin assignment, type AD
PUR halogen-free black [PUO]
Dimensional drawing
43
Dimensional drawing
28,2
28
1
28
18
3
2
Valve connector, type AD, side view
Valve connector, type AD
10/28/2018 Page 3 / 4
9,9
https://www.phoenixcontact.com/pi/products/1407293
Sensor/actuator cable - SAC-5P- 5,0-PUO/AD-2L OD - 1407293
Circuit diagram
BK 1
RD
GN
BK 2
BK 3
BK 4
GNYE (PE)
1
2
3
PE
Contact assignment of the valve plug
Approvals
Approvals
Approvals
CSAus
Ex Approvals
Approval details
CSAus
Nominal voltage UN
Nominal current IN
http://www.csagroup.org/services-industries/product-listing/
24 V
6A
13631
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
10/28/2018 Page 4 / 4
