53AS105-K20N3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 53AS105-K20N3

53AS105-K20N3: DescriptionN TYPE ATTENUATOR; CategoryWireless rf/communication Radio frequency and microwave; File Size94KB，2 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric Compare View All

53AS105-K20N3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	53AS105-K20N3	-	-	View	Buy Now

53AS105-K20N3 Overview

N TYPE ATTENUATOR

53AS105-K20N3 Parametric

Parameter Name	Attribute value
Maker	Rosenberger
Reach Compliance Code	unknown
Other features	N
Nominal attenuation	20 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	36.99 dBm
Maximum operating frequency	10000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	FIXED ATTENUATOR

Preview

Download Datasheet

View All

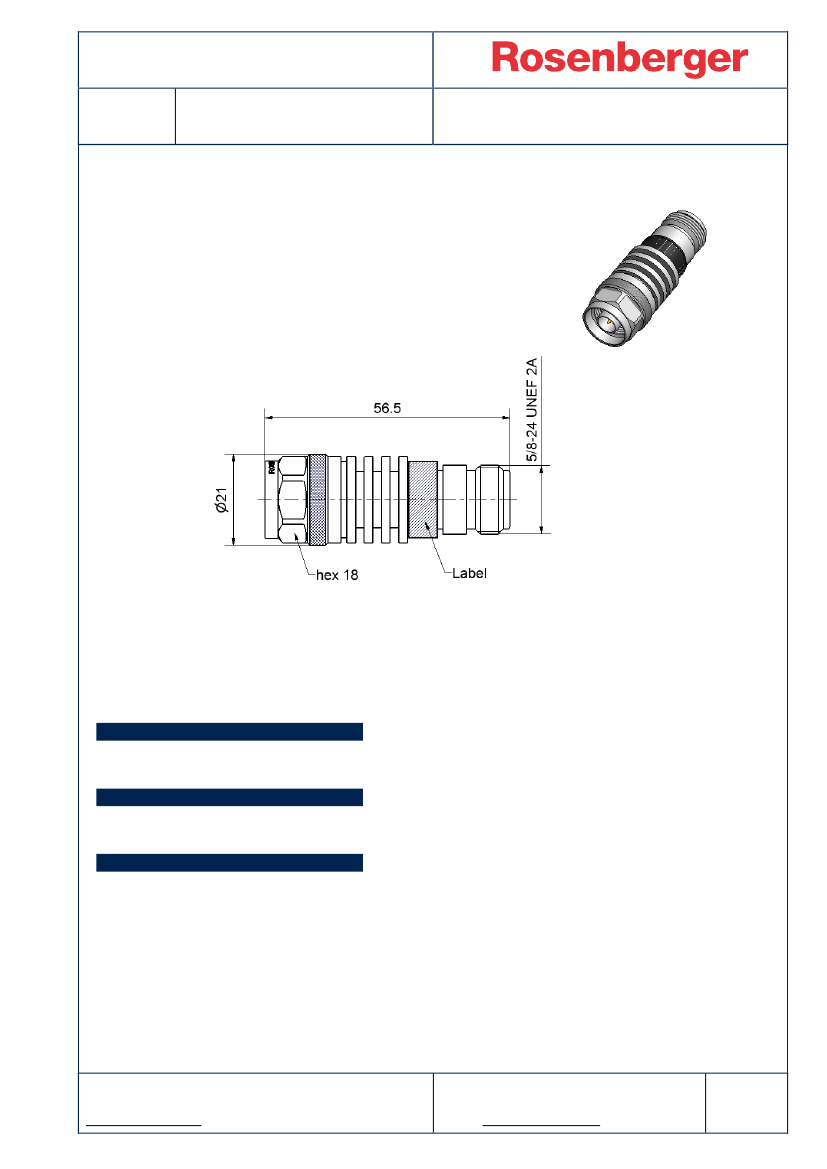

Technical Data Sheet

N 50

Ω

Attenuator

Plug/Jack

53AS105-K20N3

Dieses Dokument ist urheberrechtlich geschützt ● This document is protected by copyright ● Rosenberger Hochfrequenztechnik GmbH & Co. KG

All dimensions are in mm; tolerances according to ISO 2768 m-H

Interface

According to

IEC 60169-16, MIL-PRF-39012, CECC 22210

Documents

N/A

Material and plating

Connector parts

Center contact - plug

Center contact - jack

Outer contact

Coupling nut

Dielectric

Substrate

Material

Brass

CuBe

Brass

PTFE

ALN

Plating

Gold, min. 1.27 µm, over nickel

Flash white bronze over silver(e.g. Optargen®)

RF_35/05.10/6.0

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel. : +49 8684 18-0

Fax : +49 8684 18-499

Email : info@rosenberger.de

Page

1/2

53AS105-K20N3 Related Products

	53AS105-K20N3	53AS105-K20/N3
Description	N TYPE ATTENUATOR	Fixed Attenuator, 0MHz Min, 10000MHz Max,
Maker	Rosenberger	Rosenberger
Reach Compliance Code	unknown	compliant
Other features	N	N
Characteristic impedance	50 Ω	50 Ω
structure	COAXIAL	COAXIAL
Maximum input power (CW)	36.99 dBm	36.99 dBm
Maximum operating frequency	10000 MHz	10000 MHz
RF/Microwave Device Types	FIXED ATTENUATOR	FIXED ATTENUATOR
