Dual Port, Wide Temperature,
Managed Media Converter
IE-iMcV-2xLIM
www.advantech-bb.com
PRODUCT FEATURES
•
Functions as two independent copper to fiber media converters,
doubling port density in the iMediaChassis and MediaChassis product
lines Interchangeable SFP modules allow for multiple fiber type
conversion options (single-mode, multi-mode, long haul, short haul, etc.)
100 Mbps SFPs and 2xLIM modules are hot-swappable
No need to power-down chassis when upgrading or troubleshooting
Link Fault Pass-Through (LFPT)
Config Control
•
•
•
•
The IE-iMcV-2xLIM, TX/SFP is a Fast Ethernet module which provides two
conversions of 100Base-TX twisted pair to 100Base-FX/SX single-mode or
multi-mode fiber. There are two sets of ports, RJ-45 (copper) and SFP (fiber).
The SFP port supports all MSA-compliant SC, LC and single-strand fiber
(SSF), 155 Mbps SFPs. Designed as a Layer 1 device, the IE-iMcV-2xLIM
is entirely transparent to both Layer 2 and Layer 3 protocols. The IE-iMcV-
2xLIM is SNMP-manageable and can be installed into the modular, SNMP-
manageable iMediaChassis or the MediaChassis series.
Easily configure and manage converters with the GUI-based iView². As an
SNMP management program, iView² gives network managers the ability to
monitor and control products. iView² runs standalone on a Web Server and
is available as free software, downloadable from
www.advantech-bb.com.
The Modules support Configuration Control, a feature that allows the
Modules to retain their settings regardless of an SNMP Management Card
replacement. If changes are made to the Modules using DIP Switches, the
SNMP card will adopt the changes rather than overwriting the changes.
ORDERING INFORMATION
MODEL
FIBER
NUMBER
IE-iMcV-2xLIM *
850-18610
SFP
FIBER
ETHERNET ETHERNET
PORTS RANGE PORTS
CONNECTOR
2
Various
2
RJ-45
* SFP fibers sold separately - available at
www.advantech-bb.com
iView: Webserver Version
Free Download
All product specifications are subject to change without notice.
IE-iMcV-2xLIM_2917ds
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
Dual Port, Wide Temperature
Managed Media Converter
IE-iMcV-2xLIM
SPECIFICATIONS
TECHNICAL
2 x RJ-45 and 2 x SFP ports (SFPs sold separately)
IEEE 802.3u 100Base-T over twisted pair
IEEE 802.3u 100Base-FX or SX over twisted pair
AutoCross for MDI/MDIX
LinkLoss, Far End Fault & Auto Negotiation
Link Fault Pass-Through (LFPT)
Supports Config Control
MDI/MDIX switch
DIP Switch selectable Auto Negotiation on copper port
Features low latency
Supports Half- and Full-Duplex operation
Supports Jumbo packets (No size limit)
Install in any iMediaChassis or MediaChassis
Supports GUI-Based iView²
Includes diagnostic LEDs
Hot-swappable architecture
STANDARD COMPLIANCE
SFP-MSA SFP standard (September 14, 2000)
SFF-8472 DDMI standard (Revision 1.0)
IEEE 802.3
SPECIFICATIONS - continued
MECHANICAL
Dimensions
4.19”H x 0.78”W x 2.75”D
(10.74 x 2 x 7.05 cm)
0.30 lbs (.11 kg)
Shipping Weight
INPUT VOLTAGE
100 to 240 VAC 50/60Hz (External Power Supply) 5 VDC ± 5%
POWER
Max Current: 0.80A
ENVIRONMENTAL
Operating Temperature:
-40° F to +176° F (-40° C to +80° C)
Storage Temperature:
-40° F to +176° F (-40° C to +80° C)
5% to 95% (non-condensing),
Operating Humidity
0 – 10,000 ft. altitude
REGULATORY APPROVALS
FCC Class B
UL, CSA, CE
TUV
MEANTIME BEFORE FAILURE (MTBF)
MTBF
2.3 million hours

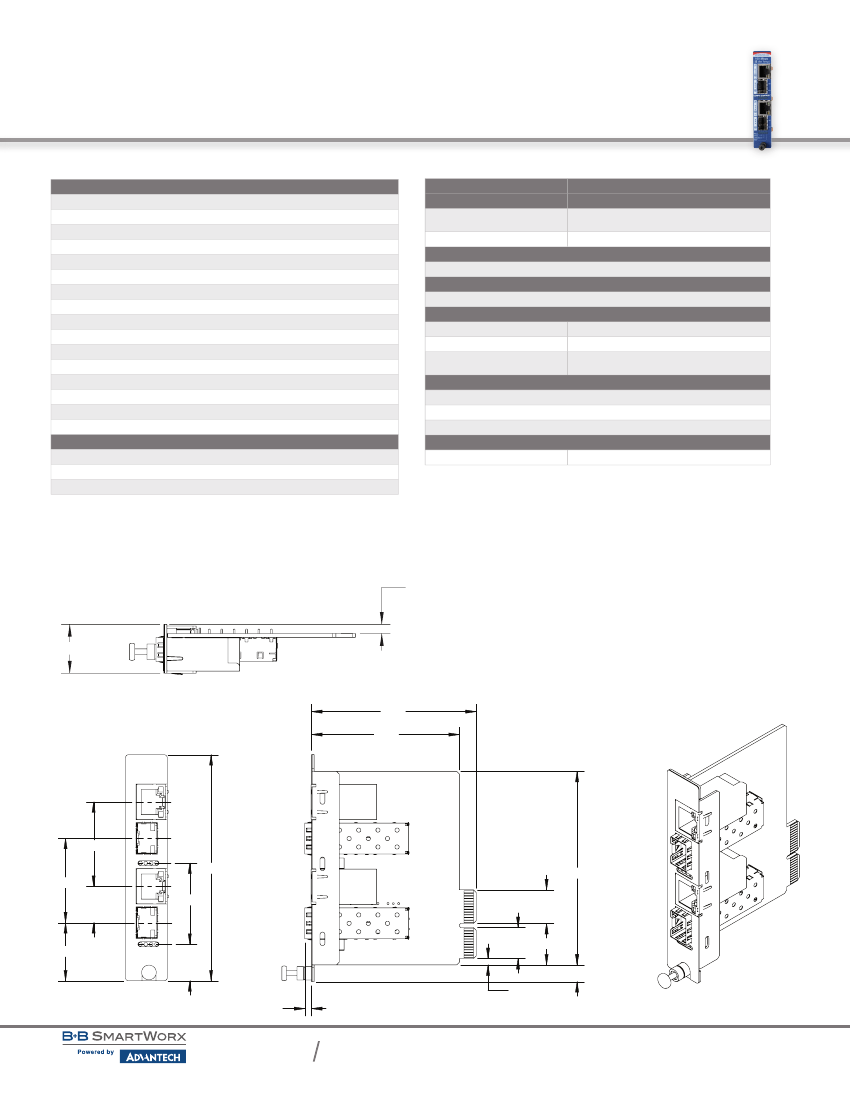

MECHANICAL DIAGRAM
(dimensions in inches & millimeters)
.14
.78
3.04
2.73
1.57
4.19
1.56
.67
1.51
3.57
.62
1.08
.57
.68
.76
.31
.12
.13
