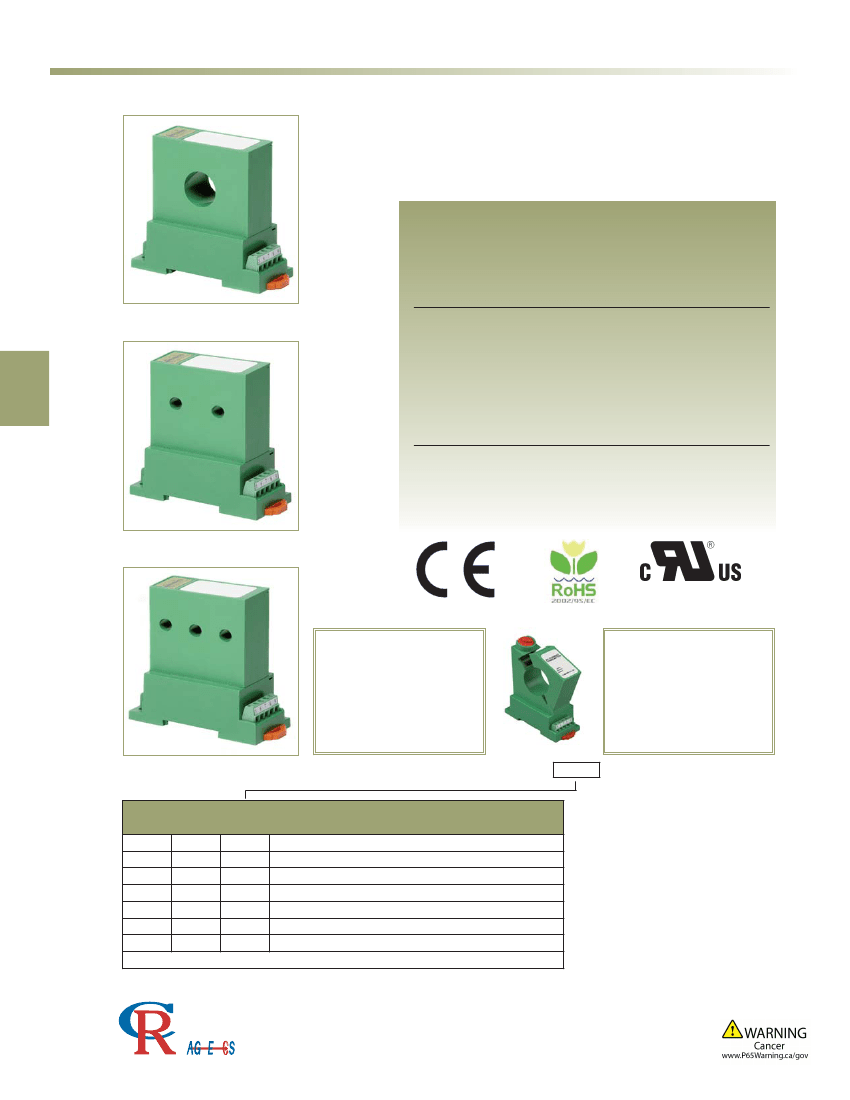

True RMS AC Current Transducer
DIN RAIL / PANEL MOUNT, TRUE RMS
The
CR4100
Series True RMS Current Transducers and
Transmitters are designed for applications where AC
current waveforms are not purely sinusoidal. More
precise and accurate than other transducers, these
devices are ideal in chopped wave and phase fired
control systems.
Applications
Phase fired controlled heaters
Quickly varying motor loads
Chopped wave form drivers
Harmonic currents
CR4110 CR4120
CR4111
Single Element - 0.79” Window
0.5 to 600 AAC Input Range
Features
35mm DIN Rail or Panel Mount
Available with 0-5 VDC, 0-10 VDC, 4-20 mADC output
24 VDC powered
Use with external current transformers
Highest precision available
Connection diagram printed on case
C
Transducers
CR4150
CR4160
Regulatory Agencies
Recognized to meet UL 61010B-1
Constructed to meet CAN/CSA-C22.2, No. 61010-1-2004
Meets requirement of IEC 61010-1 and BS EN 61010-1
Two Element - 0 .26” Window
0.5 to 30 AAC Input Range
E199795
Use a 5 Amp Secondary
Current Transformer to extend
the ranges of all CR Magnetics
Current Transducers
CR4170
CR4180
All single phase current
transducers are available in split
core design. Simply put an “S” at
the end of the prefix*
I.E. CR4110S-10
* Not UL Recognized
Add suffix for input range
Three Element - 0.26” Window
0.5 to 30 AAC Input Range
PART NUMBERS
CR4110(S)
CR4111(S)
CR4120(S)
CR4150
CR4160
CR4170
CR4180
Single element with 0 - 5 VDC output (split core design)
Single element with 0 - 10 VDC output (split core design)
Single element with 4 - 20 mADC output (split core design)
Two element with 0 - 5 VDC output
**
Two element with 4 to 20 mADC output
**
Three element with 0 - 5 VDC output
**
Three element with 4 - 20 mADC output
**
*
Two and three element transducers are available only in ranges of 0.5 to 30 AAC
-
-
-
-
-
-
-
5
10
15
20
25
30
40
50
75
100
150
-
-
-
-
-
-
-
-
-
-
-
0- 5 AAC
**
0-10 AAC
**
0-15 AAC
**
0-20 AAC
**
0-25 AAC
**
0-30 AAC
**
0-40 AAC
0-50 AAC
0-75 AAC
0-100 AAC
0-150 AAC
Ranges available up to and including
600 AAC
The Professional
Energy Monitoring
Company
ISO 9001:2008 Quality Management System
M N TI
3500 Scarlet Oak Blvd. St. Louis MO USA 63122 V: 636-343-8518 F: 636-343-5119
Web: http://www.crmagnetics.com
32
E-mail: sales@crmagnetics.com
True RMS AC Current Transducer
DIN RAIL / PANEL MOUNT, TRUE RMS

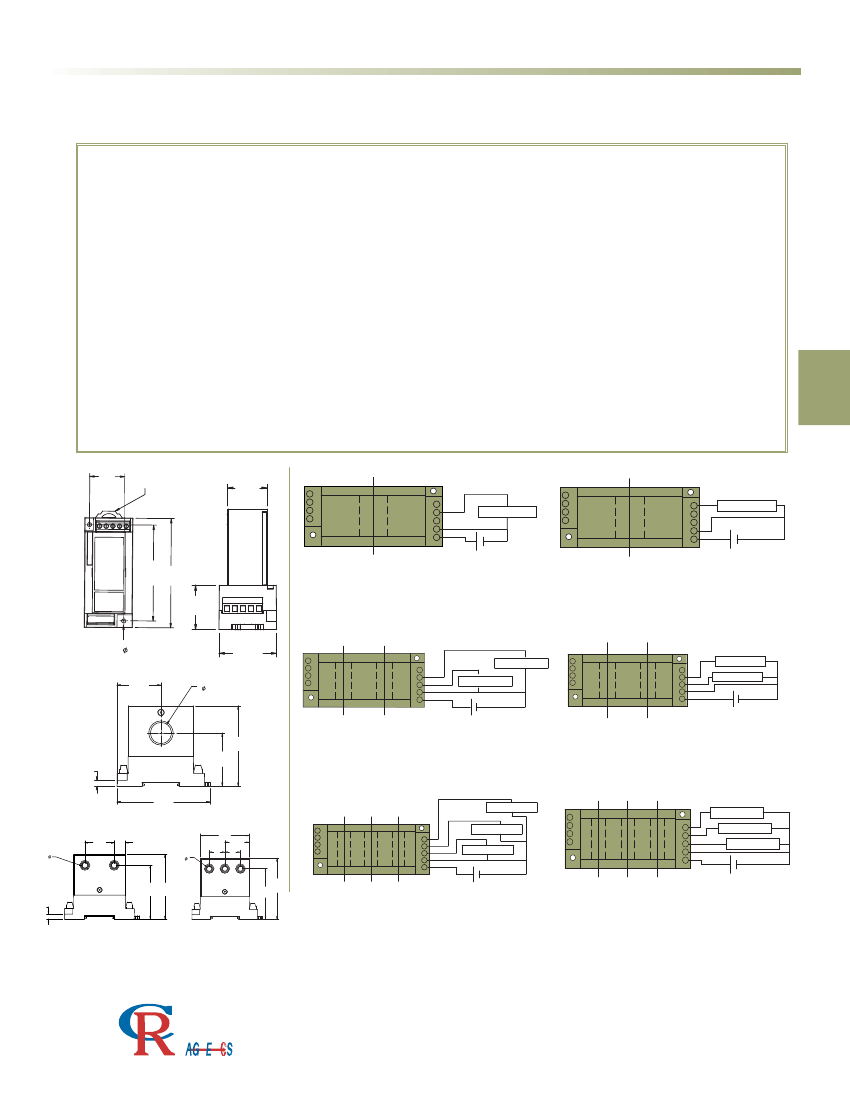

SPECIFICATIONS
Basic Accuracy:............................... 0.5%
Linearity:......................................... 10% to 100% FS
Calibration:..................................... True RMS Sensing
Thermal Drift:.................................. 500 PPM/°C
Operating Temperature:................. 0°C to +60°C
Installation Category:.................... CAT II
Pollution Degree:........................... 2
Insulation Voltage:........................ 2500 VDC
Vibration Tested To:........................IEC 60068-2-6,1995
Altitude:......................................... 2000 meter max.
Frequency Range:......... 20 Hz - 5 KHz
MTBF:............................ Greater than 100 K hours
Cleaning:........................ Water-dampened cloth
Supply Voltage:.............. 24 VDC ± 10%
Output Load:.................. 4-20 mADC - 0 to 300
Ω
0-5 VDC - 2K
Ω
or Greater
[26.6]
1.05
DIN RAIL
MOUNTING
CLIP
Response Time:............. 250 ms max. 0-90%
FS Relative Humidity:.......5% to 95%, Non-Condensing
Torque Specs.:................ 3.0 inch lbs. (0.4Nm)
Weight:.............................0.5 lbs.
Supply Current:
CR4110/11......................Typical 15mA
Max 25mA
CR4120...........................Typical 25mA
Max 40mA
CR4150...........................Typical 25mA
Max 75mA
CR4160...........................Typical 40mA
Max 70mA
CR4170...........................Typical 20mA
Max 60mA
CR4180...........................Typical 55mA
Max 110mA
CR4110S.........................Typical 15mA
Max 25mA
CR4120S.........................Typical 25mA
Max 40mA
C
Transducers
[25]
.98
1
2
3
4
9
8
7
6
5
+
OUTPUT
-
+
-
SUPPLY
1
2
3
4
+
9
8
7
6
5
-
OUTPUT
+
-
SUPPLY
[73.1][83.3]
2.88 3.28
[28.3]
1.12
CR4110
One Element 0 - 5 VDC Output
CR4111
One Element 0 - 10 VDC Output
[36.6]
1.44
CR4120
One Element 4 - 20 mADC Output
Top View
[3.3]
.13
Optional
Mounting
[41.8]
1.65
End View
[20.1]
.79
+
1
2
3
4
9
8
7
6
5
+
1
2
3
4
9
8
7
6
5
-
OUTPUT 2
OUTPUT 1
+
-
SUPPLY
-
+
OUTPUT 1
+
-
SUPPLY
OUTPUT 2
-
+
L1
[76.6]
3.02
[5.6]
.22
TYP
[88.7]
3.49
[50.7]
2.00
L2
L1
L2
CR4150
Two Element 0 - 5 VDC Output
+
OUTPUT 3
1
2
3
4
CR4160
Two Element 4 - 20 mADC Output
+
1
2
3
4
9
8
7
6
5
CR4110 CR4120 CR4111
[35]
1.38
[13.5]
.53
[62]
2.44 [30.8]
1.21
[19.8] [19.8]
.78
.78
9
8
7
6
5
[6.6]
.26
[6.6]
.260
+
OUTPUT 2
+
OUTPUT 1
+
-
SUPPLY
OUTPUT 3
+
+
+
OUTPUT 2
-
-
-
OUTPUT 1
-
SUPPLY
[64] [76.7]
2.52 3.02
[5.6]
.22
TYP
[76.7]
[64.2] 3.02
2.53
L
1
L
2
L
3
L1
L2
L3
CR4170
Three Element 0 - 5 VDC Output
CR4150
CR4160
CR4170
CR4180
CR4180
Three Element 4 - 20 mADC Output
CONNECTION DIAGRAM
OUTLINE DRAWING
The Professional
Energy Monitoring
Company
NOTE: The building installation must have a switch or circuit-breaker that is in close proximity and within easy reach of the
operator. The switch or circuit breaker shall be marked as the disconnecting device for the equipment
.
ISO 9001:2008 Quality Management System
M N TI
3500 Scarlet Oak Blvd. St. Louis MO USA 63122 V: 636-343-8518 F: 636-343-5119
Web: http://www.crmagnetics.com
33
E-mail: sales@crmagnetics.com
