HMI Crouzet Touch
Accessories for Millenium3, Millenium EVO &
em4
Essential
›
TFT-LCD resistive touch screen
›
Fan less cooling system
›
32 bit 600 Mhz Cortex-A8 processor
›
Built-in RTC
›
Direct communication with Millenium 3
programming port (dedicated driver for
SLin/SLout)
›
Modbus RS485 protocol (dedicated drivers
for M3, Millenium EVO & em4 controllers)
›
CE mark
CT104
CT107
Specific characteristics
Part number
Type
Size
Resolution
Brightness
On front panel color
Power consumption
Colors
LCD viewing angle (Top/Bottom/Left/Right)
Processor
Storage memory
RAM memory
USB
Ethernet
Port RS232
Port RS485
UL Certification
Weight
Dimensions (W x H x D)
Vesa Mount
Panel cutout
PCB Coating
General characteristics
Enclosure
Products certification
Nominal voltage
Operating limits
Plastic
CE
24 VDC (-20 % / +20 %)
19.2 - 28.8 VDC
119 x 93 mm / 4.69 x 3.66”
N/A
Approximately 0,25 kg
128 x 102 x 32 mm / 5.04 x 4.02 x 1.26”
N/A
192 x 138 mm / 7.56 x 5.43”
COM1 2/4 wires male,
COM3 2 wires male
N/A
Approximately 0,52 kg
200.4 x 146.5 x 34 mm /
7.89 x 5.77 x 1.34”
Client micro USB 2.0
N/A
COM1 male
COM2 2/4 wires male
300 mA @ 24 V
16.7 M
50/70/70/70
128 MByte
128 MByte
Host USB 2.0, Client micro USB 2.0
32 bit RISC Cortex-A8, 600 MHz
88 970 524
CT104
4.3"
480 x 272
400 cd/m²
Pantone Process Black C
500 mA @ 24 V
16 M
70/50/70/70
88 970 534
CT107
7"
800 x 480
300 cd/m²
I
AUTOMATION.CROUZET.COM
I
02
I
Millenium 3, Millenium EVO & em4 accessories
Power isolation
Power supply earthing
Voltage resistance
Isolation resistance
Vibration endurance
Conducted and radiated emissions
Electro-Magnetic Interference, harmonic current
Electro-Magnetic Interference, voltage flicker
Resistance to electrostatic discharge
Resistance to HF interference
(Immunity) (EN55024: 2010)
Yes
Yes
500 VAC (1 minute)
> 50 Mohms at 500 VDC
10
25 Hz (X,Y,Z direction 2G 30 minutes)
EN 55022: 2010 +AC: 2011 classe A
CISPR 22: 2008
EN 61000-3-2: 2014
EN 61000-3-3: 2013
Immunity to ESD IEC/EN 61000-4-2: 2008
Immunity to radiated electrostatic fields IEC/EN 61000-4-3: 2010
Immunity to fast transients (burst immunity) IEC/EN 61000-4-4: 2012
Immunity to shock waves IEC/EN 61000-4-5: 2014
Radio frequency in common mode IEC/EN 61000-4-6: 2013
Immunity to magnetic field IEC/EN 61000-4-8: 2009
Voltage dip, interruption
Protection against electric shock
Mount
Connection
Protection rating
Operation temperature
Storage temperature
Relative humidity
Display
Type
Contrast ratio
Backlight type
Backlight life time
Touch panel: type
Touch panel: key life
Accuracy
Driver Millenium 3
Driver em4
Driver Modbus IDA
RTC
RTC battery
RTC time life battery

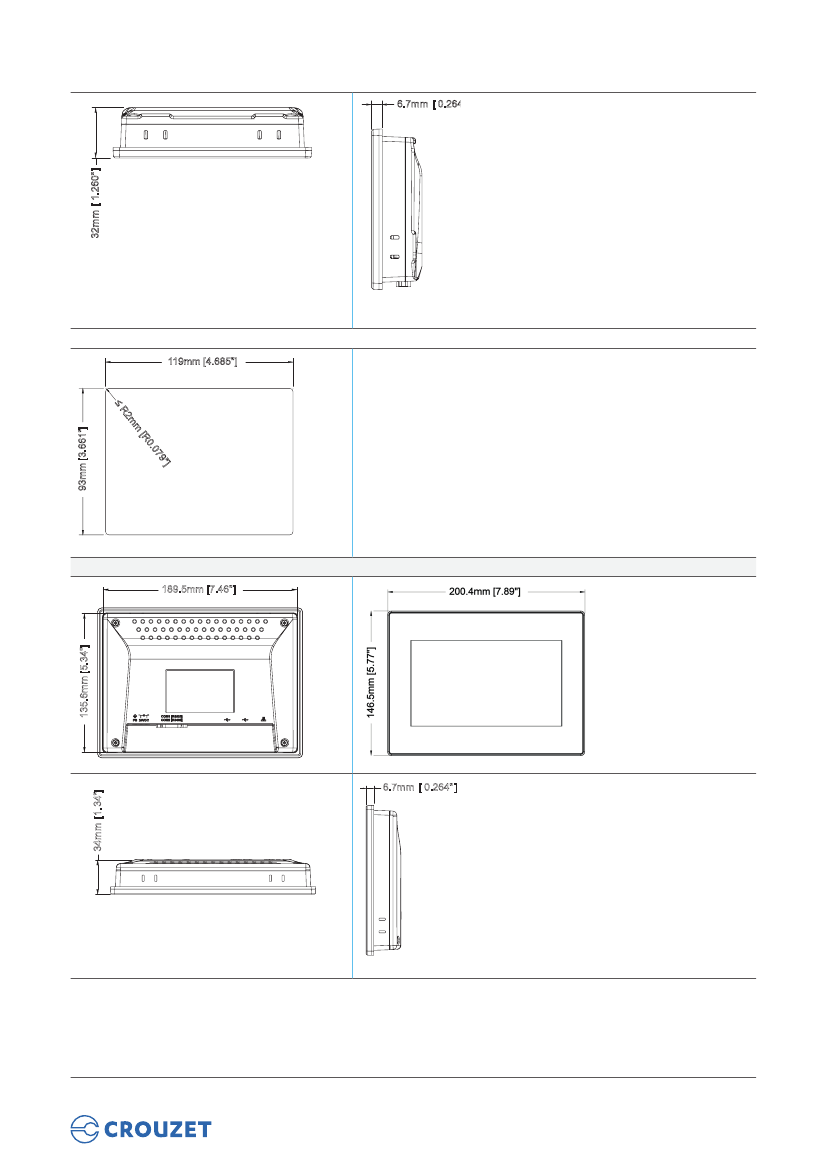

Schemes
Dimensions
CT104
118mm [4.646"]
IEC/EN 61000-4-11: 2004
IEC/EN 61000-4-11: 2004 Ed 2.0
Classe I equipment
Built-in, fixing by screw clamps (supplied) for 1
6 mm panel
Removable 3-pin screw terminal block (supplied)
NEMA4 / IP 65 Compliant front panel
0 (32 °F)
+50 °C (122 °F)
-20 (-4 °F)
+60 °C (140 °F)
10
90% max. (no condensation or dripping water)
TFT LCD
500:1
Led
> 30.000 Hours
4 wires resistive, with user-definable layout
1 million operations minimum
Active Area Length (X) ± 2 %, Width (Y) ± 2 %
SLIN/SLOUT 24 VDC, XN06
Modbus RS485
ASCII, RTU
Use Millenium 3, em4 or build-in clock
CR2032
> 5 years, not rechargeable
128mm [5.039"]
92mm [3.622"]
102mm [4.016"]
