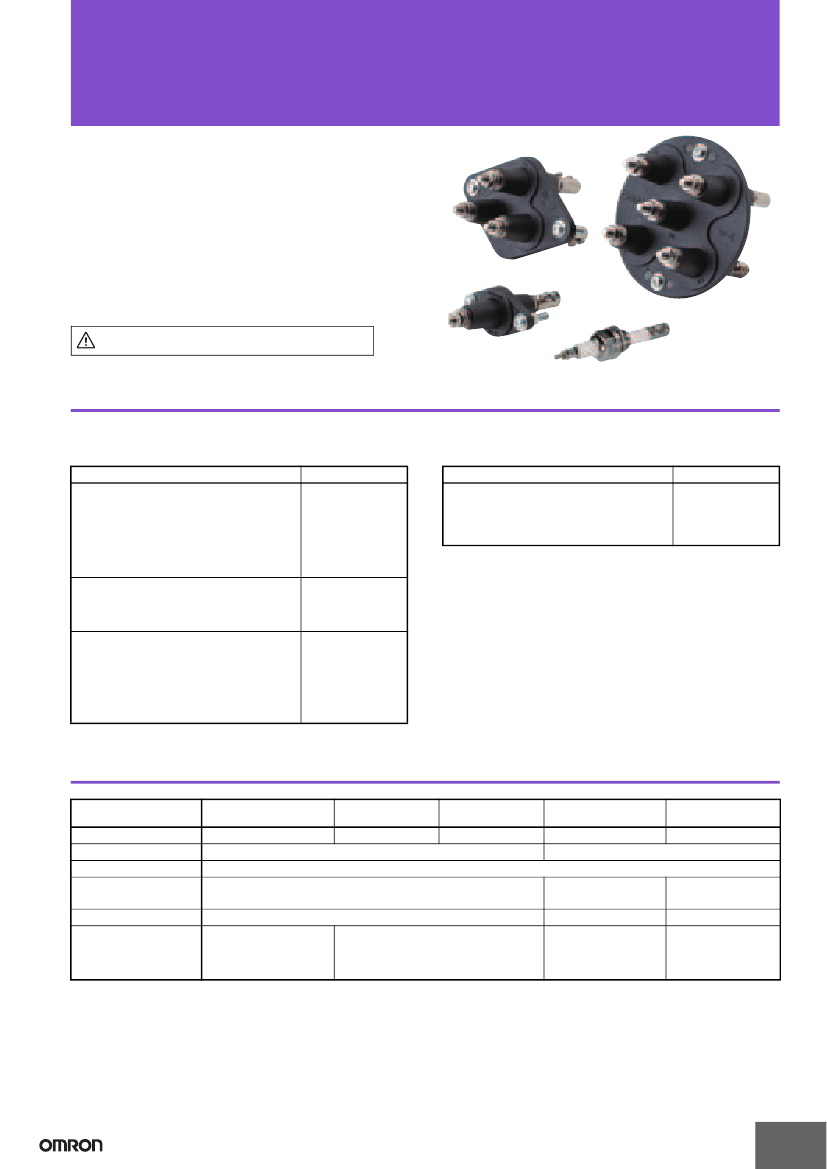

Electrode Holder

BF-@(R)/BS-1(T)

CSM_BF-_(R)_BS-1(T)_DS_E_7_1

Complete Lineup for Use in High-

temperature, High-pressure Environments or

Where Exposed to Chemicals

• The BF-1 is ideal for liquids with low specific resistance, such as

wastewater.

• The BF-@(R) is used when a strong mounting is required.

• The BS-1 is used when high-temperature, high-pressure

resistant is required.

• The BS-1T is used when corrosion resistance is required.

Refer to

Safety Precautions for Electrodes and

Electrode Holders.

Ordering Information

■

Electrode Holders

Application

• Liquid with low specific resistance

For 1-pole electrode

• When sturdy mounting is required

For 3-pole electrode

For 3-pole electrode (2-wire)

For 5-pole electrode

For 5-pole electrode (2-wire)

• Applications where resistance to high-

temperature, high-pressure is required

For 1-pole electrodes, 250°C, 1.96 MPa

• High-pressure application where resistance

to corrosion is required

For 1-pole electrode, SUS304 981 kPa

For 1-pole electrode, SUS316 981 kPa

For 1-pole electrode, Titanium 981 kPa

For 1-pole electrode, Hastelloy B 981 kPa

For 1-pole electrode, Hastelloy C 981 kPa

BF-1

BF-3

BF-3R

BF-5

BF-5R

BS-1

BS-1S

BS-1S-1

BS-1S2

Model

■

Accessories (Order Separately)

Application

Protective Cover (For PS-@S and BF-3/-4/-5)

Protective Cover (For B@-1 and B@-1S)

M18 Nut (For BS-1)

M18 Nut (For BS-1T)

Model

F03-11

F03-19

F03-17

F03-18

Note:

Refer to

Installing an Electrode Holder on a Tank

under Level

Controller Installation in the Technical Guide for Level

Controllers for information on Level Controller installation.

Refer to

PS-

S(R) Electrode Holder Accessories (Order

Separately)

for dimensions.

BS-1T SUS304

BS-1T SUS316

BS-1T TITANIUM

BS-1T HAS B

BS-1T HAS C

Specifications

Model

Item

No. of Electrodes

Insulator material

Insulation resistance

100 MΩ

250°C max.

180°C max.

BF-1

BF-3 (R)

(See note 1.)

BF-5 (R)

(See note 1.)

---

BS-1

---

BS-1T

PPS resin (Metallic section is SUS.)

Fluorocarbon polymer (PFA)

Operating temperature

Electrode section:

−10

to 150°C (with no icing)

Terminal section:

−10

to 70°C (with no icing or condensation)

Operating pressure

Applications

Atmospheric pressure

Liquids with low specific

resistance, such as

wastewater and cloudy

water

General applications for purified water

and wastewater

1.96 MPa (See note 2.) 981 kPa (See note 2.)

Boiler water level

detection or high-

temperature tanks

Acid or alkaline

solution level

detection

Note: 1.

Two-wire Electrode Holders (R models) have a built-in resistance of 6.8 kΩ. They should be used with the Two-wire 61F Controllers.

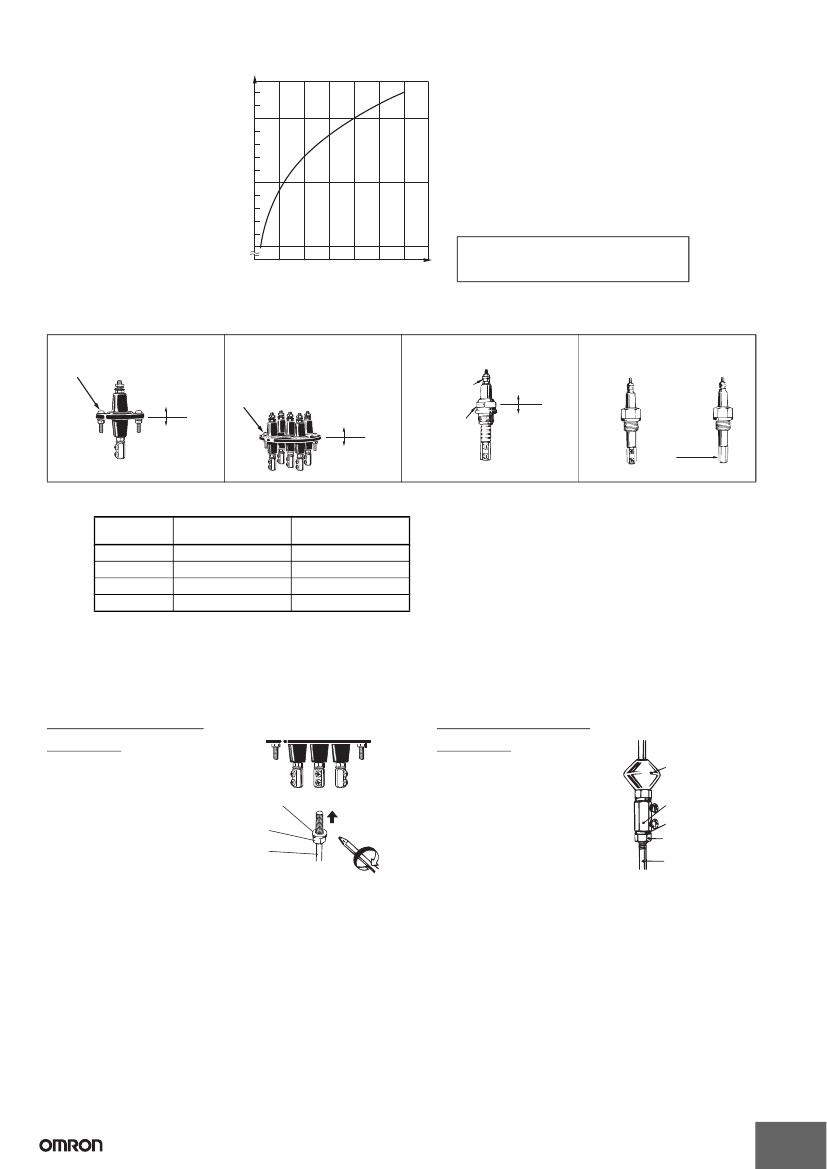

There must be a sufficient ambient temperature in a high-pressure environment to prevent vapor leakage. Use the Electrode Holder

according to the following pressure-temperature curve.
