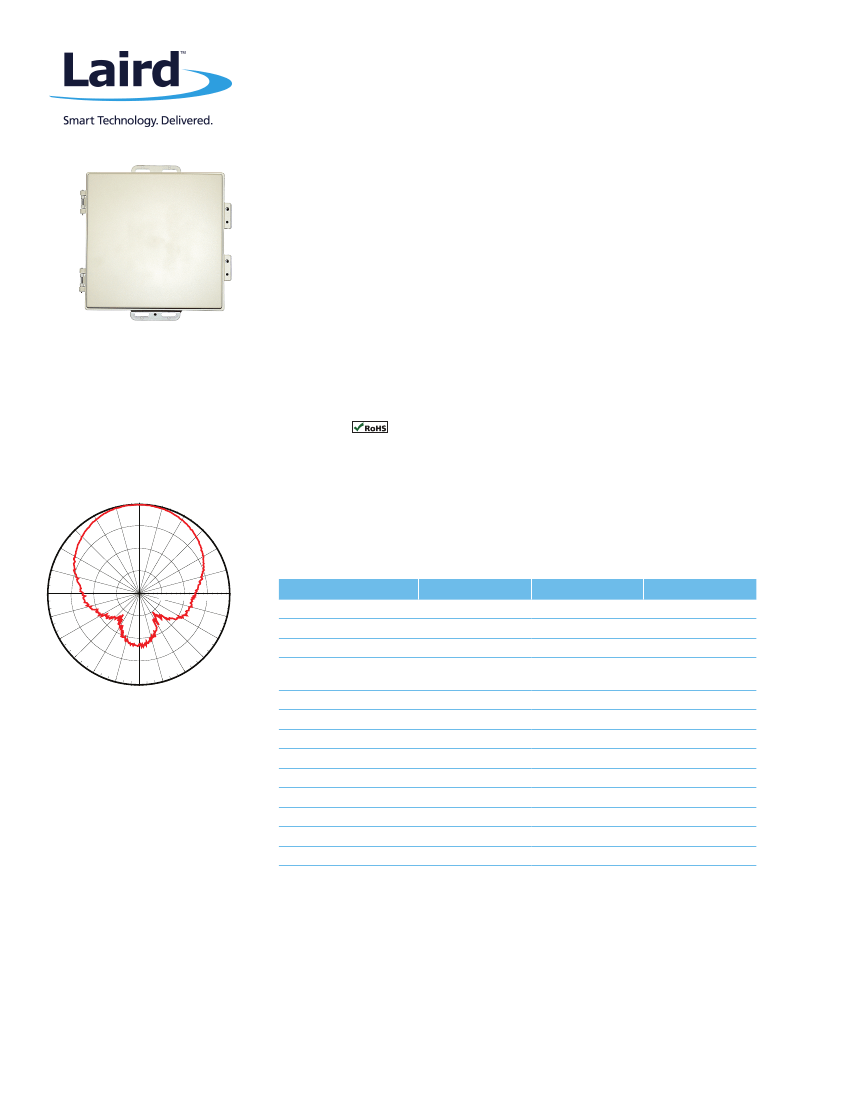

10 X 10 Die-Cast Enclosure RFID Antennas
DCE ENCLOSURE OFFERS SIX OPTIONS OF INTEGRATED RFID ANTENNAS
COVERING 860-960 MHz
The RFID HD RooTenna
®
from Laird Technologies is an innovative antenna system that gives the
operator ultimate system flexibility. The Radome is UV resistant ASA plastic, the hardware is
stainless steel, and the mounting plate inside for adding electronics is removable and
customizable by the user.
The die-cast enclosure can be pole or wall mounted. A heavy duty tilt bracket is available for
those installations requiring up or down tilt. Eleven (11) engineered knockouts are provided;
nine sized for N connectors, and two sized for a cable feed through.
This series of antennas is available with a choice of six different circularly polarized UHF antennas
integrated into the Radome cover. These antennas cover the standard 902-928 MHz, 865-868 MHz
RFID frequencies, as well as a wide band version that covers 865-960 MHz. All are available in a
choice of RH and LH circular polarization. These antennas feature very low VSWR, axial ratio, and a
fixed SMA connector.
RFID HD RooTenna
®
FEATURES
ANTENNA PATTERN
345
330
315
345
345
0
15
30
45
MARKETS
•
•
•
•
•
•
Outdoors
Loading docks
Warehouses
Mast mounted
Side of building
Industrial / wet locations
•
•
•
•
11 engineered knockouts
IP 67 Rated
Rugged and weatherproof
Hinged cover for easy maintenance
Choice of six high-performance,
circularly-polarized antennas
300
60
285
75
270
-30
-30
-20
-20
-10
-10
dB
dB
90
SPECIFICATIONS
Frequency:
Gain:
3 dB Beamwidth
Polarization:
VSWR:
Front-to-Back Ratio
Axial Ratio
RF Connector:
Power Rating:
Radome:
Dimensions:
Weight:
Operational Temperature:
Mount Style:
DCE9028PR / L
902-928 MHz
9 dBic
70º x 70º
Right or Left
Hand Circular
<1.3:1
20 dB
1 dB
SMA (female)
10 W
ASA
12.5” x 10.4” x 3.9”
2.4 kg
-30°C to +75°C
Wall / Mast / Tilt
DCE8658PR / L
865-870 MHz
8.5 dBic
70º x 70º
Right or Left
Hand Circular
<1.5:1
18dB
1 dB
SMA (female)
10 W
ASA
12.5” x 10.4” x 3.9”
2.4 kg
-30°C to +75°C
Wall / Mast / Tilt
DCE8658WPR / L
865-960 MHz
8.5 dBic
65º x 65º
Right or Left
Hand Circular
<1.40:1
18dB
1 dB
SMA (female)
3W
ASA
12.5” x 10.4” x 3.9”
2.4 kg
-30°C to +75°C
Wall / Mast / Tilt
dBi
255
105
240
120
225
210
195
180
165
150
135
865 MHz 5.46 dBi Linear A
Americas: +1.847 839.6907
IAS-AmericasEastSales@lairdtech.com
Europe: +44.1628.858941
IAS-EUSales@lairdtech.com
Asia: +86.21.5855.0827.127
IAS-AsiaSales@lairdtech.com
ANT-DS-RFID-DCE 0115
