FGN0.63BK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wire/cable> FGN0.63BK

FGN0.63BK: DescriptionSLEEVING 5/8" X 200' BLACK; CategoryWire/cable; File Size326KB，1 Pages; ManufacturerTechflex, Inc.; Websitehttps://www.techflex.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

FGN0.63BK Overview

SLEEVING 5/8" X 200' BLACK

FGN0.63BK Parametric

Parameter Name	Attribute value
type	casing
type attribute	Scalable
Diameter - inside diameter, non-expanded	0.625"（15.88mm）
Diameter - inside diameter, expanded	0.875"（22.22mm）
Diameter - outside diameter, non-expanded	-
Material	Fiberglass, resin coated, halogen-free
color	black
length	200'（60.96m）
wall thickness	0.046"（1.17mm）
Operating temperature	-70°C ~ 650°C
Thermal Protection	heat resistant
Wear protection	Abrasion and cut resistant
liquid protection	Resistant to gasoline
environmental protection	-
characteristic	Chemical resistant, precise cutting, vibration resistant
Material flammability rating	UL VW-1
width	-

Preview

Download Datasheet

View All

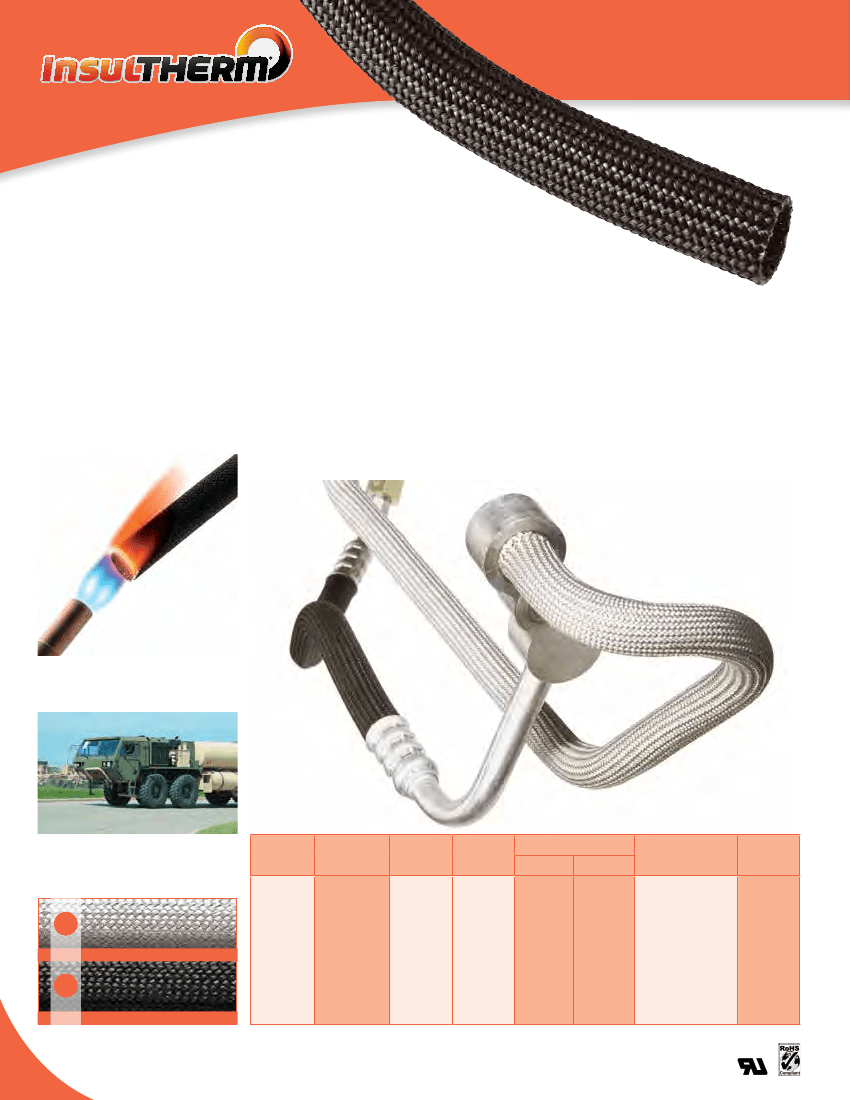

E X TR E ME

T EM P E R ATUR E

• Resin Saturated,

Heavy Weight Braided

Fiberglass Won’t

Burn, Melt, or Become

Brittle

• Minimal Dusting

When Cut & Handled

• Cut and Abrasion

Resistant

• Easy to Install - Cuts

with Scissors

• Resists Gasoline and

Engine Chemicals

Resin

Saturated Fiberglass

Protects Up To 1,200°F

INSULTHERM (FGN) is an extremely high temperature resistant sleeve commonly

used as thermal protection for wires, cables, and hoses that are subjected to con-

tinuous and extreme high temperature environments, such as engine manifolds

and exhaust systems.

Insultherm is braided from fiberglass yarns and saturated with high temperature

resins. FGN is tough and durable, maintaining its tight structure under extreme

vibration, abrasion, mechanical stress, and temperature variations.

FGN is available in a wide range of diameters. It installs easily over a variety of

applications to either deflect or retain heat in environments up to 1,200°F.

Insultherm resin saturated braided fiberglass

sleeving is ideal in areas where fire and

extremely high temperatures create a hazard

to personnel and equipment.

Hoses insulated with Insultherm can perform

better in the demanding environments where

multi terrain equipment is used.

Nominal

Size

1/4”

3/8”

1/2”

5/8”

3/4”

7/8”

1”

1 1/2”

2 1/2”

Part

FGN0.25

FGN0.38

FGN0.50

FGN0.63

FGN0.75

FGN0.88

FGN1.00

FGN1.50

FGN2.50

Maximum

Diameter

3/8”

5/8”

3/4”

7/8”

1 1/8”

1 1/4”

1 5/8”

2 5/8”

4 1/8”

Wall

Thickness

.031”

.043”

.046”

.057”

.061”

.071”

Standard Spool Put-Ups

Bulk Spool Shop Spool

200

’

200

’

200

’

200

’

200

’

200

’

100

’

100

’

100

’

Available

Colors

Lbs/

100’

2.00

3.30

4.80

5.30

6.40

8.70

10.50

16.00

19.70

Silver

Black

1-973-300-9242

www.techflex.com
