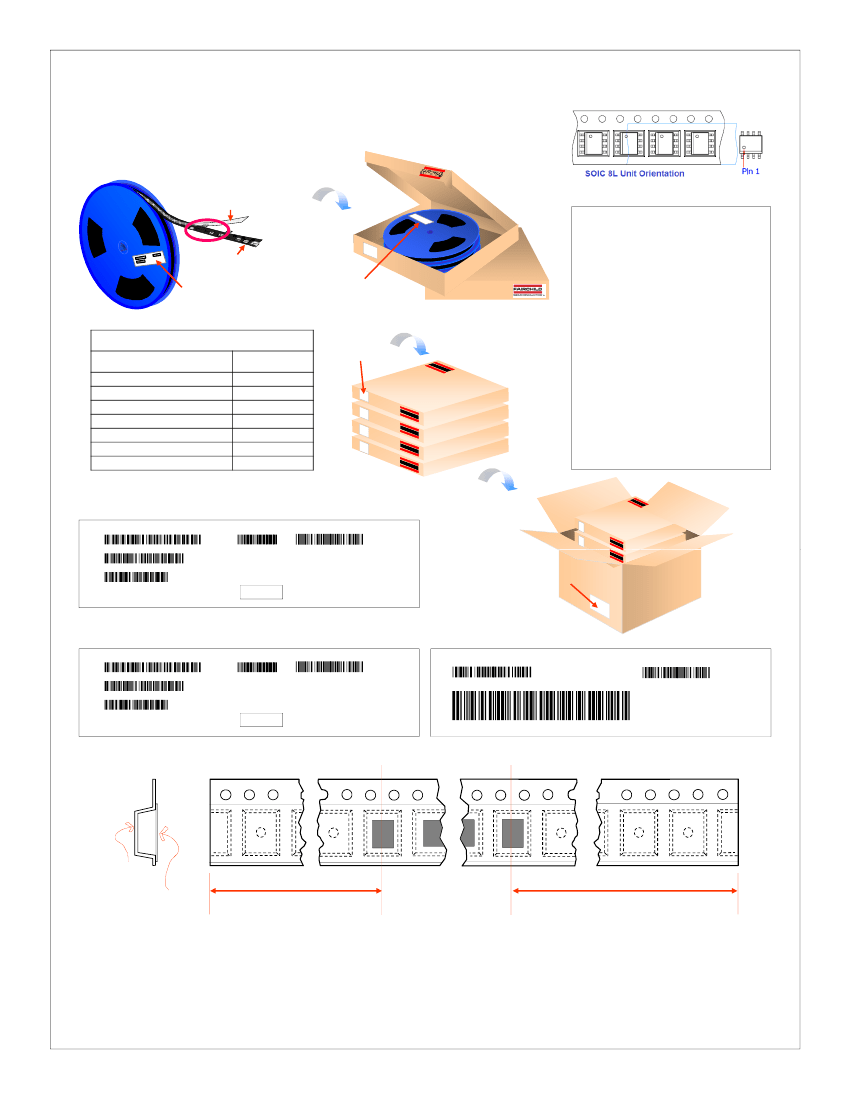

SOIC 8L Packing
Configuration: Figure 1.0
2 Reels per box
Antistatic Cover Tape
Generation
SOIC 8L Unit Orientation
Packing Description:
SOIC 8L parts are shipped in tape. The carrier
tape is made from a dissipative (carbon filled)
polycarbonate resin. The cover tape is a
multilayer film (Heat Activated Adhesive in
nature) primarily composed of polyester film,
adhesive layer, sealant, and anti-static sprayed
agent. These reeled parts in standard option are
shipped with 2500 units per 13” or 330cm
diameter reel. The reels are dark blue or black
in color and is made of polystyrene plastic (anti-
static coated). This and some other options are
further described in the Packing Information
table.
These full reels are individually barcode labeled
and placed inside a standard intermediate box
(illustrated in figure 1.0) made of recyclable
corrugated brown paper. One box contains
three reels maximum. And these boxes are
placed inside a barcode labeled shipping box
which comes in different sizes depending on the
number of parts shipped.
Static Dissipative
Embossed Carrier Tape
F63TNR Label
F63TNR Label
SOIC 8L Packing Information
Packing Option
Packing type
Qty per Reel/Tube/Bag
Reel Size
Inner Box Dimension (mm)
Max qty per inner Box
Out Box Dimension(mm)
Max qty per outer Box
Standard
TNR
2500
13” Dia
355X334X40
5000
360X360X300
35,000
BOXTNR Label
Reel Barcode Label Sample_(F63TNR)
LOT:
FSID:
D/C1:
QTY1:
QTY2:
SPEC REV:
Pb-free
D/C2:
RoHS
COMPLIANT
AR
QTY:
SPEC:
2nd Level interconnect:
1.Category e3
2.Maximum safe temperature 360C
3.MSL N/A
FAIRCHILD SEMICONDUCTOR.
(F63TNR)6.1
BBX Label
Outer box(35,000cap)
Inner Box Barcode Label Sample_(BOXTNR)
LOT:
FSID:
D/C1:
D/C2:
QTY1:
QTY2:
SPEC REV:
Pb-free
RoHS
COMPLIANT
AR
QTY:
SPEC:
Outer Box Barcode Label Sample_(BBX)
PART ID :
QTY :
2013/ 04 /01
07:30:00
BG:SA
DC :
2nd Level interconnect:
1.Category e3
2.Maximum safe temperature 360C
3.MSL N/A
FAIRCHILD SEMICONDUCTOR.
(BOXTNR)3.1
T90831301
FAIRCHILD SEMICONDUCTOR CORPORATION.
(BBX)1.3
SOIC 8L Tape Leader and Trailer
Configuration: Figure 2.0
Carrier Tape
Cover Tape
Components
Trailer Tape
640mm minimum or
80 empty pockets
Leader Tape
1680mm minimum or
210 empty pockets
NOTES:
A. ALL DIMENSION ARE IN MILLIMETERS UNLESS
OTHERWISE SPECIFIED
B. DRAWING FILE NAME: MKT-M08A Rev 1

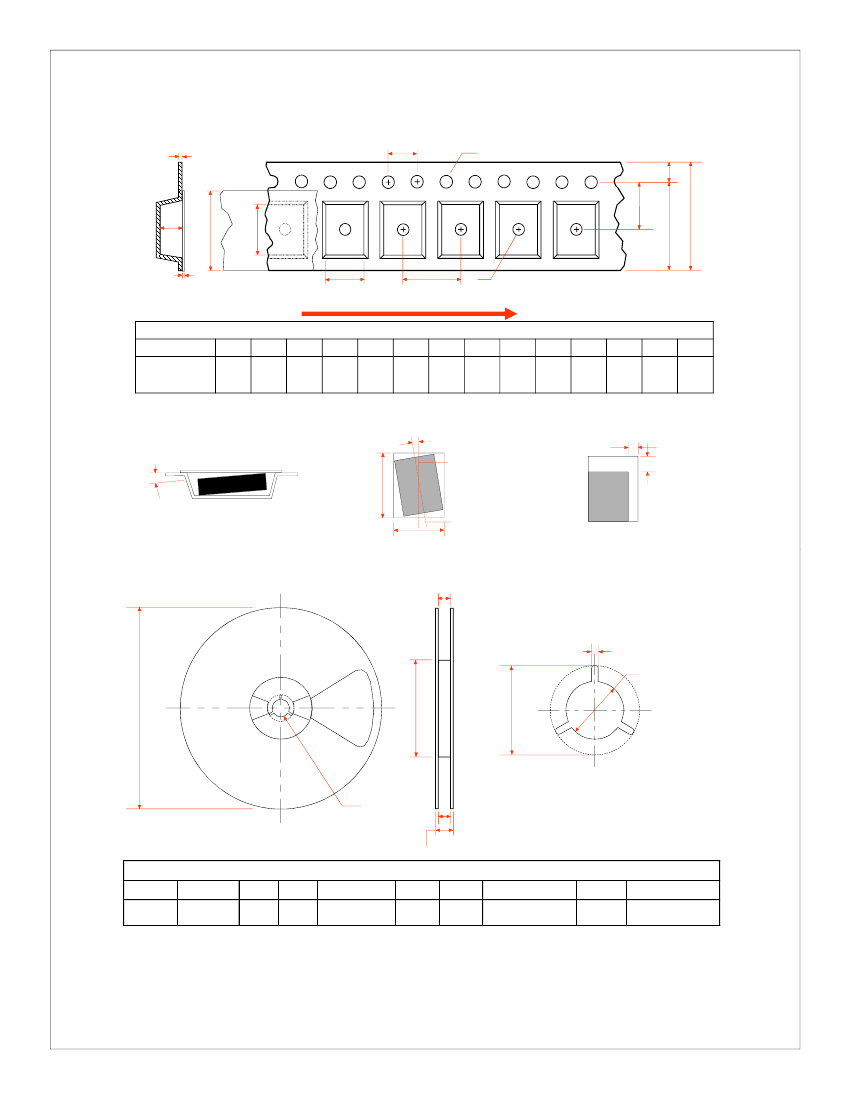

SOIC 8L Embossed Carrier Tape
Configuration: Figure 3.0
T
P0
D0
E1
F
K0
Wc
B0
E2
W
Tc
A0
P1
D1
User Direction of Feed
Dimensions are in millimeter
Pkg type
SOIC 8L
(12mm)
A0
6.5
+/-0.1
B0
5.3
+/-0.1
W
12.0
+/-0.3
D0
1.50
0.10
/-0.00
D1
1.50
+0.10
/-0.00
E1
1.75
+/-0.10
E2
NA
F
5.50
+/-0.10
P1
8.0
+/-0.1
P0
4.0
+/-0.1
K0
2.1
+/-0.1
T
0.30
+/-0.05
Wc
9.2
+/-0.1
Tc
0.06
+/-0.02
Notes: A0, B0, and K0 dimensions are determined with respect to the EIA/Jedec RS-481 rotational and lateral movement requirements
(see sketches A, B, and C).
10 deg
maximum
Typical
component
cavity
center line
Typical
component
center line
0.8mm
maximum
B0
10 deg maximum component rotation
Sketch A (Side or Front Sectional View)
Component Rotation
1.4mm
maximum
A0
Sketch B (Top View)
Component Rotation
TM Type
Sketch C (Top View)
Component lateral movement
SOIC 8L Reel
Configuration: Figure 4.0
W1 Measured at Hub
B Min
Dim C
Dim A
max
Dim N
Dim D
min
DETAIL AA
See detail AA
W3
13” Diameter Option
W2 max Measured at Hub
Dimensions are in inches and millimeters
Tape Size
12mm
Reel Option
13” Dia
Dim A
13.00
330
Dim B
0.059
1.5
Dim C
0.512 +0.020/-0.008
13 +0.5/-0.2
Dim D
0.795
20.2
Dim N
4.00
100
Dim W1
0.488 +0.078/-0.000
12.4 +2/0
Dim W2
0.724
18.4
Dim W3 (LSL-USL)
0.488+0.118/-0.197
12.4+3/-0.5
NOTES:
A. ALL DIMENSION ARE IN MILLIMETERS UNLESS
OTHERWISE SPECIFIED
B. DRAWING FILE NAME: MKT-M08A Rev 1.
