Part Number

Search

3642

Description
2.1MM DC POWER JACK WITH SLIDE S
CategoryThe connector
File Size181KB,1 Pages
ManufacturerAdafruit
Download Datasheet Parametric View All

3642 Online Shopping

Suppliers Part Number Price MOQ In stock
3642 - - View Buy Now

3642 Overview

2.1MM DC POWER JACK WITH SLIDE S

3642 Parametric

Parameter NameAttribute value
Connector typeJack
gendermale head
Industry recognized mating diameter2.10mm inner diameter (0.083")
actual diameter0.083" (2.10mm inner diameter), 0.248" (6.30mm outer diameter)
Number of pins/contacts2 wires, 3 contacts
internal switchSingle switch, normally closed
Installation typeThrough hole
Installation featuresflange
Terminationwelding eyelet
shieldNo shielding
characteristic-
Insulation color-
Voltage - Rated16VDC
Rated current3A
Mating length/depth-
Contact material - platingsilver
Matrix materialcopper alloy
Operating temperature-
include-
Shell materialPolyamide (PA66), Nylon 6/6, glass fiber reinforced
Contact materialcopper alloy
Thread size-
Body colorblack
Material flammability rating-
Intrusion protection-

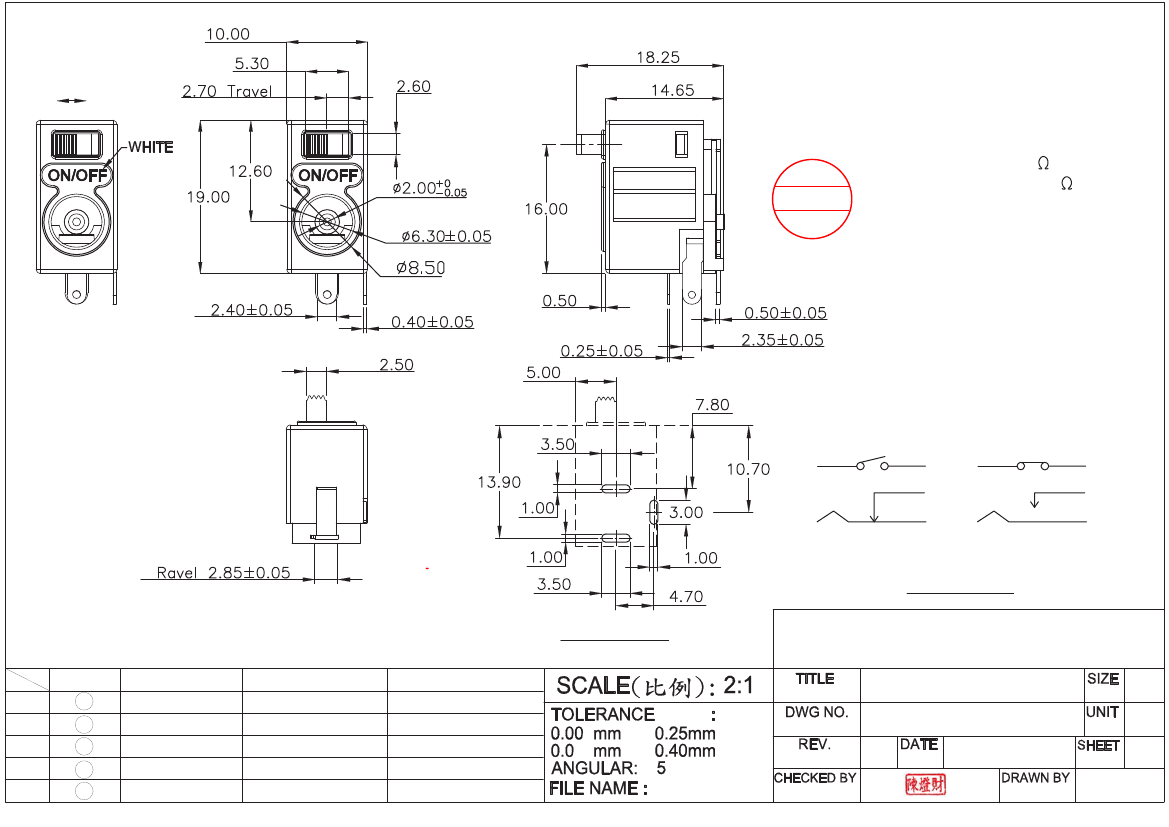

SPECIFACTION
1.Rating:DC 16V 3A
2.Contact resistance:30 m MAX.
R&D
3.Insulation resistance:100 M MIN.
2018.01.23
4.Mechanical Life: 30,000 cycles.
JCJ
MATERIALS
CASE&HOUSING -
Glass filled Nylon 6/6,black.
ACTUATOR -
Glass filled Nylon 6/6,gray.
CONTACT -
Copper alloy,silver plated.
TERMINALS -
Copper alloy,silver plated.
PIN -
Brass,nickel plated.
PATENT NO. : M376887
Packing: 1pcs/ per bag
: 1PCS
1#
2#
3#
OPEN CIRCUIT
R&D
2018.01.23
1#
2#
3#
CLOSED CIRCUIT
(PLUG IN)
JCJ
SCHEMATIC
JCJ INTERNATIONAL CO.,LTD
DC POWER JACK WITH SWITCHES
A4
mm
1 of 1
IRENE
SJ-004-P001
A
SJ0025
JAN - 19 - 2018
