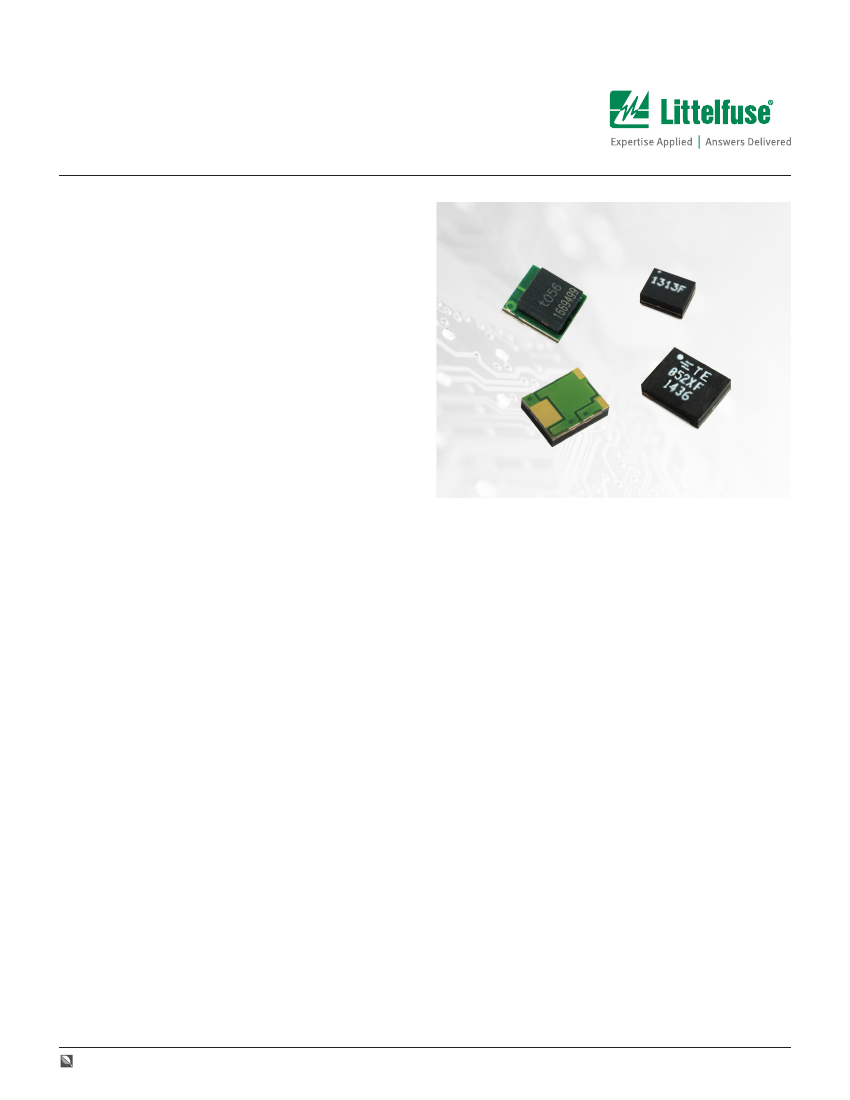

POLYZEN DEVICES
Polymer Protected Zener Diode
PolyZen devices are polymer-enhanced, precision Zener
diodes. They offer resettable protection against multi-Watt
fault events without the need for multi-Watt heat sinks.
The Zener diode used for voltage clamping a PolyZen
device was selected due to its relatively flat voltage
vs. current response. This helps improve output voltage
clamping, even when input voltage is high and diode
currents are large.
An advanced feature of the PolyZen device is that the
Zener diode is thermally coupled to a resistively non-
linear, PPTC (polymer positive temperature coefficient)
layer. This PPTC layer is fully integrated into the device
and is electrically in series between V
IN
and the diode
clamped V
OUT
.
This advanced PPTC layer responds to either extended
diode heating or overcurrent events by transitioning from a low to high resistance state, also known as “tripping.” A
tripped PPTC will limit current and generate voltage drop. It helps to protect both the Zener diode and the follow-on
electronics and effectively increases the diode’s power handling capability.
The polymer-enhanced Zener diode helps protect sensitive portable electronics from damage caused by inductive
voltage spikes, voltage transients, incorrect power supplies and reverse bias. These devices are particularly suitable for
portable electronics and other low-power DC devices.
BENEFITS
• Stable Zener diode helps shield downstream
electronics from overvoltage and reverse bias
• Trip events shut out overvoltage and reverse bias
sources
• Analog nature of trip events helps minimize damage
from upstream inductive spikes
• Minimal power dissipation requirements
• Single component placement
APPLICATIONS
• DC power port protection in portable electronics
• DC power port protection for systems using barrel
jacks for power input
• Internal overvoltage and transient suppression
• DC output voltage regulation
• Tablet PCs and portable electronics
FEATURES
• Overvoltage transient suppression
• Stable V
Z
vs. fault current
• Time delayed, overvoltage trip
• Time delayed, reverse bias trip
• Multi-Watt power handling capability
• Integrated device construction
• RoHS compliant
• Halogen free
(refers to: Br
≥
900ppm, Cl
≥
900ppm, Br+Cl
≥
1500ppm)
RoHS Compliant, ELV Compliant
Specifications subject to change without notice. ©2016 Littelfuse, Inc.
27
PolyZen Devices
Polymer Protected Zener Diode
Figure PZ1 — Typical Application Block Diagram
(External or Internal)
Power Supply
Protected Electronics
2
1
PolyZen
Device
3
GND
V
IN
+
V
OUT
Regulated
Output
R
LOAD
Protected Downstream
Electronics
Table PZ1 — Electrical Characteristics
(Performance ratings @ 25°C unless otherwise specified)
V
Z
(V)
I
Zt
Part Number
ZEN056V130A24LS
ZEN059V130A24LS
†
ZEN065V130A24LS
ZEN098V130A24LS
ZEN132V130A24LS
ZEN164V130A24LS
ZEN056V230A16LS
ZEN065V230A16LS
ZEN098V230A16LS
ZEN132V230A16LS
ZEN056V075A48LS
ZEN132V075A48LS
ZEN056V115A24LS
ZEN056V130A16YM
ZEN056V175A12YM
ZEN132V130A16YM
ZEN132V175A12YM
ZEN056V130A24YC
ZEN056V230A16YC
ZEN056V260A16YC
ZEN132V130A24YC
ZEN132V230A16YC
ZEN132V260A16YC
Min
5.45
5.80
6.35
9.60
13.20
16.10
5.45
6.35
9.60
13.20
5.45
13.20
5.45
5.35
5.35
13.20
13.20
5.35
5.35
5.35
13.20
13.20
13.20
Typ
5.60
5.90
6.50
9.80
13.40
16.40
5.60
6.50
9.80
13.40
5.60
13.40
5.60
5.60
5.60
13.40
13.40
5.60
5.60
5.60
13.40
13.40
13.40
Max
5.75
6.00
6.65
10.00
13.60
16.60
5.75
6.65
10.00
13.60
5.75
13.60
5.75
5.85
5.85
13.80
13.80
5.85
5.85
5.85
13.80
13.80
13.80
(A)
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
I
HOLD
@ 20°C
(A)
1.30
1.30
1.30
1.30
1.30
1.30
2.30
2.30
2.30
2.30
0.75
0.75
1.15
1.30
1.75
1.30
1.75
1.30
2.30
2.60
1.30
2.30
2.60
R
Typ
(Ω)
0.12
0.12
0.12
0.12
0.12
0.12
0.04
0.04
0.04
0.04
0.28
0.28
0.15
0.110
0.050
0.110
0.050
0.110
0.040
0.040
0.110
0.040
0.040
R
1MAX
(Ω)
0.16
0.15
0.16
0.16
0.16
0.16
0.06
0.06
0.06
0.06
0.45
0.45
0.18
0.160
0.095
0.160
0.095
0.170
0.070
0.055
0.170
0.070
0.055
V
INT MAX
V
INT MAX
(V)
24
24
24
24
24
24
16
16
16
16
48
48
24
14
12
14
12
24
16
16
24
16
16
Test
Current
(A)
3
3
3
3
3
3
5
5
5
5
3
3
3
3
4
3
4
3
5
5
3
5
5
I
FLT MAX
I
FLT MAX
(A)
+10/-40
+6/-40
+6/-40
+3.5/-40
+2/-40
+1.25/-40
+5/-40
+3.5/-40
+3.5/-40
+2/-40
+10/-40
+2/-40
+10/-40
+3/-40
+3/-40
+1/-40
+1/-40
+4/-40
+3/-40
+3/-40
+1/-40
+1/-40
+1/-40
Test
Voltage
(V)
+24/-16
+24/-16
+24/-16
+24/-16
+24/-16
+24/-16
+16/-12
+16/-12
+16/-12
+20/-12
+48/-16
+48/-16
+24/-16
+16/-12
+12/-12
+20/-12
+20/-12
+24/-16
+16/-12
+16/-12
+24/-16
+20/-12
+20/-12
NEW
NEW
NEW
NEW
NEW
NEW
NEW
NEW
NEW
NEW
LS module height is 1.7mm typical. YM module height is 1.2mm typical. YC module
Table PZ2 — Definition of Terms
V
Z
I
ZT
I
HOLD
R
Typ
R
1MAX
I
FLT
I
FLT MAX
V
INT MAX
I
PTC
I
OUT
Trip Event
Zener clamping voltage measured at current I
ZT
and 20°C.
Test current at which V
Z
is measured.
Maximum steady state current I
PTC
that will not generate a trip event at the specified temperature.
Ratings assume I
FLT
= 0A.
Typical resistance between V
IN
and V
OUT
pins when the device is at room temperature.
The maximum resistance between V
IN
and V
OUT
pins, at room temperature, one hour after first trip or
after reflow soldering.
Current flowing through the Zener diode.
Maximum RMS fault current the Zener diode component of the device can withstand and remain resettable;
testing is conducted at rated voltage with no load connected to V
OUT
.
The voltage (V
IN
- V
OUT
“post trip”) at which typical qualification devices (98% devices, 95% confidence) survived
at least 100 trip cycles and 24 hours trip endurance when “tripped” at the specified voltage and current (I
PTC
).
Current flowing through the PPTC portion of the circuit.
Current flowing out the V
OUT
pin of the device.
A condition where the PPTC transitions to a high resistance state, thereby limiting I
PTC
, and significantly
increasing the voltage drop between V
IN
and V
OUT
.
Polymer PTC
V
IN
Zener
Diode
GND
I
PTC
I
OUT
V
OUT
V
IN
I
FLT
V
OUT
GND
RoHS Compliant, ELV Compliant
28
Specifications subject to change without notice. ©2016 Littelfuse, Inc.
PolyZen Devices
Polymer Protected Zener Diode

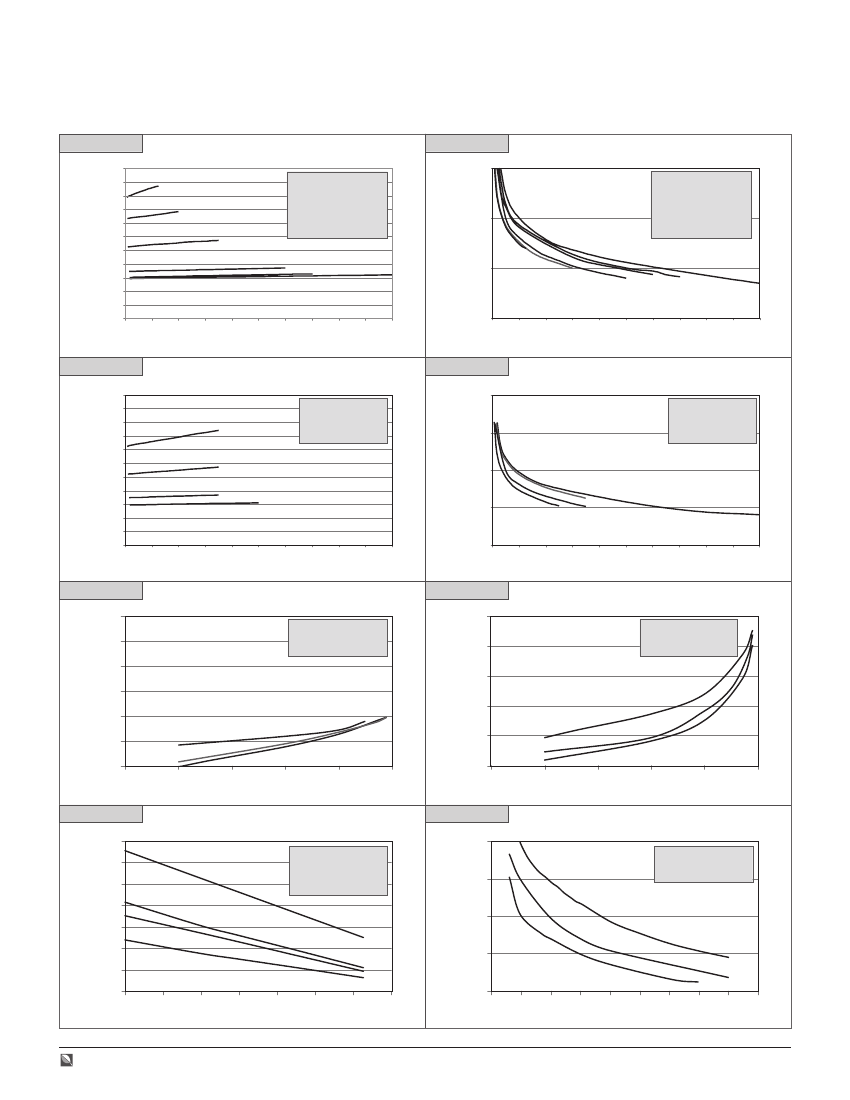

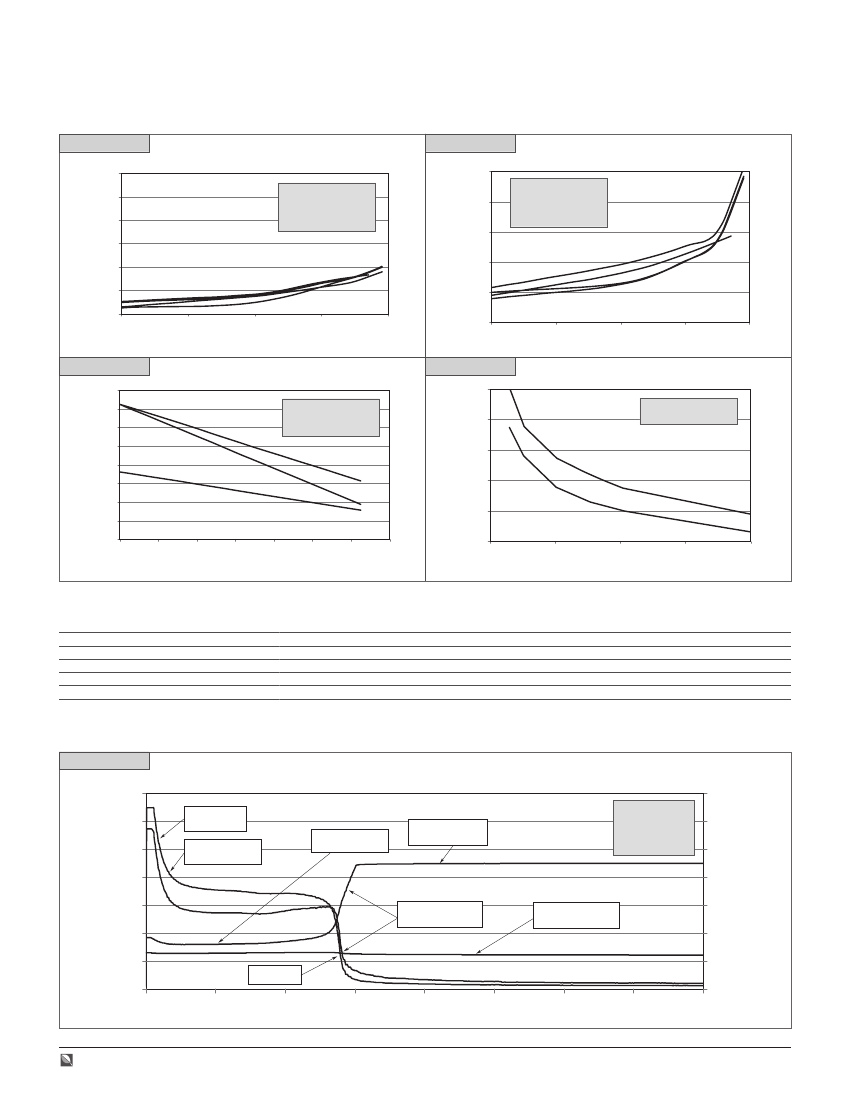

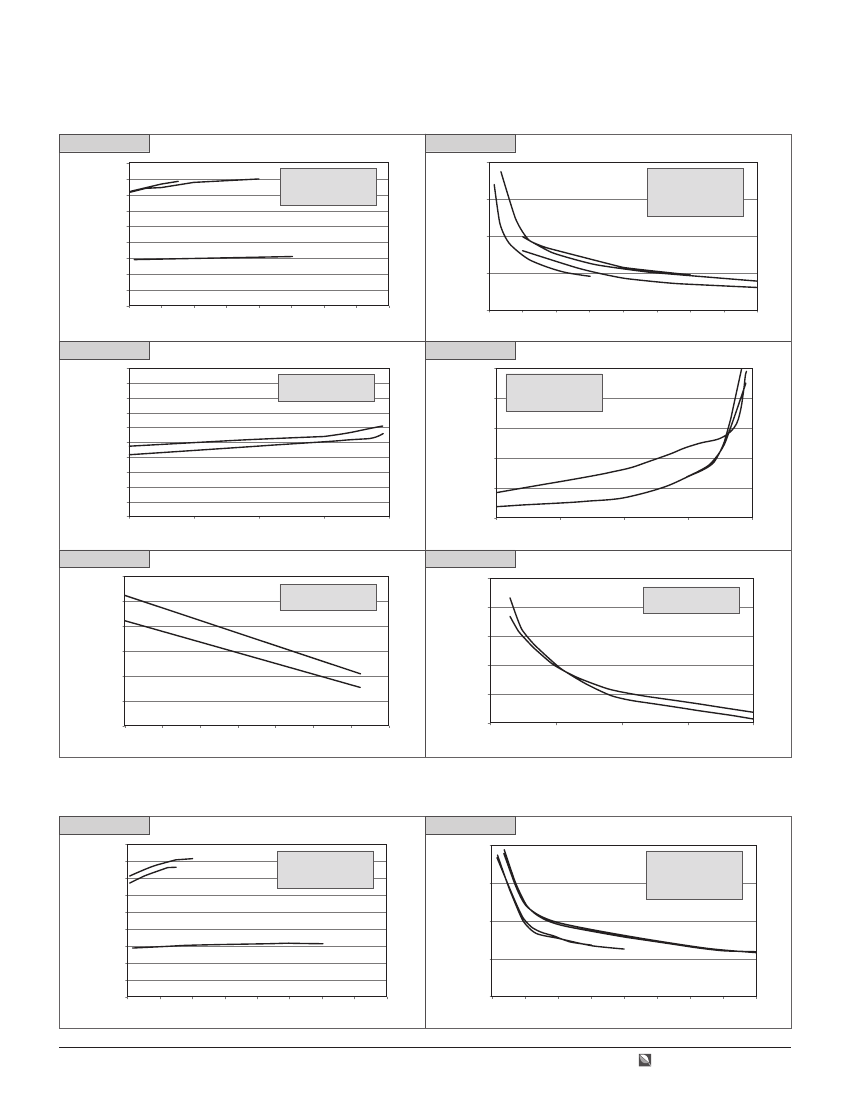

Figures PZ2-PZ9 — Typical Performance Curves for PolyZen Devices - LS Series
