STUSB1602QTR: DescriptionSuper Speed USB Controller 5V/9V/12V/15V/18V T/R 24-Pin QFN EP; CategoryUSB interface integrated circuit; File Size750KB，55 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

STUSB1602QTR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	STUSB1602QTR	-	-	View	Buy Now

STUSB1602QTR Overview

Super Speed USB Controller 5V/9V/12V/15V/18V T/R 24-Pin QFN EP

STUSB1602QTR Parametric

Parameter Name	Attribute value
EU restricts the use of certain hazardous substances	Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
HTS	8542.39.00.01
Type	USB Controller
USB Transceiver	Yes
USB Speed Type	Super Speed
Interface Type	I2C
Minimum Operating Supply Voltage (V)	4.1
Maximum Operating Supply Voltage (V)	22
Typical Operating Supply Voltage (V)	9\|5\|15\|12\|18
Typical Supply Current (mA)	0.188
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Packaging	Tape and Reel
Standard Package Name	QFN
Supplier Package	QFN EP
Pin Count	24
Mounting	Surface Mount
Package Height	0.88
Package Length	4
Package Width	4
PCB changed	24
Lead Shape	No Lead

Preview

Download Datasheet

View All

STUSB1602

USB Type-C™ controller with TX/RX line driver and BMC

Datasheet

production data



Compliant with:

– USB Type-C™ rev 1.2

– USB PD rev 2.0 (Certif. test ID 1010032)



Compatible with:

– USB PD rev 3.0

Features



Type-C™ attach and cable orientation

detection



Power role support: source/sink/DRP



Configurable start-up profiles



Integrated power switch for V

CONN

supply:

– programmable current limit up to 600 mA

– overcurrent, overvoltage, and thermal

protection

– under-voltage lockout



I²C interface and interrupt



Integrated V

BUS

voltage monitoring



Integrated V

BUS

and V

CONN

discharge path



Integrated BMC transceiver



BUS

switch gate driver



Low power standby mode



Dead battery mode support



Short-to-V

BUS

protection on CC pins (22 V) and

BUS

pins (28 V)



Accessory mode support



Dual power supply (V

SYS

and/or V

– V

SYS

= [3.0 V; 5.5 V]

– V

= [4.1 V; 22 V]

Applications



Smart plugs, wall adapters, and chargers



Power hubs and docking stations



Smartphones and tablets



Gaming and PNDs



Displays



Cameras, camcorders, and MP3 players



Any Type-C source or sink device

Description

The STUSB1602 is a generic IC designed in a

20 V technology. It addresses USB Type-C™ port

management both on the host and/or device side,

and is suited for a broad range of applications.

The STUSB1602 can handle all functions from

Type-C attach detection, plug orientation

detection, host to device connection, V

CONN

support, and V

BUS

configuration.

It also provides a USB PD TX/RX line driver and

BMC (biphase mark coding) transceiver which

allows USB PD negotiation and alternative mode

through an external MCU.

Additionally, the STUSB1602 provides support for

dead battery operation.

Table 1. Device summary

Order code

STUSB1602QTR

STUSB1602AQTR

USB PD

SOURCE, SINK

SOURCE, SINK, DRP

Package

QFN24 EP 4x4 mm

Temperature range

- 40 °C up to 105 °C

Marking

1602

1602A

August 2017

This is information on a product in full production.

DocID028319 Rev 3

1/55

www.st.com

Contents

STUSB1602

Contents

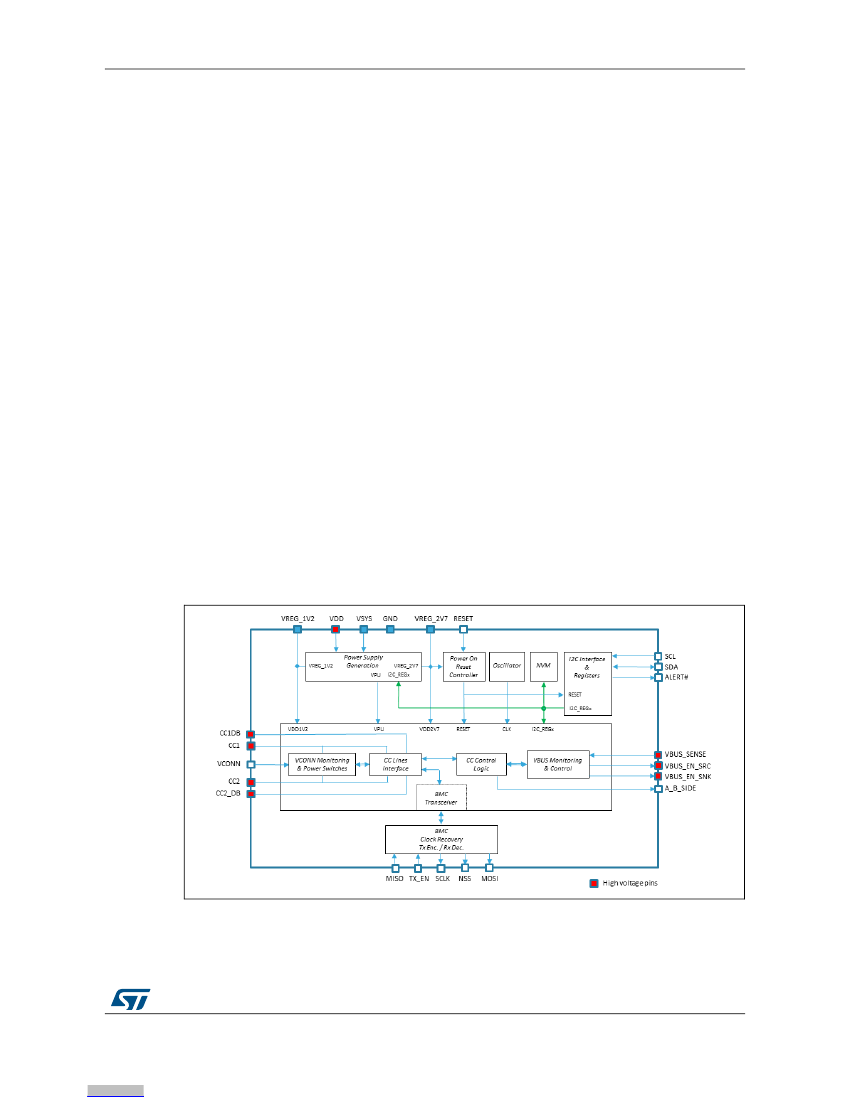

Functional description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Inputs/outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.1

2.2

2.3

Pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Pin list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.3.1

2.3.2

2.3.3

2.3.4

2.3.5

2.3.6

2.3.7

2.3.8

2.3.9

2.3.10

2.3.11

2.3.12

2.3.13

2.3.14

2.3.15

2.3.16

2.3.17

2.3.18

2.3.19

CC1/CC2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

CC1DB/CC2DB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

VCONN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

RESET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

I²C interface pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

MOSI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

NSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

MISO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

TX_EN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

SCLK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

A_B_SIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

VBUS_SENSE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

VBUS_EN_SNK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

VBUS_EN_SRC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

VREG1V2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

VSYS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

VREG2V7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

VDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Features description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.1

3.2

CC interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

BMC interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3.2.1

3.2.2

3.2.3

BMC interface behavior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

TX mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

RX mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

BUS

monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

DocID028319 Rev 3

3.3

BUS

power path control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

3.3.1

2/55

STUSB1602

3.3.2

3.3.3

Contents

BUS

discharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

BUS

power path assertion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

CONN

input voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

CONN

application conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

CONN

monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

CONN

discharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

CONN

control and status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

CONN

power switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3.4

CONN

supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3.4.1

3.4.2

3.4.3

3.4.4

3.4.5

3.4.6

3.5

3.6

3.7

3.8

3.9

Low power standby mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Dead battery mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

High voltage protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Hardware fault management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Accessory mode detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

3.9.1

3.9.2

Audio accessory mode detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Debug accessory mode detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Managing USB PD transactions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

I²C interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

5.1

5.2

5.3

Read and write operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Timing specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

I²C register map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Start-up configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

6.1

6.2

User-defined parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Default start-up configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

7.1

General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

7.1.1

7.1.2

Power supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Connection to MCU or application processor . . . . . . . . . . . . . . . . . . . . 30

Source type application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Sink type application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Dual role type application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

7.2

USB Type-C typical applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

7.2.1

7.2.2

7.2.3

DocID028319 Rev 3

3/55

STUSB1602QTR Related Products

	STUSB1602QTR	STUSB1602AQTR
Description	Super Speed USB Controller 5V/9V/12V/15V/18V T/R 24-Pin QFN EP	Super Speed Basic USB Type-C Controller 5V/9V/12V/15V/18V T/R 24-Pin QFN EP
EU restricts the use of certain hazardous substances	Compliant	Compliant
ECCN (US)	EAR99	EAR99
Part Status	Unconfirmed	Active
HTS	8542.39.00.01	8542.39.00.01
Type	USB Controller	Basic USB Type-C Controller
USB Transceiver	Yes	Yes
USB Speed Type	Super Speed	Super Speed
Interface Type	I2C	I2C
Minimum Operating Supply Voltage (V)	4.1	4.1
Maximum Operating Supply Voltage (V)	22	22
Typical Operating Supply Voltage (V)	9\|5\|15\|12\|18	9\|18\|15\|12\|5
Typical Supply Current (mA)	0.188	0.188
Minimum Operating Temperature (°C)	-40	-40
Maximum Operating Temperature (°C)	85	105
Packaging	Tape and Reel	Tape and Reel
Standard Package Name	QFN	QFN
Supplier Package	QFN EP	QFN EP
Pin Count	24	24
Mounting	Surface Mount	Surface Mount
Package Height	0.88	0.88
Package Length	4	4
Package Width	4	4
PCB changed	24	24
Lead Shape	No Lead	No Lead
