RF360 Europe GmbH
A Qualcomm – TDK Joint Venture

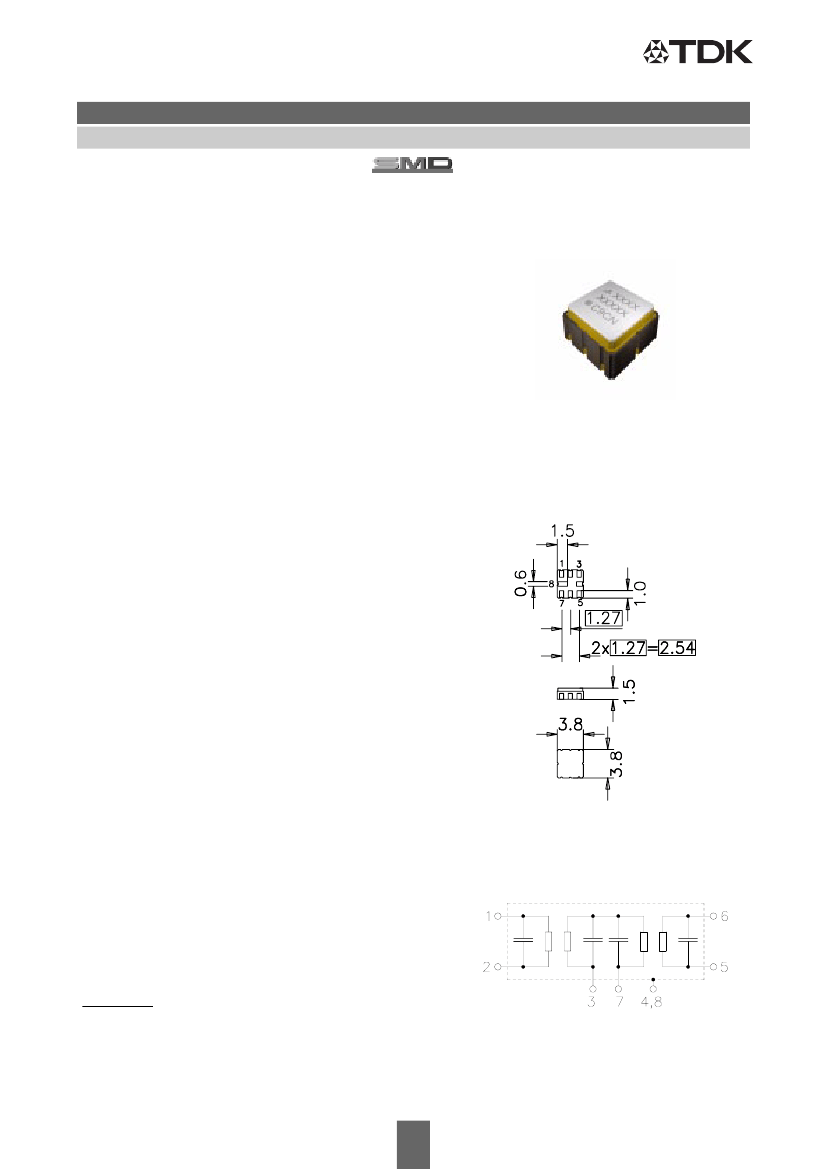

SAW Components
SAW RF filter
Short range devices
Series/type:
Ordering code:
Date:
Version:
B3790
B39431B3790Z810
December 17, 2012
2.1
RF360 products mentioned within this document are offered by RF360 Europe GmbH and other subsidiaries of
RF360 Holdings Singapore Pte. Ltd. (collectively, the “RF360 Subsidiaries”). RF360 Holdings Singapore Pte. Ltd.
is a joint venture of Qualcomm Global Trading Pte. Ltd. and EPCOS AG. References in this documentation to
EPCOS AG should properly reference, and shall be read to reference, the RF360 Subsidiaries.
RF360 Europe GmbH, Anzinger Str. 13, München, Germany
© 2016 RF360 Europe GmbH and/or its affiliated companies. All rights reserved.
These materials, including the information contained herein, may be used only for informational purposes by
the customer. The RF360 Subsidiaries assume no responsibility for errors or omissions in these materials or
the information contained herein. The RF360 Subsidiaries reserve the right to make changes to the product(s)
or information contained herein without notice. The materials and information are provided on an AS IS basis,
and the RF360 Subsidiaries assume no liability and make no warranty or representation, either expressed or
implied, with respect to the materials, or any output or results based on the use, application, or evaluation of
such materials, including, without limitation, with respect to the non-infringement of trademarks, patents,
copyrights or any other intellectual property rights or other rights of third parties.
No use of this documentation or any information contained herein grants any license, whether express, implied,
by estoppel or otherwise, to any intellectual property rights, including, without limitation, to any patents owned
by QUALCOMM Incorporated or any of its subsidiaries.
Not to be used, copied, reproduced, or modified in whole or in part, nor its contents revealed in any manner to
others without the express written permission of RF360 Europe GmbH.
Qualcomm and Qualcomm RF360 are trademarks of Qualcomm Incorporated, registered in the United States
and other countries. RF360 is a trademark of Qualcomm Incorporated. Other product and brand names may be
trademarks or registered trademarks of their respective owners.
This technical data may be subject to U.S. and international export, re-export, or transfer (“export”) laws.
Diversion contrary to U.S. and international law is strictly prohibited.
SAW Components
SAW RF filter
Short range devices
Series/type:
Ordering code:
Date:
Version:
B3790
B39431B3790Z810
December 17, 2012
2.1
EPCOS AG 2015. Reproduction, publication and dissemination of this publication, enclosures hereto and the information
contained therein without EPCOS' prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
SAW Components
SAW RF filter
Data sheet
Application
s
Low-loss RF filter for remote control receivers
s
Balanced and unbalanced operation possible
B3790
433.92 MHz
Features
s
s
s
s
s
s
s
s
s
s
Package size 3.8 x 3.8 x 1.5 mm
3
Package code QCC8B
RoHS compatible
Approximate weight 0.07 g
Package for
Surface Mount Technology
(SMT)
Ni, gold-plated terminals
Lead free soldering compatible with J - STD20C
Passivation layer Elpas
AEC-Q200 qualified component family
Electrostatic Sensitive Device
(ESD)
Pin configuration
1)
s
s
s
s
s
s
s
1
2
5
6
7
4,8
3
Input ground (recommended) or input
Input (recommended) or input ground
Output (recommended) or output ground
Output ground (recommended) or output
External coupling coil
Ground (case)
to be grounded
1) The recommended pin configuration usually offers best
suppression of electrical crosstalk. The filter characteris-
tics refer to this configuration.
Please read
cautions and warnings and
important notes
at the end of this document.
2
December 17, 2012
SAW Components
SAW RF filter
Data sheet
Characteristics
Temperature range for specification:
Terminating source impedance:
Terminating load impedance:
T = –30 ˚C to +80 ˚C
Z
S
=
50
Ω
and matching network
Z
L
=
50
Ω
and matching network
min.
Center frequency
(center frequency between 3dB pionts)
f
C
—
typ.
@ 25 ˚C
433.92
max.
—
B3790
433.92 MHz
MHz
Minimum insertion attenuation
α
min
(including losses in matching network)
433.86 ... 433.98 MHz
Pass band
(relative to
αmin)
433.86 ... 433.98 MHz
Relative attenuation
(relative to
αmin)
α
rel
10.00 ... 250.00 MHz
250.00 ... 330.00 MHz
330.00 ... 430.00 MHz
430.00 ... 433.32 MHz
—
3.6
4.3
dB
—
0.5
1.5
dB
60
53
55
32
65
58
60
48
—
—
—
—
dB
dB
dB
dB
434.52 ... 437.00 MHz
437.00 ... 530.00 MHz
530.00 ... 1000.00 MHz
Impedance
for pass band matching
1)
Input: Z
IN
= R
IN
|| C
IN
Output: Z
OUT
= R
OUT
|| C
OUT
1)
29
55
60
34
60
65
—
—
—
dB
dB
dB
—
—
510 || 1.0
510 || 1.0
—
—
Ω
|| pF
Ω
|| pF
Impedance for passband matching bases on an ideal, perfect matching of the SAW filter to source- and to load
impedance (here 50 Ohm). After removal of the SAW filter the input impedance of the input and output match-
ing network is calculated. The conjugate complex value of these characteristic impedances are the input and
output impedances for flat passband. For more details we refer to EPCOS application note #4.
Please read
cautions and warnings and
important notes
at the end of this document.
3
December 17, 2012
