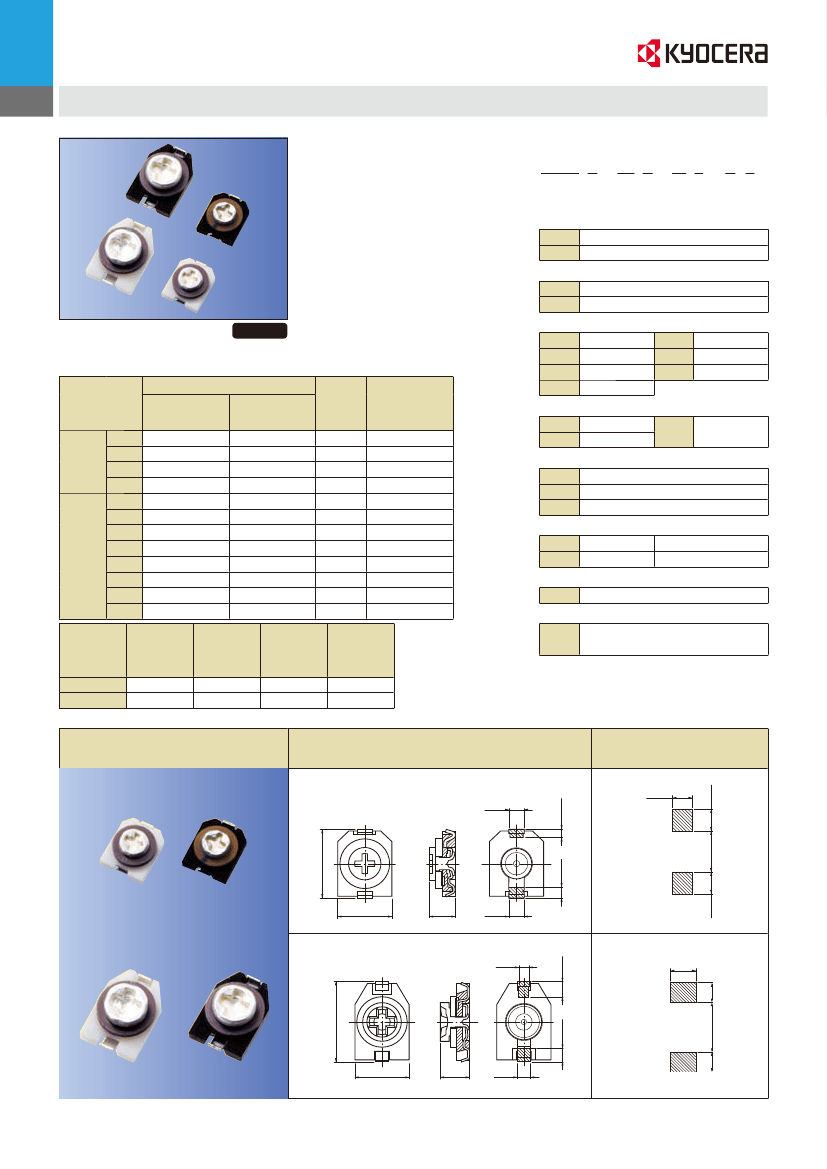

Trimmer Capacitors
CTZ2, CTZ3 Series
Features
• SMD small & thin package
• Wide capacitance range
• Washable and non−washable types available
• Plus slot (+) suitable for auto−adjustment
How to Order
CTZ3 S - 05 A - W 1 - P F
①
①
Series
②
③ ④
⑤ ⑥
⑦ ⑧
Applications
• AV Equipment
• Cellular Phone
• Cordless Phone
• TCXO
• Keyless Entry
CTZ3
CTZ2
CTZ3 Series
CTZ2 Series
Reflow non washable type
Reflow washable type
3pF
5pF
10pF
20pF
NPO±500
N400±500
30
40
50
30pF
40pF
50pF
②
Type
S
E
03
05
10
20
A
B
W
X
B
1
2
P
RoHS Compliant
③
Maximum Capacitance
Specifications
Capacitance (pF)
Part No.
03A
05A
10A
20C
03A
05A
10A
10B
20C
30C
40C
50C
C max.
3
+
100%
−0%
5
+
100%
−0%
10
+
100%
−0%
20
+
100%
−0%
3
+
100%
−0%
5
+
100%
−0%
10
+
100%
−0%
10
+
100%
−0%
20
+
100%
−0%
30
+
100%
−0%
40
+
100%
−0%
50
+
100%
−0%
Rated
Voltage
(V
•
DC)
25
25
C min.
2.0 max.
3.0 max.
3.0 max.
5.5 max.
1.0 max.
1.5 max.
2.5 max.
1.5 max.
4.5 max.
4.5 max.
4.5 max.
4.5 max.
Q
1±0.1
(MHz)
≥150
≥150
≥150
≥150
≥300
≥300
≥300
≥300
≥300
≥300
≥300
≥200
Torque
(g
•
cm)
10 to 150
10 to 150
Temperature
Coefficient
(ppm/
°C)
NPO±500
NPO±500
NPO±500
N750±500
NPO±500
NPO±500
NPO±500
N400±500
N750±500
N750±500
N750±500
N750±500
④
Temperature Coefficient (ppm/
°C)
C
N750±500
CTZ2
S/ E
⑤

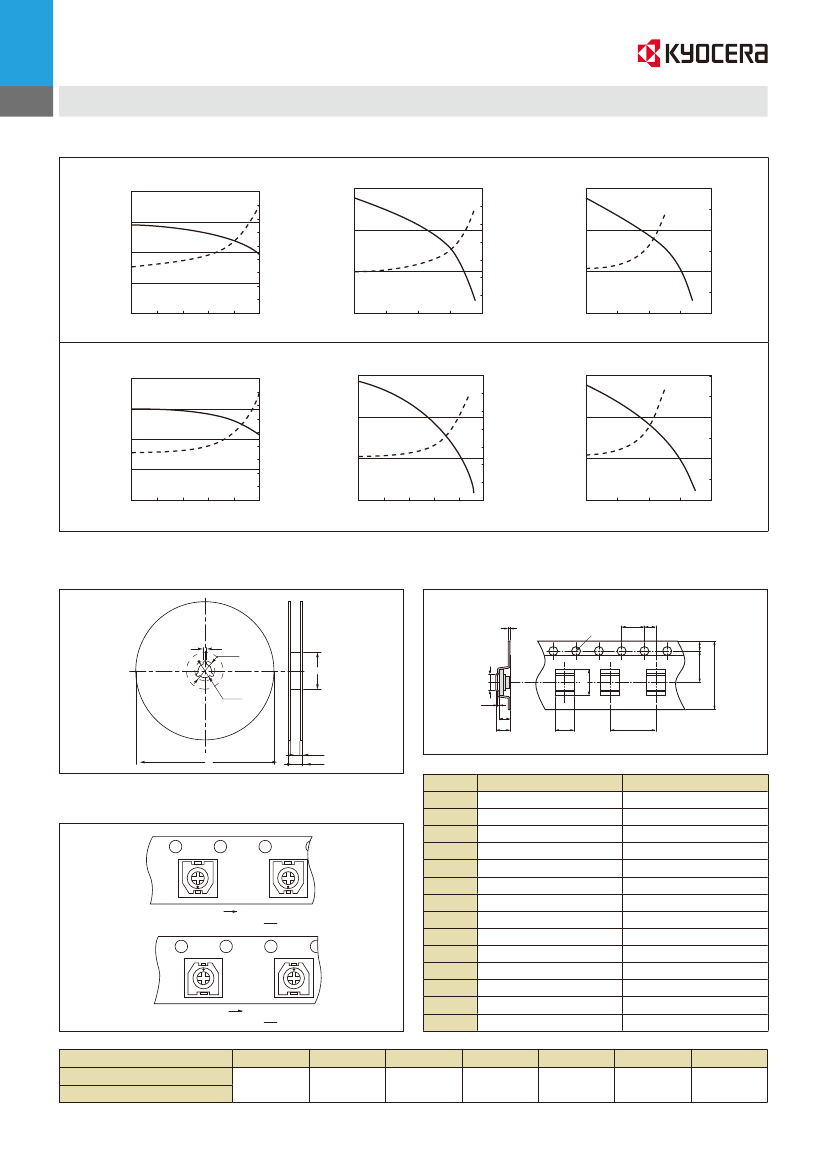

Packaging
W Direction Taping
X Direction Taping
Bulk
1,000
2,000
CTZ3 Series
CTZ2 Series
Plus Slot
Lead Forming Type
(CTZ3 type)
⑥
Taping Quantity (Unit: pcs.)
CTZ3
S/ E
⑦
Pin Head Type
⑧
Lead Specification
F
Series
CTZ2S/ E
CTZ3S/ E
Temperature Insulation
Range
Resistance
(°C)
(MΩ)
−40
to
+85
−40
to
+85
≥10
4
≥10
4
∗
⑧
is denoted by space for CTZ2 series.
Series
CTZ2 Series
Dimensions (Unit: mm)
Recommended Land Pattern
(Unit: mm)
0.7
0.1 min.
0.2 min.
3.2
2.5
1.3 max.
0.7
CTZ3 Series
0.5
0.6
1.5
4.5
0.5
3.2
1.8 max.
0.78
1.2
2.9
1.2
1.0
1.9
1.0
0.9
Trimmer Capacitors
PCB Mounting
• When our recommended landpattern is not used, please check
mounting alignment.
• When mounting on PCB, please do not apply pressure to trimmer
capacitors over 500g.f.
Screwdrivers
Please use proper screwdriver for adjustment of the capacitor.
Kyocera can supply suitable ceramic type screwdrivers specially
designed for the use of CTZ series. Please contact your local AVX
office for the details.
CTZ3
Pin Head
⊕:
CTZ3 Phillips-head (Plus) Ceramic Screwdriver
Soldering
• When using soldering iron, adjust iron tip to 280°C max.
• Please find below recommended solder profile.
CTZ2
Pin Head
⊕:
CTZ2 Phillips-head (Plus) Ceramic Screwdriver
φ
10
φ
12
110
300
・Peak:
250 C Over 10 sec. max.
250
Temp.
[ C]
200
150
φ
10.05
100
・Preheat:
160
50
(CTZ2 Phillips-head (Plus) Screwdriver)
0
0
50
100
150
200
250
190 C 120 sec.
96
110
・220°C
Over 60 sec. max.
125
(CTZ3 Phillips-head (Plus) Screwdriver)
Time
[Sec.]
Driver Head Type
(CTZ3 Phillips-head (Plus))
1.30
2.6
(3.60)
1.2
0.35
(CTZ2 Phillips-head (Plus))
Storage Conditions
1) Do not store components in corrosive condition such as chloric or
sulfuric environment.
2) Components before use should be stored under the condition with
temperature of 5 to 40 degrees Celsius and humidity of 20 to 70%
RH.
3) It is recommended to use components within 6 months of incoming.
4) Do not open the minimal package until right before the use.
5) Do not store components under direct sunlight or dewy
environment.
R1.2
0.85
φ
4.8
(2.0)
0.19
1.6
