DS229
Triple RS-232 Transmitter/Receiver
www.dalsemi.com
FEATURES
Compatible with DS1229
5V operation
20-pin DIP or SOIC package
20-pin TSSOP package for height restricted
applications
Operate from single +5V power
Meets all EIA-232E and V.28 specifications
Uses small capacitors: 0.1
µF
Optional industrial temperature range
available (-40°C to +85°C)
PIN ASSIGNMENT
C1+
V+
C1-
C2+
C2-
V-
T2
OUT
R2
IN
T3
OUT
R3
IN
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
V
CC
GND
T1
OUT
R1
IN
R1
OUT
T1
IN
T2
IN
R2
OUT
T3
IN
R3
OUT
20-Pin DIP, SOIC AND TSSOP
ORDERING INFORMATION
DS229
DS229N
DS229S
DS229SN
DS229E
DS229EN
20-pin DIP
20-pin DIP (Industrial)
20-pin SOIC
20-pin SOIC (Industrial)
20-pin TSSOP
20-pin TSSOP (Industrial)
PIN DESCRIPTION
V
CC
GND
V+
V-
T1
IN
, T2
IN
, T3
IN
T1
OUT
, T2
OUT
, T3
OUT
R1
IN
, R2
IN
, R3
IN
R1
OUT
, R2
OUT
, R3
OUT
C1+, C1-
C2+, C2-
- +5-Volt Supply
- Ground
- Positive Supply Output
- Negative Supply Output
- RS-232 Driver Inputs
- RS-232 Driver Outputs
- Receiver Inputs
- Receiver Outputs
- Capacitor 1 Connections
- Capacitor 2 Connections
DESCRIPTION
The DS229 is a triple RS-232 driver/receiver pair that generates RS-232 voltage levels from a single +5-
volt power supply. Additional
±12-volt
supplies are not needed since the DS229 uses on-board charge
pumps to convert the +5-volt supply to
±10
volts. The DS229 is fully compliant with EIA RS-232E and
V.28/V.24 standards. The DS229 contains three drivers and three receivers. Driver slew rates and data
rates are guaranteed up to 116 kbits/sec. The DS229 operates with only 0.1
µF
charge pump capacitors.
OPERATION
The diagram in Figure 1 shows the main elements of the DS229. The following paragraphs describe the
function of each pin.
1 of 9
112099
DS229

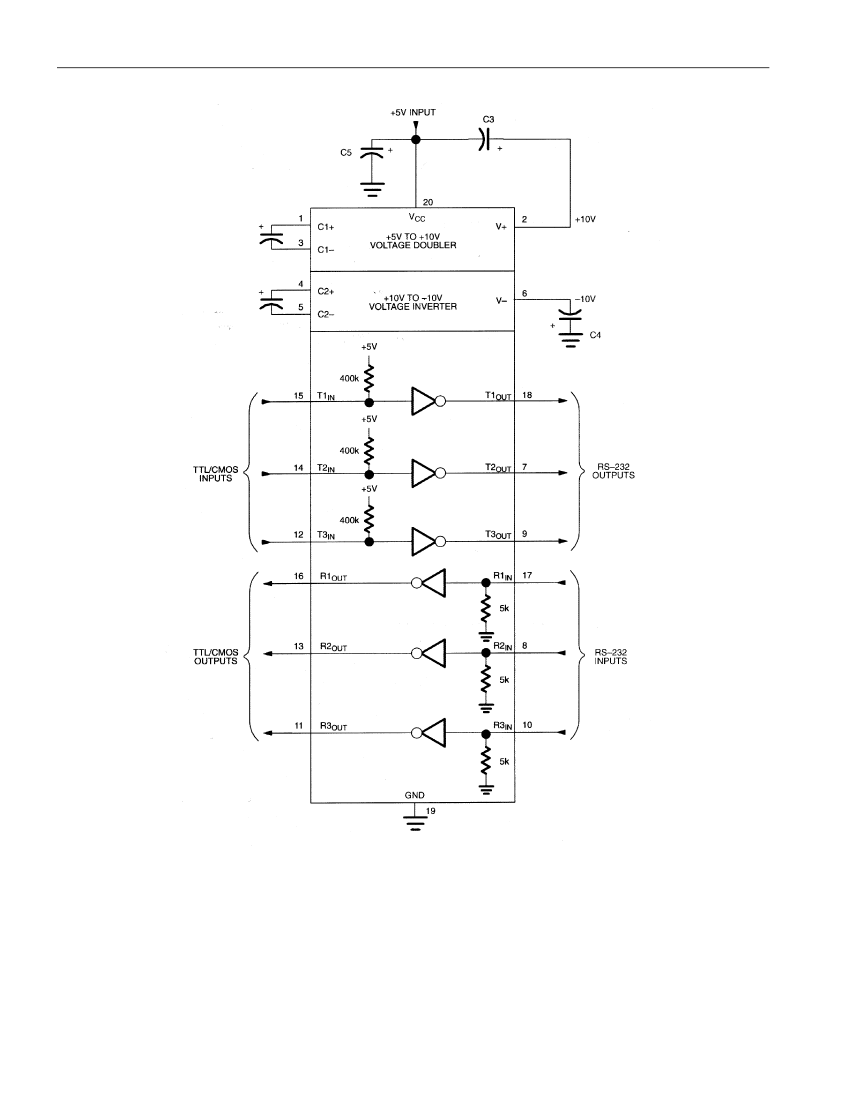

FUNCTIONAL DIAGRAM OF DS229
Figure 1
NOTE: C5 is a recommended decoupling capacitor which is the same value as C1, C2, C3, and C4.
PIN DESCRIPTIONS
V
CC
, GND:
DC power is provided to the device on these pins. V
CC
is the +5-volt input.
V+:
Positive supply output (RS-232). V+ requires an external storage charge capacitor of at least 0.1
µF.
A larger capacitor (up to 10
µF)
can be used to reduce supply ripple.
2 of 9
DS229
V-:
Negative supply output (RS-232). V- requires an external storage capacitor of at least 0.1
µF.
A
larger capacitor (up to 10
µF)
can be used to reduce supply ripple.
T1
IN
, T2
IN
, T3
IN
:
Standard TTL/CMOS inputs for the RS-232 drivers. The inputs of unused drivers can
be left unconnected since each input has a 400 kΩ pullup resistor.
T1
OUT
, T2
OUT
, T3
OUT
:
Driver outputs at RS-232 levels. Driver output swing meets RS-232 levels for
loads up to 3 kΩ. These driver outputs provide current necessary to meet RS-232 levels for loads up to
2500 pF.
R1
IN
, R2
IN
, R3
IN
:
Receiver inputs. These inputs accept RS-232 level signals (±25 volts) into a protected
5 kΩ terminating resistor. Each receiver provides 0.5V hysteresis (typical) for noise immunity.
R1
OUT
, R2
OUT
, R3
OUT
:
Receiver outputs at TTL/CMOS levels.
C1+, C1-, C2+, C2-:
Charge pump capacitor inputs. These pins require two external capacitors (0.1
µF
minimum, 10
µF
maximum and should be the same size as C3 and C4). Capacitor 1 is connected between
C1+ and C1-. Capacitor 2 is connected between C2+ and C2-. Capacitor C1 can be omitted if +12 volts is
connected directly to V+. Likewise, C2 can be omitted if -12V is connected directly to V-.
DUAL CHARGE PUMP CONVERTERS
The DS229 has a two stage on-board charge pump circuit that is used to generate
±10
volts from a single
+5-volt supply. In the first stage, capacitor C1 doubles the +5V supply to +10 volts which is then stored
on capacitor C3. The second stage uses capacitor C2 to invert the +10V potential to -10V. This charge is
then stored on capacitor C4. The
±10-volt
supplies allow the DS229 to provide the necessary output
levels for RS-232 communication. The DS229 will operate with charge pump capacitors as low as 0.1
µF.
Larger capacitors (up to 10
µF)
can be used to reduce supply ripple.
The three RS-232 drivers are powered by the internal
±10-volt
supplies generated by the on-board charge
pump. The driver inputs are both TTL and CMOS compatible. Each input has an internal 400 kΩ=pullup
resistor so that unused transmitter inputs can be left unconnected. The open circuit output voltage swing
is from (V+ - 0.6) to V- volts. Worst case conditions for EIA-232E/V.28 of
±5
volts driving a 3 kΩ=load
and 2500 pF are met at maximum operating temperature and V
CC
equal to 4.5 volts. Typical voltage
swings of
±8
volts occur when loaded with a nominal 5 kΩ=RS-232 receiver. As required by EIA-232E
and V.28 specifications, the slew rate at the output is limited to less than 30 volts/µs. Typical slew rates
are 20 volts/µs unloaded and 12 volts/µs with 3 kΩ=and 2500 pF load. These slew rates allow for bit rates
of over 116 kbits/s. Driver outputs maintain high impedance when power is off.
RS-232 DRIVERS
RS-232 RECEIVERS
The three receivers conform fully to the RS-232E specifications. The input impedance is typically 5
kΩ=and can withstand up to
±30
volts with or without V
CC
applied. The input switching thresholds are
within the
±3-volt
limit of RS-232E specification with an input threshold low of 0.8 volts and an input
threshold high of 2.4 volts. The receivers have 0.5 volts of hysteresis (typical) to improve noise rejection.
The TTL/CMOS compatible outputs of the receivers will be low whenever the RS-232 input is greater
than 2.4 volts. The receiver output will be high when the input is floating or driven between +0.8 volts
and -25 volts.
3 of 9
DS229
ABSOLUTE MAXIMUM RATINGS*
Absolute Maximum Ratings
V
CC
V+
V-
Input Voltages
T
IN
R
IN
Output Voltages
T
OUT
R
OUT
Short Circuit Duration, T
OUT
-0.3V to +7.0V
(V
CC
-0.3V) to +14V
+0.3V to -14V
-0.3V to (V
CC
+0.3V)
±30V
(V+ + 0.3V) to (V- - 0.3V)
-0.3V to (V
CC
+ 0.3V)
Continuous
* This is a stress rating only and functional operation of the device at these or any other conditions
above those indicated in the operation sections of this specification is not implied. Exposure to
absolute maximum rating conditions for extended periods of time may affect reliability.
RECOMMENDED DC OPERATING CONDITIONS
PARAMETER
Operating Supply Voltage
SYMBOL
V
CC
MIN
4.5
TYP
MAX
5.5
(0°C to 70°C)
UNITS
V
NOTES
1
DC ELECTRICAL CHARACTERISTICS
PARAMETER
Power Supply Current (No Load)
Power Supply Current (3 kΩ Load All
Outputs)
RS-232 Transmitters
Output Voltage Swing
Input Logic Threshold Low
Input Logic Threshold High
Data Rate
Logic Pullup/Input Current
Transmitter Output Resistance
Output Short-Circuit Current
V
ORS
V
TTL
V
TTH
f
D
I
PU
R
OUT
I
TSC
300
±15
±5
0.8
±8
1.4
1.4
200
5
10M
±30
±100
2.0
116
40
SYMBOL
I
CC1
I
CC2
MIN
TYP
6
22.5
MAX
15
(0°C to 70°C)
UNITS
mA
mA
NOTES
V
V
V
kbits/s
µA
Ω
mA
2
3
4
4 of 9
DS229
DC ELECTRICAL CHARACTERISTICS
(continued)
RS-232 Receivers
RS-232 Input Voltage Operating Range
RS-232 Input Threshold Low
RS-232 Input Threshold High
RS-232 Input Hysteresis
RS-232 Input Resistance
TTL/CMOS Output Voltage Low
TTL/CMOS Output Voltage High
TTL/CMOS Output Short Circuit
Current (V
OUT
=GND)
TTL/CMOS Output Short Circuit
Current (V
OUT
=V
CC
)
V
IR
V
RTL
V
RTH
V
HY
R
IN
V
ROL
V
ROH
I
RSC
I
RSC
3.5
-2
10
0.2
3
±25
0.8
±30
1.3
1.8
0.5
5
0.2
V
CC
-0.2
-10
30
2.4
1
7
0.4
(0°C to 70°C)
V
V
V
V
kΩ
V
V
mA
mA
5
6
AC ELECTRICAL CHARACTERISTICS
PARAMETER
Transition Slew Rate
Transmitter Propagation
Delay TTL to RS-232
Receiver Propagation
Delay RS-232 to TTL
Transmitter + to - Propagation
Delay Difference
Receiver + to - Propagation
Delay Difference
SYMBOL
t
SR
t
PHLT
t
PLHT
t
PHLR
t
PLHR
t
PHLT
-t
PLHT
t
PHLR
-t
PLHR
MIN
6
TYP
12
1.3
1.5
0.5
0.6
300
100
MAX
30
3.5
3.5
1
1
(0°C to 70°C)
UNITS
V/µs
µs
µs
µs
µs
ns
ns
NOTES
7
NOTES:
1. All voltages are referenced to ground.
2. All transmitter outputs loaded with 3 kΩ=to ground
3. V
CC
= V+ = V- = 0V; V
OUT
=
±2V.
4. V
OUT
= 0V.
5. I
OUT
= 3.2 mA.
6. I
OUT
= -1.0 mA.
7. C
L
= 50 pF - 2500 pF; RL = 3 kΩ=- 7 kΩ; V
CC
= 5V; TA = 25°C.
5 of 9
