ANT-DB2-RMG-xx-yy-zz DATA SHEET

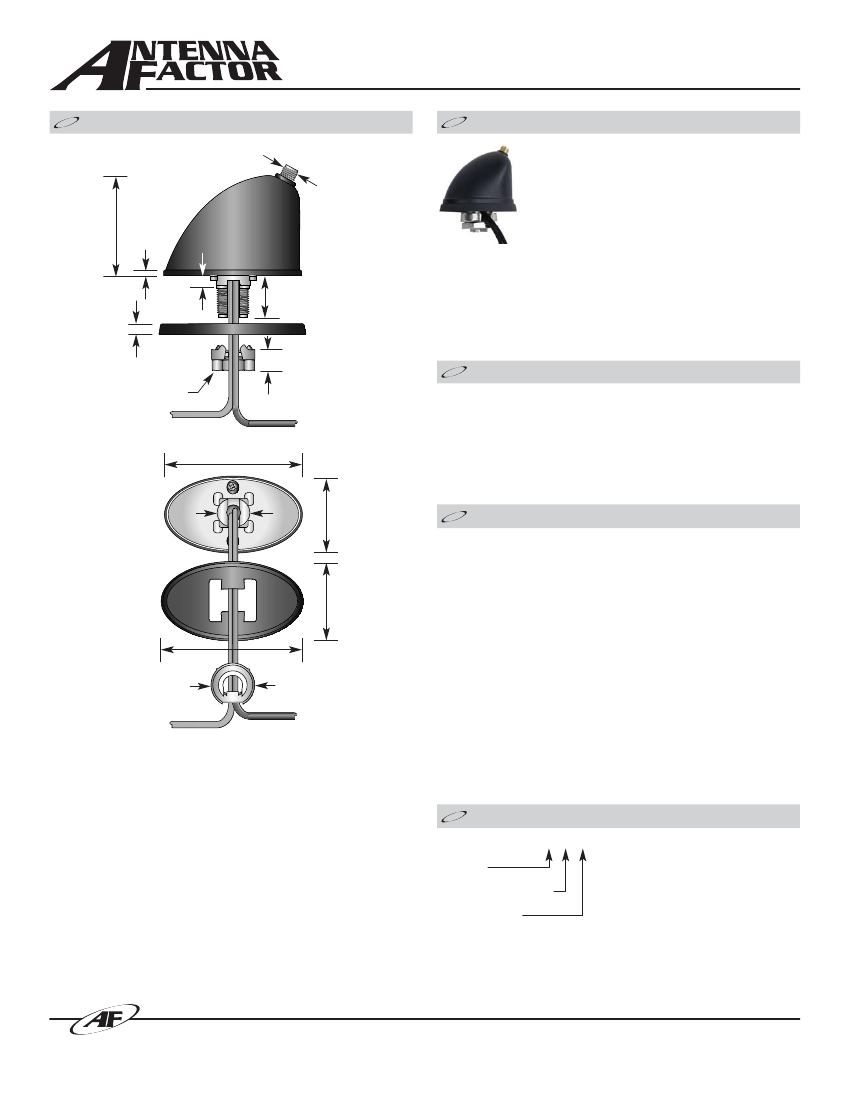

Product Dimensions
Description
The RMG Series combines a high-performance
internal GPS antenna with a connector for
mounting a secondary antenna. A wide range of
connectorized antennas can be attached,
enabling the coverage of all popular frequencies.
The GPS antenna and connector are housed in
a sleek, durable base intended for permanent
through-hole mounting. A separate cable is provided for each
antenna and each may be terminated in a variety of standard or
custom connector types. The cables feed through a threaded
metal post with a flexible compression gasket, which resists the
intrusion of water or dirt, and protects the attachment surface.
The antenna is ideal for vehicular applications, although its range
of applications is virtually unlimited.
1/4-36
(6.2)
1.48”
(37.6)
0.15”
(3.8)
0.29”
(7.4)
0.20”
(5.0)
0.67”
(17.0)
0.43”
(10.8)
9/16-24
(13.8)
2.09”
(53.0)
Features
•
•
•
•
•
•
•
1.41”
(35.7)
•
•
•
•
•
•
•
•
•
•
•
On-board amplified GPS antenna
Connector for second antenna element
Wide range of secondary frequencies
Rugged and water-resistant
Separate RG-174 cables for each antenna
Threaded metal stud mount
Standard and custom cable terminations
0.54”
(13.8)
Specifications
INTERNAL GPS ANTENNA
Frequency
1575.42MHz
Polarization
RHCP (Right-Hand Circular)
Gain
27dBi typical
Noise Figure
1.2 max.
VSWR
<2.0:1
Impedance
50 ohms
Operating Voltage
2.7 to 5.5VDC
Power Consumption
15-20mA
Operating Temperature -35 to +85 degrees Celsius
Storage Temperature
-40 to +95 degrees Celsius
Cable
5m RG-174
1.73”
(44.0)
2.29”
(58.2)
1.03”
(26.2)
EXTERNAL ANTENNA
•
Base Connector
RP-SMA or SMA
•
Cable
5m RG-174
External antenna characteristics are dependant upon the element chosen
Ordering Information
•
ANT-DB2-RMG-xx-yy-zz
External antenna connection
RP-SMA (RP)* or SMA (SM)*
External antenna cable termination RP-SMA (RP)*, SMA (SM), or MCX (MC)
Internal GPS cable termination
* Standard
SMA (SM)*, MCX (MC), or FME (F)
Antenna Factor
159 Ort Lane Merlin, OR 97532
www.antennafactor.com
541-956-0931 (phone) 541-471-6251 (fax)
Rev 07-22-08
