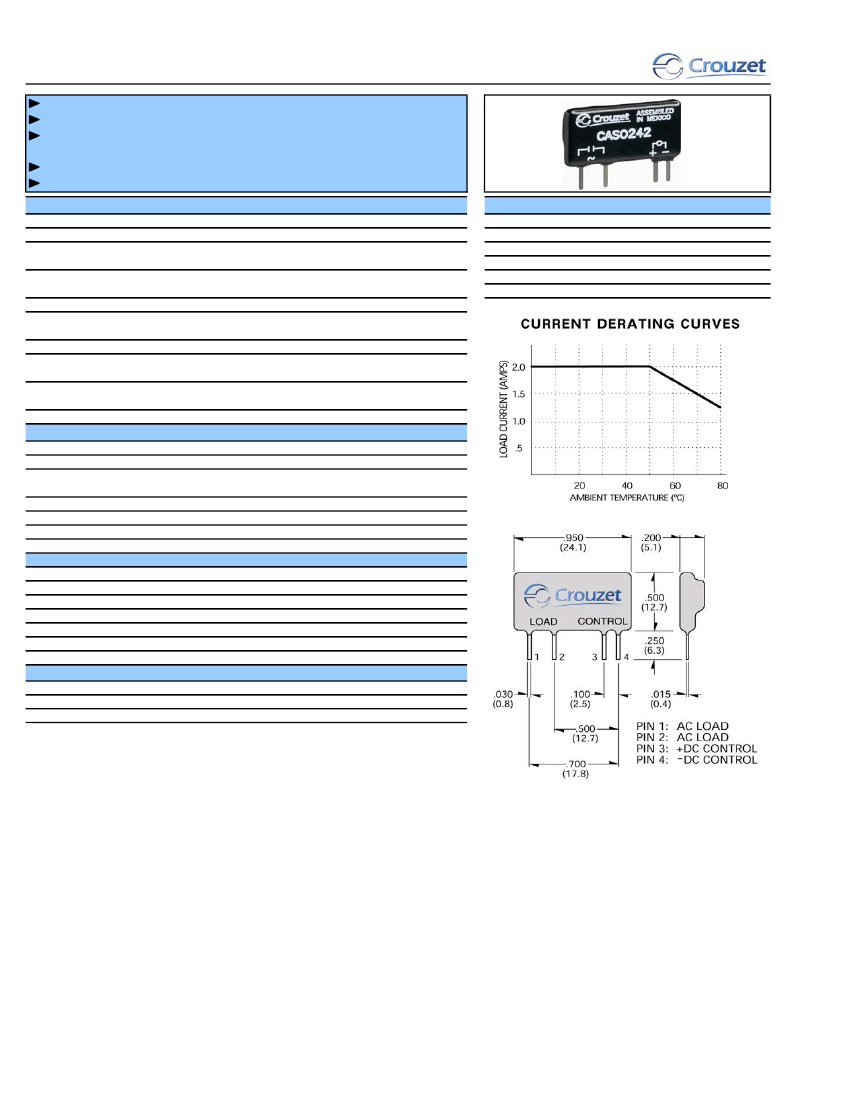

CASO SERIES
Back to back dual SCR output
Ratings up to 2 amps at 280Vac
Zero-crossing (resistive loads) or random-fire (inductive loads)
output
Compact design for high-density PCB circuits
UL, CSA, CE Compliant
Output Specifications
Voltage range (Vrms)
Peak voltage (Vpk , t = I min.)
Off-state leakage mArms
(@ max. line voltage & Ta = 25ºC)
Output current (Arms)
(see derate curve)
Minimum current (mArms)
Max. 1 cycle surge current
(Apk, Ta = 25ºC)
I
2
T (60Hz, ½ cycle)
Max. forward voltage drop
(Vpk @ Imax, Ta = 25ºC)
Static off-state dv/dt
(V/µs, Ta = 25ºC)
Power factor (min.) with max load
12-280Vac
600
0.1
2
60
120
60
1.5
500
Part Numbers
Zero-Crossing Output (resistive loads)
Rating
Output
Input
Part Number
2 Amp
12-280Vac
4-10VDC
CASO242
Random Fire Output (inductive loads)
Rating
Output
Input
Part Number
2 Amp
12-280Vac
4-10VDC
CASO242R
0.5
Input Specifications
Input voltage
Drop out voltage
Typical input current (@5Vdc)
@ Nominal Voltage
Nominal Input Resistance (Ohms)
Max. Turn-on time*
Max. Turn-off time
* Random SSR's turn on in less than 100µs
4-10Vdc
1Vdc
15 mAdc
General Characteristics
Operating Temperature (ºC)
Storage Temperature (ºC)
Input to output isolation
Input to output capacitance
Operating Frequency
Encapsulation
Weight (typical)
Standards of Compliance
CE Compliant with the LVD 73/23/EEC
UL Recognized
CSA Certified
O
Products and specifications subject to change without notice
www.crouzet-usa.com
bs
0.15 oz. (4.3g)
ol
-30 to + 80
-30 to + 125
2500Vrms
10pF (typical)
47 to 63 Hz
Thermally Conductive Epoxy
300
1/2 AC Cycle
1/2 AC Cycle
et
e
