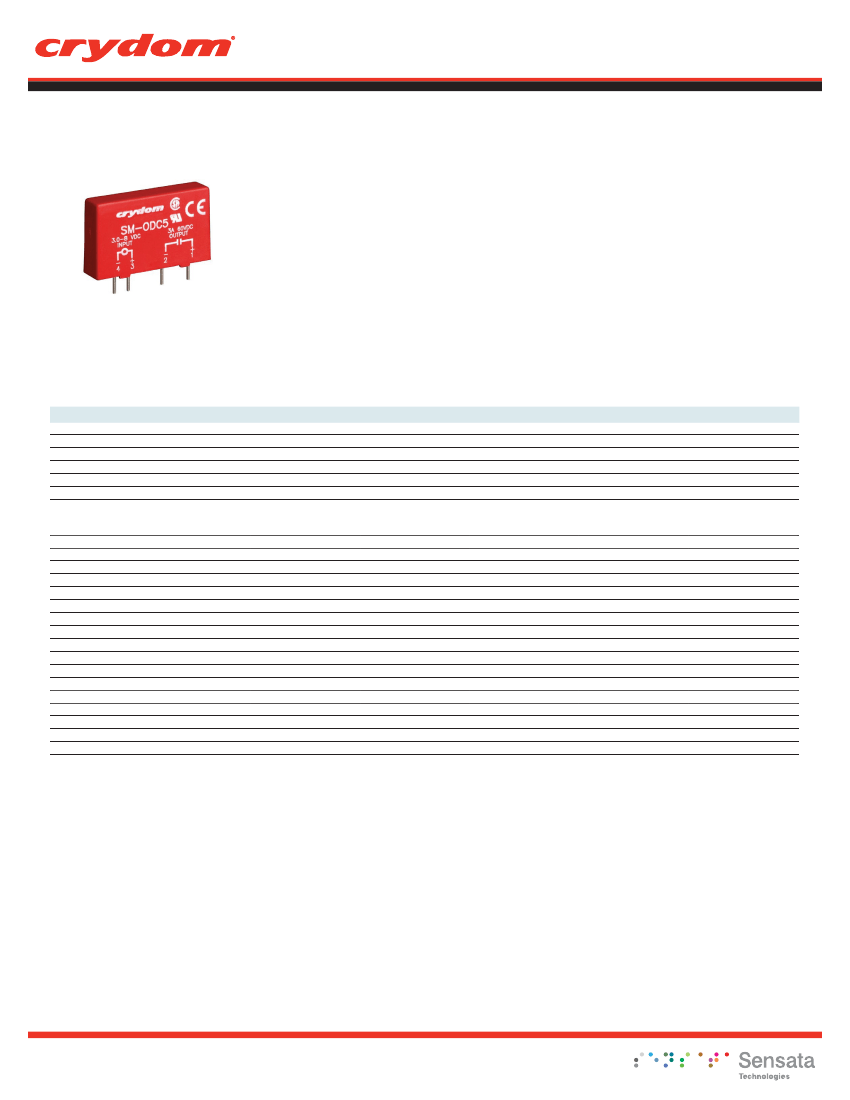

SM SERIES OUTPUT MODULES
•
AC Modules have High Current Thyristors with 100 Amp
Surge Capability
•
Plug into mounting boards for 0.6" modules
•
Zero or Random Turn-On Available in AC Modules
•
4kV Optical isolation (1500 VAC Isolation for
FET DC Output Modules)
•
UL Recognized, CSA Certified, CE Compliant
•
Industry standard packaging and Color Coding
Black (AC Output) Red (DC Output)
I/O Modules
SPECIFICATIONS
(1)
Input
Part Number
Nominal Voltage [VDC]
Minimum Voltage [VDC]
(2)
Maximum Voltage [VDC]
Drop-out Voltage [VDC]
Maximum Current [mA]
(3)
Resistance [Ohms]
(4)
Nominal Line Voltage
Minimum Line Voltage
Maximum Line Voltage
Max Off-State Voltage
(5)
Max Off-State Leakage
(6)
Static Off-State dv/dt
(7)
Maximum Rated On-State Current
(8)
Minimum On-State Current
Max Surge Current
(9)
On-State Voltage Drop or Resistance
(10)
Maximum Turn-On Time [msec]
(12)
Maximum Turn-Off Time [msec]
(12)
Input/Output Isolation Voltage
(13)
Input/Output Capacitance
Operating Temperature Range
Storage Temperature Range
Line Frequency Range
Weight
SM-OAC5
5.0
2.75
8.0
1.0
20
220
SM-OAC5A
5.0
2.75
8.0
1.0
20
220
SM-OAC5AH
5.0
2.75
8.0
1.0
20
220
SM-OAC5AR
5.0
2.75
8.0
1.0
20
220
SM-OAC5R
5.0
2.75
8.0
1.0
20
220
Output
120 VAC
12 VAC
140 VAC
400 Vpeak
0.1mArms
200 V/usec
3.5 Arms
50 mArms
100 Apeak
1.6 V
8.33
8.33
4000 Vrms
8 pF
-30 to 80°C
-40 to 80°C
47 to 63 Hz
1.1 oz. (31.2g)
240 VAC
24 VAC
280 VAC
600 Vpeak
0.1mArms
200 V/usec
3.5 Arms
50 mArms
100 Apeak
1.6 V
8.33
8.33
4000 Vrms
8 pF
-30 to 80°C
-40 to 80°C
47 to 63 Hz
1.1 oz. (31.2g)
240 VAC
24 VAC
280 VAC
600 Vpeak
0.1mArms
200 V/usec
5.0 Arms
50 mArms
100 Apeak
1.6 V
8.33
8.33
4000 Vrms
8 pF
-30 to 80°C
-40 to 80°C
47 to 63 Hz
1.1 oz. (31.2g)
240 VAC
24 VAC
280 VAC
600 Vpeak
0.1mArms
200 V/usec
3.5 Arms
50 mArms
100 Apeak
1.6 V
0.1
8.33
4000 Vrms
8 pF
-30 to 80°C
-40 to 80°C
47 to 63 Hz
1.1 oz. (31.2g)
120 VAC
12 VAC
140 VAC
400 Vpeak
0.1mArms
200 V/usec
3.5 Arms
50 mArms
100 Apeak
1.6 V
0.1
8.33
4000 Vrms
8 pF
-30 to 80°C
-40 to 80°C
47 to 63 Hz
1.1 oz. (31.2g)
Do not forget to visit us at:
www.crydom.com
Copyright © 2016 Crydom Inc. Specifications subject to change without notice.
Datasheet
Input
I/O Modules
SPECIFICATIONS
(1)
SM-OAC24
24
18
32
1.0
13
2000
Nominal Voltage [VDC]
Minimum Voltage [VDC]
(2)
Maximum Voltage [VDC]
Drop-out Voltage [VDC]
Maximum Current [mA]
(3)
Resistance [Ohms]
(4)
Part Number
SM-OAC24A
24
18
32
1.0
13
2000
SM-ODC5
5.0
2.75
8.0
1.0
18
250
SM-ODC5A
5.0
2.75
8.0
1.0
18
250
SM-ODC5F
5.0
2.75
8.0
1.0
18
250
Output
Nominal Line Voltage
Minimum Line Voltage
Maximum Line Voltage
Max Off-State Voltage
(5)
Max Off-State Leakage
(6)
Static Off-State dv/dt
(7)
Maximum Rated On-State Current
(8)
Minimum On-State Current
Max Surge Current
(9)
On-State Voltage Drop or Resistance
(10)
Maximum Turn-On Time [msec]
(12)
Maximum Turn-Off Time [msec]
(12)
Input/Output Isolation Voltage
(13)
Input/Output Capacitance
Operating Temperature Range
Storage Temperature Range
Line Frequency Range
Weight
120 VAC
12 VAC
140 VAC
400 Vpeak
0.1mArms
200 V/usec
3.5 Arms
50 mArms
100 Apeak
1.6 V
8.33
8.33
4000 Vrms
8 pF
-30 to 80°C
-40 to 80°C
47 to 63 Hz
1.1 oz. (31.2g)
240 VAC
24 VAC
280 VAC
600 Vpeak
0.1mArms
200 V/usec
3.5 Arms
50 mArms
100 Apeak
1.6 V
8.33
8.33
4000 Vrms
8 pF
-30 to 80°C
-40 to 80°C
47 to 63 Hz
1.1 oz. (31.2g)
5-48 VDC
3.0 VDC
60 VDC
60 VDC
10 uA
N/A
3.0 A
10 mA
5.0 A
1.5 V
0.1
0.75
4000 Vrms
8 pF
-30 to 80°C
-40 to 80°C
DC
1.1 oz. (31.2g)
5-150 VDC
3.0 VDC
250 VDC
250 VDC
10 uA
N/A
1.0 A
10 mA
5.0 A
1.5 V
0.1
0.75
4000 Vrms
8 pF
-30 to 80°C
-40 to 80°C
DC
1.1 oz. (31.2g)
5-48 VDC
3.0 VDC
60 VDC
60 VDC
10 uA
N/A
3.0 A
10 mA
5.0 A
1.5 V
0.025
0.05
4000 Vrms
8 pF
-30 to 80°C
-40 to 80°C
DC
1.1 oz. (31.2g)
Input
SPECIFICATIONS
(1)
Nominal Voltage [VDC]
Minimum Voltage [VDC]
(2)
Maximum Voltage [VDC]
Drop-out Voltage [VDC]
Maximum Current [mA]
(3)
Resistance [Ohms]
(4)
Part Number
SM-ODC5MA
5.0
2.75
8.0
1.0
18
250
SM-ODC5MC
5.0
2.75
8.0
1.0
18
250
SM-ODC5ML
5.0
2.75
8.0
1.0
18
250
SM-ODC24
24
18
32
1.0
13
2000
SM-ODC24A
24
18
32
1.0
13
2000
Output
Nominal Line Voltage
Maximum Line Voltage
Max Off-State Voltage
(5)
Max Off-State Leakage
(6)
Static Off-State dv/dt
(7)
Maximum Rated On-State Current
(8)
Minimum On-State Current
Max Surge Current
(9)
On-State Voltage Drop or Resistance
(10)
Maximum Turn-On Time [msec]
(12)
Maximum Turn-Off Time [msec]
(12)
Input/Output Isolation Voltage
(13)
Input/Output Capacitance
Operating Temperature Range
Storage Temperature Range
Line Frequency Range
Weight
5-150 VDC
200 VDC
200 VDC
10 uA
N/A
3.0 A
1.0 mA
10 A
0.25 Ohms
1.0
0.05
1500 Vrms
8 pF
-30 to 80°C
-40 to 80°C
°C
DC
1.1 oz. (31.2g)
5-90 VDC
100 VDC
100 VDC
10 uA
N/A
5.0 A
1.0 mA
10 A
0.10 Ohms
1.0
0.05
1500 Vrms
8 pF
-30 to 80°C
-40 to 80°C
DC
1.1 oz. (31.2g)
5-48 VDC
50 VDC
50 VDC
10 uA
N/A
1.0 A
10 mA
10 A
0.05 Ohms
1.0
0.05
1500 Vrms
8 pF
-30 to 80°C
-40 to 80°C
DC
1.1 oz. (31.2g)
5-48 VDC
60 VDC
60 VDC
10 uA
N/A
3.0 A
10 mA
5.0 A
1.5 V
0.1
0.75
4000 Vrms
8 pF
-30 to 80°C
-40 to 80°C
DC
1.1 oz. (31.2g)
5-150 VDC
250 VDC
250 VDC
10 uA
N/A
1.0 A
10 mA
5.0 A
1.5 V
0.1
0.75
4000 Vrms
8 pF
-30 to 80°C
-40 to 80°C
DC
1.1 oz. (31.2g)
Do not forget to visit us at:
www.crydom.com
Copyright © 2016 Crydom Inc. Specifications subject to change without notice.
Datasheet
General Notes:
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
Specifications apply to an ambient temperature of -30 to 80 °C unless otherwise noted.
Without external LED status indicator. Add 1.7 volts for external LED if utilized.
At nominal input voltage, without external LED status indicator.
+/-10% at 25°C.
Maximum 1 minute duration for OAC modules when applied as a DC voltage rather than a peek AC voltage.
At maximum line voltage, 25°C for OAC modules, and 80°C for ODC modules.
Minimum DV/DT per EIA/NARM RS433, method RS397, DV/DT ratings do not apply to DC output models
At 40°C, derate OAC modules 58 mA/°C to 80°C, derate ODC. ODCxMC and ODCxML modules 50 mA/°C
to 80°C. CSA rating of OAC modules is 3.0 Arms at 40°C.
At 25°C for 1 second maximum duration: 1 AC cycle for AC modules, 1 second for DC modules.
At maximum rated on-state current and 25°C.
At maximum line voltage, maximum rated output current, nominal input voltage and 25°C. Switching speed
of OAC modules is based upon 60 Hz line frequency.
1/3 H.P. at 240 VAC, 1/8 H.P. at 120 VAC.
At 25°C for 1 second maximum duration.
I/O Modules

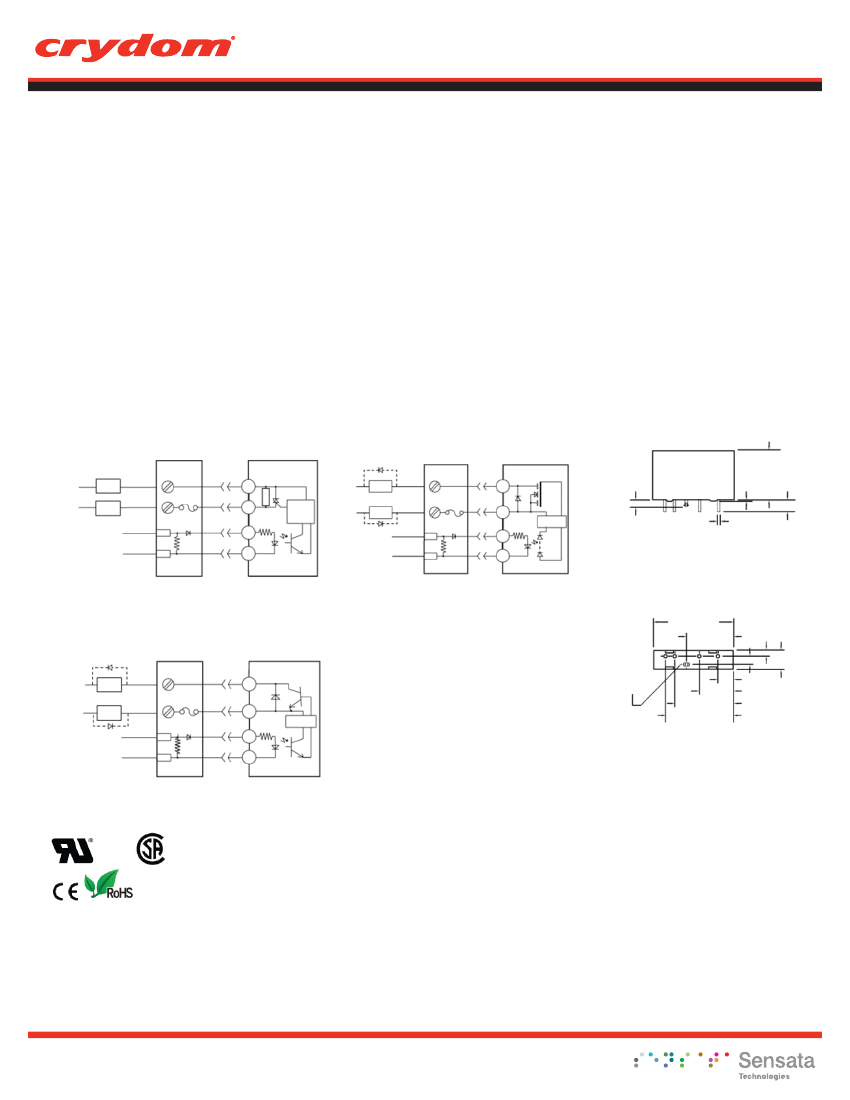

EQUIVALENT CIRCUIT DIAGRAMS / MECHANICAL SPECIFICATIONS
PORTION OF
PB SERIES
I/O MODULE
MOUNTING BOARD
VAC
VAC
LOAD*
(A)
LOAD*
(B)
SCREW
TERMINALS
5A FUSE
1
2
S
N
U
B
+VAC
ZERO
VOLTAGE
CIRCUIT
Rc
+
SCREW
TERMINALS
+
1
2
5A FUSE
CASE COLORS:
AC-BLACK
DC-RED
4
3
2
1
0.035 (.89)
0.12 (2.9)
-VAC
+VCC LOGIC
SUPPLY
INPUT
+
LED
3.3K
MALE CARD
EDGE TRACES
+VCC LOGIC SUPPLY
INPUT
+
LED
3.3K
+
3
4
3
4
+
Rc
CONTROL
CIRCUIT
0.042 (1.1) DIA
MALE CARD
EDGE TRACES
*LOAD MAY BE WIRED IN LOCATION A OR B
PLASTIC PIN SNAPES
IN 0.100” DIA HOLE ±0.005”
1.0 (25.4)
0.1 (2.5)
PORTION OF
PB SERIES
I/O MODULE
MOUNTING BOARD
+VAC
-VAC
LOAD*
(A)
DC OUTPUT
PLUG-IN MODULE
1
+
1.0 (25.4)
SCREW
TERMINALS
LOAD*
(B)
2
5A FUSE
AMPLIFIER
0.3 (7.6)
0.7 (17.8)
1.2 (30.5)
1.4 (35.6)
+VCC LOGIC SUPPLY
INPUT
+
LED
3.3K
3
4
+
Rc
MALE CARD
EDGE TRACES
UNLESS OTHERWISE SPECIFIED
DIMENSIONS: INCHES (MILLIMETERS)
TOLERANCE:
±
0.020 (
±
0.50)
AGENCY APPROVALS
E46203
38595
Rev. 021017
Do not forget to visit us at:
www.crydom.com
Copyright © 2016 Crydom Inc. Specifications subject to change without notice.
0.2 (5.1)
1.7 (43.2)
0.4 (10.2)
0.24 (5.97)
AC OUTPUT
PLUG-IN MODULE
PB SERIES
I/O MODULE
MOUNTING BOARD
“M” SUFFIX (FET)
DC OUTPUT
PLUG-IN MODULE
Datasheet
DANGER / PELIGRO / DANGER /GEFAHR / PERICOLO /
危险
HAZARD OF
ELECTRIC
SHOCK,
EXPLOSION,
OR ARC FLASH.
•
Disconnect all
power before
installing or
working with
this equipment.
•
Verify all
connections
and replace all
covers before
turning on
power.
Failure to follow
these
instructions will
result in death
or serious injury.
I/O Modules
RIESGO DE
DESCARGA
ELECTRICA O
EXPLOSION.
•
Desconectar
todos los
suministros de
energia a este
equipo antes
de trabajar
con este equipo.
•
Verificar todas
las conexiones
y colocar todas
las tapas antes
de energizer
el equipo.
El
incumplimiento
de estas
instrucciones
puede provocar
la muerte o
lesiones serias.
RISQUE DE
DESCHARGE
ELECTRIQUE
OU EXPLOSION
•
Eteindre
toutes les
sources
d'énergie de
cet appareil
avant de
travailler
dessus de cet
appareil
•
Vérifier tous
connections, et
remettre tous
couverts en
olace avant de
mettre sous
De non-suivi de
ces instructions
provoquera la
mort ou des
lésions sérieuses
sérieuses.
GEFAHR EINES
ELEKTRISCHE
N SCHLAGES
ODER EINER
EXPLOSION.
•
Stellen Sie
jeglichen
Strom ab, der
dieses Gerät
versorgt, bevor
Sie an dem
Gerät Arbeiten
durchführen
•
Vor dem
Drehen auf
Energie alle
Anschlüsse
überprüfen
und alle
Abdeckungen
ersetzen.
Unterlassung
dieser
Anweisungen
können zum
Tode oder zu
schweren
Verletzungen
führen.
RISCHIO DI
SCOSSA
ELETTRICA O
DELL’ESPLOSIONE.
•
Spenga tutta
l'alimentazione
che fornisce
questa
apparecchiatura
prima di lavorare
a questa
apparecchiatura
•
Verificare tutti
i collegamenti
e sostituire
tutte le coperture
prima
dell’accensione
L'omissione di
queste istruzioni
provocherà la
morte o
lesioni serie
存在电击、
爆炸或电弧
闪烁危险
•
在操½此设
备之前请先
关闭电源。
若不遵守这些说明，
可½会导致严重的
人身伤害甚至死亡。
WARNING / AVERTISSEMENT / WARNUNG /ADVERTENCIA / AVVERTENZA /
警告
RISK OF MATERIAL DAMAGE AND HOT
ENCLOSURE
•
The product's side panels may be hot, allow
the product to cool before touching.
•
Follow proper mounting instructions including
torque values.
•
Do not allow liquids or foreign objects to enter
this product.
RISQUE DE DOMMAGE MATERIEL ET DE
SURCHAUFFE DU BOITIER
•
Les panneaux latéraux du produit peuvent être
chauds. Laisser le produit refroidir avant de le
toucher.
•
Respecter les consignes de montage, et
notamment les couples de serrage.
•
Ne pas laisser pénétrer de liquide ni de corps
étrangers à l'intérieur du produit.
GEFAHR VON MATERIALSCHÄDEN UND
GEHÄUSEERHITZUNG
•
Die Seitenwände können heiß sein. Lassen Sie
das Produkt abkühlen, bevor Sie es berühren.
•
Beachten Sie die Montageanweisungen,
•
Führen Sie keine Flüssigkeiten oder
Fremdkörper in das Produkt ein.
Le non-respect de cette directive peut entraîner,
Failure to follow these instructions can result in des lésions corporelles graves ou des
serious injury, or equipment damage.
dommages matériels.
Die Nichtbeachtung dieser Anweisung kann
Körperverletzung oder Materialschäden
zur Folge haben.
RIESGO DE DAÑOS MATERIALES Y DE
SOBRECALENTAMIENTO DE LA UNIDAD
•
Los paneles laterales del producto pueden
estar calientes. Esperar que el producto se
enfríe antes de tocarlo.
•
Respetar las instrucciones de montaje, y en
particular los pares de apretado.
•
No dejar que penetren líquidos o cuerpos
extraños en el producto.
Si no se respetan estas precauciones pueden
producirse graves lesiones, daños materiales.
RISCHIO DI DANNI MATERIALI E D'INVOLUCRO
CALDO
•
I pannelli laterali dell'apparecchio possono
scottare; lasciar quindi raffreddare il prodotto
prima di toccarlo.
•
Seguire le istruzioni di montaggio corrette.
•
Non far entrare liquidi o oggetti estranei in questo
apparecchio.
La mancata osservanza di questa precauzione può
causare gravi rischi per l'incolumità personale o
danni alle apparecchiature.
材料损坏和高温外壳的危险性
•
产品的一侧面板可½很热，在其冷却前请
不要触碰。
•
遵照正确的安装说明，包括扭矩值。
•
请勿让液½及其他异物进入本产品。
如不½正确执行这些操½说明，
极有可½造成严重人½伤害或者设备的损坏。
Do not forget to visit us at:
www.crydom.com
Copyright © 2016 Crydom Inc. Specifications subject to change without notice.
Datasheet
ANNEX - ENVIROMENTAL INFORMATION
The environmental information disclosed in this annex including the EIP Pollution logo are in compliance with People’s Republic of China
Electronic Industry Standard SJ/T11364 – 2006, Marking for Control of Pollution Caused by Electronic Information Products.
Part
Name
Toxic or hazardous Substance and Elements
Lead
(Pb)
Mercury
(Hg)
Cadmium
(Cd)
Hexavalent
Chromium
(Cr (VI))
Polybrominated
biphenyls
(PBB)
Polybrominated
diphenyl ethers
(PBDE)
I/O Modules
Semiconductor die
Solder
附件 - 环保信息
此附件所标示的包括电子信息产品污染图标的环保信息符合中华人民共和½电子行业标准 SJ/T11364 - 2006,
电子信息产品污染控制标识要求。
部件
名称
半导½芯片
焊接点
铅
(Pb)
汞
(Hg)
镉
(Cd)
有毒有害物质或元素
六价铬
多溴联苯
(Cr (VI))
(PBB)
多溴二苯醚
(PBDE)
50
Do not forget to visit us at:
www.crydom.com
Copyright © 2016 Crydom Inc. Specifications subject to change without notice.
京公网安备 11010802033920号
EEWORLD
