TOSZ 118078
www.vishay.com
Vishay Draloric

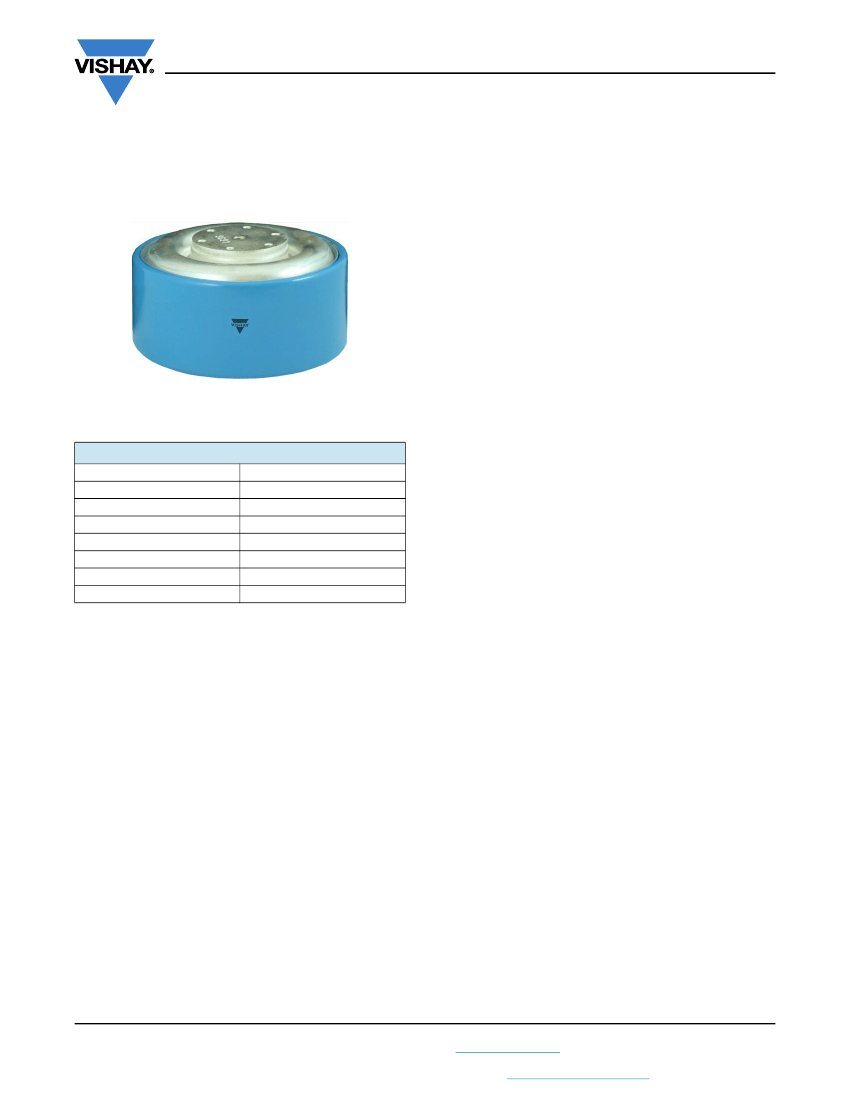

RF Power Barrel Capacitors
for Dielectric Heating Equipment, R16 HQ Ceramic Dielectric
FEATURES
These capacitors feature a Q-factor of greater than 10 000
which makes them ideal in operating frequency range from
0.1 MHz up to 30 MHz where high voltages and currents are
present. The TOSZ model can be used as replacement for
fixed vacuum capacitors. The construction gives the
capacitors an advantage over fixed vacuum capacitors,
because there is no possibility of vacuum deterioration.
APPLICATIONS
Dielectric heating equipments in industrial segment
CAPACITANCE RANGE
50 pF to 75 pF
CAPACITANCE TOLERANCE
QUICK REFERENCE DATA
DESCRIPTION
Ceramic Class
Ceramic Dielectric
Type
Voltage (V
p
)
Min. Capacitance (pF)
Max. Capacitance (pF)
Mounting
VALUE
1
R16 HQ
TOSZ 118078
30 000
50
75
Screw terminal
± 10 %
CERAMIC DIELECTRICS
R16 High Q (TCC + 100 ppm/K)
RATED VOLTAGE
30 kV
p
DIELECTRIC STRENGTH TEST
60 000 V
DC
, 2 min
140 % rated AC voltage (30 000 V
RMS
, 50 Hz, 3 minutes)
MATERIAL
Capacitor elements made from class 1 ceramic dielectric
with noble metal electrodes.
Connection terminals:
thread terminal, copper / brass, silver plated.
Allowable torque: M4 thread 3.5 Nm (31 lbf in)
M8 thread 6.0 Nm (53 lbf in)
RF-POWER TEST
140 % of rated power, for 5 minutes in a test generator circuit
DISSIPATION FACTOR
Max. 0.025 % (1 MHz)
INSULATION RESISTANCE
Min. 100 000 M (at 25 °C)
FINISH
Capacitor body completely glazed.
OPERATING TEMPERATURE RANGE
-55 °C to +100 °C
MARKING
Type designator, capacitance value and tolerance, rated
peak voltage, ceramic material code, production date code,
manufacturer logo, serial no.
