For Network, High speed communication
GT5
GT13
GT32 Series
---- Shielded connector for high speed transmission / USB3.0, HDMI1.4 ----
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
GT16
PO5G
GT19
GT21
GT26
GT36
For Network, High speed communication
GT11
GT17
GT32
GT3

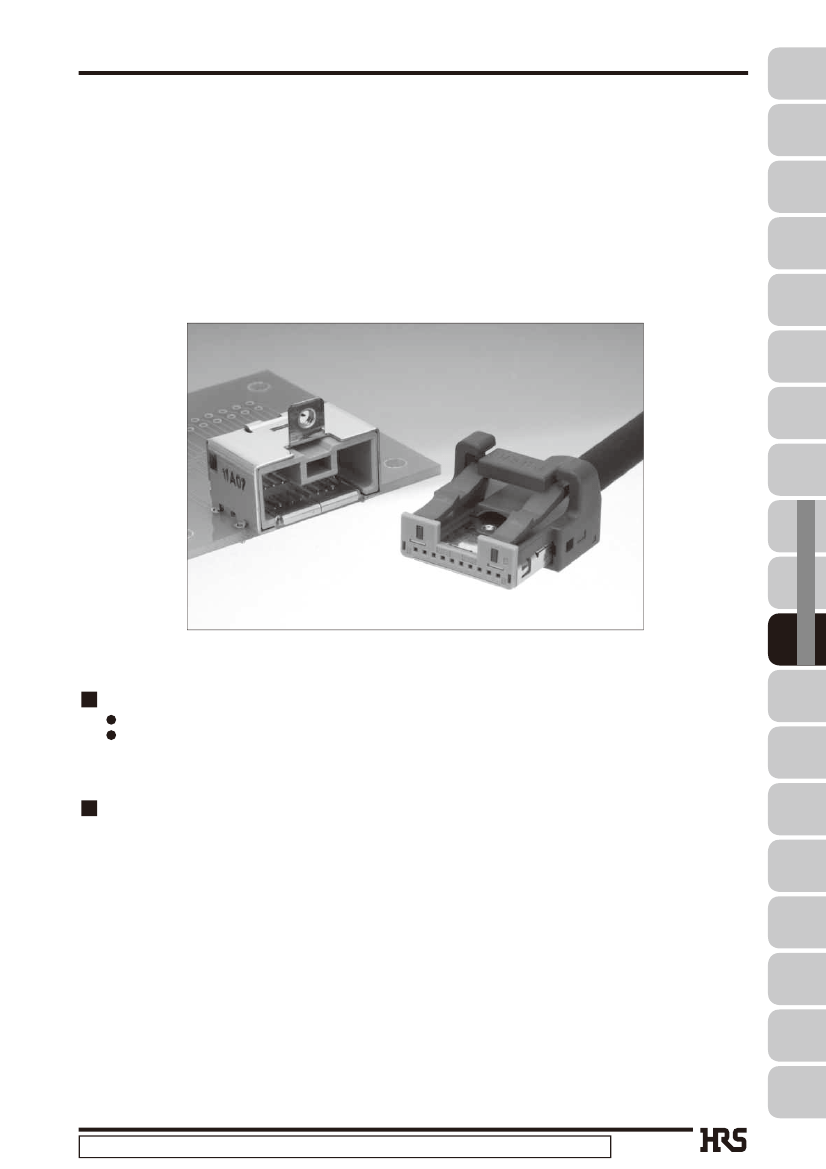

Features
Full shielded structure
Suitable for in-vehicle shielded connectors
GT7
GT10
Applications
In-vehicle data communication, etc.
(10-pos : USB3.0 support)
(19-pos : HDMI1.4 equivalent signal support)
GT18W
GT25
GT8E
GT9
GT15
In cases where the application will demand a high level of reliability, such as automotive,
please contact a company representative for further information.
167
GT32 Series
●
For Network, High speed communication
GT5

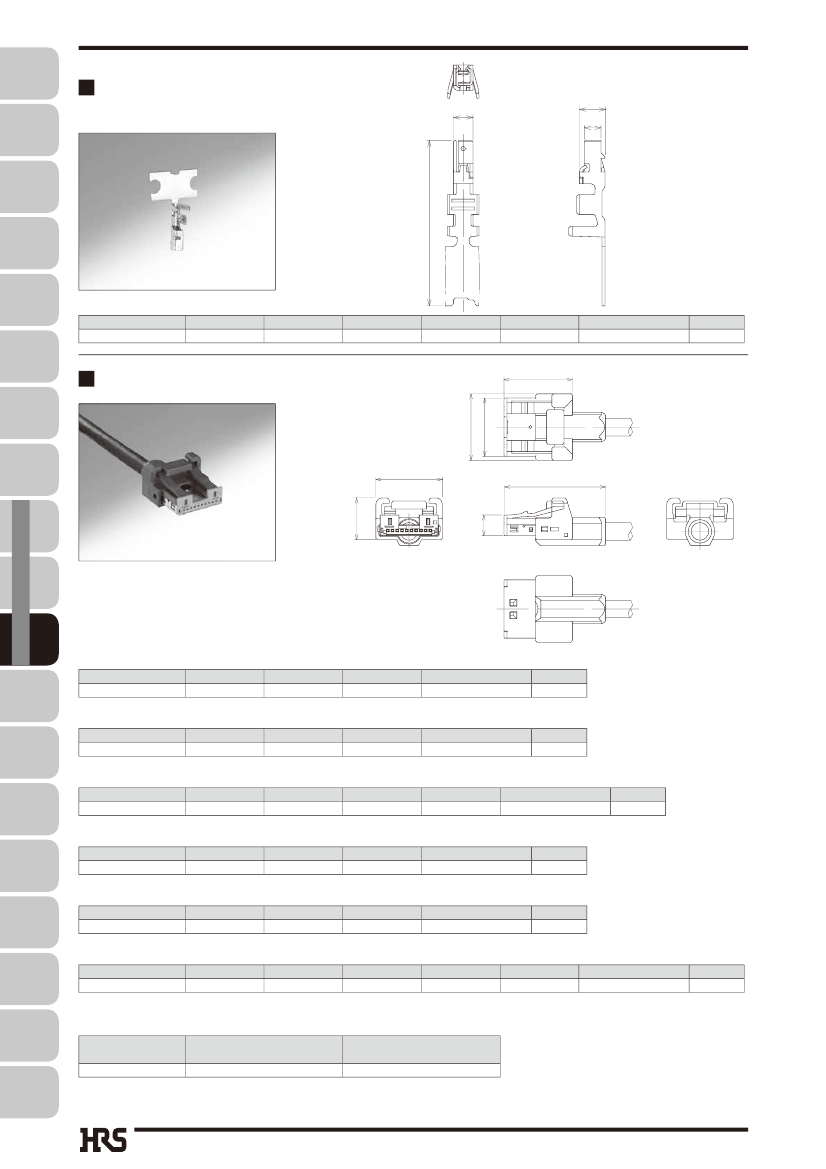

F connector
●
Center
GT13
terminal
1
1.3
0.85
GT16
For Network, High speed communication
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
GT19
PO5G
GT21
Part No.

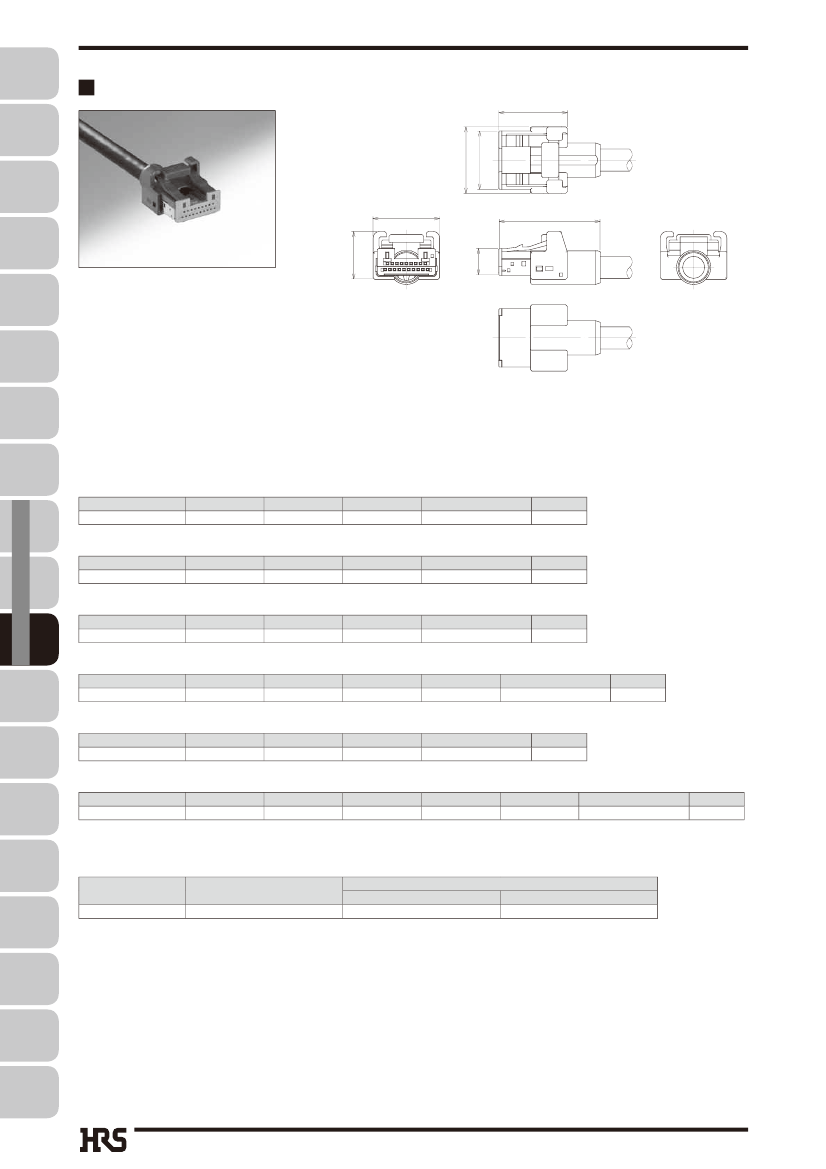

GT32-2428SCF
HRS No.
782-0007-8
Material
Copper alloy
Plating
Tin plating
4.9
Conductor Size (AWG) Outer Diameter
24 to 28 AWG
φ0.8
to 1.0
Packaging
10,000 pcs/reel
RoHS
YES
10-pos straight plug connector
21.1
18.5
21.7
GT26
GT36
21.1
32.18
GT11
13.3
A
GT32
KEY-S
6.575
1
10
PUSH
GT32
A
GT17
GT32
B
This product consists of six parts.
(Housing, S insulation case, outer terminal, shield cover,
shield plate, center terminal)
●
Housing
Part No.
GT32-10S-HU
●
S
HRS No.
782-0003-7
Material
PBT
Color
Dark Gray
Packaging
1
RoHS
YES
GT3
insulation case
HRS No.
782-0002-4
Material
PBT
Color
Light Gray
Packaging
1
RoHS
YES
GT7
Part No.
GT32-10S-1.5C
●
Outer
terminal
HRS No.
782-0004-0
Material
Copper alloy
Plating
Tin plating
Outer Diameter
φ5.4
to 5.8
Packaging
1
RoHS
YES
GT10
Part No.
GT32-10S-6CF
●
Shield
cover
HRS No.
782-0005-2
Material
Brass
Plating
Tin plating
Packaging
1
RoHS
YES
GT18W
Part No.
GT32-10S-SC
●
Shield
plate
HRS No.
782-0006-5
Material
Brass
Plating
Tin plating
Packaging
1
RoHS
YES
GT25
Part No.
GT32-10S-SP
●
Center
terminal
HRS No.
782-0007-8
Material
Copper alloy
Plating
Tin plating
Conductor Size (AWG) Outer Diameter
24 to 28 AWG
φ0.8
to 1.0
Packaging
10,000 pcs/reel
RoHS
YES
GT8E
Part No.
GT32-2428SCF
GT9
B
Mating table
Color
Light Gray
Cable connector
GT32-10S-ASSY
Board connector
Right-angle type
GT32-10P-1.5H
GT15
168
GT32 Series
●
For Network, High speed communication
GT5

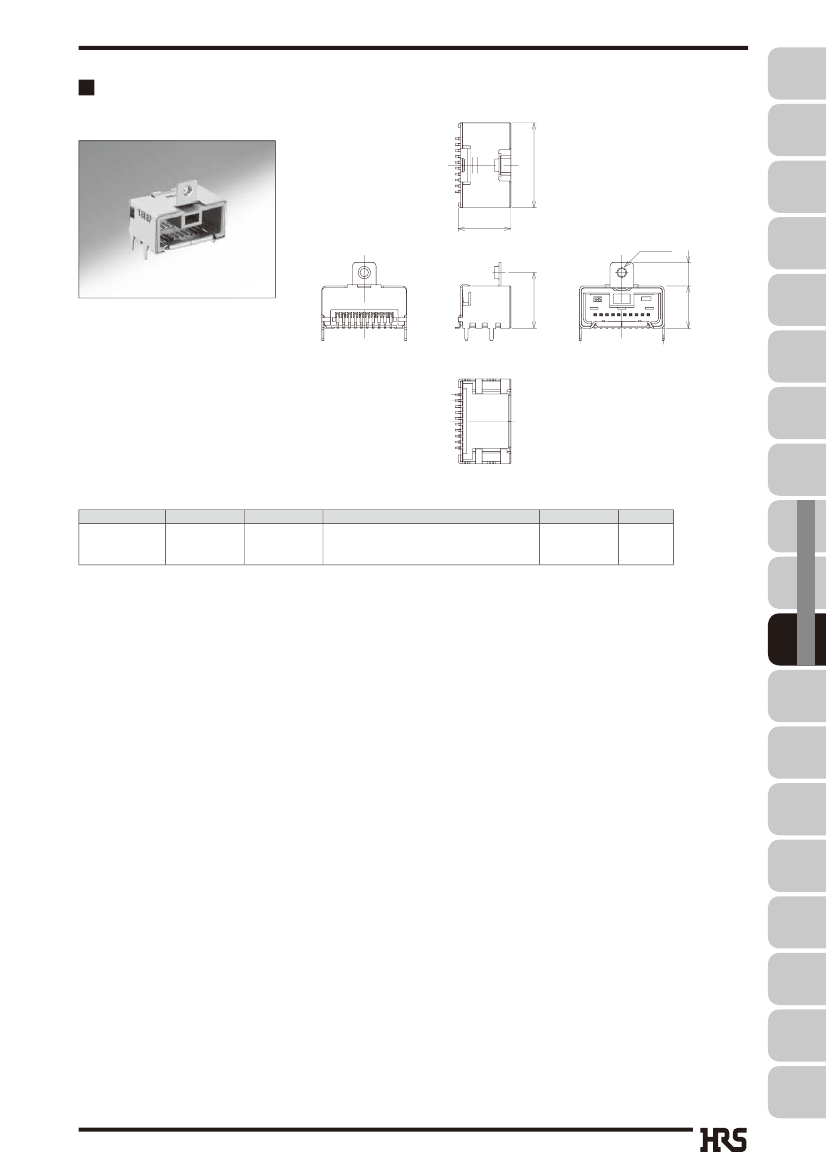

10-pos board connector (right-angle SMT type)
●
M2.5
GT13
screw flange type
21.55
GT16
12.82
M2.5
6
PO5G
GT19
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
14.23
1
10
10.83
ＫＥＹ−Ｓ
GT21
GT26
GT36
For Network, High speed communication
GT11
Part No.
GT32-10P-1.5H
HRS No.
782-0001-1
Color
Light Gray
Material/Plating
Housing：PPS
Center terminal：Brass／Tin plating
Outer terminal：Copper alloy／Tin plating
Packaging
1
RoHS
YES
169
GT17
GT32
GT3
GT7
GT10
GT18W
GT25
GT8E
GT9
GT15
GT32 Series
●
For Network, High speed communication
GT5

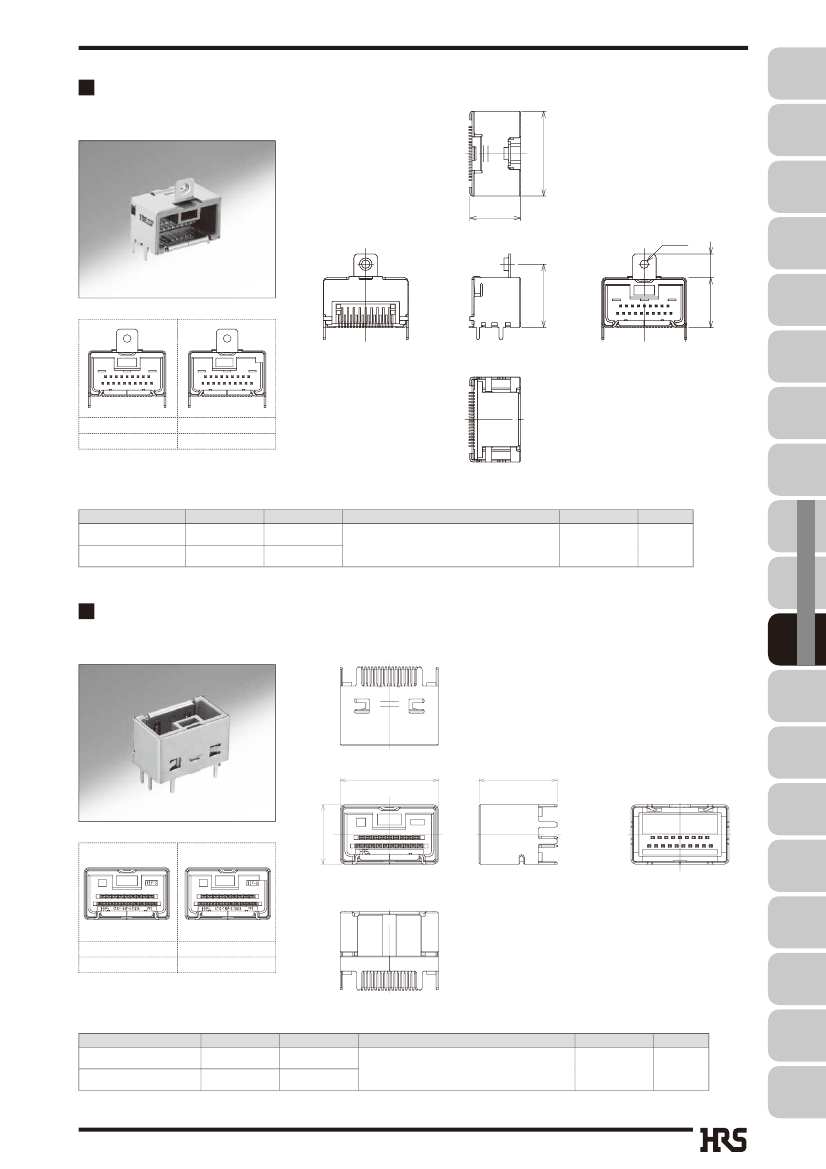

19-pos straight connector
21.7
GT13
GT16
21.1
21.1
18.5
32.18
PO5G
15.2
GT32
1
10
KEY-S
9
A
8.475
19
PUSH
GT32
A
For Network, High speed communication
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
GT21
GT36
GT26
GT19
B
This product consists of six parts.
(Housing, S insulation case A, S insulation case B,
outer terminal, shield cover, center terminal)
●
Housing
Part No.
GT32-19DS-HU
●
S
HRS No.
782-0013-0
Material
PBT
Color
Dark Gray
Packaging
1
RoHS
YES
GT11
insulation case A
HRS No.
782-0010-2
Material
PBT
Color
Light Gray
Packaging
1
RoHS
YES
GT17
Part No.
GT32-19DS-0.75CA
●
S
insulation case B
HRS No.
782-0014-3
Material
PBT
Color
Light Gray
Packaging
1
RoHS
YES
GT32
Part No.
GT32-19DS-0.75CB
●
Outer
terminal
HRS No.
782-0011-5
Material
Copper alloy
Plating
Tin plating
Outer Diameter
φ6.8
to 7.2
Packaging
1
RoHS
YES
GT3
Part No.
GT32-19DS-7CF
●
Shield
cover
HRS No.
782-0012-8
Material
Brass
Plating
Tin plating
Packaging
1
RoHS
YES
GT7
Part No.
GT32-19DS-SC
●
Center
terminal
HRS No.
782-0007-8
Material
Copper alloy
Plating
Tin plating
Conductor Size (AWG) Outer Diameter
24 to 28 AWG
φ0.8
to 1.0
Packaging
10,000 pcs/reel
RoHS
YES
GT10
Part No.
GT32-2428SCF
GT18W
B
Mating table
Color
Cable connector
GT32-19DS-ASSY
Board connector
Right-angle type
GT32-19DP-0.75H
DIP type
GT32-19DP-0.75DSA
Light Gray
GT15
GT9
GT8E
GT25
170
GT32 Series
●
For Network, High speed communication
GT5
19-pos board connector (right-angle SMT type)
●
M2.5
GT13
screw flange type
21.55
GT16
12.32
PO5G
M2.5
6
GT19
16.13
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
1
10
9
19
12.73
GT21
GT26
Standard
Gray
Key A
Brown
GT36
For Network, High speed communication
GT11
Part No.
GT32-19DP-0.75H
GT32-19DP-0.75H(A)
HRS No.
782-0009-3
782-0015-6
Color
Gray
Brown
Material/Plating
Housing：PA
Center terminal：Brass／Tin plating
Outer terminal：Copper alloy／Tin plating
Packaging
1
RoHS
YES
GT17
19-pos board connector (straight DIP type)
GT32
GT3
GT7
43.1
34.3
GT10
26.1
A
9
19
KEY-S
1
10
GT18W
GT-32-19DP-0.75DSAPPS
A
9
19
1
10
19
9
A
1
10
GT25
Standard
Gray
Key A
Brown
GT8E
GT9
Part No.
GT32-19DP-0.75DSA
GT32-19DP-0.75DSA
（A）
HRS No.
782-0037-9
782-0045-7
Color
Gray
Brown
Material/Plating
Housing：PPS
Center terminal：Brass／Tin plating
Outer terminal：Copper alloy／Tin plating
Packaging
1
RoHS
YES
171
GT15
