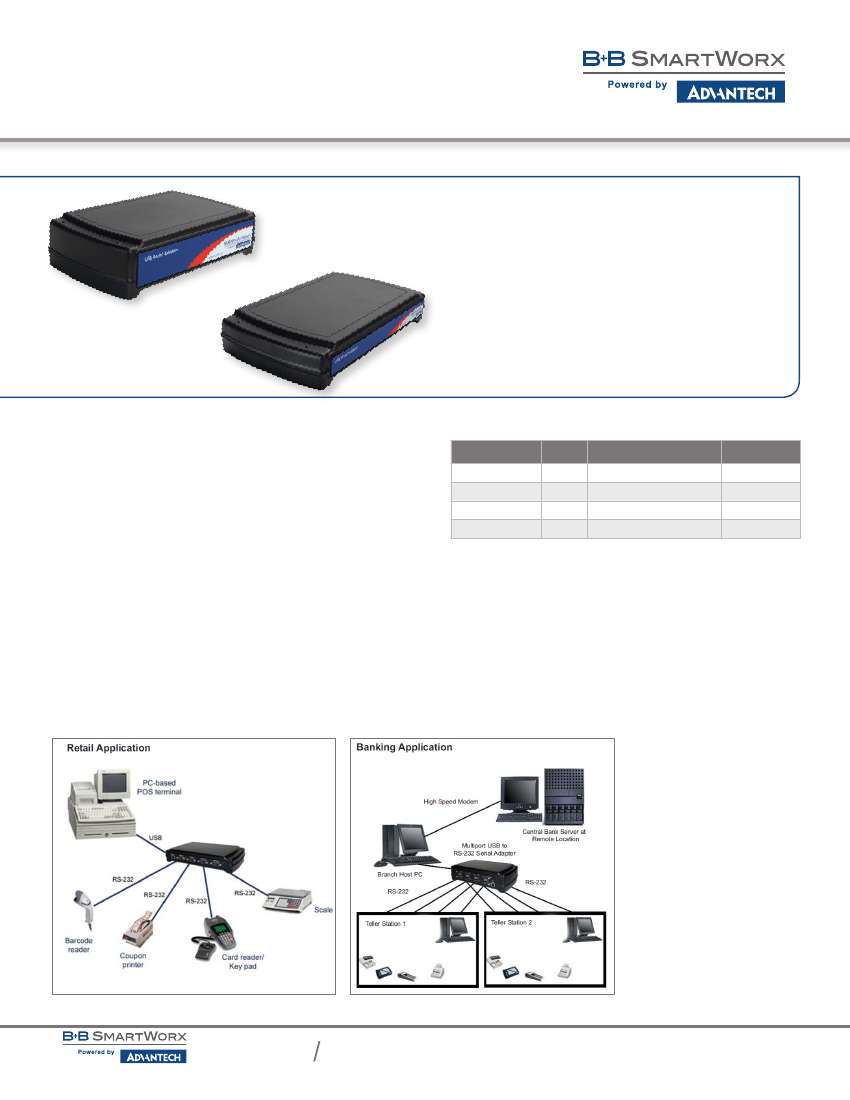

High Speed USB 2.0 Serial Adapters
4 or 8 independent serial ports
Models ESU2-100, ESU2-400, QSU2-100, QSU2-400
www.advantech-bb.com
•
ESU2-400
PRODUCT FEATURES
QSU2-100
•
•
•
•
•
•
•
•
Standard serial power via USB 2.0 without replacing
peripherals or application software
RS-232 or software selectable RS-232/422/485
USB 2.0 (compatible with USB 1.1)
Plug-and-play compatibility
Devices enumerate themselves as standard COM ports
Speeds up to 921.6 kbps
High-speed UARTS with 1KB FIFOs boost data rates
Full modem, hardware and software flow control
Bus powering – no external power required
Connect and broaden the range of external peripherals on your computer with these
USB 2.0 high speed serial adapters. The USB 2.0 standard has more bandwidth
allowing higher data rates on serial ports for greater efficiency. USB 2.0 is fully com-
patible with USB 1.1 devices. Older devices work with the new bus, and vice versa.
These USB serial adapters give your laptop or workstation the ability to com-
municate between a USB port and up to eight RS-232, RS-422, or RS-485 serial
peripherals. The USB serial adapters enumerate themselves as standard COM
ports via the USB connection and are compatible with new and legacy RS-232 or
RS- 232/422/485 devices and the software created for them. The adapters support
data rates up to 921.6 kbps, 1024-byte FIFO and hardware/software flow control.
400 Series Models
feature software-selectable RS-232/422/485 MEI (“Multi-Electri-
cal Interface”). MEI capability is available on all ports at the click of a mouse. LEDs
visually tell you which ports are using which protocol – so go ahead, mix and match.
These USB serial adapters are the ideal solution for a variety of industries and
applications including banking, retail and industrial automation where PCs have a
significantly shorter lifecycle than the peripherals that use them.
ORDERING INFORMATION
MODEL NUMBER
QSU2-100
QSU2-400
ESU2-100
ESU2-400
PORTS
4
4
8
8
INTERFACE
RS-232 with cable
RS-232/422/485 with cable
RS-232 with cable
RS-232/422/485 with cable
SOFTWARE
SELECTABLE?
-
Yes
-
Yes
All product specifications are subject to change without notice.
ESU2-QSU2_100-400_4-8port_2917ds
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
High-Speed USB 2.0 Serial Adapters
4 or 8 independent serial ports
Models ESU2-100, ESU2-400, QSU2-100, QSU2-400
SPECIFICATIONS
SERIAL TECHNOLOGY
Serial Connectors
Serial Port Configuration
Models QSU2-400
& ESU2-400 only
Data Rate
UARTS
USB TECHNOLOGY
USB Connector
Bus Interface
INPUT/OUTPUT
Differential Driver Output
High Input
Low Input
Driver Rise/Fall Time
Driver Input-to-Output Delay
Receiver Input-to-Output
Delay
RS-232 Output
RS-232 Input
QSU2-100/400 = 4 ports (DB9 male)
ESU2-100/400 = 8 ports (DB9 male)
Each port is independently configurable as RS-232, RS-422
or RS-485 for full-duplex or half-duplex communication)
Up to 921.6 kbps (maximum)
1024-byte FIFOs for Transmit and Receive
ESU2-400
QSU2-100
SPECIFICATIONS - continued
POWER
Source
Suspend Power
Unconfigured Power
Configured Power
SOFTWARE
OS Support
MECHANICAL
Dimensions
ENVIRONMENTAL
Operating Temperature
Storage Temperature
Humidity
REGULATORY
Certifications
FCC Class B, CE, RoHS, WEEE Compliant
Windows 2000, XP, Linux
QSU2-100/400 = 9.18L x 5.25W x 1.675H (inches)
ESU2-100/400 = 9.18L x 5.25W x 2.363H (inches)
0 to 70 °C
-50 to 80 °C
10 to 90%
Bus-powered; no external power supply required
<500 mA
<100 mA
<500 mA
Transceiver (RS-232/422/485) MAX491 or compatible
QSU2-100/400 = 1 port (USB Type A Male)
ESU2-100/400 = 1 port (USB Type A Male)
2.0 and 1.1 Compatible
50Ω Load: +2V (minimum), +3.3V (maximum)
27Ω Load: +1.5V (minimum), +3.3V (maximum)
+2.0V (minimum)
+0.8V (maximum)
5ns (minimum), 20ns (typical), 25ns (maximum)
20ns (minimum), 40ns (typical), 60ns (maximum)
40ns (minimum), 70ns (typical), 100ns (maximum)
Voltage Range: +/-5V (minimum), +/-5.4V (typical)
Voltage Range: -15V (minimum), +15V (typical)
Threshold Low: 0.6V (minimum), 1.0V (typical)
Threshold High: 2.4V (minimum), 1.5V (typical)

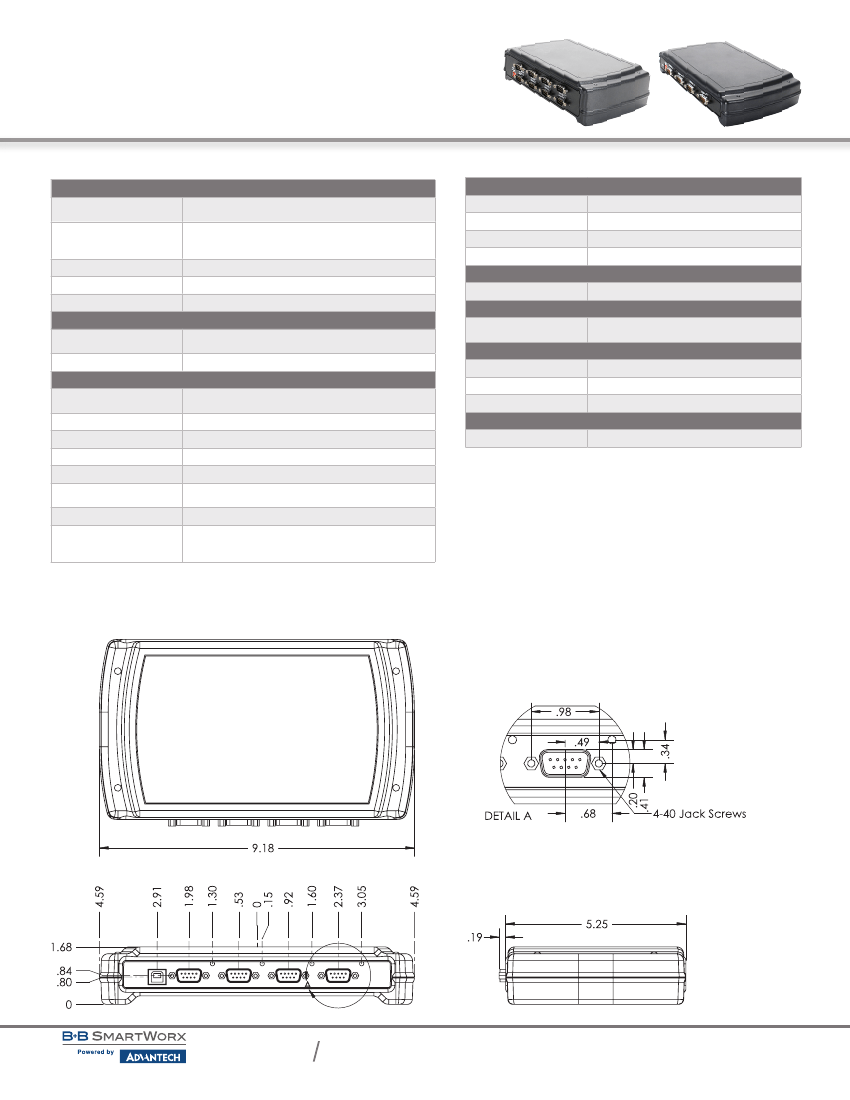

MECHANICAL DIAGRAM - QSU2-100 & QSU2-400
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
