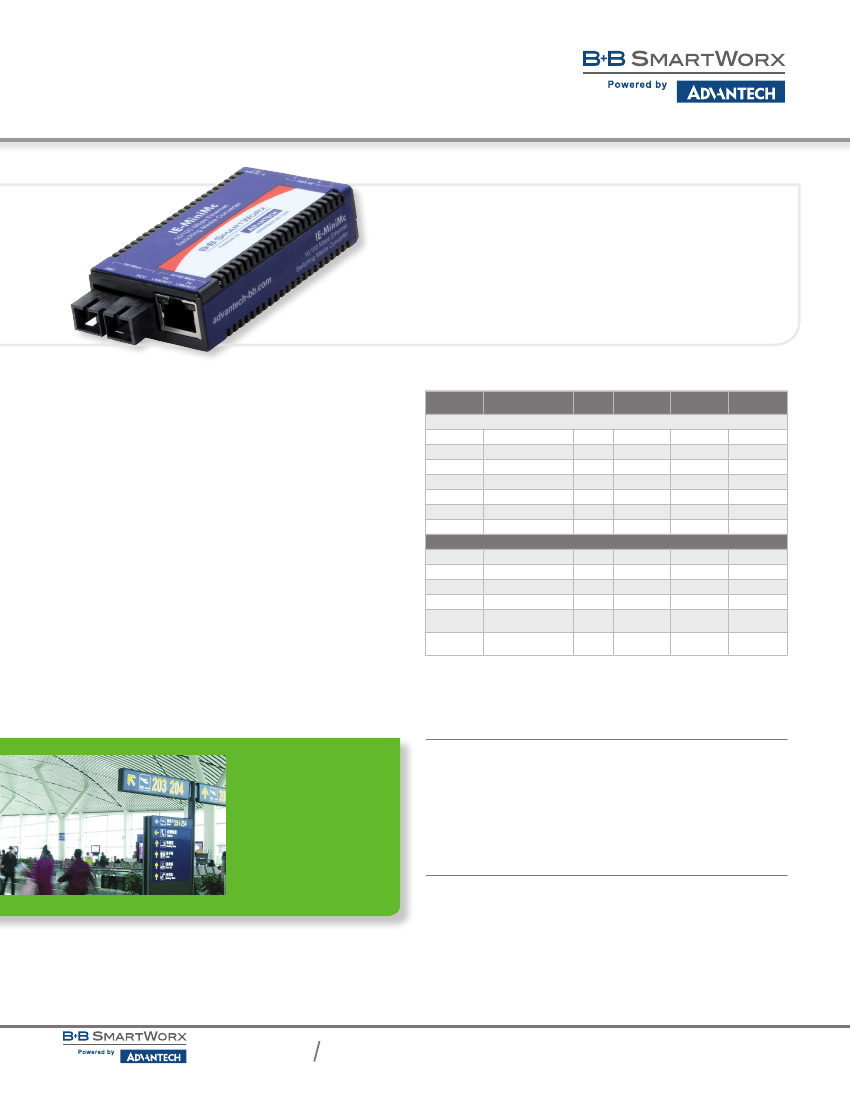

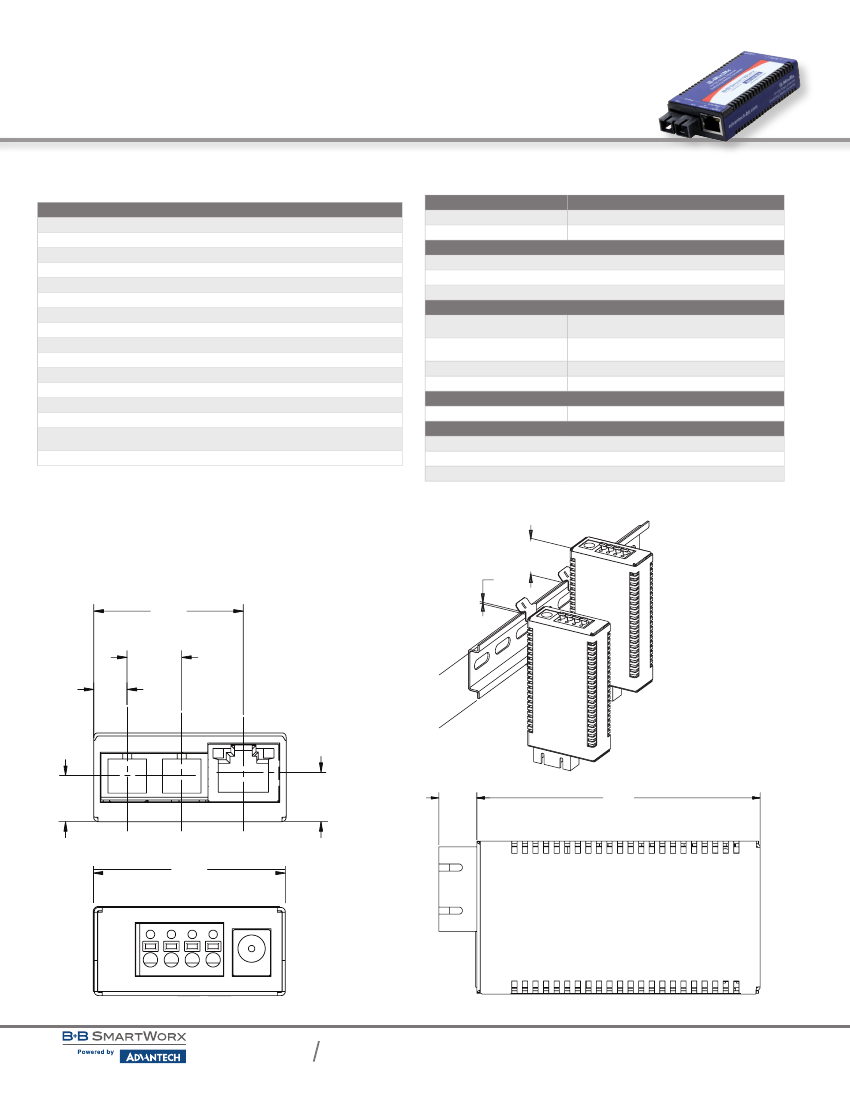

Industrial Grade 10/100
Miniature Media Converters
IE-MiniMc
www.advantech-bb.com
PRODUCT FEATURES
•
•
•
•
•
Value-add industrial grade extended temperature performance
PNP, auto negotiation mode
Auto-cross feature for the twisted pair port cable
Stand-alone unit in a small, rugged metal enclosure with a compact,
external power supply
IEEE 802.3af compliant
Measuring less than 3.5 inches deep and 2 inches wide, the IE-MiniMc
Series converters are some of the industry’s smallest copper-to-fiber
media converters, with both data connections on the same side. The
IE-MiniMc family of media converters are a fraction of the cost of other
industrial grade alternatives. These unmanaged products provide the ease
and convenience of plug-and-play operation with features including Auto
Negotiation and Auto-Cross.
Designed and manufactured in the USA, the IE-MiniMc extends 10 and 100
Mbps twisted pair network segments up to 80 km over fiber. Both a media
and data rate converter, the IE-MiniMc features 10/100 Auto Negotiation on
the copper port while the fiber port operates at 100 Mbps full duplex. IE-
MiniMc 10/100 switching fiber converters are ideal for all premises, FTTD,
LAN-to-LAN or LAN-to-MAN fiber networking applications.
Multiple powering options include Power over Ethernet (PoE/PD), AC wall
adapter and USB, which offers unsurpassed flexibility for a variety of
installations.
ORDERING INFORMATION
MODEL
FIBER RANGE
FIBER
NUMBER
PORTS
IE-MiniMc TP-TX/FX
855-19720 MM850-ST
1
2 km
855-19721 MM850-SC
1
2 km
855-19722 MM1300-ST
1
5 km
855-19723 MM1300-SC
1
5 km
855-19724 SM1310/PLUS-ST 1
30 km
855-19725 SM1310/PLUS-SC 1
30 km
855-19730 SM1550/LONG-SC 1
80km
SINGLE STRAND FIBER *
855-19750 SSFX-MM1310-SC 1
2 km
855-19751 SSFX-MM1550-SC 1
2 km
855-19752 SSFX-SM1310-SC 1
20 km
855-19753 SSFX-SM1550-SC 1
20 km
SSFX-SM1310/
855-19754
1
40 km
PLUS-SC
855-19755 SSFX-SM1550/
1
40 km
PLUS-SC
ETHERNET
PORTS
1
1
1
1
1
1
1
1
1
1
1
1
1
ETHERNET
CONNECTOR
RJ-45
RJ-45
RJ-45
RJ-45
RJ-45
RJ-45
RJ-45
RJ-45
RJ-45
RJ-45
RJ-45
RJ-45
RJ-45
* These products have single-strand fiber technology.
IN THE FIELD
ACCESSORIES
806-39105
- DIN Rail Clip
850-13086
- IE-PowerTray/18-AC (-20 to +70°C), 18-slot AC Powered Chassis
895-39229
- Wall Mount Bracket
806-39629
- USB 12" Power Cable
806-39720 - AC Power Adapter
Long Distance Connections
in Airport Concourse
Industry: Transaction Management –
Retail & Banking
Product:
IE-MiniMc Fiber/Copper Media Converter
www.bb-elec.com/Airport
Carrier data charges
may apply.
All product specifications are subject to change without notice.
IE-MiniMc_1217ds
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
Industrial Grade 10/100
Miniature Media Converters
IE-MiniMc
SPECIFICATIONS
TECHNICAL
IEEE 802.3 10Base-T twisted pair
IEEE 802.3u 100Base-TX twisted pair
IEEE 802.3u 100Base-FX fiber
IEEE 802.3af Power Over Ethernet
Supports jumbo packets up to 1916 bytes
Plug-and-play operation
RJ-45 and ST or SC ports available
50/125µm or 62.5/125µm multi-mode fiber
9/125µm single-mode fiber
Available with single-strand fiber support
Includes terminal DC power block
Country-specific, high-reliability power adapter
Auto Negotiation
Auto-Cross for MDI/MDIX
Layer 2 packet switching, store and forward (forwarding rate: 14,881 pps for 10 Mbps,
148,100 pps for 100 Mbps)
Status LEDs
MECHANICAL
Dimensions
0.83H x 1.80W x 3.35D, inches
Shipping Weight
0.7 lbs (0.317 kg)
INPUT SPECIFICATIONS
DC Terminal: 7 - 50 V DC, 1A - 0.1A
Barrel Connector: 5 V DC
PoE: Maximum supply voltage is 50V
ENVIRONMENTAL
Operating Temperature:
-40 to 185 °F (-40 to +85 °C)
DC or PoE (PD)
Operating Temperature:
+14 to +122 °F (-10 to +50 °C)
AC wall adapter
Storage Temperature:
-40 to +185 °F (-40 to +85 °C)
Operating Humidity
5 to 95% (non-condensing)
MEANTIME BEFORE FAILURE (MTBF)
MTBF
796,650 hours
REGULATORY APPROVALS
FCC Class A (using DC terminal or PoE power)
FCC Class B (using any DC jack, optional)
UL/cUL, CSA, CE
MECHANICAL DIAGRAM
(dimensions in inches & millimeters)
.04
(1.0)
1.04
(26.4)
1.40
(35.6)
.51
(12.9)
REF
1.25
(31.75)
.31
(7.9)
.43
(11.0)
.46
(11.7)
.45
(11.4)
3.35
(85.1)
1.81
(46.0)
