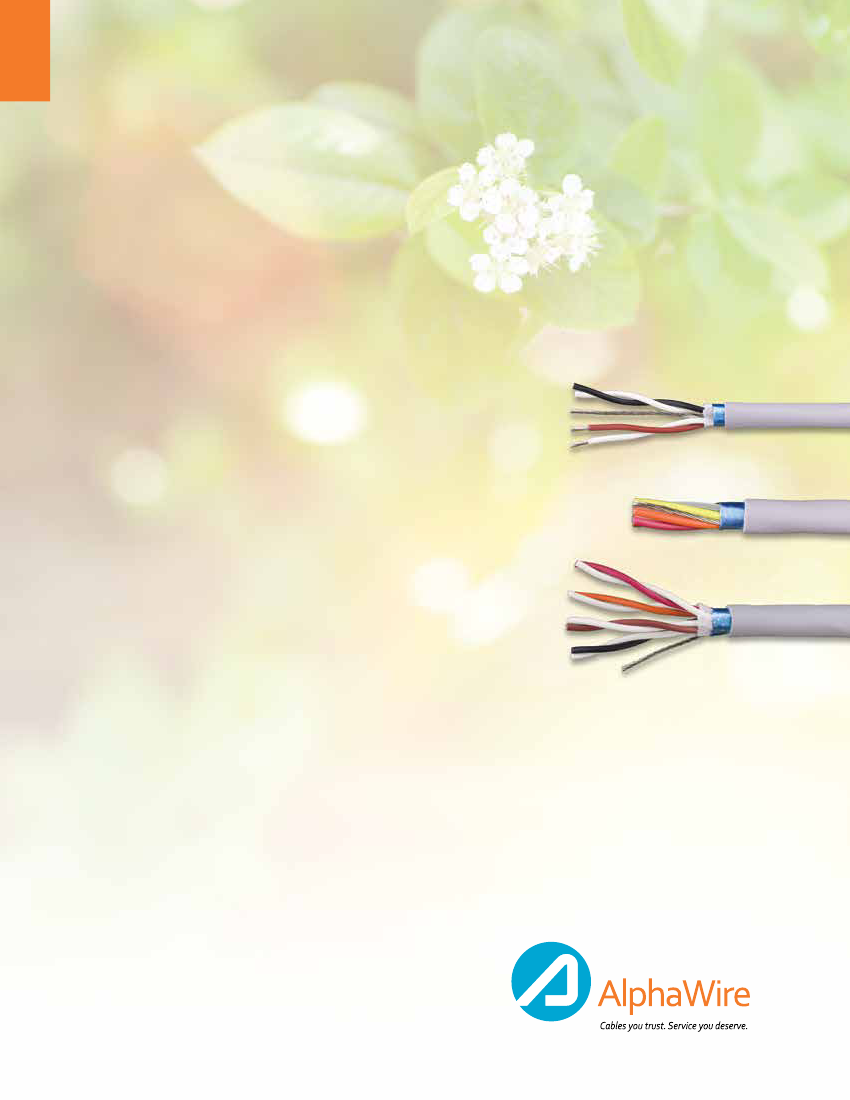

EcoCable® Mini
Small Just Got Mini
EcoCable® Mini Cable
The Smallest Solution to Your Biggest Cable Problems
S
mall just got mini. Introducing EcoCable Mini. Our newest, completely
recyclable high-performance cable is also our smallest and lightest to
date. The latest addition to our EcoGen™ family of recyclable wire and cable,
EcoCable Mini is small, but the performance advantages are big!
It has all the benefits of our regular EcoCable line, like low specific gravity,
low outgassing, and zero halogens. But it’s also up to 32% smaller and
44% lighter than standard 300 V PVC cable.
2
Small Just got Mini
EcoCable Mini recyclable cable
was developed in response to
our customers’ need for smaller,
lighter 300 V cable.
By combining better
performance and minimum
environmental impact, EcoCable
Mini uses its mPPE insulation
and jacketing to provide
application advantages in a
smaller, lighter cable.
Its size makes routing and
installation even easier, saving
more time during production
and maintenance. Even more
convenient, it is available in over
250 standard configurations
including four shielding options.
Smaller Size, Lower Weight
Design smaller, lighter devices
with EcoCable Mini. Up to 32%
smaller and 44% lighter than
standard PVC cable, EcoCable
Mini uses finely stranded
conductors for remarkable
flexibility, giving you more options
for fast, easy routing. And the
thin-wall insulation and jackets
give you the most efficient use
of constrained spaces.
EcoCable Mini cable gives you
the advantage of up to 92%
lower outgassing than PVC
control cable. Low outgassing
makes it well suited for
cleanrooms, where an extremely
low particle count is required to
lessen the possibility of failure
due to contamination.
More Application Options
EcoCable Mini is a 300 V cable
that’s ideal for power and
signal transmission
applications in medical devices,
semiconductor manufacturing
equipment, and anywhere
you are trying to take size and
weight out of your design.
Low Outgassing
In applications like medical
devices and semiconductor
manufacturing equipment,
low outgassing is critical
in preventing corrosion,
contamination, and premature
component failure.

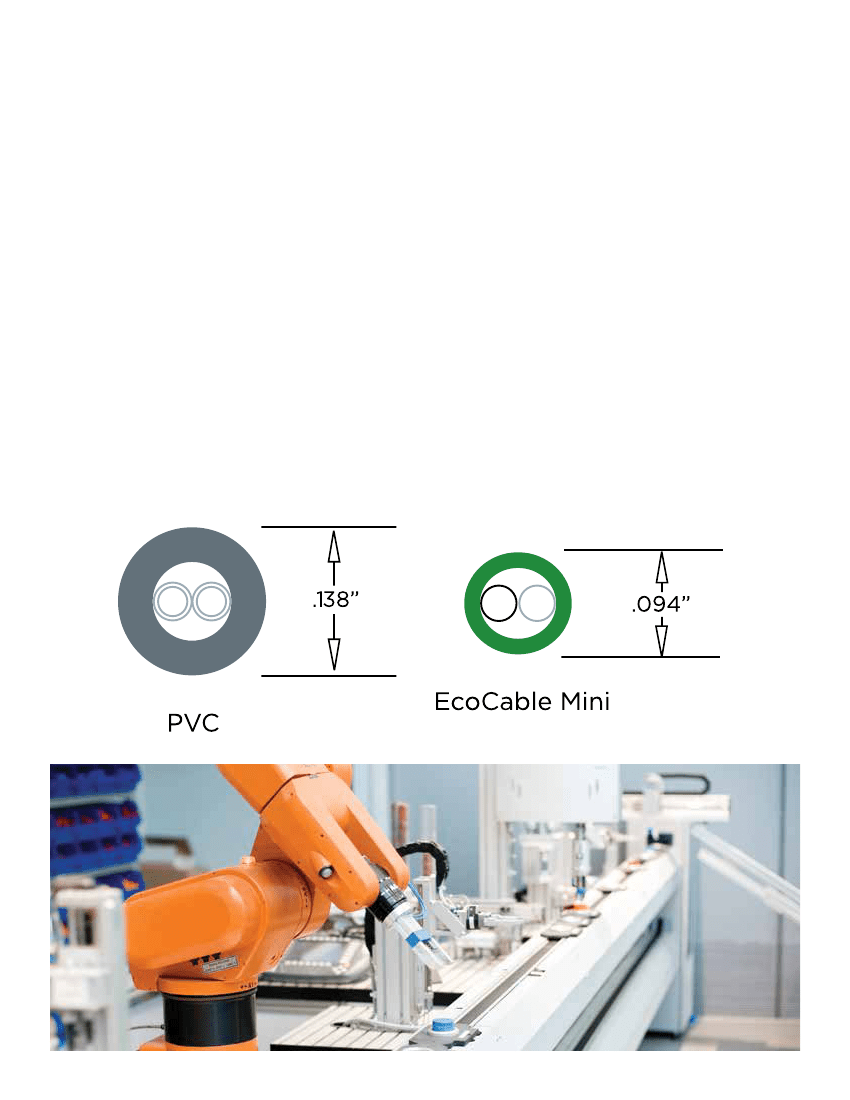

Size Comparison: 28 AWG, 2 conductor unshielded cable
3
It’s also available in custom and
composite configurations, so
finding the right EcoCable Mini
cable for your application is easier
than ever.
•
100% recyclable mPPE
insulation and jacketing
•
Contains no halogens,
phthalates, or heavy metals
•
Meets RoHS and WEEE
requirements
Take Advantage of all
the Advantages
•
Up to 32% smaller and 44%
lighter than PVC
•
92% lower outgassing than PVC
•
28 to 20 AWG
Superior Availability
•
Available from stock in most
sizes and constructions
•
Put-ups as small as 100’
•
Same day shipment,
next day delivery
Alpha Wire’s next generation
of eco-friendly, high-performance
wire and cable, designed to
provide better performance in a
smaller package.
•
EcoCable®
•
EcoFlex® Cable
•
EcoCable® Mini
•
EcoWire®
•
EcoWire® Plus
Learn more about the new
EcoGen family of products at
www.alphawire.com/EcoGen
Specifications
Configurations
•
Multiconductor or multipair
•
Unshielded, foil shielded,
individually shielded pairs +
overall foil shield, and
Supra-Shield Foil + Braid
•
Custom and composite
configurations available
Materials
•
Conductors: Tinned copper
•
Insulation: mPPE
•
Shielding: Foil
•
Jacket: mPPE
4
Temperature Range
•
-40°C to +80°C
Voltage Rating
•
300 V
Properties
•
Zero halogen
•
Specific gravity: 1.03
•
100% recyclable
•
Low outgassing
Approvals
•
UL AWM 21460
•
CE
•
CSA I A/B FT1
•
RoHS
•
REACH
•
WEEE
•
Suitable for use in
NFPA 79 applications
•
Meets UL VW-1
Flame Rating
Availability
•
100 ft (30.5 m) and 1000 ft
(305 m) lengths
•
Bulk
EcoCable
Mini Cable
Unshielded Multiconductor
28 AWG (0.0925 mm
2
)
Stranding: 19/40 (19 x 0.079 mm)
Insulation thickness: 0.007 (0.18 mm)
Jacket thickness: 0.015 (0.38 mm)
Part Number
78002
78003
78004
78006
78008
Conductors
2
3
4
6
8
Nominal Diameter
Inch
mm
0.094
2.39
0.099
2.51
0.107
2.72
0.124
3.15
0.134
3.40
Part Number
78012
78013
78014
78016
78018
78020
78021
26 AWG (0.154 mm
2
)
Stranding: 19/38 (19 x 0.102 mm)
Insulation thickness: 0.007 (0.18 mm)
Jacket thickness: 0.015 (0.38 mm)
Conductors
2
3
4
6
8
10
15
Nominal Diameter
Inch
mm
0.102
2.59
0.107
2.72
0.116
2.95
0.136
3.45
0.147
3.73
0.170
4.32
0.190
4.83
24 AWG (0.241 mm
2
)
Stranding: 19/36 (19 x 0.127 mm)
Insulation thickness: 0.007 (0.18 mm)
Jacket thickness: 0.015 (0.38 mm)
Part Number
78022
78023
78024
78026
78028
78030
78031
78403
78433
Conductors
2
3
4
6
8
10
15
20
25
Nominal Diameter
Inch
mm
0.112
2.84
0.118
3.00
0.128
3.25
0.152
3.86
0.164
4.17
0.190
4.83
0.213
5.41
0.238
6.05
0.268
6.81
Part Number
78032
78033
78034
78036
78038
78040
78041
78404
78434
22 AWG (0.382 mm
2
)
Stranding: 19/34 (19 x 0.16 mm)
Insulation thickness: 0.007 (0.18 mm)
Jacket thickness: 0.015 (0.38 mm)
Conductors
2
3
4
6
8
10
15
20
25
Nominal Diameter
Inch
mm
0.126
3.20
0.133
3.38
0.145
3.68
0.173
4.39
0.187
4.75
0.218
5.54
0.245
6.22
0.275
6.98
0.310
7.87
20 AWG (0.616 mm
2
)
Stranding: 19/32 (19 x 0.203 mm)
Insulation thickness: 0.007 (0.18 mm)
Jacket thickness: 0.015 (0.38 mm)
Part Number
78042
78043
78044
78046
78048
78050
78055
78405
78435
Conductors
2
3
4
6
8
10
15
20
25
Nominal Diameter
Inch
mm
0.142
3.61
0.150
3.81
0.165
4.19
0.197
5.00
0.214
5.44
0.250
6.35
0.282
7.16
0.317
8.05
0.358
9.09
5
