Quick Start Guide

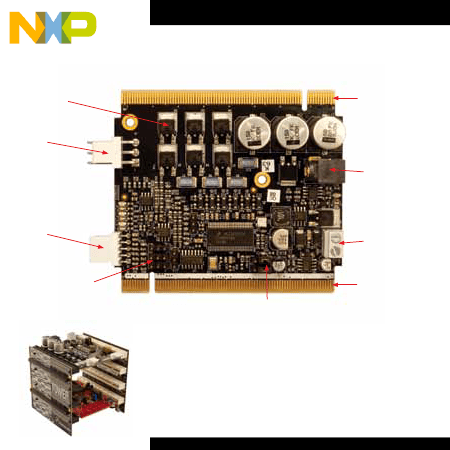

Get to Know the TWR-MC-LV3PH
MOSFET
H-Bridge
Motor
Connector
Power
Supply
Connector
Secondary
Elevator
Encoder/HS
Connector
Brake
Resistor
Connector
BEMF/Current
Sensing Header
Analog Voltage
Selector
Primary
Elevator
TWR-MC-LV3PH
Freescale Tower System
The TWR-MC-LV3PH module is part of the Freescale Tower System, a
modular development platform that enables rapid prototyping and tool
re-use through reconfigurable hardware. Take your design to the next
level and begin constructing your Tower System today.
TOWER SYSTEM
TWR-MC-LV3PH Features
• Motor power and signal connectors
• 3-phase bridge inverter (six MOSFETs)
• -phase MOSFET gate driver with over current
3
and under voltage protection
• 3-phase current sensing shunts
• -phase back-EMF voltage sensing circuitry
3
for sensorless control
• Encoder/hall sensor sensing circuitry
• Power supply voltage input of 12–24V DC
• Output current up to 8 amps
• Power supply reverse polarity protection circuitry
• DC bus voltage and current sensing
• Low-voltage on-board power supplies
• User LED, power-on LED, six PWM LED diodes
Warning
This development-tool set operates in an environment that includes rotating machinery. Be aware:
• ear safety glasses and use care to avoid contacting the motor or circuitry with clothing, ties or jewelry
W
• ower supply circuitry and the motor can reach temperatures hot enough to cause burns
P
Quick Start Guide
Step-by-Step Installation Instructions
1
2
Assemble your Tower System,
including a Tower System controller
module and the TWR-MC-LV3PH
module.
4
5
Connect an encoder or hall sensor
connector from the motor assembly
to the encoder/hall sensor interface
J8 on the TWR-MC-LV3PH.
Connect a current-limited DC power
supply to connector J1.The input
voltage range is 12 to 24V DC.
Current limit should be set for less
than 8 amps. Power should not be
applied to the TWR-ELEV or any
other peripheral module.
When power is applied, the D7
power-on LED will illuminate. The
TWR-MC-LV3PH board powers the
Tower System with 5V and 3.3V
on-board power supplies.
Attach the motor connector from the
BLDC motor to J5 on the
TWR-MC-LV3PH. Phase A, phase B,
and phase C are labeled on the
bottom of the board.
Note: For BLDC motors, it is important to put the wire
color coded for phase A into the connector terminal
labeled A. Repeat this for phase B and phase C.
3
Select analog power supply source
by setting jumpers J2 and J3
appropriately. If your Tower controller
module has terminated VDDA and
VSSA signals to the primary elevator,
select the elevator source (position
2-3). Otherwise, select internal
source (position 1-2).
Warning
Input voltages higher than 24V may damage the Tower System module.
The Tower System should only be powered by the TWR-MC-LV3PH module. Supplying power
to the TWR-ELEV or other peripheral modules could result in damage.
TOWER SYSTEM
TWR-MC-LV3PH Jumper Options
The following is a list of all jumper options. The default installed jumper settings are
shown in white text within the black boxes.
Jumper
Option
Setting
Description
J2
VDDA Source Select
1-2
2-3
1-2
2-3
1-2
2-3
1-2
2-3
1-2
2-3
1-2
2-3
1-2
2-3
Internal on-board source of analog 3.3V
Elevator source of analog 3.3V
Internal on-board source of analog GND
Elevator source of analog GND
Phase C current signal
DC-bus current signal
Phase A current signal
DC-bus/2 voltage signal
Phase C current signal
Back EMF phase C
Phase B current signal
Back EMF phase B
Phase A current signal
Back EMF phase A
J3
VSSA Source Select
J10
AN6 Signal Select
J11
AN5 Signal Select
J12
AN2 Signal Select
J13
AN1 Signal Select
J14
AN0 Signal Select
