Switch - FL SWITCH LM 8TX-E - 2891466
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)

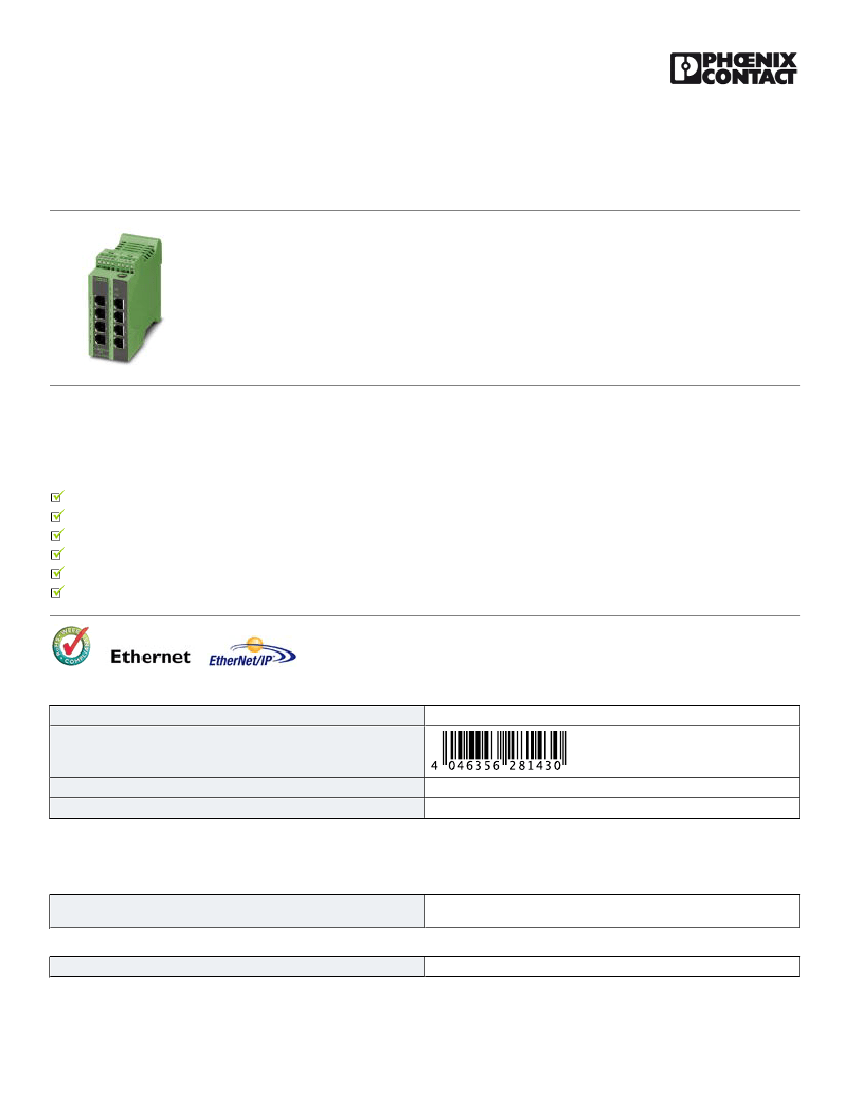

Ethernet Lean Managed Switch with eight 10/100 Mbps RJ45 ports, preconfigured for Ethernet/IP
Product description
The compact lean managed switches (LM) make it possible to set up flexible and economical managed Ethernet networks in an automation
environment. Its huge range of connection variants and extended temperature range of -40 °C to +70 °C enable it to perfectly cover the requirements of
industrial applications. The integrated software allows networks to be redundantly set up, diagnosed and monitored using IT standard protocols.
Product Features
Web-based management, SNMP
Compact housing
Comprehensive fiber optic versions
Configuration can be stored externally
-40°C ... +70°C ambient temperature
Configurable alarm contact
Packing unit
GTIN
Custom tariff number
Country of origin
1 PCE
Key commercial data
85176200
GERMANY
Technical data
Note:
Utilization restriction
EMC: class A product, see manufacturer's declaration in the download
area
Dimensions
Width
45 mm
11.07.2013 Page 1 / 9
https://www.phoenixcontact.com/us/products/2891466
Switch - FL SWITCH LM 8TX-E - 2891466
Technical data
Dimensions
Height
Depth
99 mm
112 mm
Interfaces
Interface 1
No. of ports
Connection method
Note on connection method
Transmission physics
Transmission speed
Transmission length
Interface 5
Connection method
Ethernet (RJ45)
8 (RJ45 ports)
RJ45
Auto negotiation and autocrossing
Copper
10/100 MBit/s
100 m (per segment)
Serial (V.24 (RS-232))
V.24 (RS-232-C), 6-pos. MINI-DIN socket (PS/2)
Function
Basic functions
Supported browsers
Redundancy
Status and diagnostic indicators
Store and forward switch complies with IEEE 802.3 2 priority classes in
acc. with IEEE802.1 P TCP/IP protocol, BootP-capable, port mirroring,
integrated web server function, multicast filtering, IGMP snooping, Rapid
Spanning Tree (RSTP)
Internet Explorer 5.5 or higher
Rapid Spanning Tree 802.1w, Fast Ring Detection
Per Ethernet 2 status LEDs: LINK and status activity, 100, full duplex,
supply voltage U
S1
and U
S2
(redundant supply voltage)
Network expansion parameters
Cascading depth
Maximum conductor length ((twisted pair)
Network, linear, and star structure: any
100 m
Supply voltage
Supply voltage
Residual ripple
Supply voltage range
Typical current consumption
24 V DC
3.6 V
PP
(within the permitted voltage range)
18.5 V DC ... 30.5 V DC
250 mA (at U
S
= 24 V DC)
General
Mounting type
Type AX
Weight
Degree of protection
Ambient temperature (operation)
Ambient temperature (storage/transport)
DIN rail
Block design
230 g
IP20
-40 °C ... 70 °C
-40 °C ... 85 °C
11.07.2013 Page 2 / 9
https://www.phoenixcontact.com/us/products/2891466
Switch - FL SWITCH LM 8TX-E - 2891466
Technical data
General
Permissible humidity (operation)
Permissible humidity (storage/transport)
Air pressure (operation)
Air pressure (storage/transport)
Noise emission
Noise immunity
30 % ... 95 % (no condensation)
30 % ... 95 % (no condensation)
80 kPa ... 108 kPa (2000 above sea level)
70 kPa ... 108 kPa (3000 above sea level)
EN 61000-6-3/-4
EN 61000-6-2:2005
Mechanical tests
Type of test
Test result
Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6
Operation/Storage/Transport: 5 g, 150 Hz, Criterion 3
Classifications
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000734
EC000734
EC000734
EC000734
UNSPSC
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
UNSPSC 6.01
UNSPSC 7.0901
43172015
43201410
43201410
43172015
43201404
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
27250501
27250501
27250501
27250501
27250501
27250501
Approvals
Approvals
11.07.2013 Page 3 / 9
https://www.phoenixcontact.com/us/products/2891466
Switch - FL SWITCH LM 8TX-E - 2891466
Approvals
Approvals
UL Listed / cUL Listed / cULus Listed
Ex Approvals
UL Listed / cUL Listed / UL Listed / cUL Listed / cULus Listed
Approvals submitted
Approval details
UL Listed
cUL Listed
cULus Listed
Accessories
Accessories
Assembly
End clamp - E/NS 35 N - 0800886
End clamp, width: 9.5 mm, color: gray
Cable/conductor
11.07.2013 Page 4 / 9
https://www.phoenixcontact.com/us/products/2891466
Switch - FL SWITCH LM 8TX-E - 2891466
Accessories

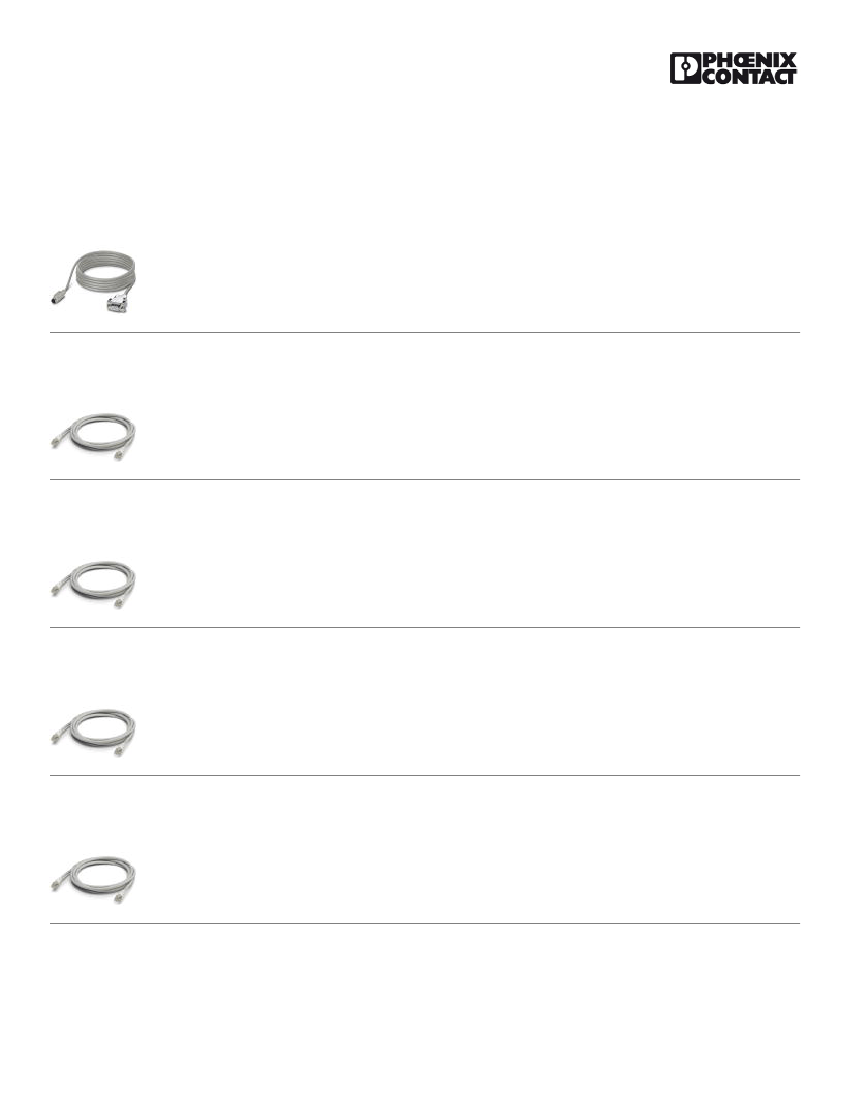

Connecting cable - PRG CAB MINI DIN - 2730611
Connecting cable, for connecting the controller to a PC (RS-232) for PC Worx, 3 m in length
Patch cable - FL CAT5 PATCH 0,3 - 2832250
Patch cable, CAT5, assembled, 0.3 m
Patch cable - FL CAT5 PATCH 0,5 - 2832263
Patch cable, CAT5, assembled, 0.5 m
Patch cable - FL CAT5 PATCH 1,0 - 2832276
Patch cable, CAT5, assembled, 1.0 m
Patch cable - FL CAT5 PATCH 1,5 - 2832221
Patch cable, CAT5, assembled, 1.5 m
11.07.2013 Page 5 / 9
