5433697: DescriptionTERM BLOCK HDR 5POS 90DEG 5.08MM; CategoryThe connector terminals; File Size71KB，4 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com; Environmental Compliance

Download Datasheet Parametric View All

5433697 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5433697	-	-	View	Buy Now

5433697 Overview

TERM BLOCK HDR 5POS 90DEG 5.08MM

5433697 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	PHOENIX CONTACT
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PA, UL 94V-0
Fastening method	CONNECTOR
Manufacturer's serial number	5433697
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	5
Rated current	12 A
Rated voltage	320 V
safety certificate	CUL; UL
Terminal and terminal strip types	STRIP TERMINAL BLOCK
Base Number Matches	1

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/us/products/5433697

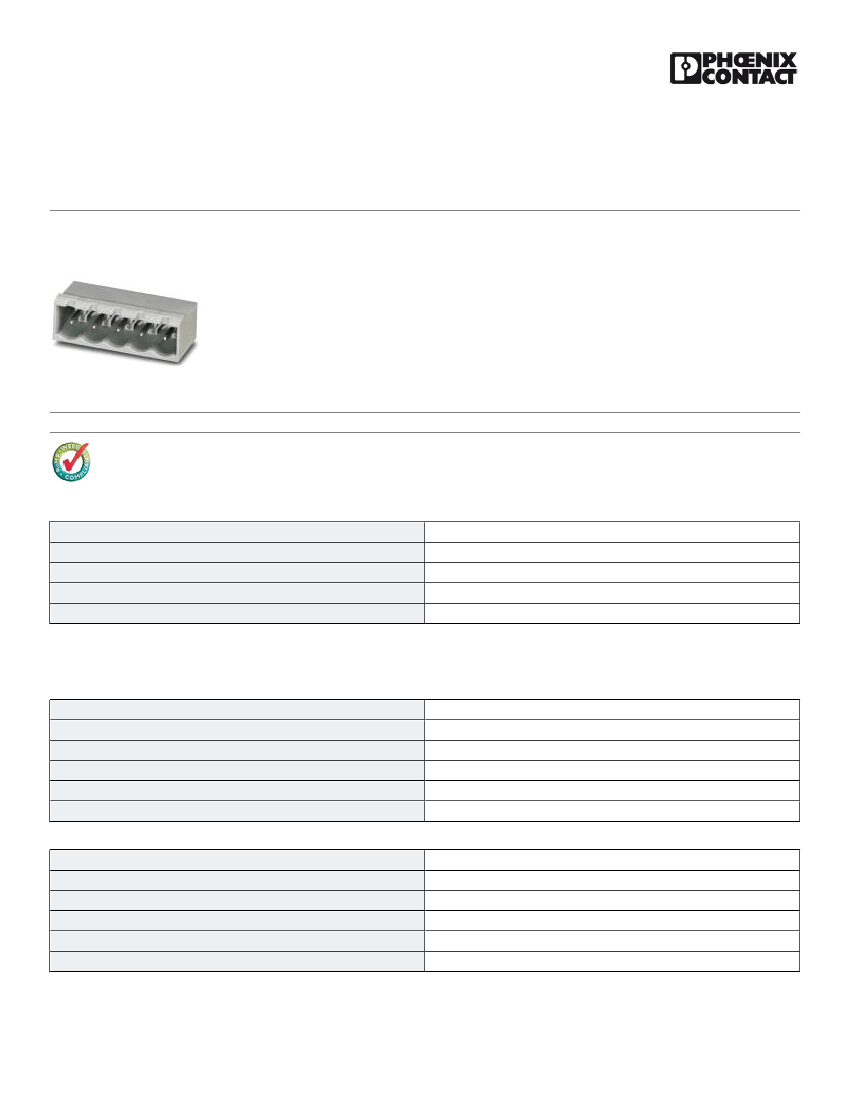

Printed-circuit board connector - BCH-508HS- 5 GY - 5433697

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 5, Pitch: 5.08 mm, Color: signal

grey, Contact surface: Tin, Mounting: Soldering

The figure shows a 5-pos. version of

the product

Key Commercial Data

Packing unit

Minimum order quantity

Weight per Piece (excluding packing)

Custom tariff number

Country of origin

1 pc

100 pc

2.2 g

85366990

China

Technical data

Dimensions

Length

Pitch

Dimension a

Length of the solder pin

Pin dimensions

Hole diameter

12 mm

5.08 mm

20.32 mm

3.5 mm

1 x 1 mm

1.4 mm

General

Range of articles

Insulating material group

Rated surge voltage (III/3)

Rated surge voltage (III/2)

Rated surge voltage (II/2)

Rated voltage (III/3)

BCH-HS

4 kV

250 V

12/17/2015 Page 1 / 4

Recommended Resources

Interface circuit of card reading module

Phono equalized input circuit

Thermistor compensation circuit

Output voltage fine adjustment DC-DC converter circuit diagram (a)

Universal RF detector.gif

UHF transmitter module CS901 composed of SAW
