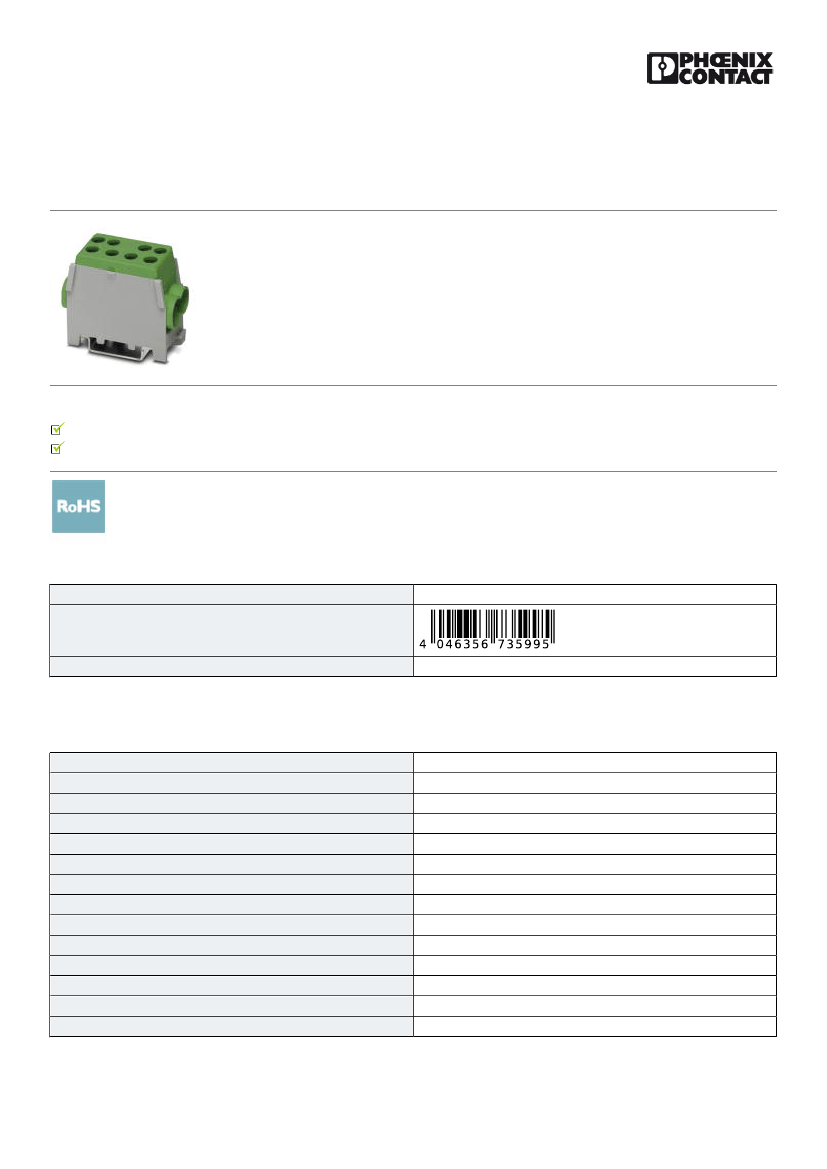

Trunk line branch terminal - UDB 2X35/25 GN - 3071354
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Trunk line branch terminal, nom. voltage: 400 V, nominal current: 125 A, connection method: Screw
connection, Screw connection, number of connections: 4, number of positions: 1, cross section:10 mm² - 35
mm², AWG: 8 - 2, width: 27 mm, color: green, mounting type: NS 35/7,5, NS 35/15
Your advantages
The branch terminal is suitable for the simple voltage pick-off of main supply cables
Conformance with DIN VDE 0603‑2/EN 60998‑1
Key Commercial Data
Packing unit
GTIN
GTIN
4046356735995
5 pc
Technical data
General
Number of positions
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Maximum power dissipation for nominal condition
Maximum load current
1
1
4
1
35 mm²
green
PA
V0
8 kV
3
III
I
4.06 W
125 A
10/27/2018 Page 1 / 3
https://www.phoenixcontact.com/pi/products/3071354
Trunk line branch terminal - UDB 2X35/25 GN - 3071354
Technical data
General
Nominal current I
N
Nominal voltage U
N
Open side panel
125 A
400 V (max. 1000 V)
No
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
27 mm
55 mm
46 mm
53.5 mm
Connection data
Connection method
Connection in acc. with standard
Note
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Stripping length
Screw thread
Tightening torque max
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Stripping length
Screw connection
IEC 60998-1
Use ferrules for stranded conductors
10 mm²
35 mm²
8
2
10 mm²
25 mm²
8
3
10 mm²
10 mm²
16 mm²
25 mm
M6/M8
4 Nm
Screw connection
IEC 60998-1
1.5 mm²
25 mm²
1.5 mm²
1.5 mm²
10 mm²
25 mm
Conductor cross section flexible, with ferrule without plastic sleeve max. 25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max. 16 mm²
Standards and Regulations
Connection in acc. with standard
IEC 60998-1
IEC 60998-1
10/27/2018 Page 2 / 3
https://www.phoenixcontact.com/pi/products/3071354
Trunk line branch terminal - UDB 2X35/25 GN - 3071354
Technical data
Standards and Regulations
Flammability rating according to UL 94
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Circuit diagram
