FEATURES AND SPECIFICATIONS
Features and Benefits
s
Sizes 4 to 80 circuits
s
Stackable side-to-side and end-to-end
(on unbroken edges)
s
Easy breakaway to smaller sizes
s
Drawn .025" square/round wire provides 4-sided smooth
surface for quality interface
s
Insertable into .035" PC hole: aids robotic insertion
Reference Information
Product Specification: PS-70260
Packaging: Bag
UL File No.: E29179 (F)
Mates With: 7859 Shunts, C-Grid Receptacles, SL Crimp and
IDT Housings
Designed In: Inches
Electrical
Voltage: 250V
Current: 3.0A
Contact Resistance: 15m
Ω
max.
Dielectric Withstanding Voltage: 1500V
Insulation Resistance: 1000 M
Ω
min.
Mechanical
Pin Retention to Header: 17.79N (4 lb)
Durability: 25 cycles Tin/Lead and 50 cycles Gold
Physical
Housing: Glass-filled polyester, UL 94V-0
Contact: Phosphor Bronze
Plating: See Table
Operating Temperature: -40 to +105˚C
2.54mm (.100") Pitch
C-Grid
®
Breakaway Header
70260
Dual Row, Vertical
Square/Round Pin
C
2.54mm (.100") Pitch

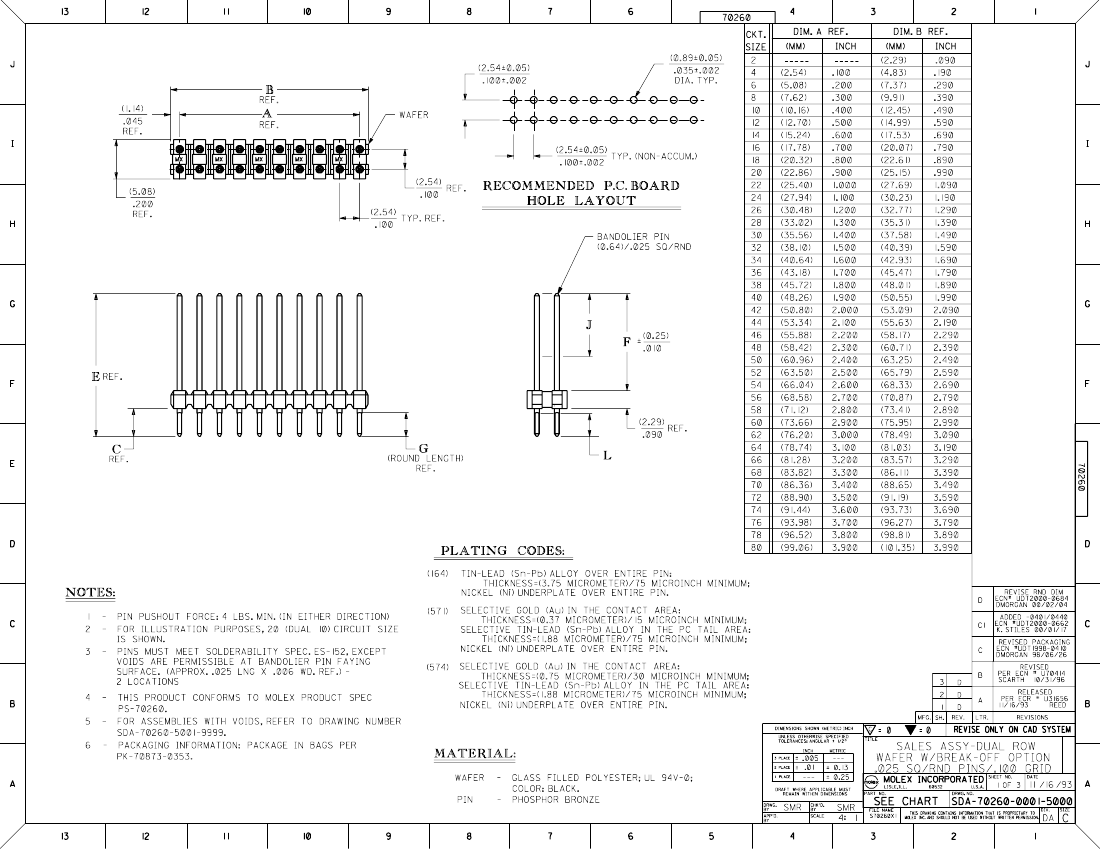

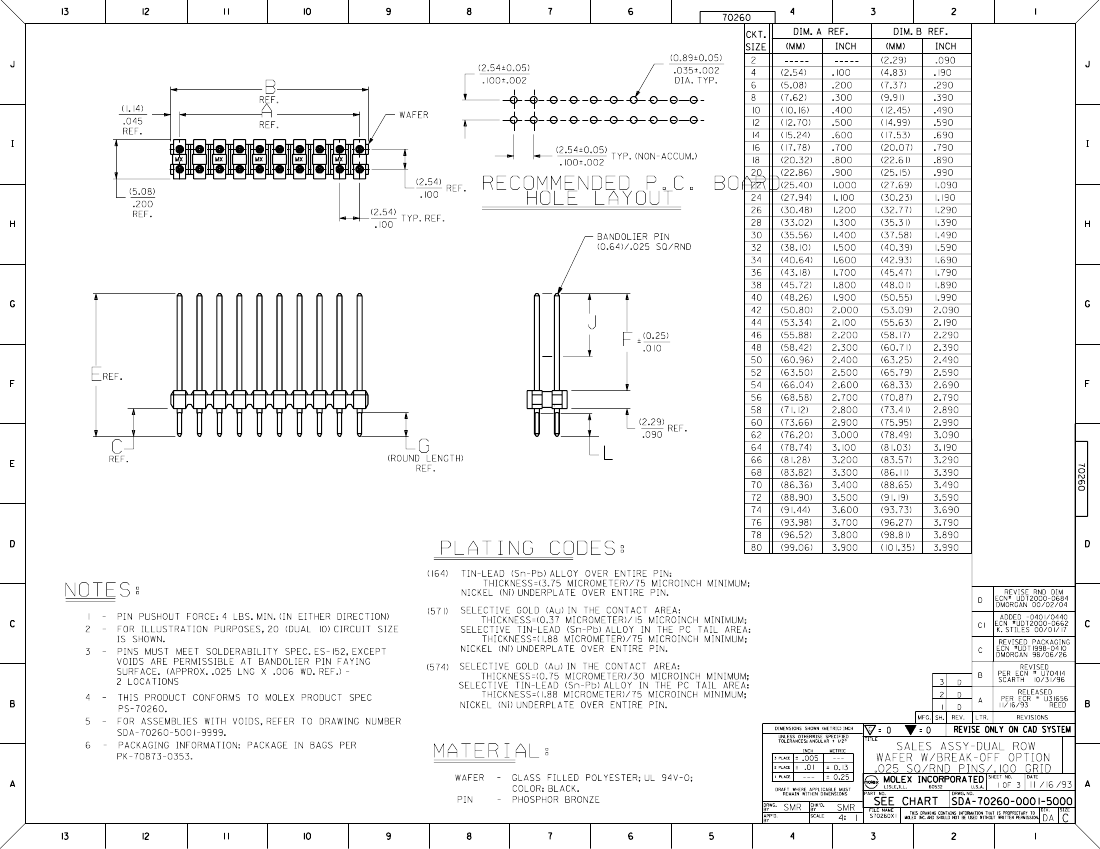

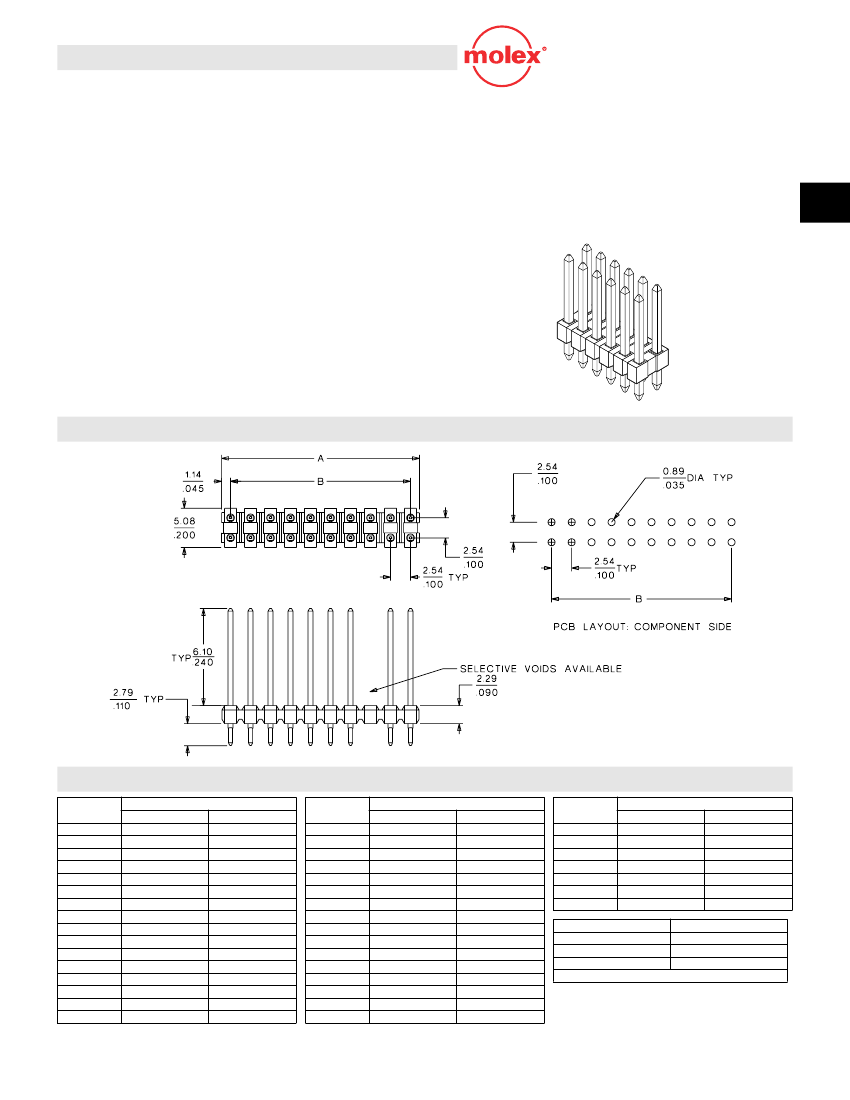

CATALOG DRAWING (FOR REFERENCE ONLY)
Not For Use With Molex C-Grid III
™
Components

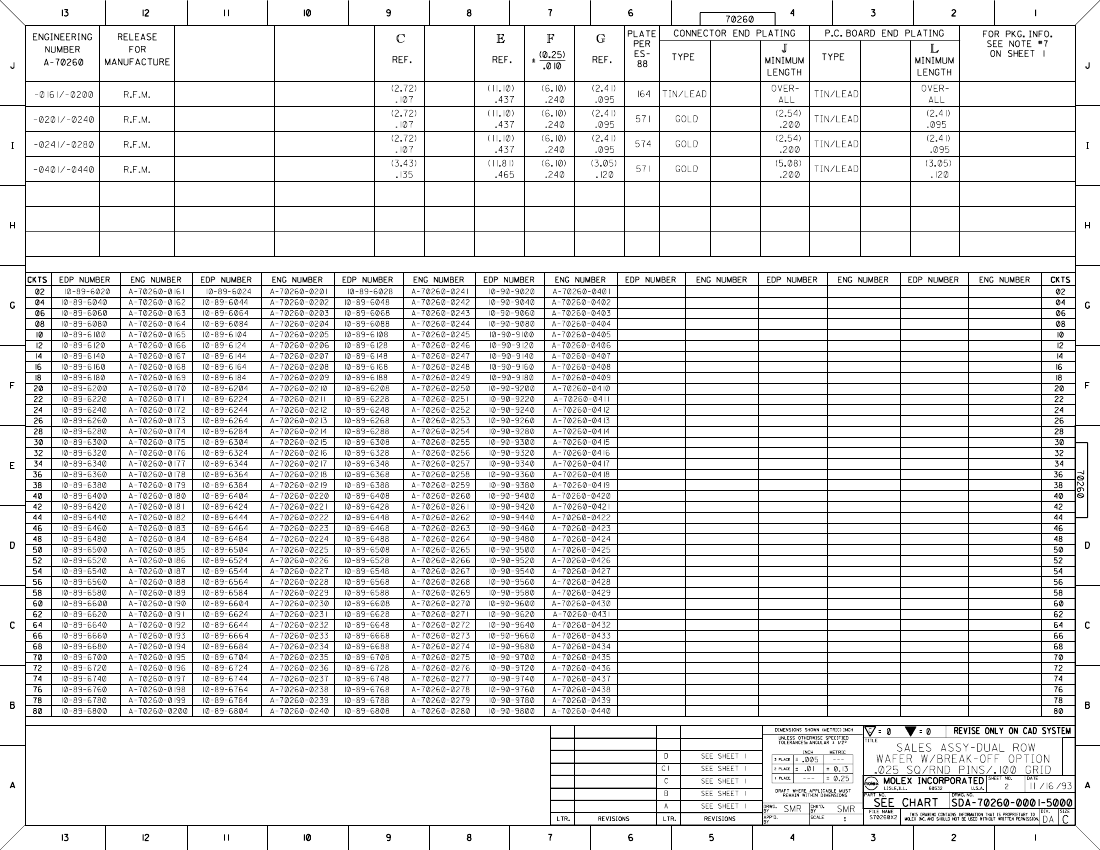

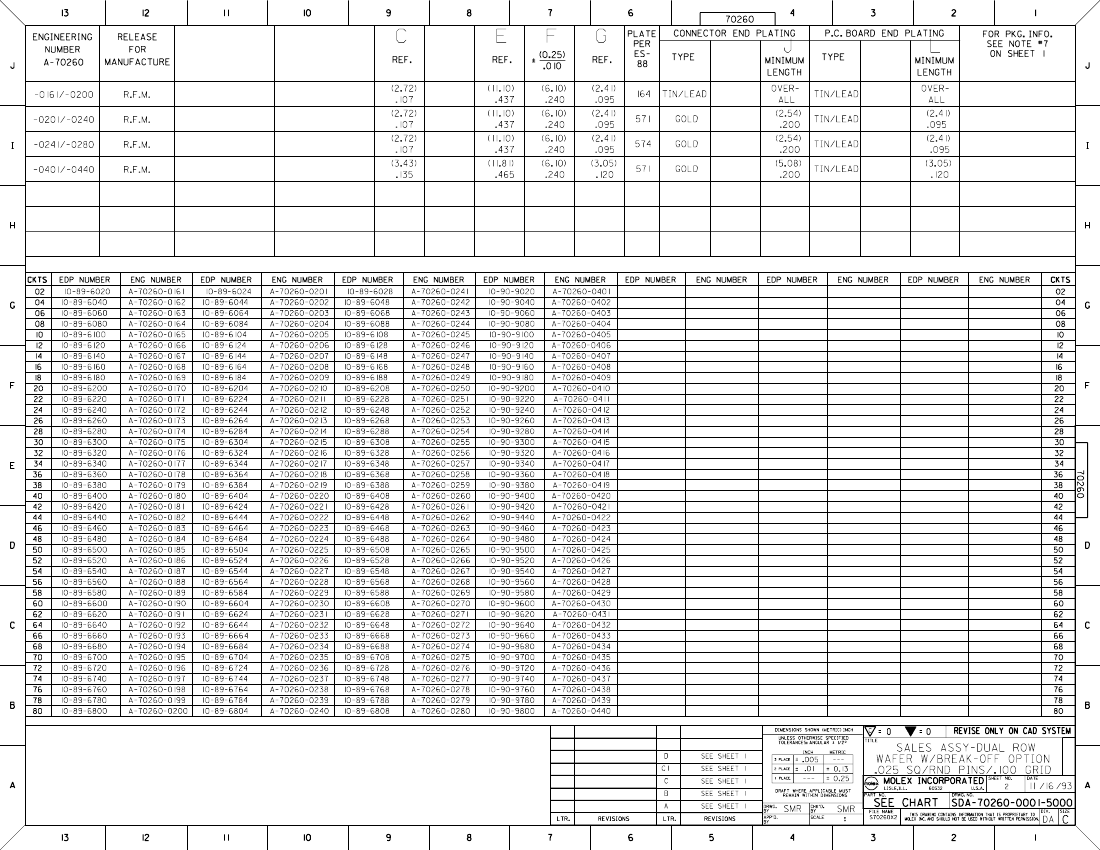

ORDERING INFORMATION AND DIMENSIONS
Circuits
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
4.83
7.37
9.91
12.45
14.99
17.53
20.07
22.61
25.15
27.69
30.23
32.77
35.31
37.85
40.39
42.93
Dimension
A
(.190)
(.290)
(.390)
(.490)
(.590)
(.690)
(.790)
(.890)
(.990)
(1.090)
(1.190)
(1.290)
(1.390)
(1.490)
(1.590)
(1.690)
2.54
5.08
7.62
10.16
12.70
15.24
17.78
20.32
22.86
25.40
27.94
30.48
33.02
35.56
38.10
40.64
B
(.100)
(.200)
(.300)
(.400)
(.500)
(.600)
(.700)
(.800)
(.900)
(1.000)
(1.100)
(1.200)
(1.300)
(1.400)
(1.500)
(1.600)
Circuits
36
38
40
42
44
46
48
50
52
54
56
58
60
62
64
66
45.47
48.01
50.55
53.09
55.63
58.17
60.71
63.25
65.79
68.33
70.87
73.41
75.95
78.49
81.03
83.57
Dimension
A
(1.790)
(1.890)
(1.990)
(2.090)
(2.190)
(2.290)
(2.390)
(2.490)
(2.590)
(2.690)
(2.790)
(2.890)
(2.990)
(3.090)
(3.190)
(3.290)
43.18
45.72
48.26
50.80
53.34
55.88
58.42
60.96
63.50
66.04
68.58
71.12
73.66
76.20
78.74
81.28
B
(1.700)
(1.800)
(1.900)
(2.000)
(2.100)
(2.200)
(2.300)
(2.400)
(2.500)
(2.600)
(2.700)
(2.800)
(2.900)
(3.000)
(3.100)
(3.200)
Circuits
68
70
72
74
76
78
80
86.11
88.65
91.19
93.73
96.27
98.81
101.35
Dimension
A
(3.390)
(3.490)
(3.590)
(3.690)
(3.790)
(3.890)
(3.990)
83.82
86.36
88.90
91.44
93.98
96.52
99.06
B
(3.300)
(3.400)
(3.500)
(3.600)
(3.700)
(3.800)
(3.900)
Plating Option
Order No.
15
µ
" min. select Gold
• 10-89-6XX4
• 10-89-6XX8
30
µ
" min. select Gold
• 10-89-6XX0
150
µ
" Tin/Lead, Nickel overall
Replace XX with no. of circuits, 04-80 (even only)
• US Standard Product, available through Molex franchised distributors
MX01
C-51
Microcontroller MCU
