BSE-020-01-L-D-A datasheet, PDF

Datasheet> All Categories > The connector> The connector> BSE-020-01-L-D-A

BSE-020-01-L-D-A: Description.8MM DOUBLE ROW SKT ASSY; CategoryThe connector The connector; File Size161KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

BSE-020-01-L-D-A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BSE-020-01-L-D-A	-	-	View	Buy Now

BSE-020-01-L-D-A Overview

.8MM DOUBLE ROW SKT ASSY

BSE-020-01-L-D-A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	3 weeks
Samacsys Description	SAMTEC - BSE-020-01-L-D-A - Mezzanine Connector, Receptacle, 0.8 mm, 2 Rows, 40 Contacts, Surface Mount, Phosphor Bronze
Other features	E.L.P
Board mount options	PEG
body width	0.295 inch
subject depth	0.128 inch
body length	0.848 inch
Body/casing type	SOCKET
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
DIN compliance	NO
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.031 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.7404 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	40

Preview

Download Datasheet

View All

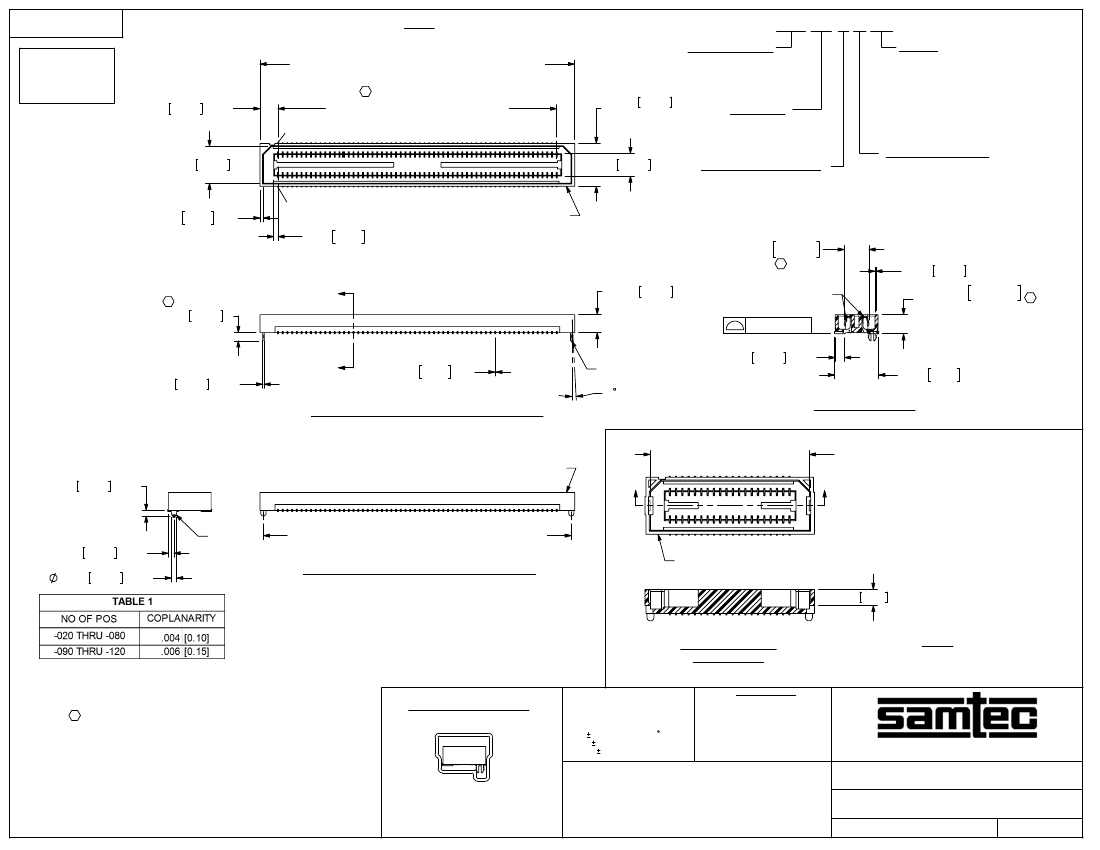

REVISION AD

DO NOT

SCALE FROM

THIS PRINT

.1195 3.035 REF

.2450 6.223 REF

.0225 0.572 REF

BSE-060-01-X-D-LC SHOWN

(No OF POSITIONS x.0315[.80]) + .2075[5.27] REF

FIG 1

BSE-XXX-01-X-D-XX

No OF POSITIONS

-020, -040, -060,

-080, -090, -100, -120

(PER ROW)

.2850 7.239

REF

LEAD STYLE

-01: .1280 [3.25]

OPTION

-A: ALIGNMENT PINS

(USE BSE-XXX-01-D-A)

-LC: LOCKING CLIPS

(USE LC-08-TM-01)

-TR: TAPE & REEL (80 POS. MAX)

-FL: FRICTION LOCK (SEE FIG 2)

(-020 THRU -100 POSITIONS ONLY)

(USE BSE-XXX-01-D-X-FL)

(No OF POSITIONS -1) x .0315[.80]

.1500 3.810 REF

BSE-XXX-01-D

.0283 0.718

ROW SPECIFICATION

PLATING SPECIFICATION

-D: DOUBLE (USE BSE-XXX-01-D-X)

-F: FLASH SELECTIVE GOLD WITH MATTE TIN TAILS (SEE NOTE 6 & 9)

-L: LIGHT SELECTIVE GOLD WITH MATTE TIN TAILS (SEE NOTE 9)

-H: HEAVY GOLD WITH MATTE TIN TAILS (SEE NOTE 9)

-C: ELECTRO-POLISHED SELECTIVE (SEE NOTE 9)

.165

+.005

4.19

+0.13

- .001

- 0.03

"A"

.1200 3.048 REF

C-126-21-X

(SEE NOTE 9)

SEE TABLE 1

.006 0.147 REF

.1280

+.0030

3.251

+0.08

- .0010

- 0.03

(SEE NOTE 7)

.0550 1.397

"A"

.0100 0.254 REF

.0060 0.152 REF

LC-08-TM-01

2 MAX TOE (TYP)

.064 1.622 REF

.2950 7.493 REF

-LC: LOCKING CLIP OPTION SHOWN

SECTION "A"-"A"

(No OF POS X .0315[.80])+ .167[4.21] REF

(FL TO FL DIMENSION)

BSE-XXX-01-D-A

.0375 0.953 REF

"B"

.0375 0.953 REF

.0350 0.889 REF

(No OF POSITIONS X .0315[.80]) + .1625[4.13] REF

-A: ALIGNMENT PIN OPTION SHOWN

BSE-060-01-X-D-A SHOWN

BSE-XXX-01-D-X-FL

.080 2.03 REF

SECTION "B"-"B"

SCALE 2 : 1

NOTES:

REPRESENTS A CRITICAL DIMENSION.

2. NOTE DELETED.

3. MAXIMUM BURR ALLOWANCE: .0015 [.038].

4. MINIMUM PUSHOUT FORCE: .5 LB.

5. NOTE DELETED.

6. –L PLATING MAY BE SUBSTITUTED FOR –F PLATING.

7. MAX VARIENCE: .002 [.05]

8. NOTE DELETED.

9. -90 THROUGH -120 POSITION PARTS USE C-269-11-X. DO

NOT SUB C-126-XX-X OR C-224-01-X.

10. POSITIONS 20, 40, 60, 80, 120 ARE TRAY PACKAGED.

-FL OPTION

BSE-020-01-X-D-A-FL SHOWN

(SAME AS FIG 1, UNLESS OTHERWISE STATED)

FIG 2

PACKAGING VIEW

90 & 100 POS ONLY

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

.XX: .01[.25]

.XXX: .005[.13]

.XXXX: .0020[.051]

MATERIAL:

DECIMALS

ANGLES

THIS DOCUMENT CONTAINS CONFIDENTIAL AND

PROPRIETARY INFORMATION AND ALL DESIGN,

MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS

AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,

INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE

OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR

REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY

OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS

WRITTEN CONSENT OF SAMTEC, INC.

PROPRIETARY NOTE

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail: info@SAMTEC.com

code: 55322

DO NOT SCALE DRAWING

SHEET SCALE: 1.5:1

DESCRIPTION:

TUBE: PT-1-24-03-78

PLUG: TP-09

INSULATOR: BLACK LCP

FLAMMABILITY RATING: UL94VO

SOCKET:PHOS BRONZE

F:\DWG\MISC\MKTG\BSE-XXX-01-X-D-XX-MKT.SLDDRW

.8mm DOUBLE ROW SOCKET ASSEMBLY

DWG. NO.

BSE-XXX-01-X-D-XX

05/24/1999

SHEET

BY:

DEAN P
