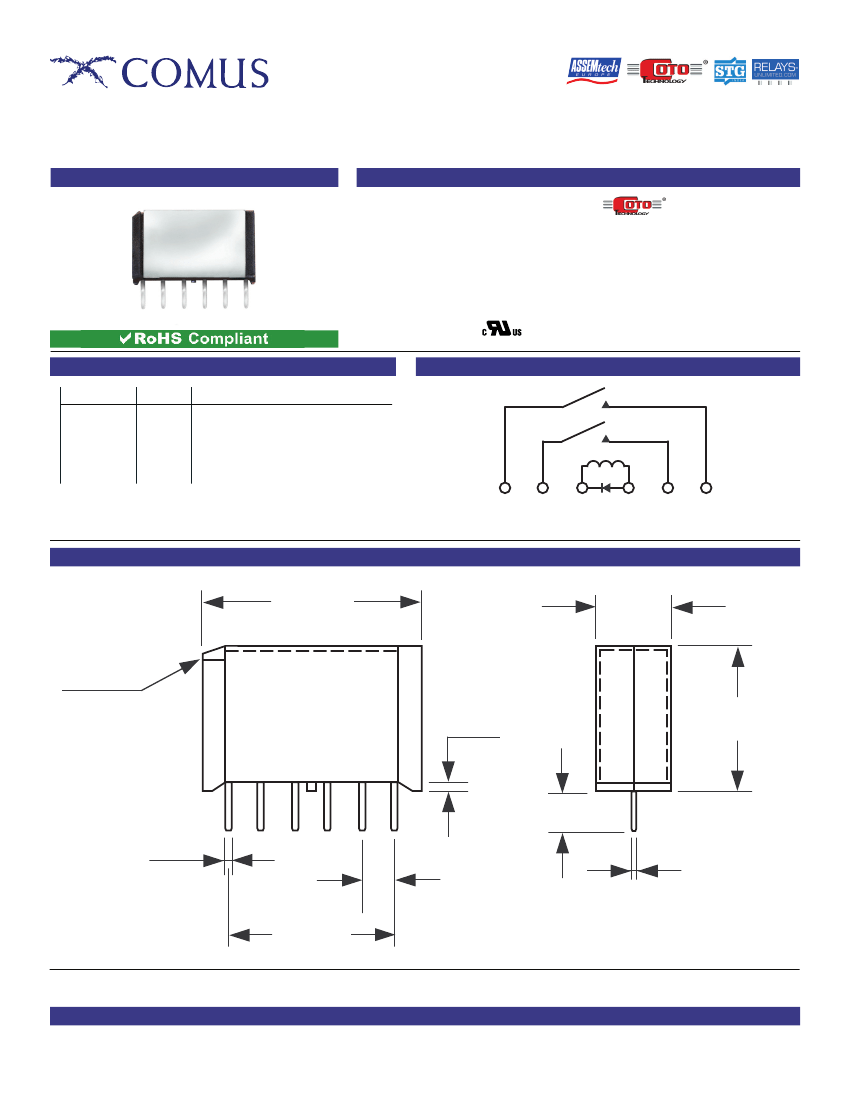

Relays
Part Number: 3570 1421 Series
Instrumentation Grade Mini SIP - 2 Form A
Product Data Sheet
FEATURES
• High Reliability Instrumentation Grade,
reed switches with
sputtered Ruthenium contacts.
• 2 Form A relay, ideal for high density test matrices.
• Standard external magnetic shield
• Coil suppression diode (option)
• Industry standard package.
• Hermetically sealed contacts for long life
• High Insulation Resistance: 10
12
Ω MIN
• UL File E358613
®
ORDERING INFORMATION
Series
3570.1421.
Coil
05
12
Options
2 = external shield
4 = external shield + diode
SCHEMATIC
Part Number Example:
3570.1421.xxx
3570.1421.052 = 10 Watt, 2 Form A, 5 volt coil with external shield
1
2
+
3
4
_
5
6
DIMENSIONS
0.6 (15.20)
0.15 (3.81)
INDICATES
PIN #1
0.02
(0.51)
0.35
(8.89)
1
2
3
4
5
6
0.125 (3.18)
0.02
(0.51)
0.1
(2.54)
0.01
(0.25)
0.5 (12.70)
Drawings not to scale.
All dimensions in inches (mm) nominal.
As part of the company policy of continued product improvement, specifications may change without notice. Our sales office will be pleased to help you with the latest information on this product range and
the details of our full design and manufacturing service. All products are supplied to our standard conditions of sale unless otherwise agreed in writing.
Phone: (1) 973 777 6900
www.comus-intl.com
Fax: (1) 973 777 8405
Belgium: + 32 (0)12 390400 - Comus Europe Ltd (Assemtech) UK: +44 (0) 1255 862236 - Germany: +49 (0)911 923 15 943 - Netherlands: +31(0)45 54 39 345 - India: +(91) (44) 43219090
©2015 Copyright Comus International, 454 Allwood Road, Clifton NJ 07012, USA
1 / 2015
An ISO 9001 Certified Company
Relays
Part Number: 3570 1421 Series
Instrumentation Grade Mini SIP - 2 Form A
Product Data Sheet
COIL DATA-STANDARD TYPE 2 FORM A (at 20˚C)
NOMINAL VOLTAGE
DC±10%[V]
COIL RESISTANCE
±10%
(Ω)
MAX OPERATE
VOLTAGE (VDC)
MIN RELEASE
VOLTAGE (VDC)
MAX COIL
VOLTAGE (VDC)
5
12
375
750
3.8
9.0
0.4
1.0
7
16
CONTACT RATING
Max Switching Power
Max Switching Voltage
Max Switching Current
Max Carry Current
10 W
200 VDC
0.5 A
1.5 A
SPECIFICATION
Contact Resistance (Initial)
Operate Time - including bounce (Typical)
Release Time (Typical)
Insulation Resistance @ 100V, 20°C, 40% RH (MIN)
Dielectric Strength (MIN)
Capacitance Across Open Contacts (Typical)
Capacitance Open Contacts to Coil (Typical)
Vibration
Shock Resistance
Operating Temperature
Storage Temperature
Life Expectancy of Electrical (Typical)
MAX 150 mΩ
0.75 ms (at Nominal Voltage)
0.5 ms
10
12
Ω
Across Contacts 200 V DC / peak AC
Contacts to Coil 200 V DC / peak AC
Contacts / Shield to Coil 1500 V DC / peak AC
1.0 pF
1.4 pF
20G
50G
-40° +85°C
-40° +100°C
500 x10
6
ops (1 VDC, 10mA)
