MEC8-110-02-L-VP datasheet, PDF

Datasheet> All Categories > The connector> The connector> MEC8-110-02-L-VP

MEC8-110-02-L-VP: Description.8MM MINI-EDGE CARD ASSEMBLY; CategoryThe connector The connector; File Size828KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

MEC8-110-02-L-VP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MEC8-110-02-L-VP	-	-	View	Buy Now

MEC8-110-02-L-VP Overview

.8MM MINI-EDGE CARD ASSEMBLY

MEC8-110-02-L-VP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	3 weeks
Samacsys Description	Standard Card Edge Connectors 0.80 mm Mini Edge Card Connector, Vertical
Body/casing type	SOCKET
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.8 mm
Termination type	PRESS FIT
Total number of contacts	20
Base Number Matches	1

Preview

Download Datasheet

View All

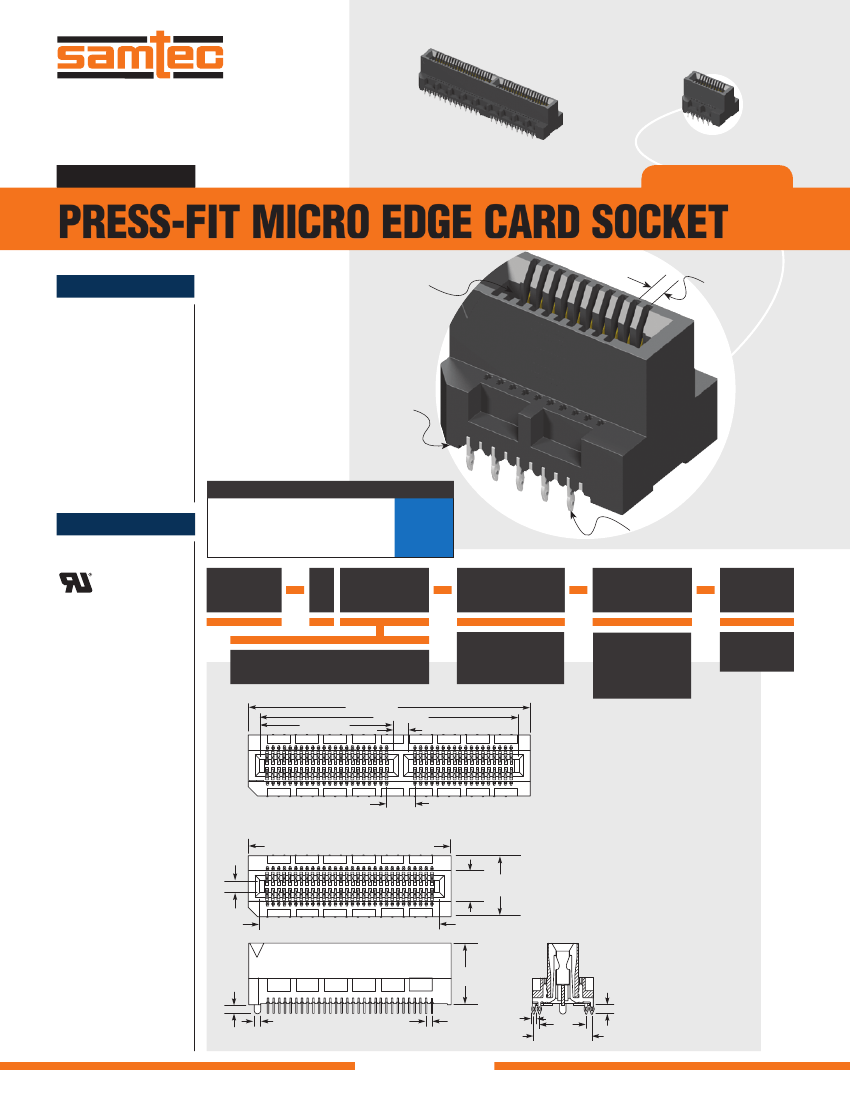

F-219

MEC8–110–02–L–VP

MEC8–140–02–L–VP

(0.80 mm) .0315"

MEC8-VP SERIES

PRESS-FIT MICRO EDGE CARD SOCKET

SPECIFICATIONS

For complete specifications and

recommended PCB layouts see

www.samtec.com?MEC8-VP

Insulator Material:

Liquid Crystal

Polymer

Contact Material:

Copper

Plating:

Au or Sn over

50 µ" (1.27 µm) Ni

Operating Temp Range:

-55 °C to +125 °C

Current Rating:

3.3 A per pin

(2 adjacent pins powered)

Voltage Rating:

188 VAC/265 VDC

RoHS Compliant:

Yes

Mates with:

(1.60 mm) .062" thick card

Mates with (1.60 mm)

.062" thick card

(0.80 mm)

.0315" pitch

Variety of

lead counts

HIGH-SPEED CHANNEL PERFORMANCE

MEC8-VP

Rating based on Samtec reference channel.

For full SI performance data visit Samtec.com

or contact SIG@samtec.com

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

FILE NO. E111594

G b p s

Press-fit tails

on staggered pattern

MEC8

POSITIONS

PER ROW

CARD

THICKNESS

PLATING

OPTION

TAIL

10, 20, 30, 40

= (1.60 mm) .062"

thick card

–02

= 10 µ" (0.25 µm)

Gold on contact,

Matte Tin on tail

–L

= Press-fit

–VP

(39.80) 1.567

(36.60) 1.441

(18.90) .744

(2.00) .0787

(4.00) .157

40 POSITIONS

No. of Positions x (0.80) .0315 + (4.60) .181

(1.80)

.071

(4.40) (8.60)

.339

.173

Notes:

Patent Pending

While optimized for

applications, this

connector with alternative

signal/ground patterns may

also perform well in certain

applications.

Some sizes, styles and

options are non-standard,

non-returnable.

No. of Positions x (0.80) .0315 + (1.40) .055

(1.40)

.055

(8.80)

.346

(0.59)

.023

(1.23)

.048

(6.60)

.260

(8.20) .323

(1.20) .047

(0.80) .0315

10, 20, 30 POSITIONS

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM
