GENERAL SPECIFICATIONS:
RATING:
CABLE TYPE / SIZE:
TEMPERATURE RATING:
CONDUCTOR COLORS:
CABLE JACKET COLOR:
OVERALL LENGTH (L):
CABLE OUTER DIAMETER:
END ‘A’ TERMINATION:
END ‘B’ TERMINATION:
APPROVALS PLUG:
APPROVALS CABLE:
10A / 125V AC
SJT, 18 AWG X 3C, BLACK
105° C
BLACK / WHITE / GREEN
BLACK
2450 + 50 mm
7.8 + 0.1 mm
MEDICAL GRADE NEMA 5-15P, BLACK
IEC 320 / C13, BLACK
UL, CSA or cUL
UL, CSA or cUL
PACKING:
HANKING
NOTES:
1. CORD, PLUG AND CONNECTOR MUST BE MARKED WITH
APPROVAL SYMBOLS OR FILE NUMBER(S).
DASH
NO.
PART NO
REV.
DESCRIPTION
NOTES
TABULATION BLOCK
OR
Foot Note:
Globtek Inc. will not be liable for the
safety and performance of these power
Contents of this document
product if unauthorized access and repair
are subject to change without occurs. End user should consult the applica-
prior notice
ble UL,CSA or EN Standards for proper
installation instruction.
Limitation of Use:
Globtek product are not authorized for use as
mission critical components in life support,
hazardous environment, nuclear or
aircraft applications without prior written
approval from the CEO of Globtek Inc.
TOLERANCES:
DECIMALS
.xx +/- 0.1
.xxx +/- .005
ANGULAR
+/- 1
o
www.globtek.com
186 Veterans Dr. Northvale, NJ 07647
Tel. 201-784-1000 Fax 201.784.0111
INIT.BY: DMR DATE:
04/13/04
DRAWN: NF DATE:
04/13/04
APRVD: DMR DATE:
04/13/04
MILLIMETERS
.xx +/- 0.3
.xxx +/- .013
ANGULAR
+/- 1
o

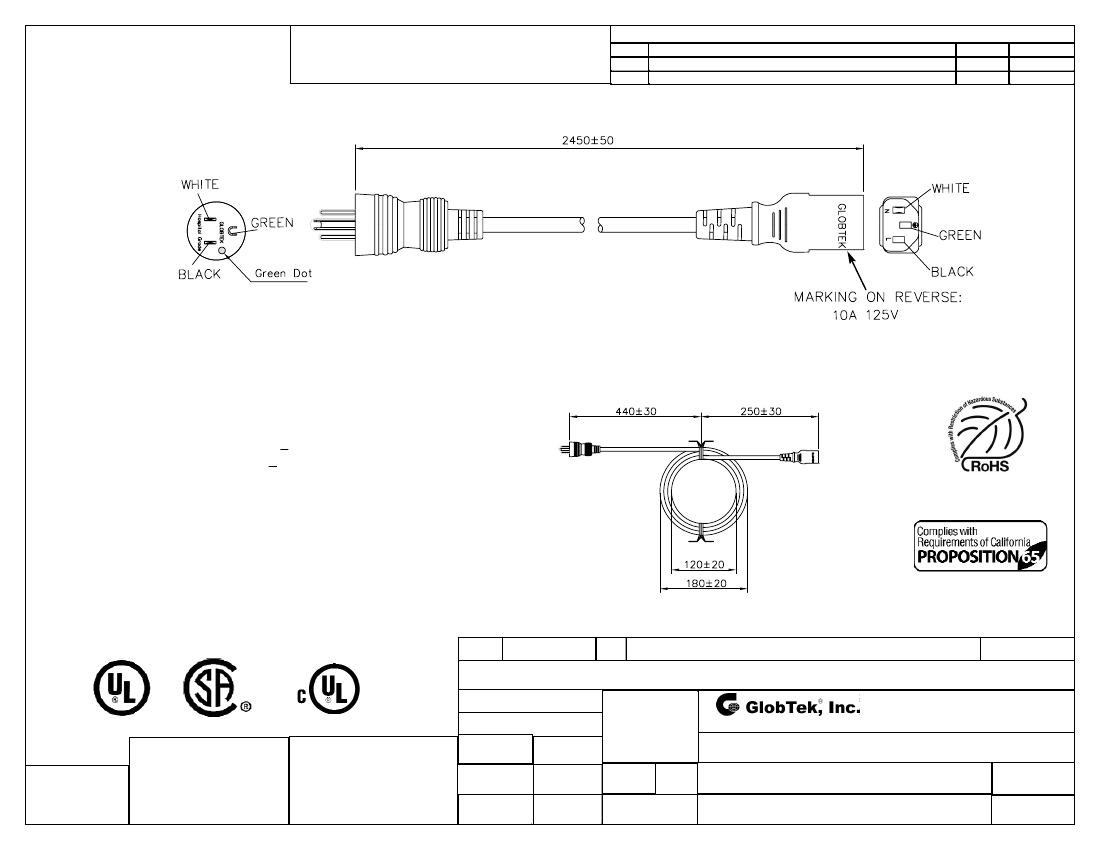

DWG TITLE: MEDICAL GRADE NORTH AMERICAN DETACHABLE
CORDSET
REV.
FSCN No.:
G, CC, YL
SI Z E
A
PART NO:
B
1191068F0701(R)
SHEET 1 / 1
SCALE: NONE
