1
Table 1:
P/N.
2
connector
White
Black
Cable
White
Black
3
White Print
Without
With
4
REV.
A
5
ECN NO.
Initial Release
6
DATE
2017-05-16
SIGN
Fisher Wang
7
DESCRIPTION
Rev. 01 to A
8
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. IT IS CONFIDENTIAL AND A
F
SSL12-J2LJ0-0XXFXX
SSL12-J2LJ0-0XXHXX
QC
41.4
23.1
QC
L(mm)
9.0
E
12.5
Pin 1
Cable Mark
Pin 2
White Print
(see table 1)
The cable mark on this surface
T
A
L
W
2
Cable
W
D
1 Connector
(Color see table 1)
CONFIDENTIAL
2017-05-16
R&D DEPT.
PROPERTY OF Amphenol LTW. DISCLOSURE TO THIRD PARTY HAS TO BE AUTHORIZED BY
C
SSL12-J2LJ0-0XX X XX
Pin 1
Pin 2
XX: 1M~99M
01: 1M
02: 2M
:
99: 99M
F: White
H: Black
18: 18AWG(W=5.3,H=3.4)
20: 20AWG(W=5.0,H=3.2)
TITLE
H
Cable Length Tolerance:
01M: ±40mm
02M~06M: ±60mm
06M~10M: ±100mm
11M~30M: ±200mm
31M~99M: ±500mm
B
2
1
Conn
Conn.
Red 紅
Brown 棕
Wire Color
Pin Out
Notes:
*
QC
Important Dimension To Check.
* Current Rating:5A
* Voltage Rating:300V DC/AC
* Waterproof Rate:IP68(mating)
1M Depth Of Water In 24 Hours.
* Housing: Thermoplastic, UL94V-0,
color see table 1.
* Terminal:Copper Alloy, Gold Plated.
* Seals: Silicone, Gray.
* Cable:UL21996, Flat Cable, UV Resistance,
color see table 1.
* Temperature Range: -40~+105℃
A
UNIT:mm
# 0.5
1

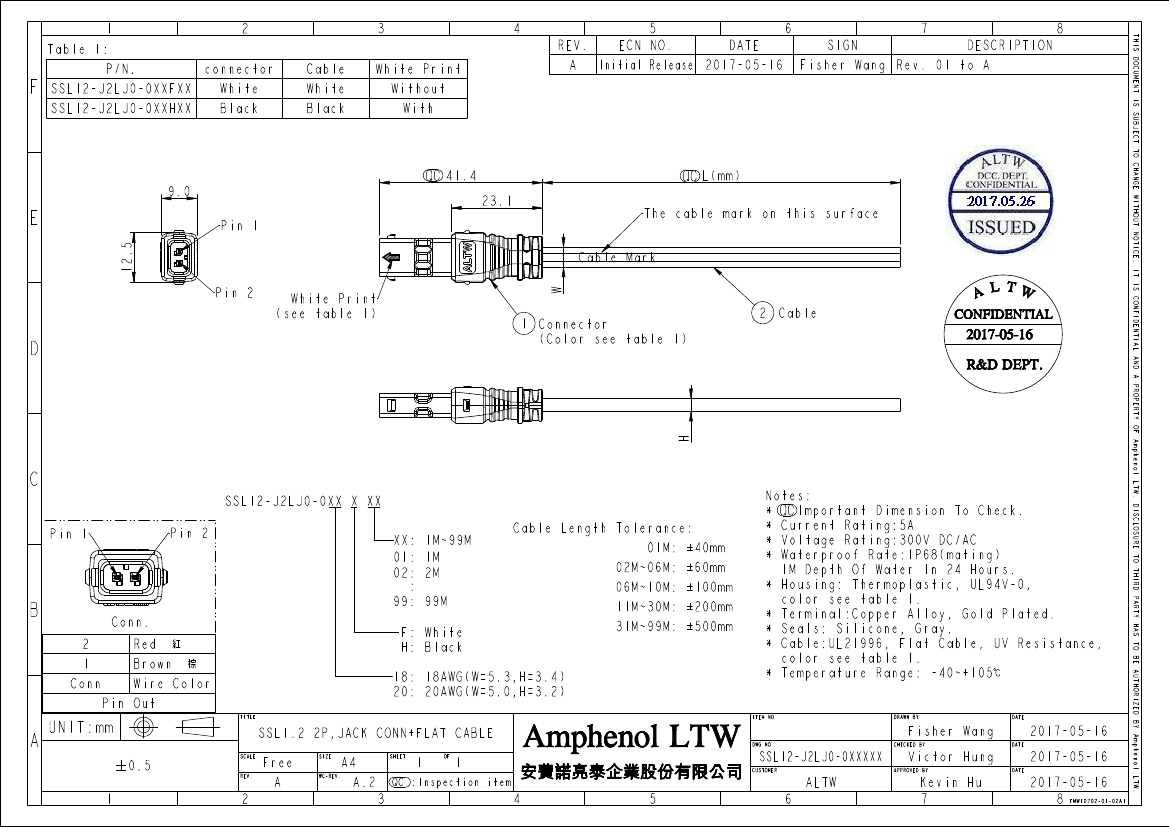

SSL1.2 2P,JACK CONN+FLAT CABLE
SCALE
Free
A
SIZE
A4
A.2
3
SHEET
1
OF
Amphenol LTW
4
5
ITEM NO
DRAWN BY
DATE
Fisher Wang
DWG NO
CHECKED BY
DATE
2017-05-16
2017-05-16
DATE
Amphenol LTW.
1
SSL12-J2LJ0-0XXXXX
CUSTOMER
Victor Hung
APPROVED BY
REV.
WC-REV.
QC :Inspection item
ALTW
6
2
Kevin Hu
7
2017-05-16
8
FMW10702-01-02A1
Microchip MCU
