TCSD-17-01-F-N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> TCSD-17-01-F-N

TCSD-17-01-F-N: Description2MM DOUBLE ROW FEMALE IDC ASSEMB; CategoryThe connector The connector; File Size588KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

TCSD-17-01-F-N Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TCSD-17-01-F-N	-	-	View	Buy Now

TCSD-17-01-F-N Overview

2MM DOUBLE ROW FEMALE IDC ASSEMB

TCSD-17-01-F-N Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	2 weeks
body width	0.157 inch
subject depth	0.125 inch
body length	1.5 inch
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	TCSD
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	2.8 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	34
Maximum wire diameter	28 AWG
Minimum wire diameter	28 AWG

Preview

Download Datasheet

View All

F-219

(2.00 mm) .0787"

EYE

™

IDC

TIGER

™

TCSD

TMM

.26" (6.6 mm)

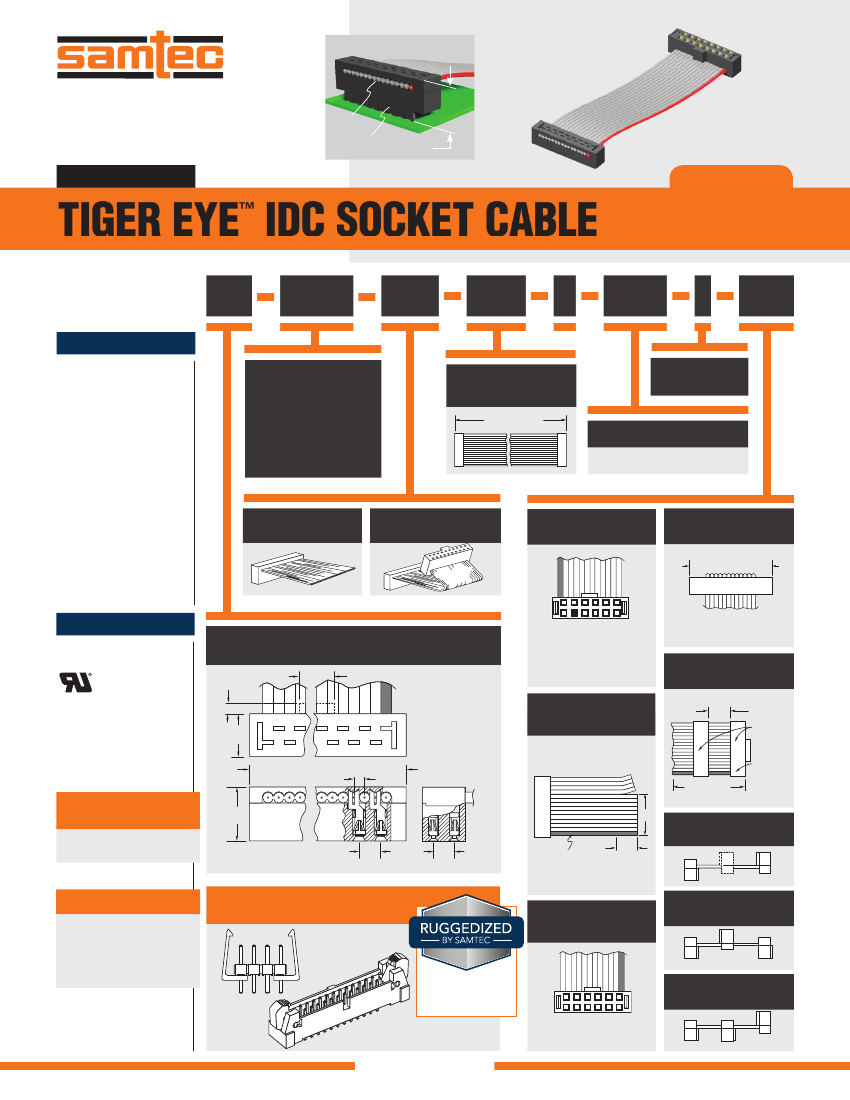

TCSD–08–D–02.00–01–N–R

TCSD SERIES

TIGER EYE IDC SOCKET CABLE

Mates with:

TMM, TMMH, STMM,

MMT, TW, MTMM, EHT,

ETMM (-SR), ZSTMM

TYPE

STRIP

NO. PINS

PER ROW

END

OPTION

LENGTH

PLATING

OPTION

OTHER

OPTION

SPECIFICATIONS

For complete specifications

see www.samtec.com?TCSD

Insulator Material:

Black Glass Filled Polyester

Contact:

BeCu

Plating:

Au or Sn over 50 µ" (1.27 µm) Ni

Wire:

28 AWG 7/36 Stranded,

Tinned, Copper with

Gray PVC Insulator

Current Rating (TCSD/STMM):

2.8 A per pin

(2 pins powered)

Operating Temp Range:

-40 °C to +105 °C

Lead Size Accepted:

(0.48 mm) .019" to

(0.53 mm) .021"

Insertion Depth:

(2.87 mm) .113" to

(3.17 mm) .125"

RoHS Compliant:

Yes

–04, –05,

–06, –07,

–08, –10, –12,

–13, –15, –17,

–20, –22, –25

(Standard sizes)

= Assembled Length

Assembled Length

in INCHES (±

2 inches minimum

–“XX.XX”

= Notch Polarization

–N

–F

= Gold flash on contact

Leave blank for standard plating:

30 µ" (0.76 µm) Gold on contact area

= Single End

–S

= Double End

–D

= Position Polarization

–P “XX”

= Strain Relief

No. of positions x

(2.00) .0787 + (7.874) .3100

–SR

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

(1.02)

.040

FILE NO. E111594

= Socket Strip

(3.17)

.125

TCSD

Specify “XX” as position

number. Same position

will be polarized on

both ends.

Not available with –O, –M,

–R, –DXX or –BXX

–D “XX”

= Daisy Chain

min.

–B “XX”

= Breakout

Specify “XX” as number of

conductors to be broken out.

“XX”

1/8"

Double

Row

Connectors

Outer

Most

(End of

assembly)

(4.00)

.158

No. of positions x (2.00) .0787 + (4.00) .157

(1.00) .039

4" minimum

ALSO AVAILABLE

(MOQ Required)

• Other sizes

• Other platings

(5.08)

.200

5"max.

2"min.

Breakout starts with Number 1

lead indicated by brown wire or

red stripe. Shown on top side.

“XX”

(2.00)

.0787

(2.00)

.0787

= Reversed

–R

POLARIZING KEY

Specify PK-01-07 for

polarizing key (Available

in wheels of six each).

Also polarizes SMM

Series socket strips.

EJECTOR HEADERS &

LOCKING CLIPS

See TMM Series.

= Reverse Wiring

Requires –DXX

–RW

= Middle Reverse

–M

• Ejector headers

• Locking clips

• Strain relief option

= Outside Reverse

–O

Note:

TCSD Series assemblies are

non-standard, non-returnable.

See EHT Series.

Blue or black wire

opposite position #1.

Requires –DXX

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM
