GENERAL SPECIFICATIONS:
RATING:
CABLE TYPE / SIZE:
TEMPERATURE RATING:
CONDUCTOR COLORS:
CABLE JACKET COLOR:
OVERALL LENGTH (L):
CABLE OUTER DIAMETER:
END ‘A’ TERMINATION:
END ‘B’ TERMINATION:
APPROVALS PLUG:
APPROVALS CABLE:
APPROVALS CONNECTOR:
10A / 250V AC
SJT, 18 AWG X 3C
60° C
BLACK / WHITE / GREEN
BLACK
2500 + 20 mm
7.8 + 0.1 mm
NEMA 6-15P
IEC 320 / C13
UL, CSA OR cUL
UL, CSA OR cUL
UL, CSA OR cUL
PACKING:
BULK PACKED, BUNDLES OF 25.
MAXIMUM SHIPPING CARTON WEIGHT IS 30 KG.
NOTES:
1. CORD, PLUG AND CONNECTOR MUST BE MARKED WITH
APPROVAL SYMBOLS OR FILE NUMBER(S).
DASH
NO.
PART NO
REV.
DESCRIPTION
NOTES
OR
DECIMALS
.xx +/- 0.1
.xxx +/- .005
TABULATION BLOCK
TOLERANCES:
ANGULAR
+/- 1
o
www.globtek.com
186 Veterans Dr. Northvale, NJ 07647
Tel. 201-784-1000 Fax 201.784.0111
Foot Note:
Globtek Inc. will not be liable for the
safety and performance of these power
Contents of this document
product if unauthorized access and repair
are subject to change without occurs. End user should consult the applica-
prior notice
ble UL,CSA or EN Standards for proper
installation instruction.
Limitation of Use:
Globtek product are not authorized for use as
mission critical components in life support,
hazardous environment, nuclear or
aircraft applications without prior written
approval from the CEO of Globtek Inc.
INIT.BY: JS
DRAWN: NF
DATE:
06/09/05
DATE:
06/09/05
MILLIMETERS
.xx +/- 0.3
.xxx +/- .013
ANGULAR
+/- 1
o

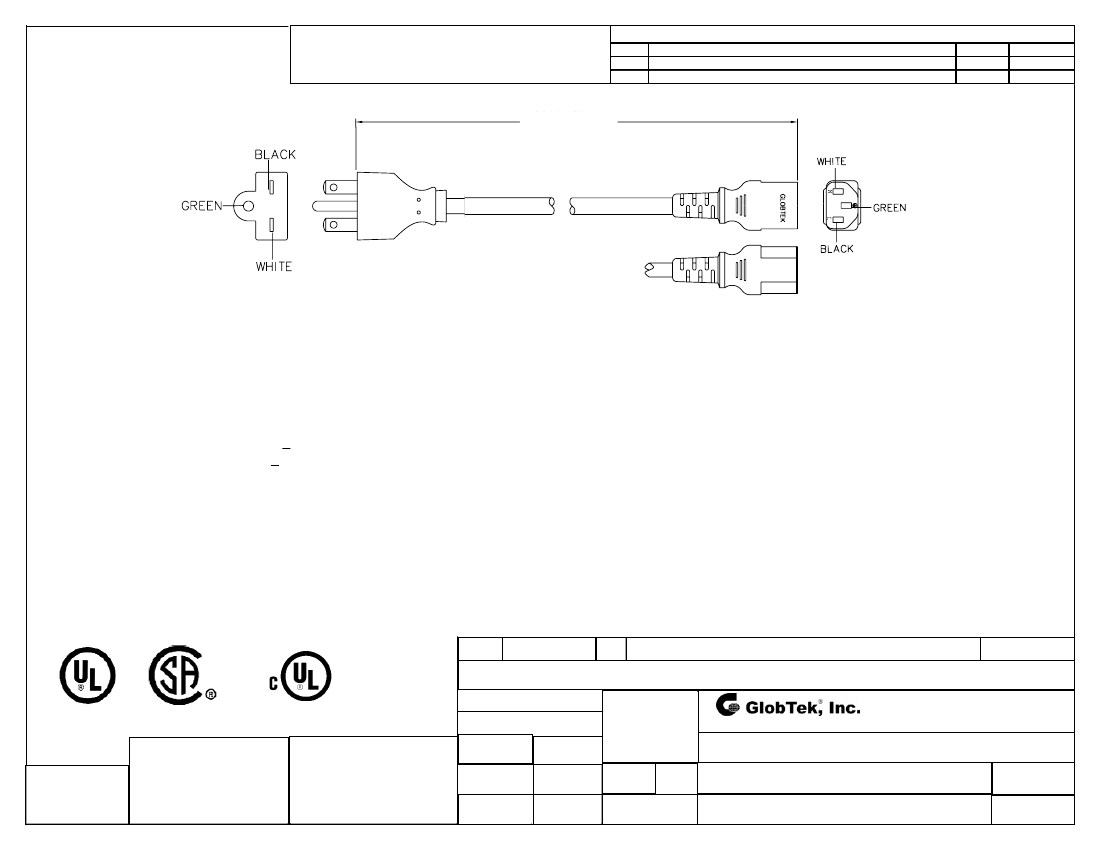

DWG TITLE: NORTH AMERICAN DETACHABLE CORDSET
MODEL:
PART NO:
N/A
REV.
FSCN No.:
G, CC
SI Z E
A
A
SHEET 1/1
APRVD: DMR DATE:
06/09/05
SCALE: NONE
3611068F2701
