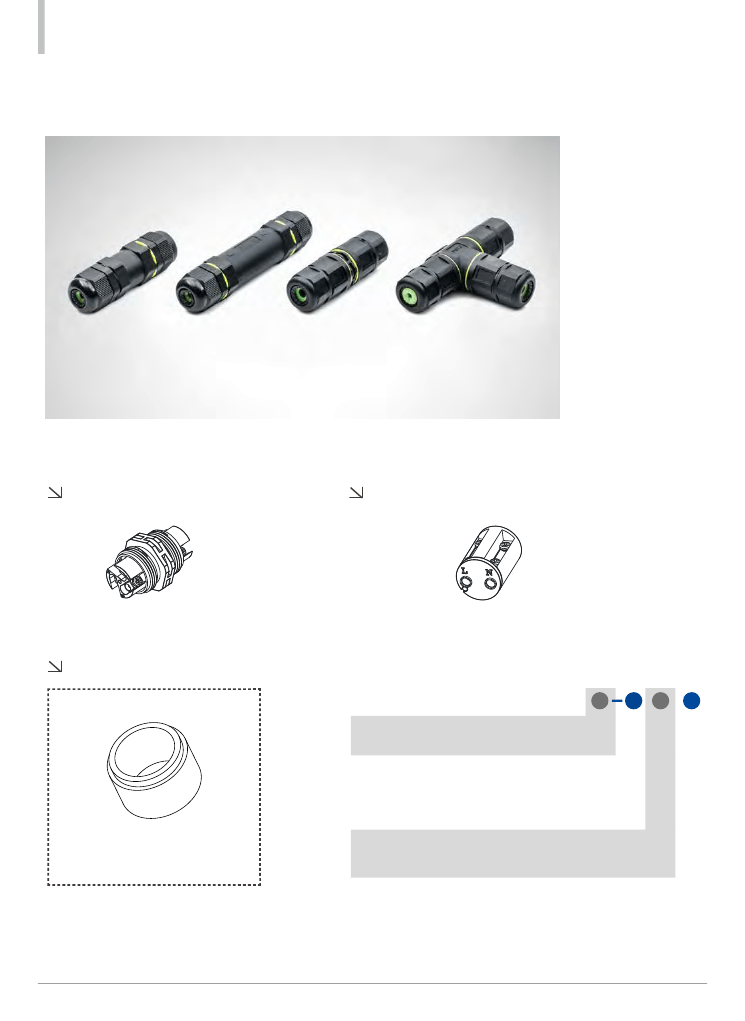

FICX Connector I Range Overview I Ordering Information
IP 68
FICX Connector
Range Overview
Terminal Type: Screw
Terminal Type: End barrier screw
Accessories
Ordering Information
1
Specification
(SC-L)
Cable Joiner
Shape
(PG11)
I Tube Cable Joiner Screw type
(PG12)
I Tube Cable Joiner End Barrier Screw Type
(PG13)
Long Tube Cable Joiner End Barrier Screw Type
(PGT2)
T Tube Cable Joiner Screw type
2
3
4
Seal
Number of Contacts
(02)
2 Contacts
(04)
4 Contacts
Cable O.D. (Seal Color)
(00)
Without Seal
(BL)
4.5~6.5mm
(YW)
6.6~8.5mm
(GN)
8.6~10.5mm
(RD)
PG11 & PGT2: 10.6 ~ 12.5mm
PG12 & PG13: 10.6 ~ 11.5mm
(03)
3 Contacts
16-1 Amphenol LTW Technology Co., Ltd.

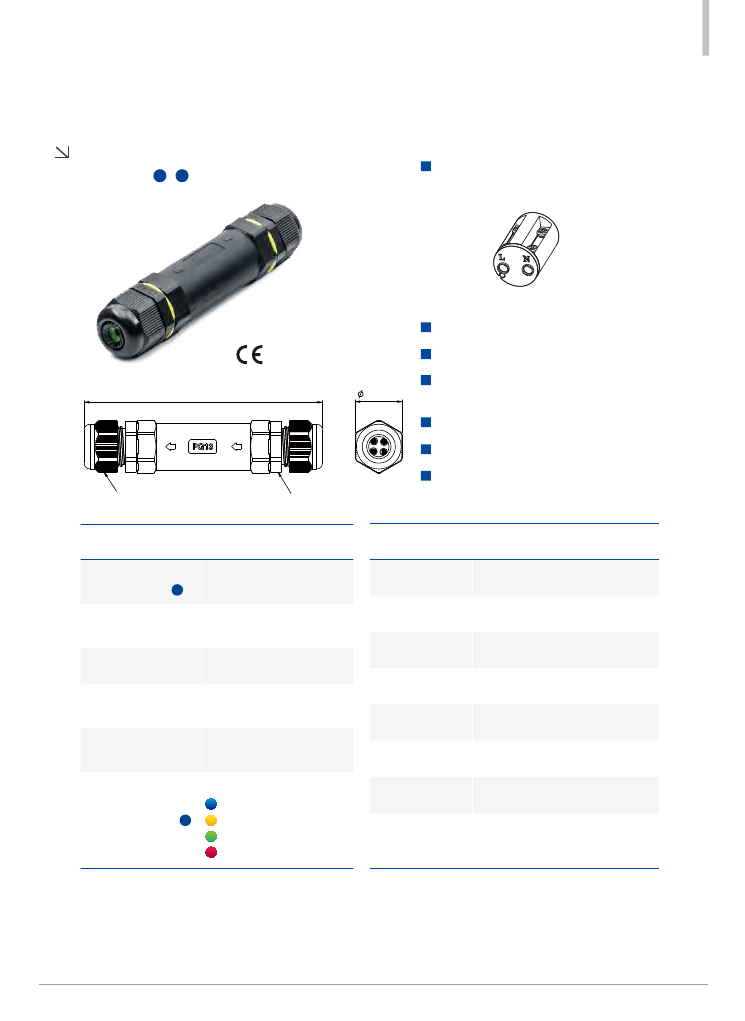

FICX Connector I Find Our Standard Products
I Tube
Find Our Standard Products
I Tube
SC-L-PG11-
1
-
2
Screw type of terminal block housing
Waterproof rating: IP68 (50m/24hrs)
RoHS
86.8 (Ref.)
25.8
In-house UV resistance test: 720hrs
Accommodate a wide range of wire
and cable's OD
Quick and easy Installation
Color Identification for sealing
Easy-grip design
Unit: mm
*Spanner: 24mm
General Specification
Number of
Positions
(Code
Current Rating
Voltage Rating
Operating
Temperature
Wire Section
1
Material Specification
Gland Nut
Gasket
L-Gasket
PA6+GF, Black
Silicon, Yellow
Silicon, Yellow
Silicon
PA66, Black
PA66+GF, Black
Brass, Nickel Plated
Stainless Steel
)
2P
(02)
, 3P
(03)
, 4P
(04)
20A for 2P, 3P &4P
450V
Seal
-40°C~105°C
Gland Pipe
18~14 AWG
(0.75~2.5 mm
2
)
(00)
Without Seal
(BL)
4.5~6.5mm
(YW)
6.6~8.5mm
(GN)
8.6~10.5mm
(RD)
10.6~12.5mm
Terminal Block
Housing
Contact
Screw
Cable OD
(Seal Color, Code
2
)
【Note】Design
and specification are subject to change without notice.
Innovation in Waterproof Solution 16-2
FICX Connector I Find Our Standard Products
I Tube
IP 68
I Tube
SC-L-PG12-
1
-
2
End barrier screw type of terminal
block housing
Waterproof rating: IP68 (50m/24hrs)
RoHS
86.3 (Ref.)
24.2 (Hex.)
In-house UV resistance test: 720hrs
Accommodate a wide range of wire
and cable's OD
Quick and easy Installation
Color Identification for sealing
Easy-grip design
24.0 (Hex.)
Unit: mm
23.8 (Hex.)
*Spanner: 24mm
General Specification
Number of
Positions
(Code
Current Rating
Voltage Rating
Operating
Temperature
Wire Section
1
Material Specification
Gland Nut
Gland Body
L-Gasket
Seal
PA6+GF, Black
PA66, Black
Silicone
Silicone
PA66, Black
PA66+GF, Black
Brass, Nickel Plated
Stainless Steel
)
2P
(02)
, 3P
(03)
, 4P
(04)
20A for 2P & 3P
15A for 4P
450V
-40°C~105°C
Gland Pipe
18~14 AWG
(0.75~2.5 mm
2
)
(00)
Without Seal
(BL)
4.5~6.5mm
(YW)
6.6~8.5mm
(GN)
8.6~10.5mm
(RD)
10.6~12.5mm
Terminal Block
Housing
Contact
Screw
Cable OD
(Seal Color, Code
2
)
16-3 Amphenol LTW Technology Co., Ltd.
FICX Connector I Find Our Standard Products
XI Tube
XI Tube
SC-L-PG13-
1
-
2
End barrier screw type of terminal
block housing
Waterproof rating: IP68 (50m/24hrs)
RoHS
122.3 (Ref.)
24.2 (Hex.)
In-house UV resistance test: 720hrs
Accommodate a wide range of wire
and cable's OD
Quick and easy Installation
Color Identification for sealing
Easy-grip design
24.0 (Hex.)
Unit: mm
23.8 (Hex.)
*Spanner: 24mm
General Specification
Number of
Positions
(Code
Current Rating
Voltage Rating
Operating
Temperature
Wire Section
1
Material Specification
Gland Nut
Gland Body
L-Gasket
Seal
PA6+GF, Black
PA66, Black
Silicone
Silicone
PA66, Black
PA66+GF, Black
Brass, Nickel Plated
Stainless Steel
)
2P
(02)
, 3P
(03)
, 4P
(04)
20A for 2 & 3P
15A for 4P
450V
-40°C~105°C
Gland Pipe
18~14 AWG
(0.75~2.5 mm
2
)
(00)
Without Seal
(BL)
4.5~6.5mm
(YW)
6.6~8.5mm
(GN)
8.6~10.5mm
(RD)
10.6~12.5mm
Terminal Block
Housing
Contact
Screw
Cable OD
(Seal Color, Code
2
)
【Note】Design
and specification are subject to change without notice.
Innovation in Waterproof Solution 16-4
FICX Connector I Find Our Standard Products

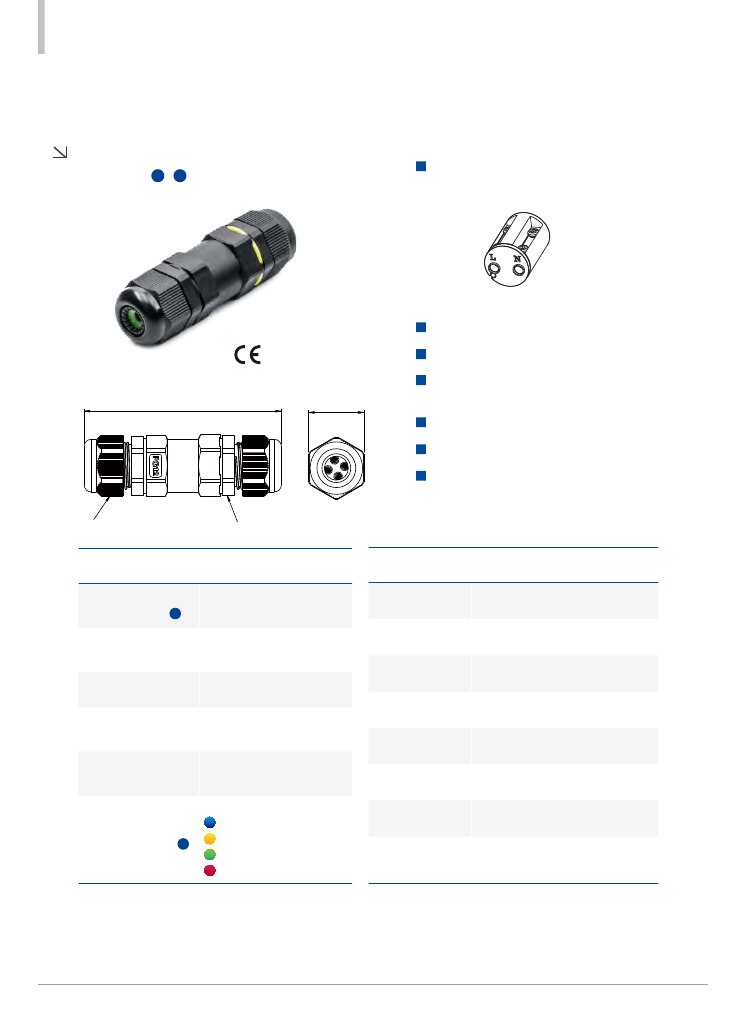

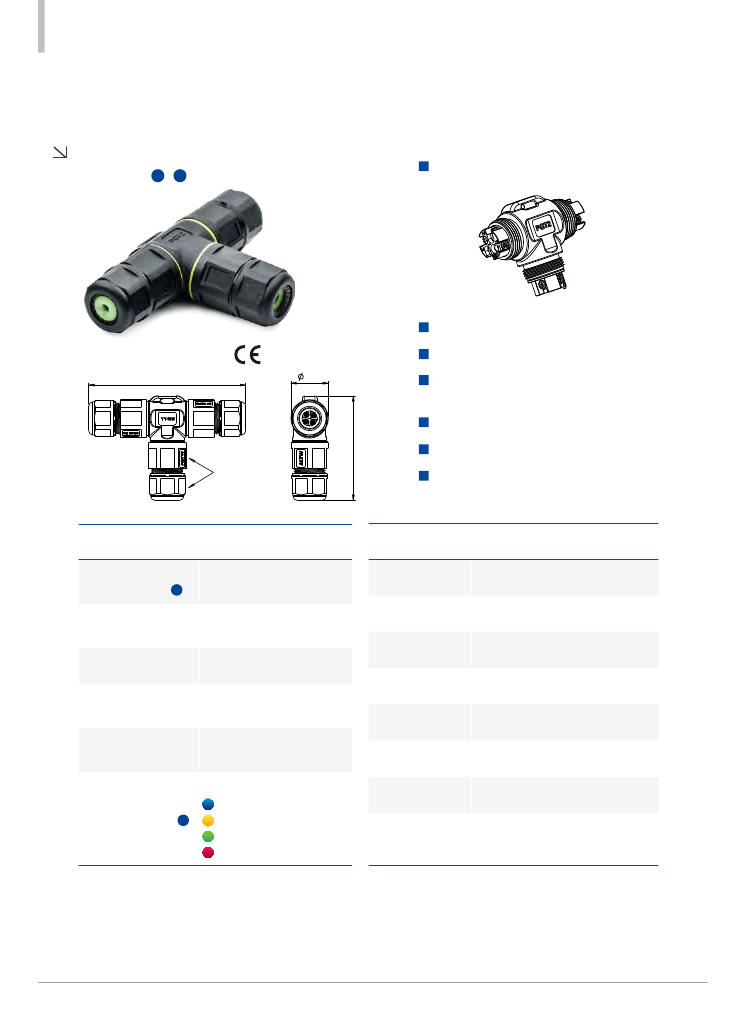

T Tube
IP 68
T Tube
SC-L-PGT2-
1
-
2
Screw type of terminal block housing
Waterproof rating: IP68 (50m/24hrs)
RoHS
108.2 (Ref.)
25.8
In-house UV resistance test: 720hrs
Accommodate a wide range of wire
and cable's OD
72.1 (Ref.)
Quick and easy Installation
Color Identification for sealing
Easy-grip design
23.7 (Hex.)
Unit: mm
*Spanner: 24mm
General Specification
Number of
Positions
(Code
Current Rating
Voltage Rating
Operating
Temperature
Wire Section
1
Material Specification
Gland Nut
Gasket
L-Gasket
Seal
PA6+GF, Black
Silicone, Yellow
Silicone, Yellow
Silicone
PA66, Black
PA66+GF, Black
Brass, Nickel Plated
Stainless Steel
)
2P
(02)
, 3P
(03)
, 4P
(04)
20A for 2P
15A for 3 & 4P
450V
-40°C~105°C
Gland Pipe
18~14 AWG
(0.75~2.5 mm
2
)
(00)
Without Seal
(BL)
4.5~6.5mm
(YW)
6.6~8.5mm
(GN)
8.6~10.5mm
(RD)
10.6~12.5mm
Terminal Block
Housing
Contact
Screw
Cable OD
(Seal Color, Code
2
)
16-5 Amphenol LTW Technology Co., Ltd.
