Model 5307 50
Ω

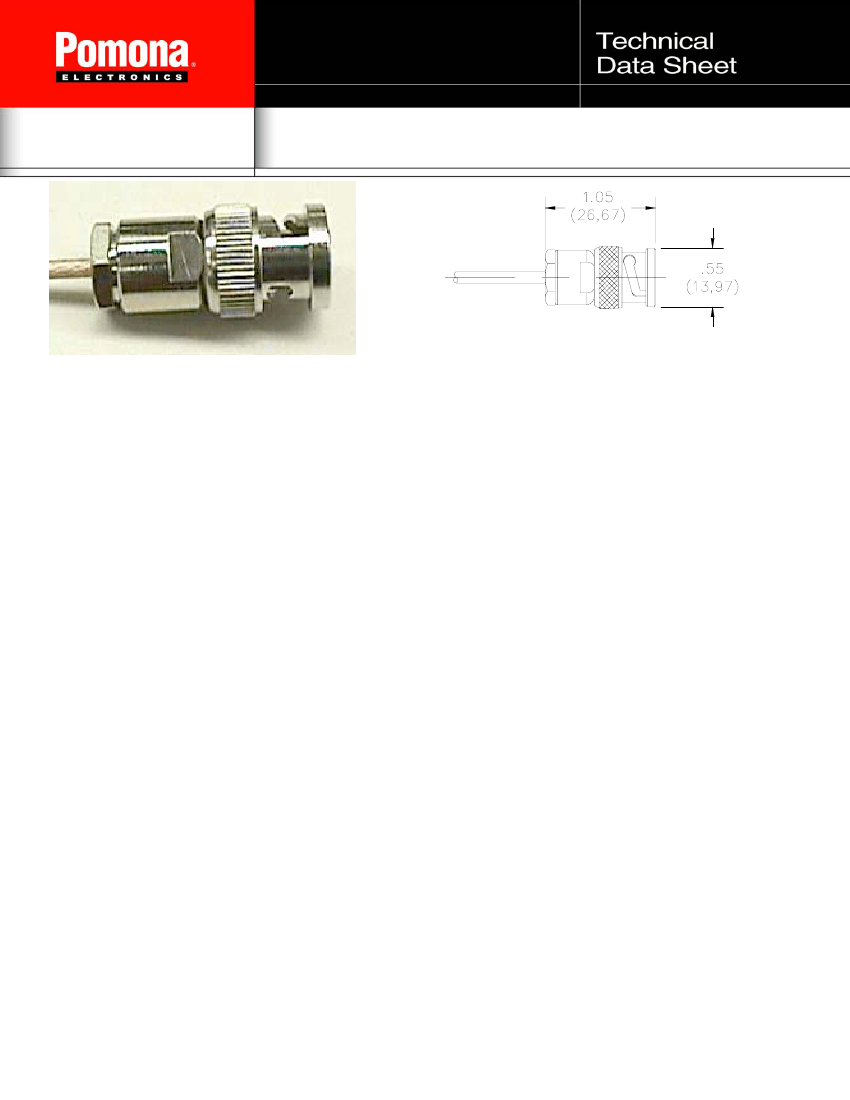

Male BNC Connector and Assembly
Instructions
Use Pomona 50
Ω
BNC
connectors for your favorite
custom applications
FEATURES:
•
Connector to accept Types
RG: 174,
179A, 179B, 187, 187A, 188, 188A
and 316/U
Connector designed to meet interface
requirements of MIL-STD-348
ORDERING INFORMATION:
Model 5307
RATINGS:
•
Operating Voltage: Hands free testing in
controlled voltage environment: 500
VRMS Max.
Nominal Impedance: 50 Ohms
•
•
MATERIALS:
•
•
•
•
•
•
Body and Hardware – Brass
Center Contact – Gold Plated Brass
Dielectric – PTFE
Gasket – Silicone Rubber
Body and Hardware – Tarnish Resistant
Finish
Center Contact – Gold Plated
ASSEMBLY INSTRUCTIONS:
See pages 2 and 3.
Sales:
800-490-2361
Fax:
888-403-3360
Technical Support:
800-241-2060
or e-mail us at
technicalsupport@pomonatest.com
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm),
.xxx = ± .005” (,127 mm). All specifications are to the latest revisions.
Specifications are subject to change without notice. Registered trademarks
are the property of their respective companies.
Copyright © 2005 07/2005 2391542 D-ENG-N Rev A Page 1 of 3
Where to Buy:
www.pomonaelectronics.com
Model 5307 50
Ω
Male BNC Connector and Assembly
Instructions
ASSEMBLY INSTRUCTIONS
Figure #1

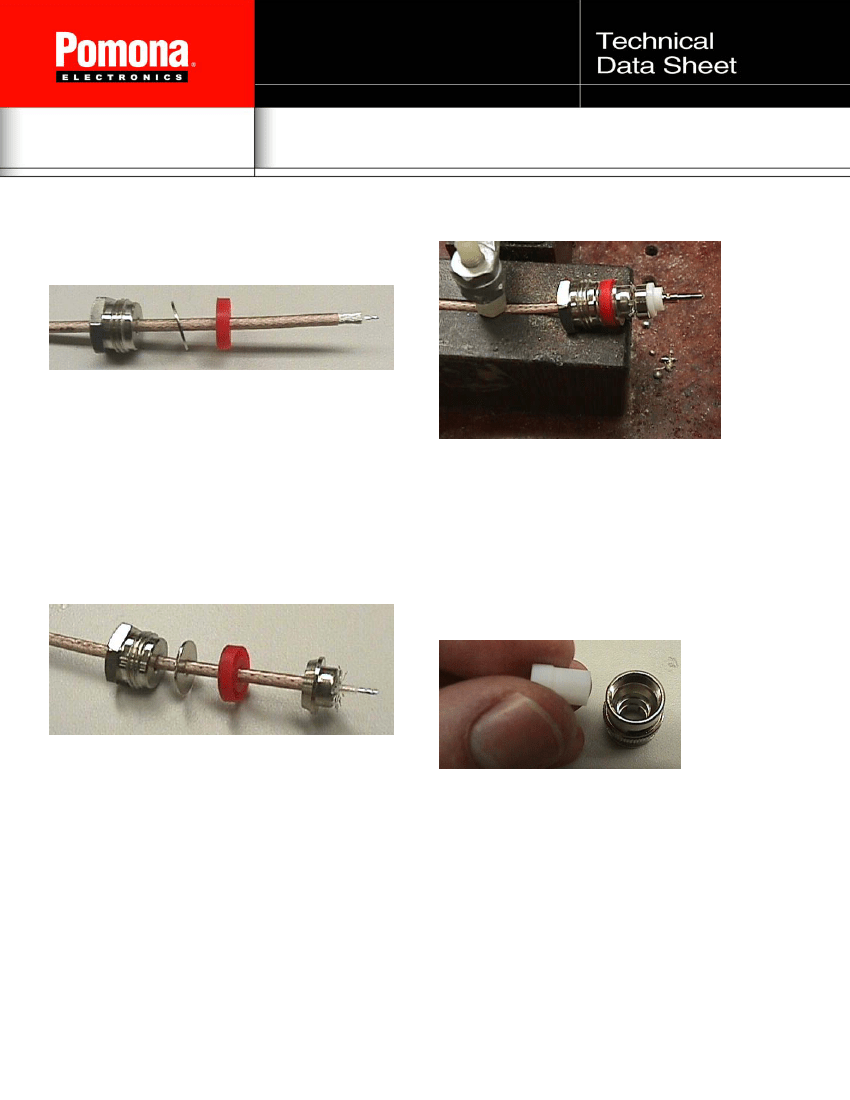

1. Cut cable to length and strip per
dimensions:
•
•
outer jacket: 0.320” (8.128 mm)
inner conductor: 0.140” (3.556 mm)
Figure #3
4. Install the metal spacer and rear
insulator. Solder the center contact in
place. Make sure the contact is
completely seated against the rear
insulator (see Figure #3).
2. Load the clamp nut, washer and V-Gasket
on to the cable as shown in Figure #1.
Figure #2
3. Install the braid clamp onto the cable and
fold the braid back flat as shown in Figure
#2. Make sure that all of the individual
strands of braid are flat against the braid
clamp.
Figure #4
5. Place the front insulator into the
connector housing. The open end of the
insulator should face the front of the
connector housing (see Figure #4).
Sales:
800-490-2361
Fax:
888-403-3360
Technical Support:
800-241-2060
or e-mail us at
technicalsupport@pomonatest.com
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm),
.xxx = ± .005” (,127 mm). All specifications are to the latest revisions.
Specifications are subject to change without notice. Registered trademarks
are the property of their respective companies.
Copyright © 2005 07/2005 2391542 D-ENG-N Rev A Page 2 of 3
Where to Buy:
www.pomonaelectronics.com
Model 5307 50
Ω
Male BNC Connector and Assembly
Instructions
Figure #5

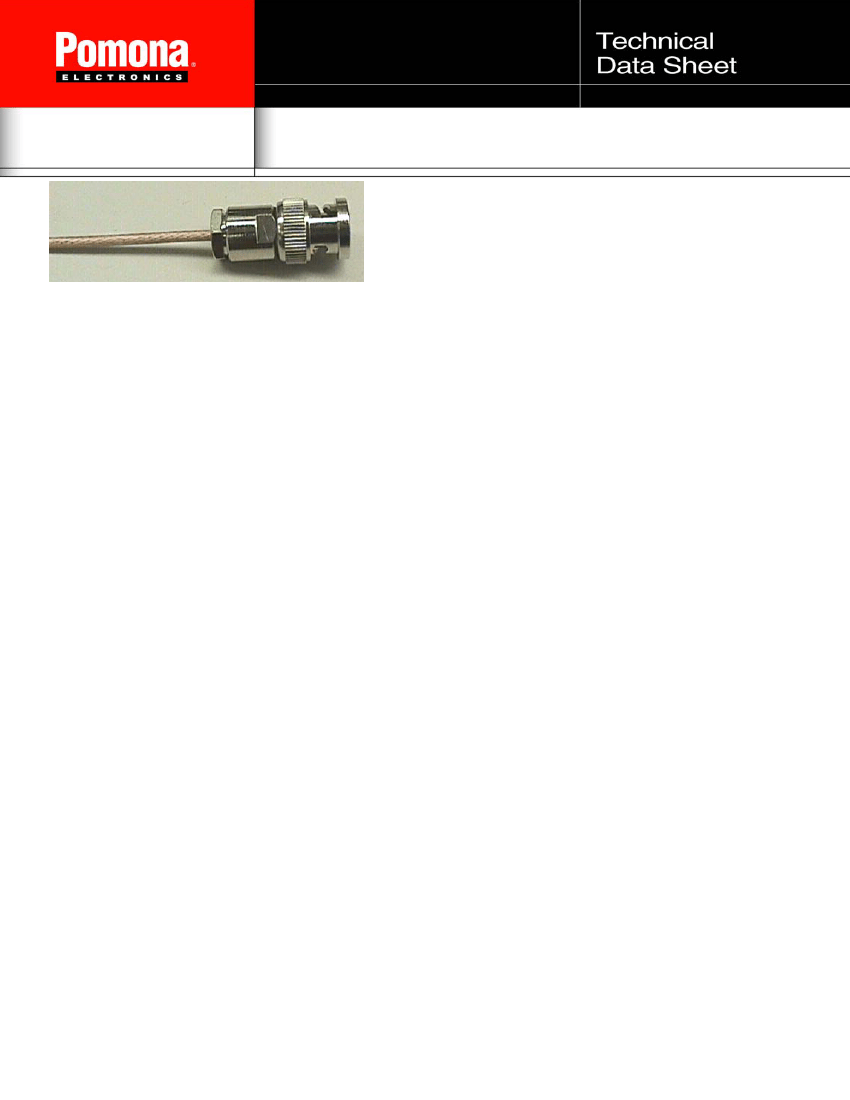

6. Assemble the cable into the connector
