DIN-rail or panel-mountable High-Current Universal-
Clamp Terminal Blocks offer a versatile solution
for high-current and voltage applications requiring
aluminum-to-aluminum, copper-to-copper or
aluminum-to-copper terminations

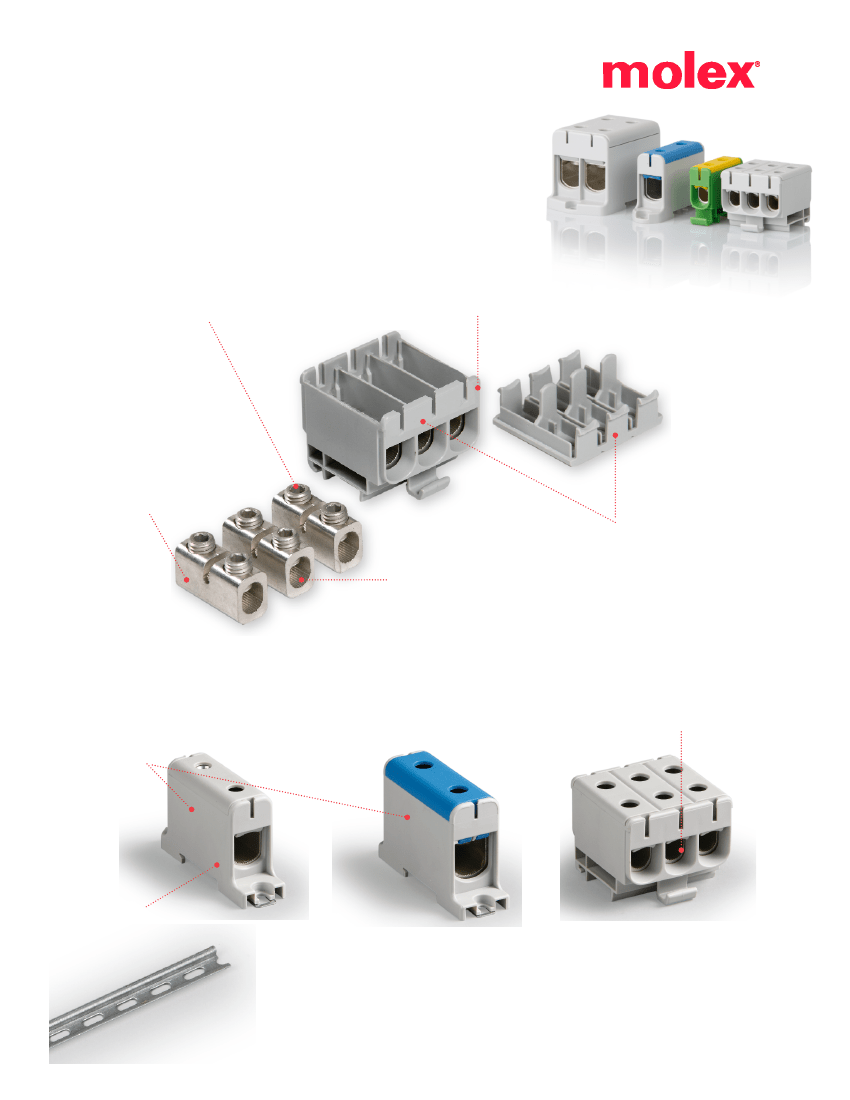

Features and Benefits
Hex Screws
Provide optimal
secureness to
stranded wire
Partition wall on cover
The wall provides a barrier between the
conductors to prevent oxidation
Tin coated Aluminum
contacts
Can be terminated to either
Aluminum or Copper wire
Single and Three Pole Versions Available
Multiple colors available
for Single Pole Versions
Standard color is grey. Similar
models are available with
different color covers for ease
of identification
Compound coating
A grease is applied to the insides
of the contacts to act as an
oxidation inhibitor to extend
shelf-life
Polyamide housing and cover
Suitable for -40 to +105°C operating
temperatures
Three Pole Version
Ideal for 3-phase
power applications
DIN-rail or through-
hole mountable
Flexible mounting to
match chassis design
Single pole models
available in the
following max.
amperage (per UL)
MX-KE61: 150A
MX-KE62: 230A
MX-KE63: 285A
MX-KE64: 380A
Three pole model
max. amperage
MX-KE61.03: 150A

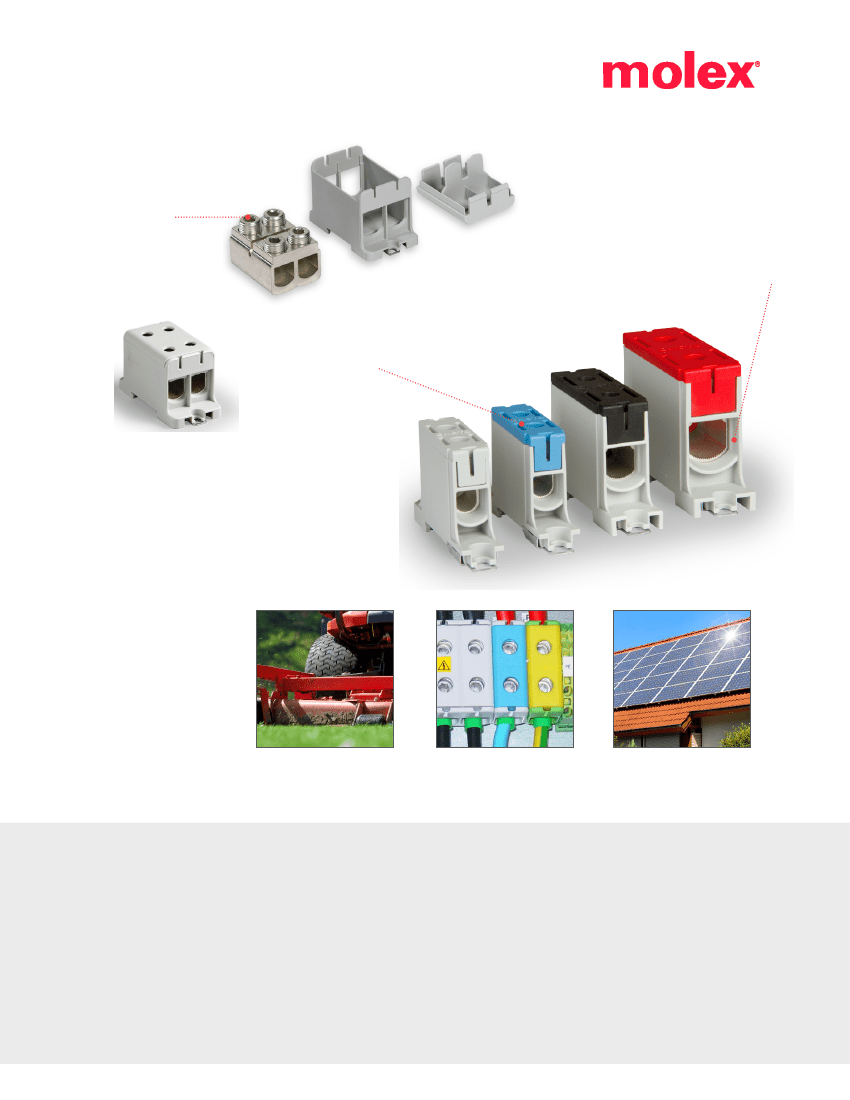

High-Current, Universal-Clamp
Terminal Blocks
Double housing and
600V (per UL), Single Pole Tapping Blocks Available
cover design
Single contact with
four terminations
Intended for power feed
applications
Single pole models available in the
following max. amperage (per UL)
MX-KE161: 150A
MX-KE162: 230A
MX-KE163: 285A
MX-KE66: 150A
MX-KE67: 230A
MX-KE68: 285A
MX-KE69: 380A
High temp Polyamide
housing and cover
Suitable for -40 to +125°C
operating temperatures
of a 1000V system
Different color
covers available
Red and black for
DC applications;
grey and blue for AC
applications
Applications
Motor inverters
Motor drives
Motor control systems
Switchgears
Power distribution panels and cabinets
Vehicle charging stations
Commercial vehicles
Electric trains
Photovoltaic (solar) systems
Commercial Vehicles
Motor Drive
Photovoltaic Systems
Specifications
REFERENCE INFORMATION
Certification Marks: UL, CE
Design Standards: UL: 1059
IEC: EN60947-7-1:2009; EN61238-1:2003
Designed In: Millimeters
RoHS: Yes
Halogen Free: Yes
Glow Wire Compliant: Yes
TECHNICAL INFORMATION
Maximum Voltage (UL): 600 or 1000
Amperage Range (UL): 120 to 380
Wire Range: 500 MCM to 6 AWG
PHYSICAL INFORMATION
Housing: Polyamide
Body and Screws: Tin-coated aluminum
MECHANICAL FEATURES
Recommended Tightening Torque: 10Nm – 40Nm
(90 in/lbs to 360 in/lbs)
Screw Head: Hexagonal
Mounting: Screws or DIN rail
Plating: Tin
Operating Temperature: -40 to +125°C
DIN-rail Size: 35mm
High-Current, Universal-Clamp
Terminal Blocks
Ordering Information
One pole terminal blocks
Molex Part Number
2016060610
Engineering Number*
MX-KE61
Wire Type
Cu
AI
Cu
AI
Cu
AI
Cu
AI
Wire Gauge (AWG)
1/0 to 6
Maximum Voltage
600
Maximum Amperage
150
120
230
180
285
230
380
310
Tightening Torque
in In/Lbs
90 (10Nm)
2016060620
MX-KE62
4/0 to 4
600
126 (14Nm)
2016060630
MX-KE63
300 MCM to 2
600
216 (24Nm)
2016060640
MX-KE64
500 MCM to 3/0
600
360 (40Nm)
Tapping terminal blocks (Single pole, four connections)
Molex Part Number
2016060660
Engineering Number*
MX-KE66
Wire Type
Cu
AI
Cu
AI
Cu
AI
Cu
AI
Wire Gauge (AWG)
1/0 to 6
Maximum Voltage
600
Maximum Amperage
150
120
230
180
285
230
380
310
Tightening Torque
in In/Lbs
90 (10Nm)
2016060670
MX-KE67
4/0 to 4
600
126 (14Nm)
2016060680
MX-KE68
300 MCM to 2
600
216 (24Nm)
2016060690
MX-KE69
500 MCM to 3/0
600
360 (40Nm)
One pole terminal blocks, 1000V rated
Molex Part Number
2016061610
Engineering Number*
MX-KE161
Wire Type
Cu
AI
Cu
AI
Cu
AI
Wire Gauge (AWG)
1/0 to 6
Maximum Voltage
1000
Maximum Amperage
150
120
230
180
285
230
Tightening Torque
in In/Lbs
90 (10Nm)
2016061620
MX-KE162
4/0 to 4
1000
126 (14Nm)
2016061630
MX-KE163
300 MCM to 2
1000
216 (24Nm)
*Standard color is grey. For optional colors, replace the last digit of Molex part number (zero) with: 2 (blue) or 3 (yellow/green).
Three pole terminal blocks
Molex Part Number
2016066163
Engineering Number
MX-KE61.03
Wire Type
Cu
AI
Wire Gauge (AWG)
1/0 – 6
Maximum Voltage
600
Maximum Amperage
150
120
Tightening Torque
in In/Lbs
90 (10Nm)
www.molex.com/link/hcucterminalblocks.html
Molex is a registered trademark of Molex, LLC in the United States of America and may be registered in other countries; all other trademarks listed herein belong to their respective owners.
