SFH11-NPPC-D17-ST-BK datasheet, PDF

Datasheet> All Categories > The connector> SFH11-NPPC-D17-ST-BK

SFH11-NPPC-D17-ST-BK: DescriptionCONN HEADER .100" 34POS; CategoryThe connector; File Size282KB，1 Pages; ManufacturerSullins Connector Solutions; Environmental Compliance

Download Datasheet Parametric Compare View All

SFH11-NPPC-D17-ST-BK Overview

CONN HEADER .100" 34POS

SFH11-NPPC-D17-ST-BK Parametric

Parameter Name	Attribute value
Connector type	Connector
Contact type	female socket
style	board to board
Number of pins	34
Number of pins loaded	all
Spacing - Mating	0.100"（2.54mm）
Number of rows	2
Line spacing - patching	0.100"（2.54mm）
Installation type	Through hole
Termination	welding
Fastening type	push-pull
Contact surface treatment - mating	gold
Contact Surface Treatment Thickness - Mating	flash memory
Insulation color	black
Insulation height	0.335"（8.51mm）
Contact length - terminal	0.126"（3.20mm）
Operating temperature	-40°C ~ 105°C
Material flammability rating	UL94 V-0
Contact Surface Preparation - Column	gold
Joint stack height	-
Intrusion protection	-
characteristic	Electrode markings
Rated current	3A
Rated voltage	-
application	-
Insulation Materials	Polyamide (PA), nylon
Contact shape	Square
Contact material	Phosphor bronze
Contact Surface Treatment Thickness - Column	flash memory

Preview

Download Datasheet

View All

REVISIONS

REV.

ECO. NO

2915

2835

3004

3219

DESCRIPTION

ADD 'N' MATERIAL OPTION & UPDATE NOTES

UPGRADE INSULATOR MATERIAL NYLON 9T(WAS

NYLON 6T)

UPDATE TOLERANCE FOR 'B' DIMENSION

UPDATE INSULATOR COLOR OPTIONS, ADD ROW

SPACING DIM

DATE

2/6/2014

04/07/2014

06/27/2014

05/12/2015

LH/MG

+.000 +0.00

B - .008 - 0.20

.236 6.00

.100 2.54

.039 1.00

.146 3.70

.106 2.70

.248 6.29

.276 7.00

.335 8.50

.126 3.20

.100 2.54

.024 0.60

.100 2.54

.016 0.40

.040 1.02

.100 2.54

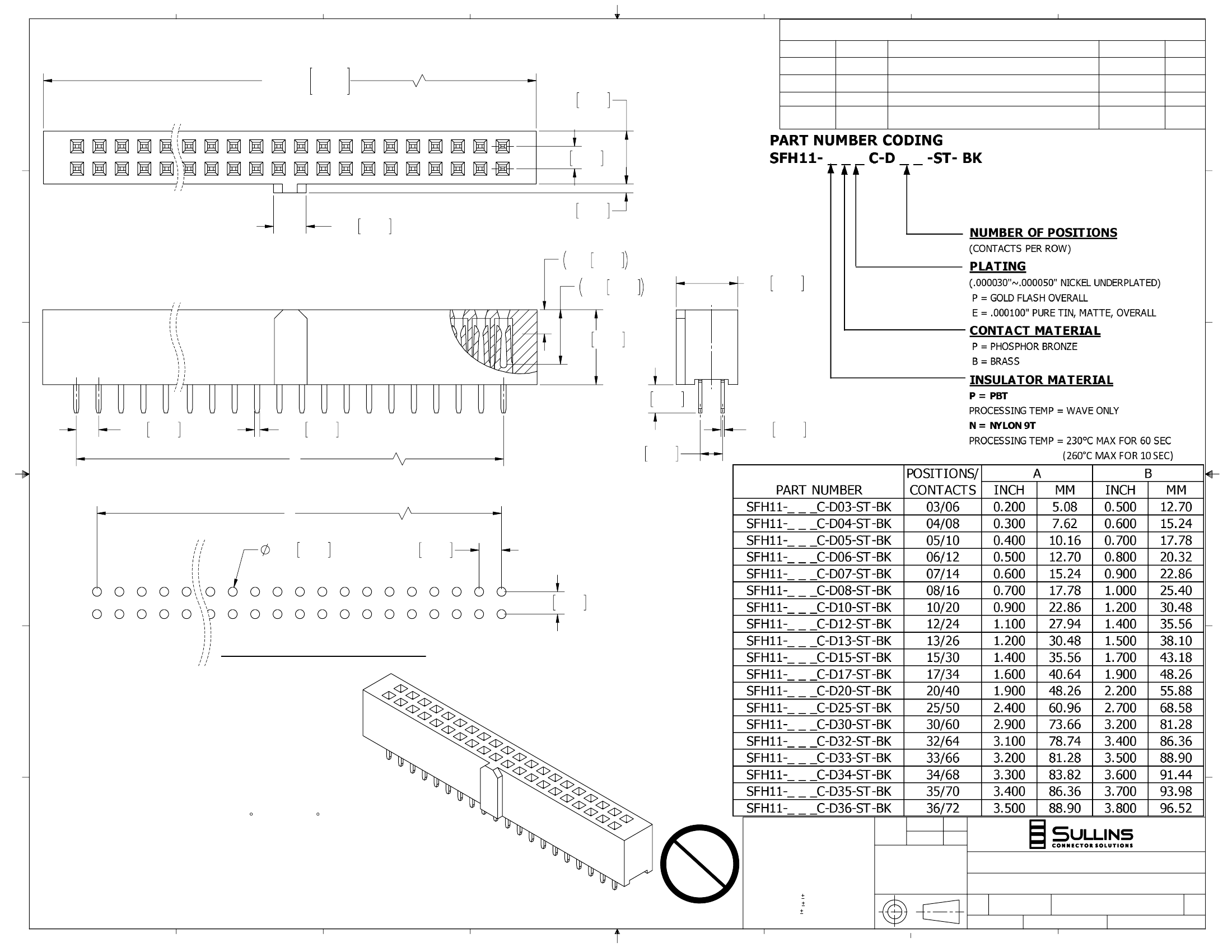

RECOMMENDED PCB LAYOUT

NOTES:

1. INSULATOR MATERIAL: SEE PART NUMBER CODING

2. CONTACT MATERIAL: SEE PART NUMBER CODING

3. PLATING: SEE PART NUMBER CODING

4. CONTACT RESISTANCE: 20m OHMS MAX.

5. OPERATING TEMPERATURE: -40 C TO +105 C

6. UL FLAMMABILITY RATING: 94V-0

7. CURRENT RATING: 3 AMPS

8. INSULATOR RESISTANCE: 5000M OHMS MIN.

9. DIELECTRIC WITHSTANDING: 1000 VAC

10. PROCESSING TEMP.: SEE PART NUMBER CODING

11. MATES WITH SBH11 SERIES

12. FOR PCB CONNECTOR

RoHS

COMPLIANT

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN INCHES [MM]

TOLERANCES:

ANGULAR:

DECIMALS

.XX= .012 [.3]

.XXX= .008 [.20]

.XXXX= .0040 [.100]

DRAWN

DATE

11/3/2008

NAME

TITLE

THE INFORMATION HEREIN CONTAINS

PROPIETARY INFORMATION OF

SULLINS ELECTRONICS AND IS NOT

TO BE REPRODUCED, USED OR

DISCLOSED TO OTHERS FOR ANY

PURPOSE EXCEPT AS SPECIFICALLY

AUTHORIZED IN WRITING BY AN

OFFICER OF SULLINS ELECTRONICS.

PART NUMBER

SIZE

HEADER FEMALE, .100[2.54] CC, ST

CAGE CODE

SFH11-_ _ _C-D_ _-ST-BK

DWG. NO.

SCALE: 2:1

54453

11160

REV

SHEET 1 OF 1

FILE NAME: 11160, SFH11-_ _ _C-D_ _-ST-BK

SFH11-NPPC-D17-ST-BK Related Products

	SFH11-NPPC-D17-ST-BK	SFH11-NBPC-D05-ST-BK	SFH11-NBPC-D30-ST-BK	SFH11-NBPC-D25-ST-BK	SFH11-NPPC-D15-ST-BK	SFH11-NPPC-D25-ST-BK	SFH11-NPPC-D05-ST-BK
Description	CONN HEADER .100" 34POS	Board Connector, 10 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator	CONN HEADER .100" 60POS	CONN HEADER .100" 50POS	CONN HEADER .100" 30POS	CONN HEADER .100" 50POS	CONN HEADER .100" 10POS
Connector type	Connector	BOARD CONNECTOR	Connector	Connector	Connector	Connector	Connector
Installation type	Through hole	BOARD	Through hole	Through hole	Through hole	Through hole	Through hole
Contact material	Phosphor bronze	BRASS	brass	brass	Phosphor bronze	Phosphor bronze	Phosphor bronze
Contact type	female socket	-	female socket	female socket	female socket	female socket	female socket
style	board to board	-	board to board	board to board	board to board	board to board	board to board
Number of pins	34	-	60	50	30	50	10
Number of pins loaded	all	-	all	all	all	all	all
Spacing - Mating	0.100"（2.54mm）	-	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）
Number of rows	2	-	2	2	2	2	2
Line spacing - patching	0.100"（2.54mm）	-	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）
Termination	welding	-	welding	welding	welding	welding	welding
Fastening type	push-pull	-	push-pull	push-pull	push-pull	push-pull	push-pull
Contact surface treatment - mating	gold	-	gold	gold	gold	gold	gold
Contact Surface Treatment Thickness - Mating	flash memory	-	flash memory	flash memory	flash memory	flash memory	flash memory
Insulation color	black	-	black	black	black	black	black
Insulation height	0.335"（8.51mm）	-	0.335"（8.51mm）	0.335"（8.51mm）	0.335"（8.51mm）	0.335"（8.51mm）	0.335"（8.51mm）
Contact length - terminal	0.126"（3.20mm）	-	0.126"（3.20mm）	0.126"（3.20mm）	0.126"（3.20mm）	0.126"（3.20mm）	0.126"（3.20mm）
Operating temperature	-40°C ~ 105°C	-	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C
Material flammability rating	UL94 V-0	-	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Contact Surface Preparation - Column	gold	-	gold	gold	gold	gold	gold
characteristic	Electrode markings	-	Electrode markings	Electrode markings	Electrode markings	Electrode markings	Electrode markings
Rated current	3A	-	3A	3A	3A	3A	3A
Insulation Materials	Polyamide (PA), nylon	-	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon
Contact shape	Square	-	Square	Square	Square	Square	Square
Contact Surface Treatment Thickness - Column	flash memory	-	flash memory	flash memory	flash memory	flash memory	flash memory
